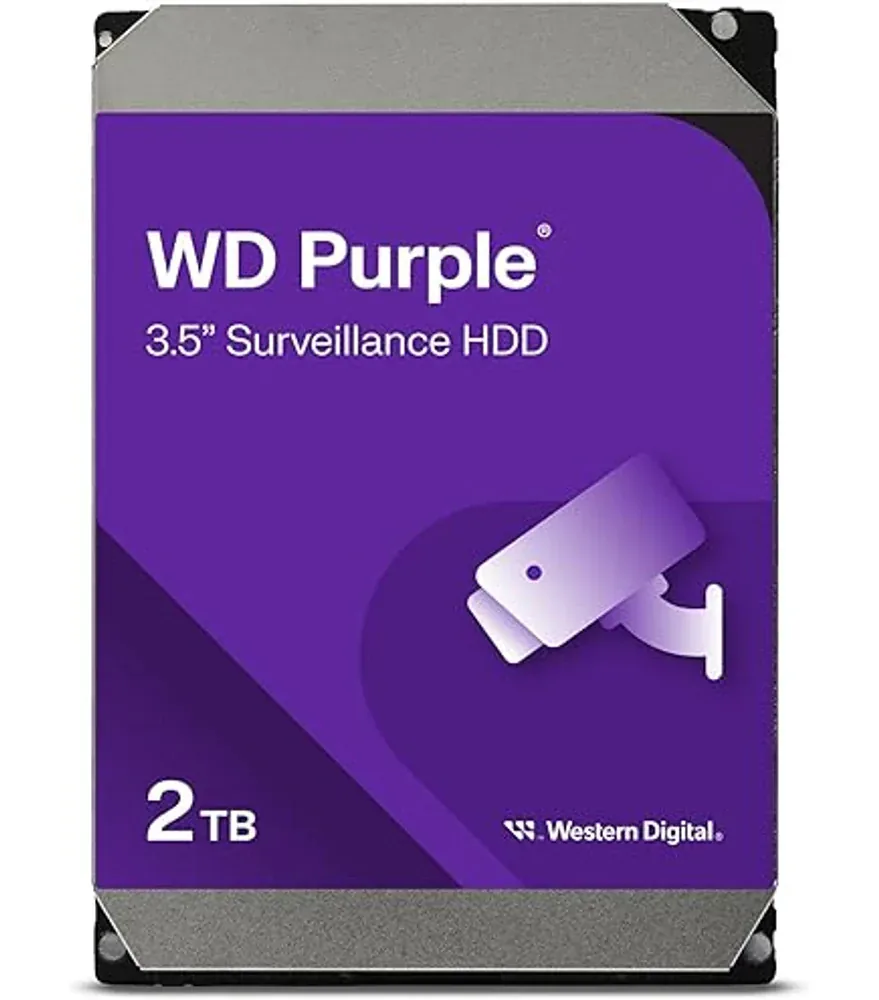

WD Purple 2TB Surveillance Hard Drive — Entry-Tier Storage for Chicago Small NVR Deployments
Model / Series: WD22PURZ
The WD Purple 2TB surveillance hard drive is purpose-built for 24/7 NVR + DVR continuous video recording with AllFrame AI technology, supporting up to 64 cameras. The entry-tier capacity for Chicago small-business + HOA single-camera-position NVR deployments — typical 30-day retention at 1080p / 4-camera builds.
We don't just ship boxes — this goes in as part of our security camera installation in Chicago work. First time working with us? Here’s why Chicago buildings pick Vidimost.
Specifications
- Brand
- Western Digital
- Model
- WD22PURZ
- Series
- WD Purple
- Type
- Surveillance-rated hard drive
- Capacity
- 2 TB
- Form Factor
- 3.5-inch SATA
- Interface
- SATA 6 Gb/s
- RPM
- 5,400 RPM (variable)
- Cache
- 64 MB+
- Workload
- Up to 180 TB/year (24/7 surveillance-grade)
- Camera Support
- Up to 64 cameras (with compatible NVR)
- Special Features
- WD AllFrame AI technology — frame-loss prevention during high-load NVR operations
- MTBF
- 1,000,000+ hours (surveillance-rated)
- Warranty
- 3 years (limited)
- Operating Temperature
- 0 °C to +65 °C
Best Fit & Recommended For
WD Purple 2TB — Entry-Tier Surveillance Hard Drive for Chicago Small NVR Deployments
The WD Purple 2TB is the entry-tier capacity in Western Digital’s WD Purple surveillance hard drive line — purpose-built for 24/7 NVR / DVR continuous video recording with AllFrame AI technology, supporting up to 64 cameras. Surveillance-grade workload of up to 180 TB/year, MTBF 1,000,000+ hours, 3-year warranty, and 0 °C to +65 °C operating temperature for rack-mounted NVR enclosures.
The 2 TB capacity is the right pick for Chicago small-business and HOA single-camera-position deployments — typical 30-day retention at 1080p / 4-camera builds with H.265 codec and motion-driven recording. For larger camera counts, longer retention, or 4K cameras, step up to 4 TB or 6 TB.
Why WD Purple Over Generic Desktop HDDs
Standard desktop hard drives are not designed for 24/7 continuous write operations. WD Purple is engineered specifically for NVR / DVR workloads:
- AllFrame AI — prevents frame loss during high-load multi-camera operations
- Surveillance-tuned firmware — optimized for continuous-write workloads
- Higher MTBF under 24/7 load vs. desktop drives
- Vibration tolerance for multi-bay NVR rack installations
- Wider operating temperature range for NVR enclosures
- Manufacturer NVR compatibility with Hanwha, Axis, Hikvision, Dahua, and other major NVRs
Generic desktop HDDs typically fail within 12–18 months of 24/7 NVR use. Surveillance-grade WD Purple drives last 3–5+ years at the same workload.
Capacity Sizing for Chicago Deployments
Match drive capacity to camera count + retention requirement:
| Capacity | Best fit | Typical NVR + camera | Retention |
|---|---|---|---|
| 2 TB (this) | Small-business 4 cameras | ARN-410S at 1080p | 30 days |
| 4 TB | Small-business 8 cameras | ARN-810S at 1080p | 30 days |
| 6 TB | HOA 8 cameras at 4K | ARN-810S at 4K | 30 days |
| 10 TB | Mid-business 16 cameras | ARN-1610S | 30+ days |
| 14 TB | Mid-business extended | QRN-1630S | 60+ days |
| 18 TB | Enterprise / federal | XRN-3220B2 | 60+ days |
| 22 TB | Enterprise max | XRN-6420B2 | 90+ days |
Where the WD Purple 2TB Wins in Chicago
- Chicago small-business NVR deployments at 4-camera scale (1080p / 30-day retention)
- HOA single-building NVR with 4-camera coverage at Chicago HOAs
- Single-entrance condo / co-op NVR deployments
- Restaurant + hospitality 4-camera coverage at neighborhood venues
- Small medical / dental clinic NVR
- Auto repair / body shop NVR
- Self-storage office NVR
- Phased upgrade entry tier
- Like-for-like replacement of failed 2 TB surveillance drives
Local Chicago Coverage
Vidimost installs WD Purple drives across the full city of Chicago — downtown Loop to the neighborhood corridors.
Recommended NVR Pairings
- Hanwha ARN-410S — 4-channel NVR
- Hanwha ARN-810S — 8-channel NVR
Cross-Brand Alternative
- Seagate SkyHawk 4TB — comparable surveillance drive at 4 TB capacity (no 2 TB SkyHawk option)
Professional Installation by Vidimost
Vidimost LLC recommends and installs surveillance-grade hard drives across Chicago. The WD Purple 2 TB is our entry-tier pick for small-business + HOA NVR projects. Full-scope service includes site walkthrough, retention planning, drive sizing per camera count + codec + frame rate, NVR drive installation, RAID configuration if specified, and operator training. Contact us for a free site walkthrough and quote.
