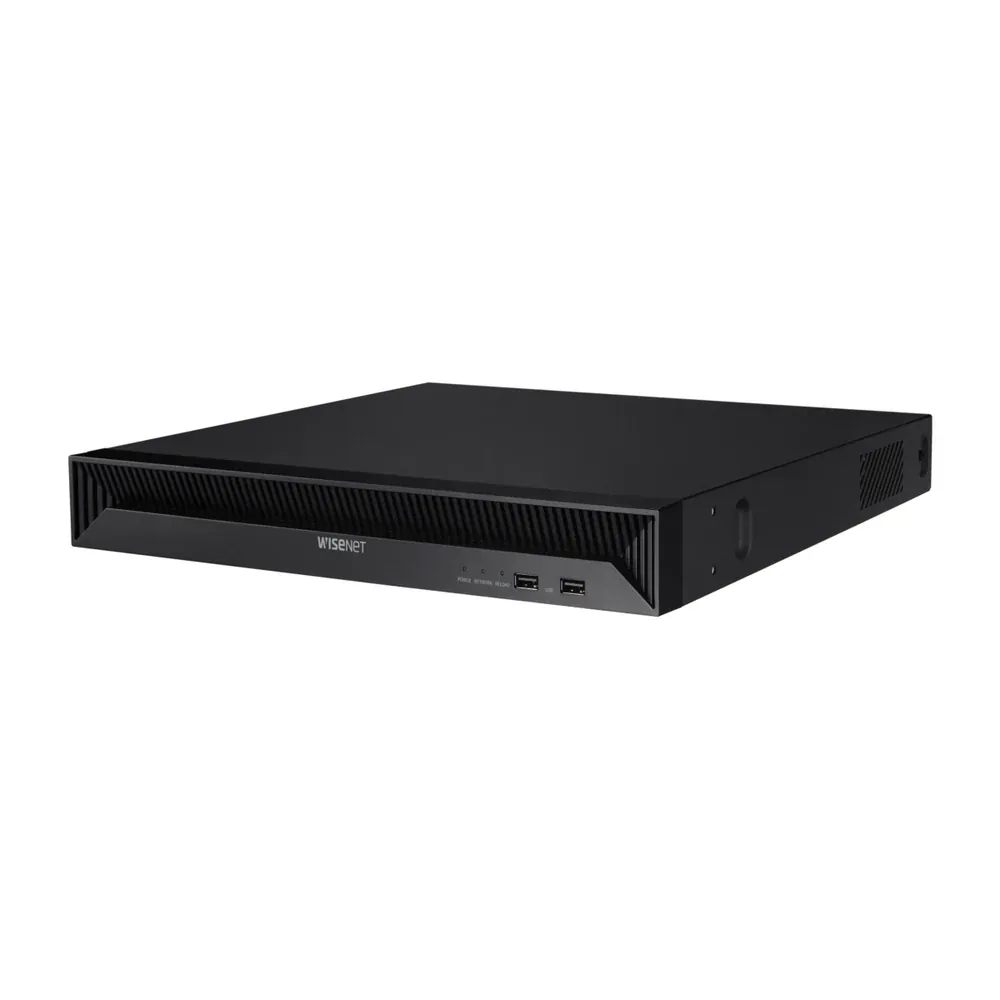

Hanwha QRN-1630S 16-Channel Wisenet Q-Series NVR with 16 PoE+ Ports + 128 Mbps + Dual 20 TB HDD Bays

Hanwha QRN-1630S — 16-Channel Wisenet Q-Series NVR with 128 Mbps + Dual 20 TB HDD Bays

The Hanwha QRN-1630S is a 16-channel Wisenet Q-series NVR from Hanwha Vision — featuring 16 built-in PoE+ ports, up to 8 MP per channel, H.265 / H.264 / MJPEG codec support, 128 Mbps total recording bandwidth, 2 SATA HDD bays up to 20 TB each (40 TB total), HDMI + VGA video output, NDAA Section 889 + TAA compliance, and Hanwha cybersecurity posture. The mid-tier Chicago commercial NVR — handles 16-camera deployments with extended-retention storage at HOAs, mid-business retail, professional offices, banking, healthcare, and multi-position commercial properties.

Q-Series vs. A-Series — When the QRN-1630S Is the Right Pick

The 16-channel A-series ARN-1610S and the 16-channel Q-series QRN-1630S have the same channel count (16) and the same PoE port count (16). The differences matter when storage retention or bandwidth is the binding constraint:

Feature	ARN-1610S (A-series)	QRN-1630S (this)
Channels	16	16
PoE ports	16 (total 130 W)	16
Recording bandwidth	80 Mbps	128 Mbps
HDD capacity	2 × 6 TB = 12 TB max	2 × 20 TB = 40 TB max
Best fit	Standard mid-business at modest retention	Extended retention (60+ days), higher bitrate, mid-business with insurance / audit / regulatory needs

Pick the QRN-1630S when the project needs:

• Higher per-camera bitrate at 16 cameras (e.g. 8 Mbps × 16 = 128 Mbps — exactly the QRN-1630S ceiling)
• Future expansion headroom without HDD replacement (20 TB drives last longer than 6 TB drives)

Pick the ARN-1610S when standard 30-day retention is enough and the project is cost-sensitive.

Wisenet Q vs. X — When to Step Up

Feature	QRN-1630S (this)	XRN-820S	XRN-3220B2	XRN-6420B2
Channels	16	8	32	64
AI search	Standard search	Wisenet AI search by attribute	Wisenet AI search	Wisenet AI search
HDD bays	2	4	8 (up to 80 TB)	8 (up to 80 TB)
Best fit	Mid-business retention	8-camera AI projects	32-camera enterprise AI	64-camera flagship AI

Step up to X-series when AI search by attribute (Person / Face / Vehicle / License Plate) across recorded video is required — typical for federal facilities, premium commercial retail forensic search, healthcare incident review, and education campus-wide search.

Where the QRN-1630S Wins in Chicago

• Chicago HOA full-building coverage with 60+ day extended retention — Wilmette, Glencoe, Highland Park, Schaumburg, Hoffman Estates, Naperville, Wheaton, Oak Brook
• Multi-tenant residential with audit-trail retention requirements — Loop high-rises, River North, Mag Mile
• Mid-business retail with 16 cameras + long retention — neighborhood retail chains, shopping-center anchor tenants
• Property management mid-size buildings with insurance / audit retention requirements
• Healthcare clinic full-property coverage with HIPAA-aligned retention
• Professional services offices with conference / meeting-room recording retention
• Education facility coverage with multi-week retention for incident review
• Self-storage facility with extended retention across multi-zone gates + driveways + perimeter
• Industrial / warehouse small-mid operations with multi-week retention

Local Chicago Coverage

Vidimost installs the QRN-1630S across the full city of Chicago — downtown Loop to the neighborhood corridors.

Recommended Camera Pairings

Pair the QRN-1630S with Hanwha Q-series and P-series cameras for premium-mid commercial builds:

• Hanwha QNV-8080R — 5MP outdoor vandal dome with IR (Q-series)
• Hanwha PNO-A9081R — 4K AI bullet for premium long-range positions
• Hanwha ANV-L7082R — 4MP A-series outdoor vandal dome
• Hanwha ACE-8020R — 5MP A-series turret

Storage Planning at 40 TB Maximum

• 2 × 20 TB HDD = 40 TB total maximum pairing — supports 60–90+ day continuous 16-camera 8MP H.265 recording at typical bitrates
• WD Purple Pro or Seagate SkyHawk AI drives recommended at the 18–22 TB tier for 24/7 reliability under high write load
• Pair with a UPS for power-loss protection — critical at this storage scale where rebuild times are long
• Consider RAID for redundancy at this storage scale — see Hanwha Wisenet Wave architecture for advanced storage configurations

Professional Installation by Vidimost

Vidimost LLC is an active Hanwha Vision installer across Chicago. The QRN-1630S is one of our standard mid-tier NVR picks for HOA full-coverage with extended retention, mid-business retail, banking, healthcare, education, and property-management projects across Chicago. Full-scope service includes site walkthrough, channel + storage retention planning (30 / 60 / 90 / 180 day), network design, mounting (shelf, lockbox, 1U rack-mount kit), Cat6 cable runs to all 16 camera positions, NVR commissioning, Wisenet Mobile / Wisenet Viewer setup, motion zone tuning per scene, recording schedule + retention configuration, and operator training. Contact us for a free site walkthrough and quote.
