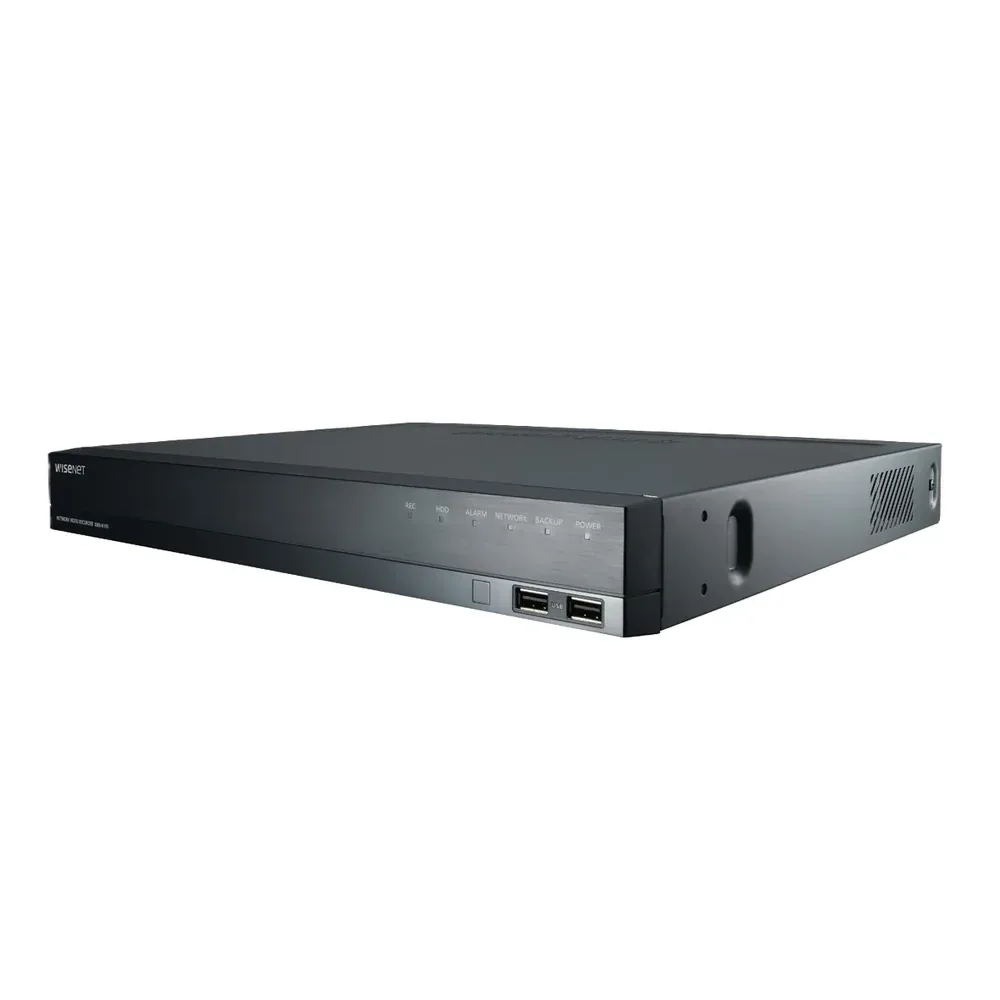

Hanwha XRN-820S 8-Channel Wisenet X-Series Flagship NVR with Wisenet AI Search + 32 MP per Channel

Hanwha XRN-820S — 8-Channel Wisenet X-Series Flagship NVR with AI Search

The Hanwha XRN-820S is an 8-channel Wisenet X-series flagship NVR from Hanwha Vision — featuring up to 32 MP per channel, 100 Mbps total recording bandwidth, H.265 / H.264 / MJPEG codec support, multiple SATA HDD bays for extended-retention surveillance recording, dynamic event support, full Wisenet AI search across recorded video (Person / Face / Vehicle / License Plate by attribute when paired with Wisenet AI cameras), Hanwha cybersecurity posture, and NDAA Section 889 + TAA compliance. The premium 8-camera pick — for storefronts, clinics, and offices where searching footage after an incident matters more than raw camera count.

Why X-Series — Wisenet AI Search Across Recorded Video

The defining X-series capability is AI search across recorded video — when paired with Wisenet AI cameras, the NVR can search recorded footage by:

• Person — find every appearance of a person across recorded video
• Face — face-attribute search (gender, age range, presence of accessories)
• Vehicle — vehicle-attribute search (color, type — sedan / SUV / truck / van)
• License Plate — text search by partial or full plate number

For Chicago projects where post-event search drives the value of recorded video — storefront theft review, back-door delivery disputes, garage hit-and-runs, retail loss-prevention — AI search is the differentiator. Standard NVRs require operators to manually scrub through hours of footage; AI search returns matches in seconds.

When to Choose the XRN-820S vs. Sibling Recorders

Need	QRN-1630S	XRN-820S (this)	XRN-3220B2	XRN-6420B2
Channels	16	8	32	64
AI search	Standard	Wisenet AI	Wisenet AI	Wisenet AI
Bandwidth	128 Mbps	100 Mbps	520 Mbps	520 Mbps
Max camera res	8 MP	32 MP	32 MP	32 MP
Best fit	Mid-business retention	8-camera AI flagship	32-camera AI builds	64-camera max scale

The XRN-820S is the right pick when AI search matters AND camera count is 8 — typical for premium small commercial projects where each camera is forensic-grade.

Where the XRN-820S Wins in Chicago

• Storefront retail — entry, register, floor, and back door, each searchable by person or plate
• Dental and medical clinics — waiting room, entries, and parking with attribute search across recorded video
• Small offices — reception, conference, corridor, and entry on 8 channels
• Boutique hotels — front desk, entrances, and corridors on one compact recorder
• Cafés and restaurants — register, dining floor, kitchen door, and alley entrance
• Condo buildings — lobby, package room, and garage entrance

Local Chicago Coverage

Vidimost installs the XRN-820S across the full city of Chicago — downtown Loop to the neighborhood corridors.

Recommended Camera Pairings — AI Search Requires Wisenet AI Cameras

To get Wisenet AI search across recorded video, the XRN-820S must be paired with Wisenet AI cameras that perform on-camera AI metadata extraction:

• Hanwha PNO-A9081R — 4K AI bullet (Wisenet 7 + AI Object Detection: Person / Face / Vehicle / License Plate with attribute search + CloudConnector)
• Hanwha XNV-A9084R — Wisenet X-series AI vandal dome
• Hanwha QND-A8083RV — 5MP A-series AI vandal dome (NDAA + AI for budget-tier AI builds)

Standard non-AI cameras work on the XRN-820S — they’re recorded normally — but AI search is only available for cameras that supply AI metadata.

Storage Planning

• Multi-bay SATA — typical 4-bay configuration with 8–18 TB drives per bay for 60–180 day retention at 8 cameras / 4K / H.265
• WD Purple Pro or Seagate SkyHawk AI drives recommended for 24/7 reliability under continuous AI metadata write load
• Pair with a UPS for power-loss protection
• Consider RAID for redundancy at this storage tier

Professional Installation by Vidimost

Most 8-camera systems never get their footage watched until something happens — this one lets you type in “white SUV” instead of scrubbing a whole weekend of video. Vidimost LLC is an active Hanwha Vision installer across Chicago, and the XRN-820S is our flagship 8-camera AI pick for storefronts, clinics, and offices. Full-scope service includes site walkthrough, channel + AI camera planning, network design, mounting (1U rack-mount or shelf), Cat6 cable runs, NVR commissioning, Wisenet AI search configuration + attribute index setup, Wisenet Mobile / Wisenet Viewer setup, motion zone tuning per scene, recording schedule + retention configuration, and operator training. Contact us for a free site walkthrough and quote.
