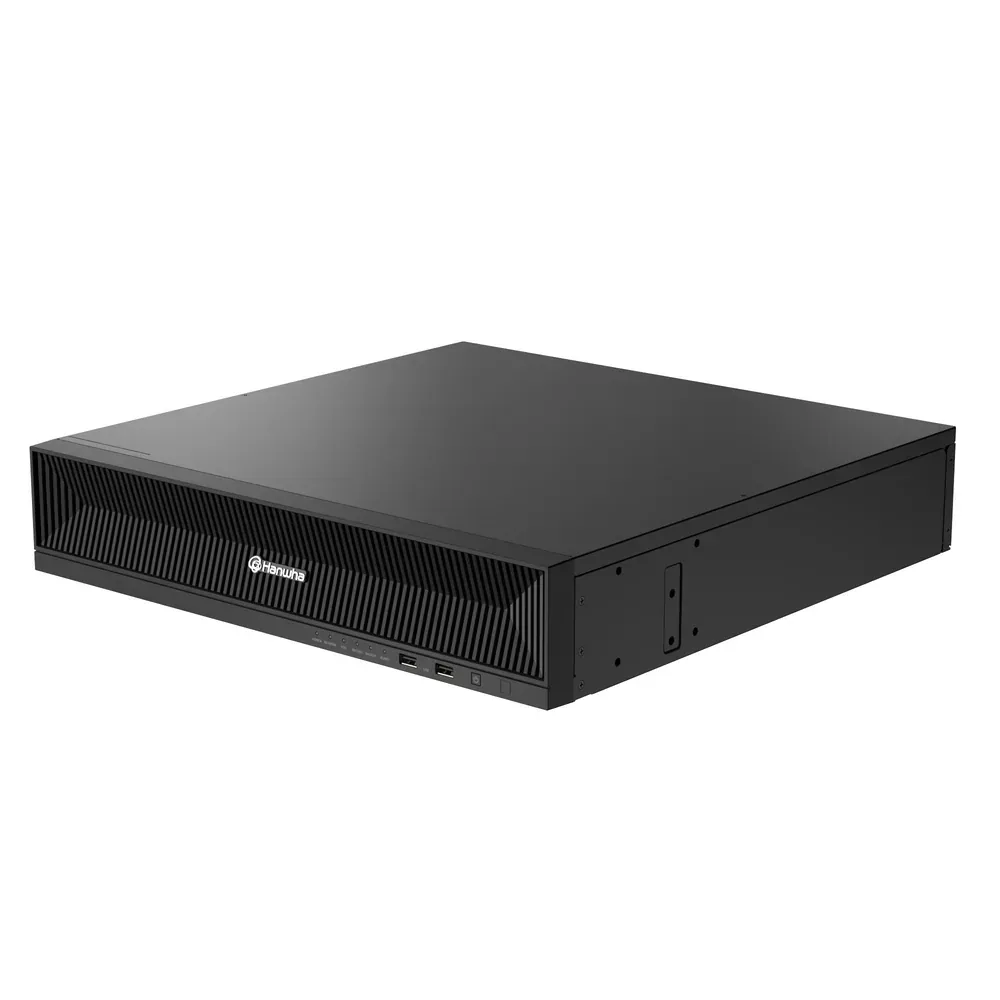

Hanwha XRN-3220B2 32-Channel Wisenet X-Series Enterprise NVR with 8 HDD Bays + AI Search

Hanwha XRN-3220B2 — 32-Channel Wisenet X-Series Enterprise NVR with AI Search

The Hanwha XRN-3220B2 is a 32-channel Wisenet X-series enterprise NVR from Hanwha Vision — featuring up to 32 MP per channel, 520 Mbps total recording bandwidth, H.265 / H.264 codec support, 8 SATA HDD bays up to 80 TB total, full Wisenet AI search across recorded video (Person / Face / Vehicle / License Plate by attribute when paired with Wisenet AI cameras), dynamic event support, Hanwha cybersecurity posture, and NDAA Section 889 + TAA compliance. This is the recorder we spec once a building crosses 16 cameras — large condo towers, warehouses, dealership lots, and property-management portfolios that want AI search on every channel. Built on the B2 (generation 2) chassis with enterprise-class processing and storage capacity.

Why a 32-Channel NVR

When camera count goes past 16 — typical for large condo buildings, warehouses, dealership lots, and multi-building properties — a single 32-channel NVR is preferable to two 16-channel units:

• Single point of access for operators and incident review
• Single AI search across the full camera fleet (no cross-NVR federation)
• Simpler retention management — one storage pool, one schedule
• Lower per-channel rack space — one 2U chassis vs. two separate 1U units
• Shared CPU + memory for AI search performance vs. split processing
• Single cybersecurity posture — one Hanwha-signed firmware boundary

The XRN-3220B2 delivers all of this in a B2-chassis package with 80 TB raw storage capacity for extended retention.

When to Choose the XRN-3220B2 vs. Sibling X-Series

Need	XRN-820S	XRN-3220B2 (this)	XRN-6420B2
Channels	8	32	64
HDD bays	Multi-bay	8 (up to 80 TB)	8 (up to 80 TB)
Bandwidth	100 Mbps	520 Mbps	520 Mbps
AI search	Wisenet AI	Wisenet AI	Wisenet AI
Best fit	Premium 8-camera AI	32-camera AI builds	64-camera max scale

Pick the XRN-3220B2 at the 17–32 camera scale where AI search and reliability matter. Step up to the XRN-6420B2 when camera count exceeds 32 (multi-building portfolios, large distribution warehouses).

Where the XRN-3220B2 Wins in Chicago

• Warehouses and distribution buildings — docks, aisles, yard, and office on one recorder
• Large condo and apartment towers — lobby, garage, and every common area with channels to spare
• Car dealerships — lot rows, showroom, service bays, and the parts cage
• Parking garages — a camera per level plus entries and pay stations
• Property management portfolios — one recorder model across the whole building list
• Mixed-use and large retail buildings past the point where a 16-channel box runs out

Local Chicago Coverage

Vidimost installs the XRN-3220B2 across the full city of Chicago — downtown Loop to the neighborhood corridors.

Recommended Camera Pairings — AI Search Requires Wisenet AI Cameras

To get Wisenet AI search across the full 32-channel fleet:

• Hanwha PNO-A9081R — 4K AI bullet (Wisenet 7 + AI Object Detection + CloudConnector)
• Hanwha XNV-A9084R — X-series AI vandal dome
• Hanwha PNM-C12083RVD — multi-sensor AI panoramic
• Hanwha QND-A8083RV — 5MP AI vandal dome (mid-tier AI for general positions)

For greenfield 32-camera projects mixing premium AI positions with general coverage, plan: 8–12 premium AI cameras (PNO-A9081R, XNV-A9084R) at forensic-critical positions + 20–24 general AI cameras (QND-A8083RV) at standard coverage positions. All on the same XRN-3220B2.

Storage Planning at 80 TB

• 8 × 10 TB HDD = 80 TB typical baseline — supports 60+ day continuous 32-camera 8MP H.265 recording with AI metadata
• WD Purple Pro or Seagate SkyHawk AI drives recommended at 16–22 TB tier for 24/7 reliability under high write load + AI metadata
• RAID configuration typical at this storage scale for redundancy
• Pair with a solid UPS — extended runtime for graceful shutdown during prolonged outages

Professional Installation by Vidimost

Vidimost LLC is an active Hanwha Vision installer across Chicago. The XRN-3220B2 is our pick when a warehouse or a big condo building crosses 16 cameras and the client wants AI search across all of them. Full-scope service includes site walkthrough, channel + AI camera planning, network design (Gigabit + 10 GbE option), 2U rack-mount installation in conditioned space, structured cabling to all 32 camera positions, NVR commissioning, Wisenet AI search configuration + attribute index setup across all cameras, Wisenet Mobile / Wisenet Viewer setup, motion zone tuning, recording schedule + retention configuration, RAID setup if specified, and operator + admin training. Contact us for a free site walkthrough and quote.
