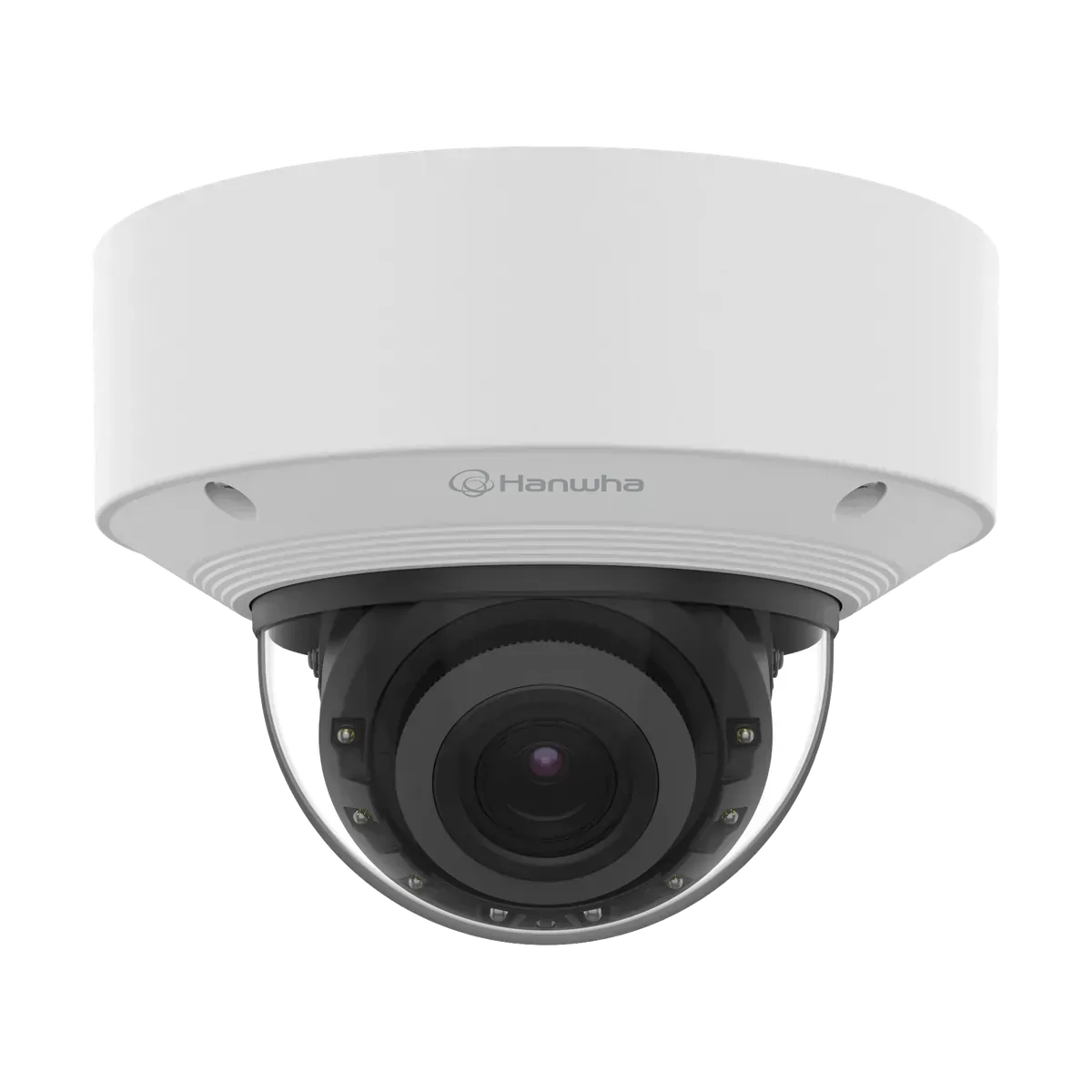

Hanwha XNV-A9084R 4K AI Cloud-Ready Outdoor Vandal Dome — FIPS-Certified Edge AI for Chicago
Model / Series: XNV-A9084R
4K AI outdoor vandal dome with a fast F1.3 lens and 50 m IR — long-throw perimeter coverage that stays in color after dark.
$1,650 MSRP · equipment only
Sold by order — most of these go in as part of an install, but we'll sell the hardware outright too. Availability, lead times, and project pricing: ask our manager when you request a quote.
We don't just ship boxes — this goes in as part of our security camera installation in Chicago work. First time working with us? Here’s why Chicago buildings pick Vidimost.
Specifications
- SKU / Part Number
- XNV-A9084R
- Brand
- Hanwha Vision
- Model
- XNV-A9084R
- Series
- Wisenet X (AI)
- Camera Type
- IP outdoor IR vandal dome with Edge AI and cloud-ready capability
- Image Sensor
- 1/1.8" CMOS
- Resolution
- 4K / 8MP (3840 × 2160)
- Max Frame Rate
- 30 fps / 25 fps (60 Hz / 50 Hz) at H.265 / H.264
- Lens
- 4.4–9.3 mm motorized varifocal (2.1× optical zoom), P-iris
- Aperture
- F1.3 (wide) – F2.15 (tele) — fast aperture for low-light
- Field of View (Wide)
- Horizontal 113° / Vertical 58° / Diagonal 138°
- Field of View (Tele)
- Horizontal 47° / Vertical 26° / Diagonal 54°
- Day/Night
- Auto (mechanical IR cut filter / ICR)
- Minimum Illumination (Color)
- 0.04 lux (F1.3, 1/30 s)
- Minimum Illumination (B/W)
- 0.004 lux / 0 lux (IR LED on)
- WDR
- 120 dB
- IR Illumination
- Built-in 850 nm IR LED — viewable distance up to 50 m (164 ft)
- Video Compression
- H.265 / H.264 (Main / Baseline / High) / MJPEG with WiseStream (AI engine-based)
- Edge AI Analytics
- Deep-learning object classification — Person / Face / Vehicle (car/bus/truck/motorcycle/bicycle) / License plate
- AI Attribute Search
- Person (gender, clothing color, bag), Face (age, gender, mask, glasses), Vehicle (type, color)
- Additional Analytics
- Motion detection, Object detection, Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit/Appear/Disappear), Slip & fall detection, People / Vehicle / Crowd counting, Queue management, Heatmap, Dynamic Privacy Masking
- Hallway View
- Supported (90° / 270° rotation)
- Audio
- Mic in / line in selectable, line out
- Alarm I/O
- 2 configurable I/O ports
- Network
- Metal-shielded RJ-45 (10/100 BASE-T)
- ONVIF
- Profile S, Profile G, Profile T, Profile M (AI metadata)
- Edge Storage
- microSD / SDHC / SDXC up to 1 TB (1 slot)
- Cloud Compatibility
- CloudConnector (v_WN9) — HealthPro and OnCloud cloud platforms
- Cybersecurity Certifications
- FIPS 140-3 Level 3, Common Criteria EAL6+
- Power Input
- PoE (IEEE 802.3af, Class 3)
- Power Consumption
- Max 11.2 W, typical 8.4 W
- Operating Temperature
- −40 °C to +50 °C (−40 °F to +122 °F)
- Environmental Protection
- IP66 / IP67 (weatherproof, immersion-resistant)
- Impact Resistance
- IK10 (vandal-resistant)
- NEMA Rating
- NEMA 4X (corrosion-resistant outdoor enclosure)
- Dimensions
- Ø 160 × 118 mm (Ø 6.30 × 4.65 in)
- Weight
- 1,220 g (2.69 lb)
- TAA / NDAA Compliance
- TAA-compliant variant: XNV-A9084R/KEX
Best Fit & Recommended For
Hanwha XNV-A9084R — 4K Edge AI Cloud-Ready Outdoor Vandal Dome with FIPS-Certified Cybersecurity
The Hanwha XNV-A9084R is a flagship-tier 4K (8MP) Edge AI vandal dome camera from Hanwha Vision’s Wisenet X series — the premium platform Hanwha builds for performance-critical and security-conscious surveillance positions. The XNV-A9084R combines on-camera deep-learning AI analytics, CloudConnector cloud-ready capability (HealthPro / OnCloud), exceptional low-light performance via a fast F1.3 lens and 1/1.8” CMOS sensor, 50 m IR reach, and FIPS 140-3 Level 3 + Common Criteria EAL6+ cybersecurity certifications — making it one of the strongest outdoor camera options for security-conscious commercial installations in Chicago.
For Chicago projects where the camera position genuinely needs premium-tier capabilities — gated-community entries, warehouse perimeters, retail parking lots, multi-site portfolios moving to cloud-direct architecture — the XNV-A9084R is the right specification.
⭐ Cloud Ready — Multi-Site Architecture Made Simple
The XNV-A9084R is one of relatively few outdoor cameras with native cloud-direct capability via Hanwha’s CloudConnector framework (firmware version v_WN9). The camera connects directly to Hanwha’s cloud partner platforms — HealthPro and OnCloud — for video, AI metadata, and analytics-event delivery without requiring an on-premise NVR at every site.
Why this matters for Chicago property portfolios:
- Multi-site management — property managers running 20+ buildings, retail owners with several locations, and restaurant groups can manage all cameras from one cloud account
- No on-premise NVR per site — eliminates a major service-call category and capital-equipment line per location
- Faster deployment — install the camera, register to the cloud account, scene online in minutes
- AI analytics at portfolio scale — search across all sites simultaneously, not per-site
Cloud-direct camera architecture is the direction commercial surveillance is heading. The XNV-A9084R lets you build that architecture today on premium hardware with the cybersecurity certifications strict specs require.
FIPS 140-3 Level 3 + CC EAL6+ Cybersecurity
The XNV-A9084R is one of the few commercial surveillance cameras certified to FIPS 140-3 Level 3 (the U.S. cryptographic-module standard) and Common Criteria EAL6+ (international cybersecurity certification). These certifications mean the camera’s cryptographic implementation, identity authentication, and operational security have been independently tested against the standard.
Why this matters:
- Consultant-written bid specs — FIPS certification is a pass/fail line on a growing share of them
- Insurance and audit requirements — hardened, certified hardware simplifies the paperwork
- Tenant IT departments — cameras on a building network get vetted like any other device
For most commercial Chicago projects this is over-spec. For projects with serious cybersecurity requirements, this is the critical differentiator from cheaper outdoor domes.
Edge AI — Full Deep-Learning Suite on the Camera
The XNV-A9084R runs Hanwha’s full Edge AI deep-learning suite directly on the camera:
Object classification: Person / Face / Vehicle (car, bus, truck, motorcycle, bicycle) / License plate
Attribute search:
- Person — gender, clothing color, bag (carrying / not)
- Face — age, gender, mask (worn / not), glasses (worn / not)
- Vehicle — type, color
Specialty analytics:
- Motion detection, Object detection
- Virtual line (crossing with direction)
- Virtual area (loitering, intrusion, enter/exit, appear/disappear)
- Slip & fall detection — uniquely useful for senior housing and slip-prone Chicago winter scenes
- People / Vehicle / Crowd counting
- Queue management
- Heatmap
- Dynamic Privacy Masking — automatically masks faces or specific zones in recording
The analytics produce ONVIF Profile M metadata that integrates with VMS platforms for forensic search across long retention windows. Practical queries: “show all vehicles passing the gate between 6 PM and 6 AM with red color,” “find every face wearing a mask in the lobby last Tuesday,” “show every fall-detection event in the parking lot this month.”
Exceptional Low-Light: F1.3 Lens + 1/1.8” Sensor + 50 m IR
The XNV-A9084R combines three low-light advantages most outdoor vandal domes don’t have together:
| Spec | XNV-A9084R | Typical Wisenet Q outdoor dome |
|---|---|---|
| Lens aperture | F1.3 wide | F1.6 wide |
| Sensor size | 1/1.8” CMOS | 1/2.8” CMOS |
| IR distance | 50 m | 30 m |
| Min illumination (color) | 0.04 lux | 0.13 lux |
| Min illumination (B&W) | 0.004 lux | 0 lux (IR on) |
In practical terms, the XNV-A9084R produces clean, low-noise color footage at illumination levels where standard outdoor cameras fall back to B&W IR mode. For Chicago perimeter cameras at dusk, dawn, and overnight scenes with mixed ambient lighting, this materially improves image quality.
IP66 / IP67 / IK10 / NEMA 4X — Survives Chicago Climate and More
The XNV-A9084R has the most comprehensive environmental rating combination in this product line:
- IP66 — dust-tight, protected against powerful water jets
- IP67 — additionally rated for immersion up to 1 m for 30 minutes
- IK10 — highest impact rating (5 kg from 400 mm)
- NEMA 4X — North American corrosion resistance (salt spray, chemical atmospheres, road-salt mist)
- Operating range −40 °C to +50 °C (−40 °F to +122 °F) — wider than most cameras
For Chicago lakefront installations, parking-deck perimeters with road-salt exposure, industrial-yard cameras, and sites with tighter security requirements, this rating combination is the right specification.
Hallway View, Audio, Alarm I/O, microSD up to 1 TB
- Hallway view — 90° / 270° image rotation for narrow corridor scenes
- Audio — mic in / line in selectable, line out
- Alarm I/O — 2 configurable ports
- Edge storage — microSD / SDHC / SDXC up to 1 TB in a single slot
- Network — Metal-shielded RJ-45 (10/100), ONVIF Profile S/G/T/M (Profile M for AI metadata)
The 1 TB microSD capacity is significant for cloud-direct deployments — the camera buffers many days of 4K AI footage locally during cloud connectivity outages and resyncs when connectivity returns.
Where the XNV-A9084R Wins in Chicago Projects
This is a premium-tier camera. Per-camera cost is significantly higher than Wisenet A or Q series outdoor domes. We specify the XNV-A9084R when the position genuinely needs:
- Cloud-direct architecture — multi-site portfolios moving away from per-site NVRs
- Long-throw outdoor scenes — 50 m IR for parking lots and large perimeters
- Salt-corrosion exposure — lakefront, road-salt-exposed positions
- Slip-and-fall detection — senior housing, ice-prone winter walkways
For general outdoor coverage on cost-controlled multi-camera projects, the QNV-8080R (5MP value tier) and ANV-L7082R (4MP entry tier) remain the right picks at typical commercial property positions.
Professional Installation by Vidimost in Chicago
Vidimost LLC installs Hanwha Wisenet X-series AI cameras across the city of Chicago. The XNV-A9084R is our top-tier outdoor vandal-dome recommendation for AI-critical and cyber-hardened deployments. Our scope on a typical project includes site walkthrough and AI analytics planning, premium mounting hardware, network and PoE planning, NVR or cloud-platform setup with FIPS-aware configuration, AI deep-learning analytics tuning, attribute-search workflow setup, cybersecurity hardening (camera and network), and ongoing AI / firmware / certificate management.
Contact us for a free site walkthrough and quote.
