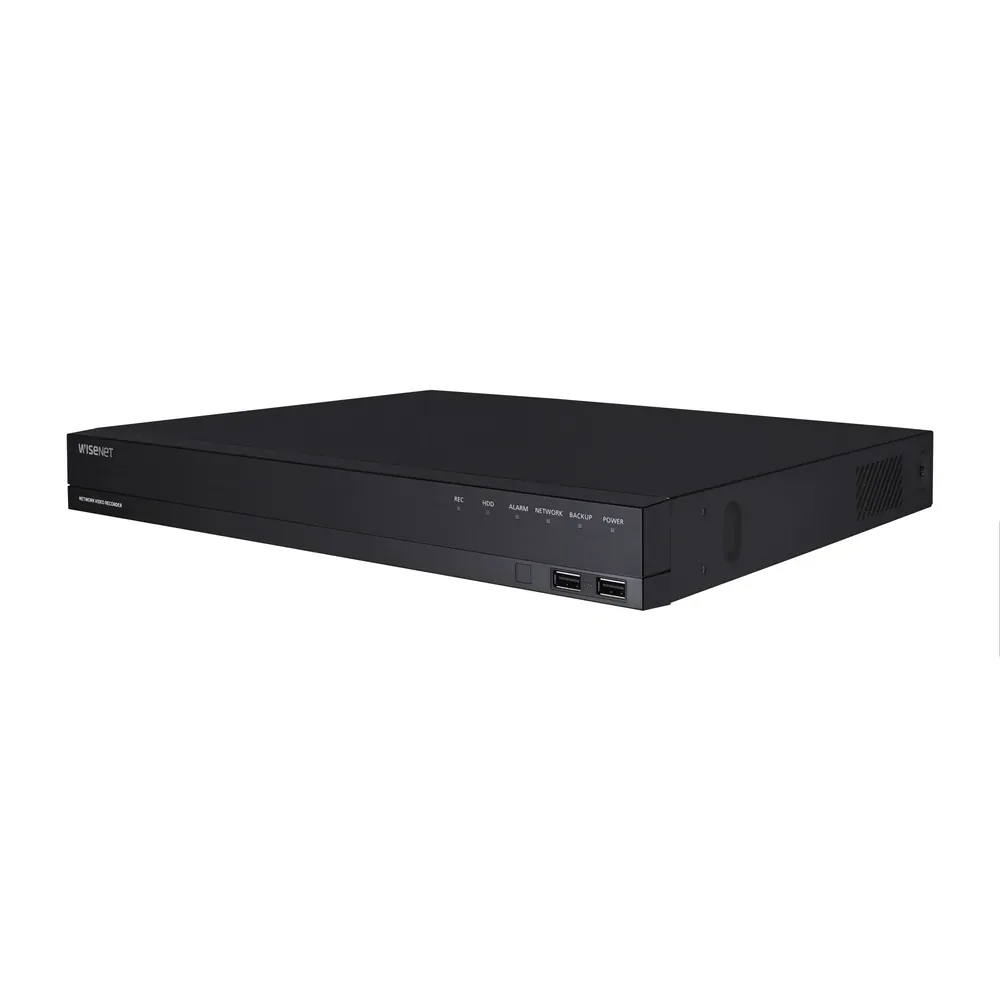

Hanwha ARN-1610S — 16-Channel Wisenet A-Series NVR with Dual HDD + Built-in PoE+

The Hanwha ARN-1610S is a 16-channel Wisenet A-series NVR from Hanwha Vision — featuring 16 built-in PoE+ ports (total 130 W budget, max 30 W per port), up to 8 MP per channel, H.265 / H.264 / MJPEG codec support, 80 Mbps total recording bandwidth, 2 SATA HDD bays up to 6 TB each (12 TB total), HDMI + VGA video output, NDAA Section 889 + TAA compliance, and Hanwha cybersecurity posture. The mid-business Chicago NVR — handles 9–16 camera deployments at full-coverage HOA buildings, mid-size retail, professional offices, and multi-position commercial properties.

Why the ARN-1610S Is the Right Fit for HOA Full-Coverage and Mid-Business

A typical Chicago HOA building or mid-size commercial property at full-camera-coverage looks like:

• Building exterior: front entry + side entries + service entry + parking-lot perimeter (4–6 cameras)
• Lobby + corridors + mailroom: main lobby + secondary lobby + corridors + mailroom + package room (3–5 cameras)
• Common areas: clubhouse / fitness room / pool / lounge (2–4 cameras)
• Service areas: boiler room + service corridor + roof access (1–2 cameras)

That commonly lands at 12–16 cameras — exactly the ARN-1610S’s sweet spot. The dual HDD bays also matter: a typical 16-camera 8 MP installation generates more storage demand than the single-bay ARN-810S can handle for 30+ day retention, and the dual-bay ARN-1610S keeps the recorder + storage in one self-contained box (no separate JBOD or NAS needed).

Wisenet A vs. Q vs. X — Choosing the NVR Series

Series	Best for	Bandwidth	HDD bays	AI support
Wisenet A (ARN-410S/810S/1610S)	Small + mid-business / HOA / single-property	40–80 Mbps	1–2	Standard
Wisenet Q (QRN-1630S)	Mid-business / multi-property HOAs	128 Mbps	2 (up to 20 TB each)	Standard + integration with Q-series cameras
Wisenet X (XRN-820S / XRN-3220B2 / XRN-6420B2)	Enterprise / federal / AI-driven	100–520 Mbps	4–8	Full Wisenet AI search across recorded video

For Chicago HOA full-coverage and mid-business projects, the A-series ARN-1610S is the right cost-tier pick. Step up to Q-series when storage retention drives larger HDDs (60+ days at 8MP), or to X-series when AI search by attribute (Person / Face / Vehicle / License Plate) and 32+ channels matter.

When to Choose the ARN-1610S vs. Sibling A-Series NVRs

Need	ARN-410S	ARN-810S	ARN-1610S (this)
Channels	4	8	16
PoE ports	4	8 (total 65 W)	16 (total 130 W)
Recording bandwidth	40 Mbps	60 Mbps	80 Mbps
HDD bays	1 (up to 6 TB)	1 (up to 6 TB)	2 (up to 6 TB each)
Best fit	Micro-site, 2–4 cameras	Standard small-business, 5–8 cameras	Mid-business, full-HOA, 9–16 cameras

Where the ARN-1610S Wins in Chicago

• Chicago HOA full-building coverage — multi-position perimeter + lobby + corridors + mailroom + package room + parking entry at Chicago condo and HOA buildings
• Multi-tenant residential common-area surveillance at Loop, River North, Mag Mile high-rises
• Mid-business retail with 9–16 cameras (full storefront + multi-counter + back-of-house + lot + perimeter)
• Restaurant + hospitality — full kitchen + dining + bar + entry + parking + back-of-house
• Mid-size medical / dental clinics with multi-room + parking coverage
• Professional services offices (law, accounting, consulting) — Loop, River North, Mag Mile, large office campuses
• Auto repair / body shops with multi-bay + lot + office + storage coverage
• Property management with multiple lobbies + corridors + parking entries + service areas
• Education facility coverage — multi-classroom schools, tutoring centers, daycare with playground + classrooms + entries
• Self-storage with multi-zone gate + driveway + office + multi-row coverage
• Industrial / warehouse small operations with bay + dock + office + perimeter coverage

Local Chicago Coverage

Vidimost installs the ARN-1610S across the full city of Chicago — downtown Loop to the neighborhood corridors.

Recommended Camera Pairings

Pair the ARN-1610S with Hanwha A-series, Q-series, and P-series cameras for full-coverage builds:

• Hanwha QNV-8080R — 5MP outdoor vandal dome with IR (Q-series)
• Hanwha ANV-L7082R — 4MP A-series outdoor vandal dome (NDAA entry tier)
• Hanwha ACE-8020R — 5MP A-series turret
• Hanwha PNO-A9081R — 4K AI bullet for premium long-range positions

For projects with mixed AI-driven and standard positions, the ARN-1610S handles the standard cameras while a QRN-1630S or XRN-820S can be added on the network side for the AI-driven cameras (with cross-recorder federation in Wisenet Mobile).

Storage Planning

• 2 × 6 TB HDD = 12 TB total typical full pairing — 30+ days of continuous 16-camera 8 MP H.265 recording
• WD Purple or Seagate SkyHawk surveillance-rated drives recommended for 24/7 reliability
• Pair with a UPS for power-loss protection — critical at 16-camera scale

Professional Installation by Vidimost

Vidimost LLC is an active Hanwha Vision installer across Chicago. The ARN-1610S is one of our most-installed NVRs for HOA full-coverage, mid-business, and multi-tenant residential property deployments. Full-scope service includes site walkthrough, channel + storage planning (30 / 60 / 90-day retention), network design, mounting (shelf, lockbox, 1U rack-mount kit), Cat6 cable runs to all 16 camera positions, NVR commissioning, Wisenet Mobile / Wisenet Viewer setup, motion zone tuning per scene, recording schedule configuration, and operator training. Contact us for a free site walkthrough and quote.
