Hanwha ARN-810S 8-Channel Wisenet A-Series NVR with 8 Built-in PoE+ Ports — Standard Chicago Small-Business NVR

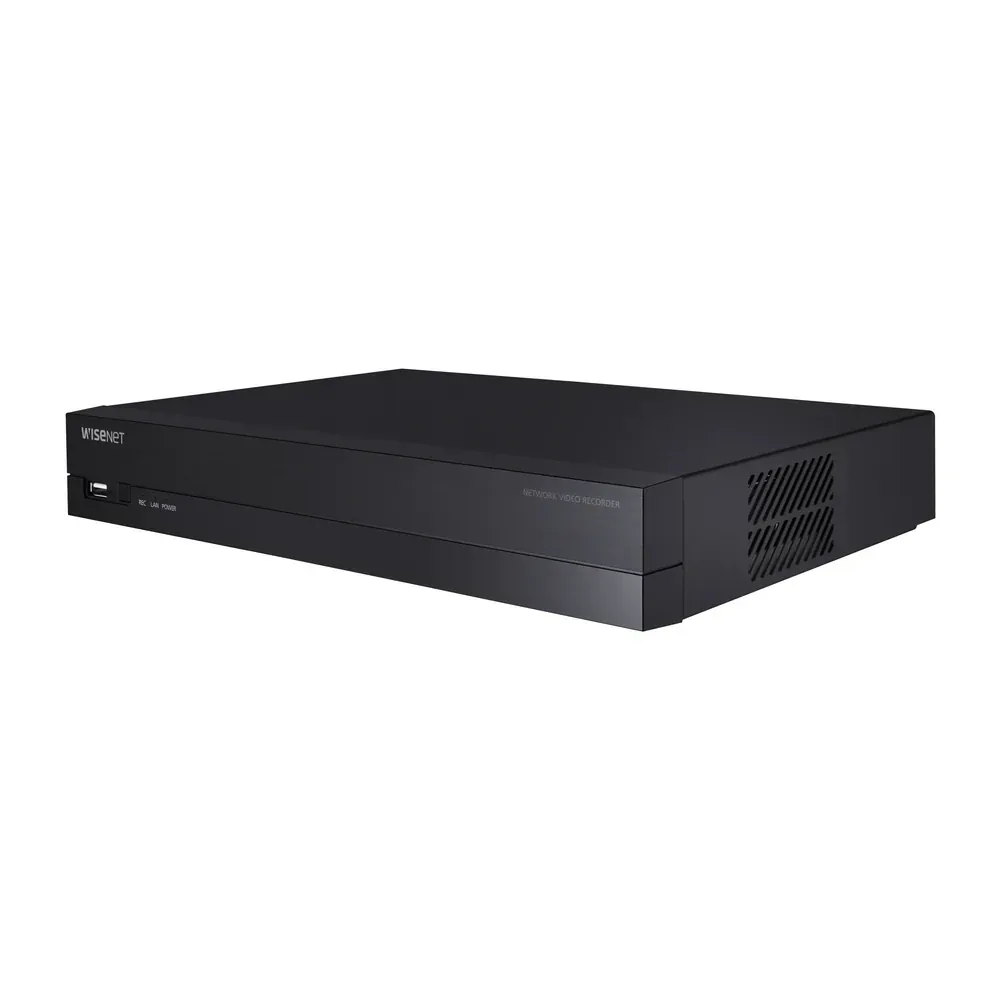

Hanwha ARN-810S — 8-Channel Wisenet A-Series NVR with Built-in PoE+

The Hanwha ARN-810S is an 8-channel Wisenet A-series NVR from Hanwha Vision — featuring 8 built-in PoE+ ports (total 65 W budget, max 30 W per port), up to 8 MP per channel, H.265 / H.264 / MJPEG codec support, 60 Mbps total recording bandwidth, 1 SATA HDD bay up to 6 TB, HDMI + VGA video output, NDAA Section 889 + TAA compliance, and Hanwha cybersecurity posture (secure boot, signed firmware). The standard Chicago small-business NVR — handles 5–8 camera deployments at retail, professional services, HOA single-buildings, and small commercial properties.

Why the ARN-810S Is the Standard Small-Business Pick

Most Chicago small-business projects land at 6–8 cameras after a thorough site walkthrough — front entry + storefront + cash counter + back-of-house + side / rear exits + parking. The 4-camera ARN-410S is too small once you reach 5 cameras; the 16-channel ARN-1610S is overspec’d for typical 8-camera builds. The ARN-810S sits squarely in the standard small-business zone:

• 8 PoE+ ports — covers 8 cameras directly without a separate PoE switch
• 65 W total PoE budget — handles 8 cameras at typical 4–8 W each (ample for cameras, varifocal motors, IR illumination)
• 30 W max per port — supports higher-power cameras on individual ports (PTZ, multi-sensor) when the rest of the load is low
• 60 Mbps recording bandwidth — sufficient for 8 cameras at 6–8 Mbps each at 8 MP / H.265 / Hanwha WiseStream

Wisenet A vs. Q vs. X — Choosing the NVR Series

Series	Best for	Bandwidth	HDD bays	AI support
Wisenet A (ARN-410S/810S/1610S)	Small-business / HOA / single-property	40–80 Mbps	1–2	Standard
Wisenet Q (QRN-1630S)	Mid-business / multi-property HOAs	128 Mbps	2 (up to 20 TB each)	Standard + integration with Q-series cameras
Wisenet X (XRN-820S / XRN-3220B2 / XRN-6420B2)	Enterprise / federal / AI-driven	100–520 Mbps	4–8	Full Wisenet AI search across recorded video

For most Chicago small-business projects, the A-series ARN-810S is the right cost-tier pick. Step up to Q-series when storage retention drives larger HDDs (e.g. 60+ days of 8MP recording), or to X-series when AI search by attribute (Person / Face / Vehicle / License Plate) and 16+ channels matter.

When to Choose the ARN-810S vs. Sibling A-Series NVRs

Need	ARN-410S	ARN-810S (this)	ARN-1610S
Channels	4	8	16
PoE ports	4 (max 30 W each)	8 (total 65 W)	16 (total 130 W)
Recording bandwidth	40 Mbps	60 Mbps	80 Mbps
HDD bays	1 (up to 6 TB)	1 (up to 6 TB)	2 (up to 6 TB each)
Best fit	Micro-site, 2–4 cameras	Standard small-business, 5–8 cameras	Mid-business, full-HOA, 9–16 cameras

The ARN-810S is the right pick when current camera count is 5–8 AND there’s no near-term plan to exceed 8. If the project may grow beyond 8, install the ARN-1610S instead (saves replacement cost later).

Where the ARN-810S Wins in Chicago

• Chicago small-business retail with 5–8 cameras — neighborhood storefronts in Logan Square, Wicker Park, Andersonville, Avondale, Pilsen, Bridgeport, Bucktown, West Loop boutiques
• HOA single-building deployments — multi-position perimeter + lobby + mailroom + package room at Chicago HOAs
• Restaurant + hospitality with kitchen + dining + entry + parking coverage
• Small medical / dental clinics — full-property coverage
• Professional services offices (law, accounting, consulting) — Loop, River North, large office campuses
• Auto repair / body shops with multi-bay + lot + office coverage
• Property management buildings with lobbies + corridors + parking entries
• Education — single-classroom buildings, tutoring centers, daycare facilities (CPS and charter partnerships)
• Self-storage with office + multi-zone gate + driveway coverage

Local Chicago Coverage

Vidimost installs the ARN-810S across the full city of Chicago — downtown Loop to the neighborhood corridors.

Recommended Camera Pairings

Pair the ARN-810S with Hanwha A-series and Q-series cameras for budget-conscious 8-camera builds:

• Hanwha QNV-8080R — 5MP outdoor vandal dome with IR (Q-series)
• Hanwha ANV-L7082R — 4MP A-series outdoor vandal dome (NDAA-compliant entry tier)
• Hanwha ACE-8020R — 5MP A-series turret

For premium projects requiring AI analytics, see the P-series PNO-A9081R and X-series XNV-A9084R — typically paired with XRN-820S for AI search.

Storage Planning

• 6 TB single HDD typical pairing — 30+ days of continuous 8-camera 8 MP H.265 recording (typical scene with motion-driven recording)
• WD Purple or Seagate SkyHawk surveillance-rated drives recommended for 24/7 reliability
• Pair with a UPS for power-loss protection

Professional Installation by Vidimost

Vidimost LLC is an active Hanwha Vision installer across Chicago. The ARN-810S is one of our most-installed NVRs for Chicago small-business retail, HOA single-building, and small commercial property deployments. Full-scope service includes site walkthrough, channel + storage planning, network design, mounting (shelf, lockbox, rack-mount kit), Cat6 cable runs to all 8 camera positions, NVR commissioning, Wisenet Mobile / Wisenet Viewer setup, motion zone tuning per scene, recording schedule configuration, and operator training. Contact us for a free site walkthrough and quote.
