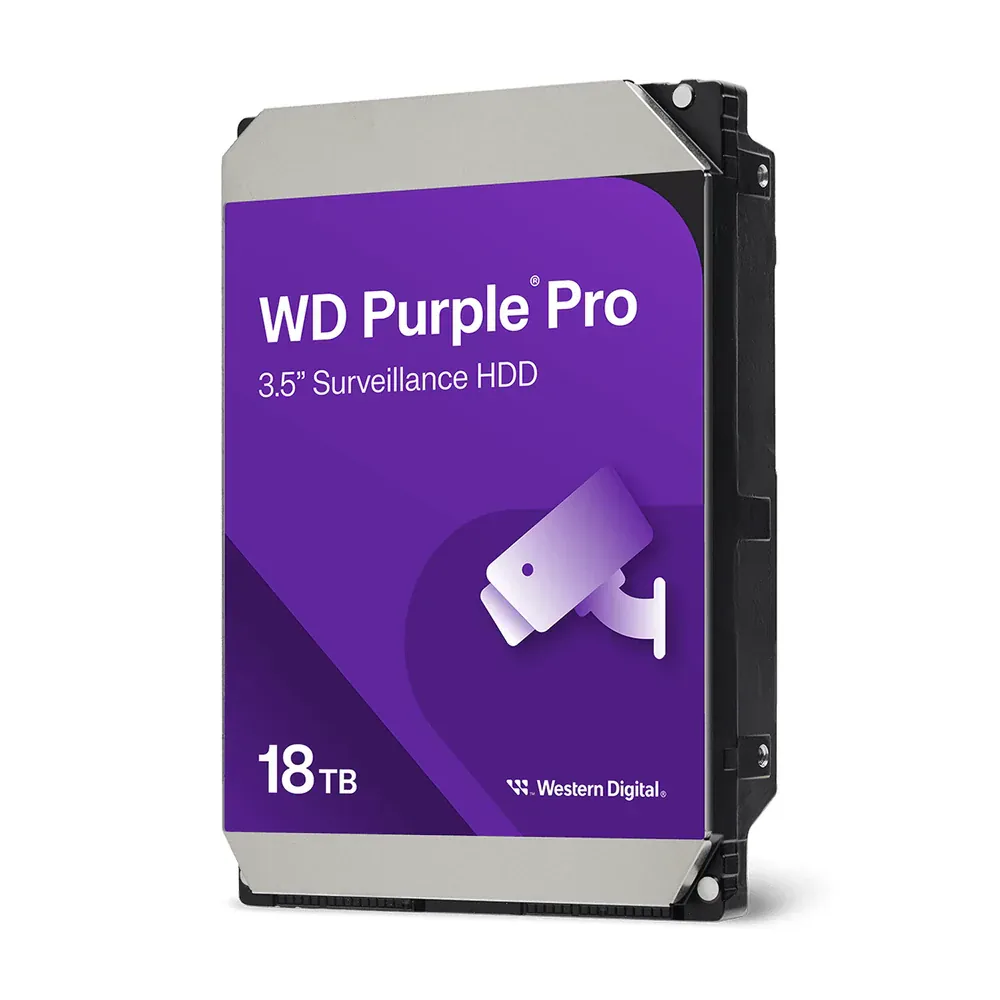

WD Purple Pro 18TB Surveillance Hard Drive — Heavy-Workload Storage for AI NVR Builds
Model / Series: WD181PURP
Pro-tier 18 TB surveillance hard drive rated 550 TB/year — built for AI NVRs that write video plus metadata around the clock.
We don't just ship boxes — this goes in as part of our security camera installation in Chicago work. Inheriting a half-working setup from a previous vendor? Start with a security system takeover.
Specifications
- Brand
- Western Digital
- Model
- WD181PURP
- Series
- WD Purple Pro
- Type
- Pro-tier surveillance-rated hard drive
- Capacity
- 18 TB
- Form Factor
- 3.5-inch SATA
- Interface
- SATA 6 Gb/s
- RPM
- 7,200 RPM
- Cache
- 512 MB
- Workload
- Up to 550 TB/year (Pro-tier)
- Camera Support
- Up to 64+ cameras with AI metadata
- Special Features
- WD AllFrame AI technology + Pro-tier reliability
- MTBF
- 2,500,000 hours
- Warranty
- 5 years
- Operating Temperature
- 0 °C to +65 °C
Best Fit & Recommended For
WD Purple Pro 18TB — Heavy-Workload Surveillance Drive for AI NVRs
The WD Purple Pro 18TB is a Pro-tier surveillance hard drive from Western Digital — featuring AllFrame AI technology, 512 MB cache, 7,200 RPM, 550 TB/year Pro-tier workload, MTBF 2,500,000 hours, 5-year warranty, supporting 64+ cameras with AI metadata generation.
The 18 TB Pro capacity fits 32-64 camera AI NVR builds with 90-180 day retention — big warehouses, distribution buildings, and multi-building residential portfolios where the recorder never gets a quiet hour.
Why Pro-Tier Matters for AI NVRs
Standard surveillance drives are rated 180 TB/year. The Pro-tier 550 TB/year workload is required for:
- 64-channel AI NVR (e.g. XRN-6420B2) where every camera generates AI metadata in addition to video
- Continuous high-bitrate recording (4K H.265 + AI metadata exceeds standard write loads)
- Extended retention (180+ days) where total writes scale beyond standard capacity
Where the WD Purple Pro 18TB Fits
- Warehouse and distribution AI NVRs — dock doors and aisles writing high-bitrate video day and night
- Large condo and apartment portfolios standardizing on 90+ day retention
- Parking garages where every level records around the clock
- 32-64 camera AI builds on the XRN-3220B2 or XRN-6420B2
Local Chicago Coverage
Vidimost installs WD Purple Pro 18 TB drives across the full city of Chicago for AI NVR projects.
Recommended NVR Pairings
- Hanwha XRN-3220B2 — X-series 32-channel (8 HDD bays = up to 144 TB at 18 TB/bay)
- Hanwha XRN-6420B2 — X-series 64-channel at max scale
Cross-Brand Alternative
- Seagate SkyHawk AI 18TB — Seagate Pro-tier equivalent
Professional Installation by Vidimost
The Pro workload rating is the whole point here — a standard 180 TB/year drive burns through its rating fast in an AI recorder that never sleeps. Vidimost LLC installs WD Purple Pro 18 TB in AI NVR builds across Chicago. Contact us for a free site walkthrough and quote.
