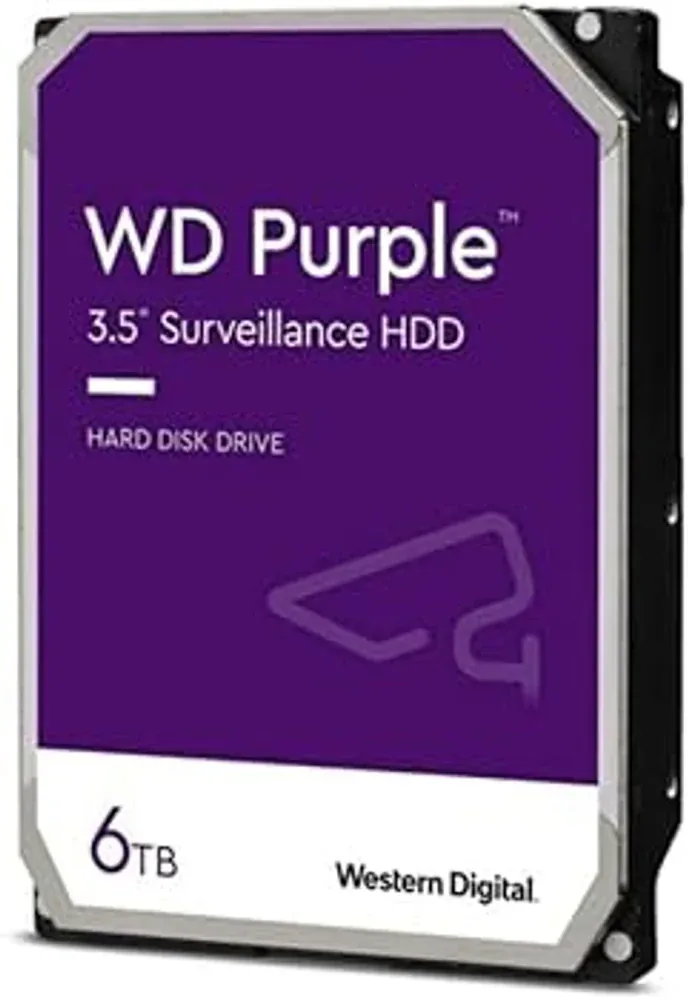

WD Purple 6TB Surveillance Hard Drive — HOA Full-Coverage Storage for Chicago Mid-Size NVR Deployments
Model / Series: WD63PURZ
6 TB NVR hard drive with AllFrame AI — two in a dual-bay recorder give a 16-camera HOA building 12 TB of storage.
We don't just ship boxes — this goes in as part of our security camera installation in Chicago work. First time working with us? Here’s why Chicago buildings pick Vidimost.
Specifications
- Brand
- Western Digital
- Model
- WD63PURZ
- Series
- WD Purple
- Type
- Surveillance-rated hard drive
- Capacity
- 6 TB
- Form Factor
- 3.5-inch SATA
- Interface
- SATA 6 Gb/s
- RPM
- 5,400 RPM (variable)
- Cache
- 256 MB
- Workload
- Up to 180 TB/year
- Camera Support
- Up to 64 cameras
- Special Features
- WD AllFrame AI technology
- MTBF
- 1,000,000+ hours
- Warranty
- 3 years
- Operating Temperature
- 0 °C to +65 °C
Best Fit & Recommended For
WD Purple 6TB — HOA Full-Coverage + 4K NVR Surveillance Drive
The WD Purple 6TB is the HOA full-coverage and 4K NVR capacity in Western Digital’s WD Purple surveillance line — featuring AllFrame AI technology, 256 MB cache, 180 TB/year workload, MTBF 1,000,000+ hours, 3-year warranty, supporting up to 64 cameras.
The 6 TB capacity is the right pick for Chicago HOA full-building 16-camera 1080p builds (paired with the ARN-1610S dual-bay NVR for 12 TB total) or 8-camera 4K NVR builds with 30+ day retention.
When 6 TB Is the Right Capacity
| Scenario | Pairing | Configuration |
|---|---|---|
| HOA full-building 16-camera 1080p | ARN-1610S | 2 × 6 TB = 12 TB total |
| 8-camera 4K NVR | ARN-810S | 1 × 6 TB |
| 12 cameras at 1080p / 60-day | Standard NVR | 1 × 6 TB |
| 16 cameras at 4K or 60+ day retention | Q-series NVR | Bigger drives (10 TB+) |
The 6 TB pairs particularly well with the dual-bay ARN-1610S — gives 12 TB total storage in a self-contained NVR for typical HOA full-coverage projects.
Where the WD Purple 6TB Wins in Chicago
- HOA full-building 16-camera NVR coverage
- Mid-business 16-camera NVR at 1080p
- 8-camera 4K NVR builds with 30+ day retention
- Property management mid-size building NVR
- Multi-tenant residential common-area NVR
- Restaurant + hospitality multi-area extended coverage
- Mid-size medical / dental clinic full NVR
- Professional services 16-camera office NVR
- Auto repair / body shop multi-bay extended NVR
- Education facility extended-coverage NVR
Local Chicago Coverage
Vidimost installs WD Purple 6 TB drives across the full city of Chicago for HOA full-coverage and 4K NVR projects.
Recommended NVR Pairings
- Hanwha ARN-1610S — 16-channel NVR with dual HDD bays (paired with 2 × 6 TB)
- Hanwha ARN-810S — 8-channel NVR for 4K builds
Cross-Brand Alternative
- Seagate SkyHawk 4TB — at smaller capacity
Professional Installation by Vidimost
Most HOA jobs we quote land right here — two of these in the dual-bay ARN-1610S and the building gets its 30 days without stepping up a price tier. Vidimost LLC installs WD Purple 6 TB across Chicago. Contact us for a free site walkthrough and quote.
