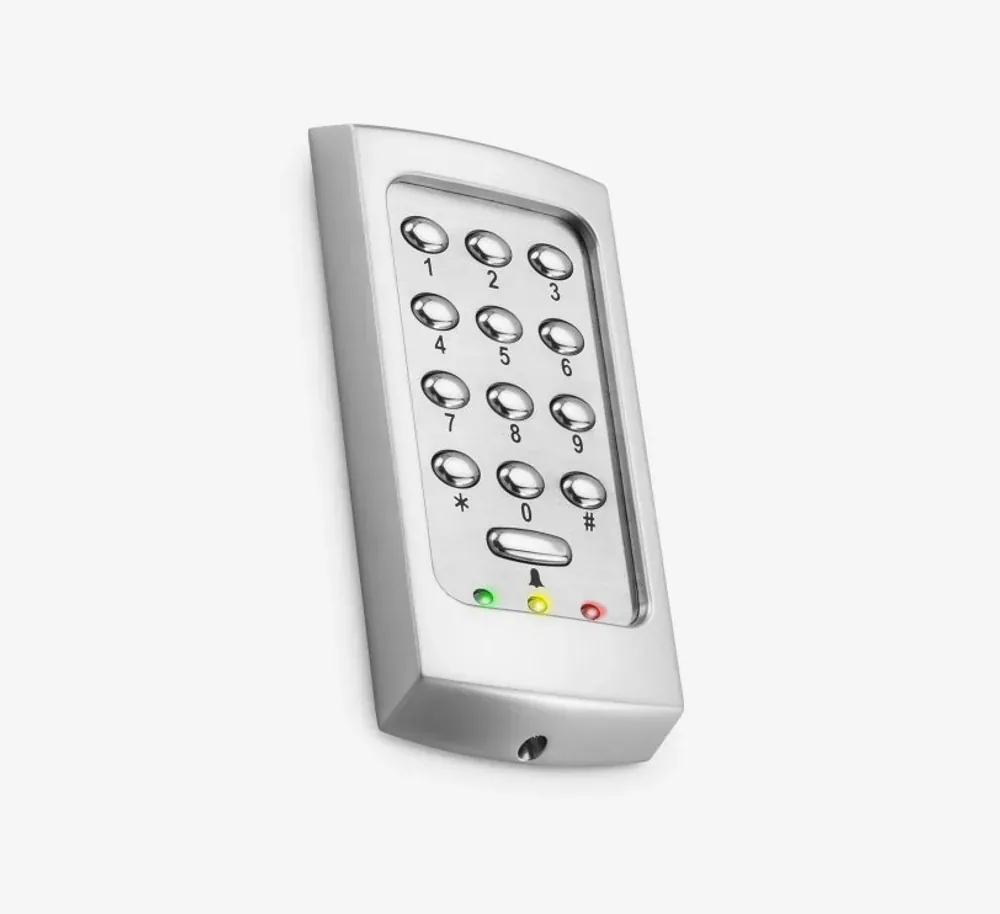

Paxton KP75 MIFARE Vandal-Resistant Metal Keypad Reader (375-130) — Net2 / Switch2 2-Factor Outdoor
Model / Series: KP75 MIFARE (375-130)
Metal keypad reader for Paxton Net2 — MIFARE card plus PIN at doors that take abuse: parking garages, gated entries, Chicago alley doors.
We don't just ship boxes — this goes in as part of our access control installation in Chicago work. City building? See our Chicago, IL service area.
Specifications
- Brand
- Paxton
- Model
- KP75 MIFARE (375-130)
- Series
- Paxton Net2 / Switch2 Proximity
- Form Factor
- Vandal-resistant metal-housed reader + integrated PIN keypad
- Card Technology
- MIFARE 13.56 MHz (DESFire CSN, Classic)
- Other Variants
- KP75 also available in standard 125 kHz Paxton + EM (375-110) — same form factor, different SKU
- Keypad
- Yes — integrated 12-button PIN keypad with metal housing
- Authentication Modes
- Card-only / PIN-only / Card + PIN 2-factor
- Read Range — Tokens
- Up to 4 in
- Read Range — Hands-free
- Up to 5 ft
- Communication Protocol
- Wiegand to Paxton Net2 / Switch2 controller
- Power
- 12 VDC
- Operating Temperature
- −35 °C to +66 °C
- Environmental Protection
- IK10 vandal-resistant metal housing + IP67 weatherproof
- Mounting
- Surface mount (heavy-duty metal)
Best Fit & Recommended For
Paxton KP75 MIFARE Metal Keypad Reader (375-130) — Vandal-Resistant 2-Factor for Net2 / Switch2
The Paxton KP75 MIFARE (375-130) is the vandal-resistant metal-housed combined MIFARE 13.56 MHz proximity reader + PIN keypad for Paxton’s Net2 / Switch2 systems — heavy-duty metal housing engineered for outdoor / vandal-prone positions, IK10 + IP67, 3” form factor with 4” read range. Configurable card-only / PIN-only / card + PIN 2-factor authentication.
Spec the KP75 MIFARE where the reader is going to take a beating — parking decks, alley-side doors, school staff entries, multi-tenant exterior doors, HOA gates with resident PIN access — any outdoor 2-factor opening on Paxton Net2 / Switch2 running MIFARE credentials.
Three Concurrent Requirements — Why KP75 MIFARE Is Specific
The KP75 MIFARE is a specialized SKU combining three concurrent requirements:
- Vandal-resistant metal housing — IK10 + IP67, withstands kicks, bats, bricks, prolonged outdoor exposure
- MIFARE 13.56 MHz secure smart card reading — modern credentials beyond legacy 125 kHz Prox
- 2-factor PIN authentication — sensitive-area policy + outdoor positions
Other KP75 SKUs serve different combinations:
- 375-110 — KP75 standard 125 kHz (Paxton + EM tokens, no MIFARE)
- 375-130 — KP75 MIFARE 13.56 MHz (this page)
- 375-120 — KP75 with screw connector variant
We list the MIFARE version (375-130) since this is the photo we have. Other variants of the same physical reader are available on request — same form factor, same Chicago coverage, same applications. We specify the right variant at site walkthrough per credential policy.
KP75 MIFARE vs. Sibling Paxton 2-Factor Readers
| Feature | KP75 MIFARE (375-130, this) | KP50 (355-110) | Touchlock Vandal (521-715) | Paxton10 Keypad (010-824) |
|---|---|---|---|---|
| Card support | MIFARE 13.56 MHz | 125 kHz Paxton + EM | None — PIN only | Multi-format (6 types) |
| Vandal rating | IK10 + cast metal housing | IP67 (plastic) | IK10 + cast metal | IK10 |
| Form factor | Standard wall + metal keypad | Standard wall + plastic keypad | Standalone metal keypad | Standard wall + keypad |
| 2-factor PIN | Yes | Yes | PIN-only (no card) | Yes |
| Platform | Net2 / Switch2 | Net2 / Switch2 | Standalone (no controller) | Paxton10 cloud |
| Best fit | Outdoor 2-factor + MIFARE on Net2 | Indoor 2-factor on Net2 | PIN-only standalone | Cloud 2-factor |
Where the Paxton KP75 MIFARE Wins in Chicago
- School outdoor 2-factor staff entries on Paxton Net2 with MIFARE
- Parking decks and parking-garage 2-factor entries
- Multi-tenant residential exterior 2-factor doors with MIFARE
- HOA gated entries with PIN-protected resident access at exposed positions
- Property management exterior secure-area doors at multi-tenant buildings
- Clinic exterior staff doors with MIFARE 2-factor
- Industrial / warehouse exterior 2-factor entries
Local Chicago Coverage
Vidimost installs the Paxton KP75 MIFARE across the full city of Chicago for outdoor 2-factor MIFARE positions on Paxton Net2 / Switch2.
Recommended Pairings
- Paxton KP50 (355-110) — indoor 2-factor without metal housing
- Paxton Touchlock Vandal Metal (521-715) — standalone PIN-only metal
- Paxton P75 (373-110) — same form factor without keypad
- Paxton Net2 EX Desktop Reader (514-326) — USB enrollment with MIFARE
Professional Installation by Vidimost
Vidimost LLC is an active Paxton installer across Chicago. The KP75 MIFARE is our specialized outdoor 2-factor MIFARE reader for Chicago school, parking deck, and multi-tenant residential exterior projects on Paxton Net2 / Switch2. Full-scope service includes site walkthrough, credential variant matching (Paxton 125 kHz vs. MIFARE 13.56 MHz vs. Paxton10 multi-format), Net2 / Switch2 controller + reader sizing, Wiegand wiring, vandal-resistant surface mounting, reader commissioning in Net2 software, PIN policy + 2-factor door list configuration, and operator + admin training. Contact us for a free site walkthrough and quote.
Weighing it against the rest of the line? The Paxton reader comparison guide covers every model we install.
