Paxton10 Vandal-Resistant Slimline Reader (010-254) — Outdoor Multi-Format Bluetooth Reader for Chicago

Paxton10 Vandal-Resistant Slimline Reader (010-254) — Heavy-Duty Outdoor Cloud Reader

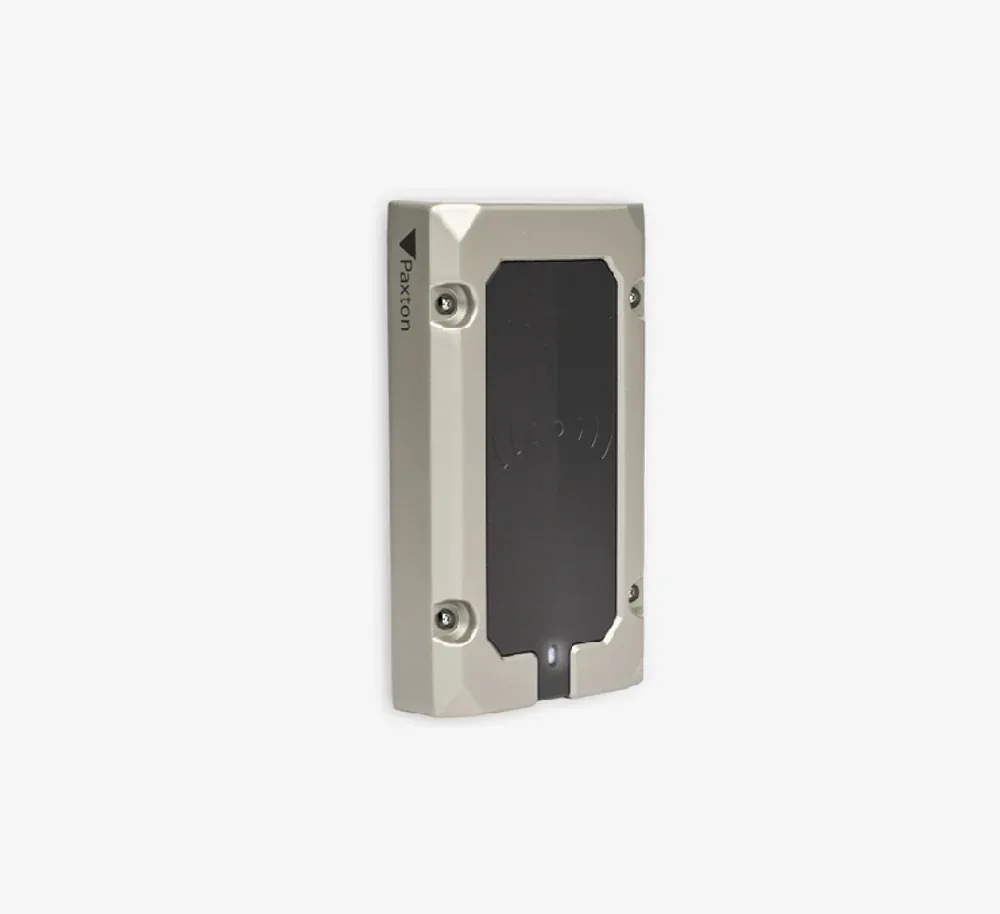

The Paxton10 Vandal-Resistant Slimline Reader (010-254) is the heavy-duty outdoor multi-format reader for Paxton’s Paxton10 cloud-managed access control system — built around a rugged metal surround with 4 security fixings for vandal-prone exposed outdoor positions. Same multi-format reading and built-in Bluetooth as the standard Slimline Reader (010-296), but with IK10 vandal resistance + IP67 waterproof in a tougher housing engineered for the most demanding environments.

We spec the 010-254 where the mounting spot takes real abuse — school exteriors, parking decks, alley-side doors, loading docks. A cracked reader means a service call and a dead door; the heavier housing costs less than the second visit.

Why Vandal-Resistant Matters

Standard slim readers like the 010-296 survive most indoor + protected-outdoor positions. The 010-254 adds:

• Heavy metal surround — withstands kicks, bat impacts, brick throws (IK10)
• 4 security fixings — tamper-resistant mounting (cannot pry off with a screwdriver)
• Reinforced housing — engineered for prolonged outdoor exposure in harsh weather
• Same multi-format + Bluetooth as standard slim — no functional compromise

For Chicago projects with schools, parking decks, public buildings, and exposed exteriors, the 010-254 is the right pick. The cost premium over the standard 010-296 is small relative to the cost of repeated reader replacement at vandal-prone positions.

Multi-Format + MIFARE Variants

The 010-254 reads the full Paxton10 multi-format credential mix simultaneously:

• Paxton tokens (proprietary)
• EM (legacy 125 kHz European format)
• MIFARE DESFire CSN (13.56 MHz Card Serial Number reading)
• HID Prox 125 kHz (legacy migration)
• FeliCa (Japanese smart card standard)
• NFC (Near-Field Communication)
• Bluetooth (3 range options for mobile credentials)

For projects requiring MIFARE DESFire encrypted-read (secure key-based authentication beyond CSN-only), Paxton offers MIFARE-secure variants of the same physical reader — different SKU, identical hardware, secure encrypted-read firmware. We specify the variant matching your credential policy at site walkthrough — no need for separate product page selection.

Vandal-Resistant 010-254 vs. Sibling Paxton10 Readers

Feature	VR 010-254 (this)	Slimline 010-296	Keypad 010-824	Desktop 010-387
Form factor	VR slimline (heavy-duty)	Slimline mullion	Keypad reader	Desktop / enrollment
Vandal rating	IK10 + 4 security fixings	IK10	IK10	N/A
Best fit	Exposed outdoor / vandal-prone	Standard indoor + protected outdoor	Sensitive doors + 2-factor	Credential enrollment
Multi-format	Yes	Yes	Yes	Yes
Bluetooth	3 ranges	3 ranges	3 ranges	N/A

Where the Paxton10 Vandal-Resistant Reader Wins in Chicago

• School exterior entries on Paxton10 — doors that take daily abuse
• Public buildings, libraries, recreation centers — vandal-prone municipal positions
• Parking decks and parking-garage exposed entry positions
• Multi-tenant residential exterior doors with vandal exposure
• HOA gated entries and exposed perimeter positions at Chicago properties
• Property management exterior doors at multi-tenant buildings — Loop high-rises, neighborhood properties
• Government and municipal buildings exterior on Paxton10 cloud
• Industrial / warehouse exterior entries — Chicago industrial corridor, Northwest Side / Southwest Side
• Loading dock service-entry positions

Local Chicago Coverage

Vidimost installs the Paxton10 VR Reader across the full city of Chicago for vandal-prone outdoor positions on Paxton10 cloud.

Recommended Pairings

• Paxton10 Slimline Reader (010-296) — for protected outdoor + indoor narrow-frame positions
• Paxton10 Keypad Reader (010-824) — for sensitive 2-factor positions
• Paxton10 Desktop Reader (010-387) — for credential enrollment

Professional Installation by Vidimost

Vidimost LLC is an active Paxton installer across Chicago. The Paxton10 Vandal-Resistant Reader is our standard pick for exposed outdoor + vandal-prone positions on Paxton10 cloud — schools, parking decks, public buildings, multi-tenant residential exteriors, industrial entries. Full-scope service includes site walkthrough, MIFARE-variant selection per credential policy, Paxton10 controller + reader sizing, encrypted RS-485 wiring, vandal-resistant surface mounting with 4 security fixings, reader commissioning in Paxton10 cloud dashboard, mobile credential rollout, and operator + admin training. Contact us for a free site walkthrough and quote.

Weighing it against the rest of the line? The Paxton reader comparison guide covers every model we install.
