Paxton10 Slimline Reader (010-296) — Compact Multi-Format Mullion Bluetooth Reader for Chicago Cloud Access

Paxton10 Slimline Reader (010-296) — Compact Mullion Multi-Format Cloud Reader

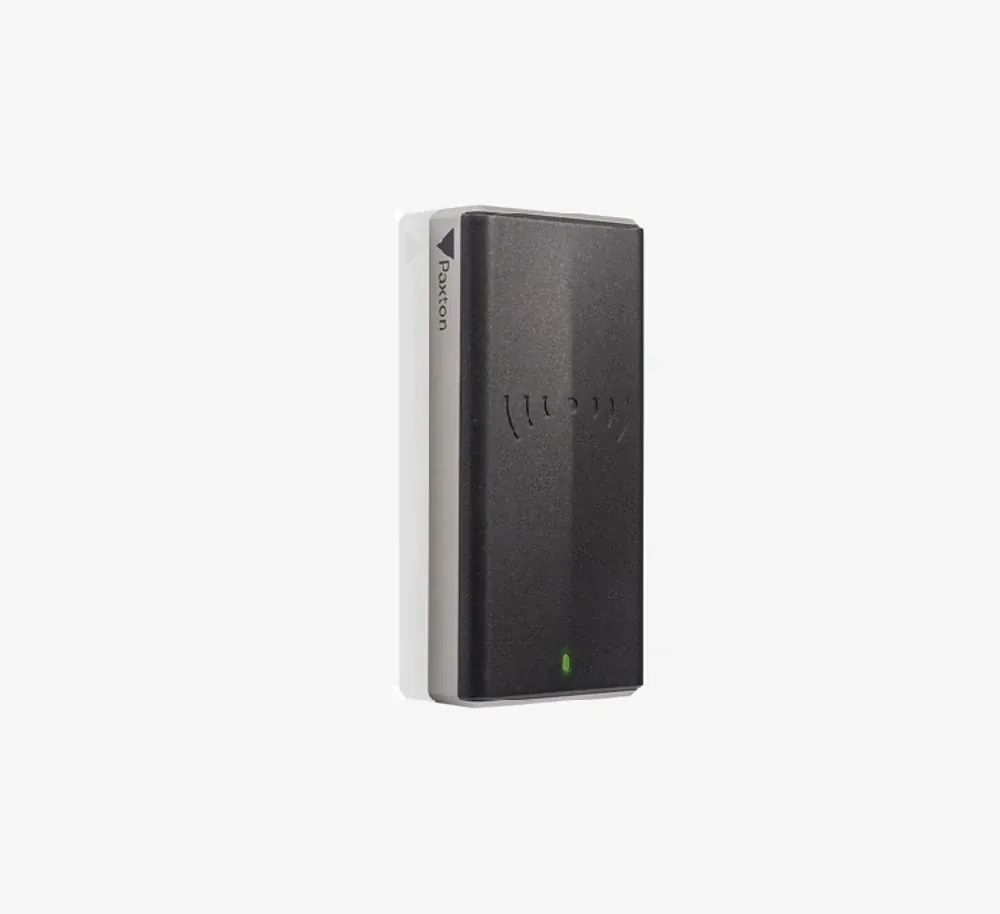

The Paxton10 Slimline Reader (010-296) is the compact mullion-mount multi-format reader for Paxton’s Paxton10 cloud-managed access control system — just 48 mm wide, designed to fit narrow door frames, glass mullions, and slim-profile mounting locations. Reads Paxton tokens, EM, MIFARE DESFire CSN, HID Prox 125 kHz, FeliCa, NFC simultaneously plus built-in Bluetooth with three range modes (token / touch-to-enter / long-range). IK10 vandal-resistance + IP67 weatherproof. Communicates over encrypted RS-485 to the Paxton10 controller.

The Slimline Reader is the most-installed Paxton10 reader at Chicago commercial properties on the Paxton10 cloud — fits narrow door frames cleanly, supports the entire credential mix typical of Chicago multi-vendor migrations, and delivers Bluetooth mobile credential support out of the box.

MIFARE Variants — One Reader, Multiple Configurations

The standard 010-296 Slimline Reader reads MIFARE DESFire CSN (Card Serial Number) along with the other formats listed above. For projects requiring MIFARE DESFire encrypted-read (secure key-based authentication rather than CSN-only), Paxton offers MIFARE-secure variants of the same physical reader — different SKU, identical hardware, secure encrypted-read firmware configuration.

This means at quote time we specify the variant matching your credential security policy:

• Standard variant — reads MIFARE DESFire CSN + all other multi-format credentials (most common; fits most projects)
• MIFARE-encrypted variant — adds secure encrypted-key MIFARE DESFire reading (for sites whose credential policy requires cloning resistance)

We don’t list MIFARE-encrypted variants as separate product pages — same form factor, same applications, same Chicago coverage. Tell us at site walkthrough which variant your credential policy requires.

Why Paxton10 Cloud-Managed Access

Paxton10 is Paxton’s modern cloud access platform — managed entirely through the Paxton10 web dashboard from any browser. For Chicago property managers, HOA boards, and small-mid commercial tenants, this means:

• Centralized cloud administration across multiple properties
• Mobile credentials via Bluetooth — built into every Paxton10 reader, no separate licensing
• Multi-format reading — works with existing Paxton, EM, HID Prox, MIFARE, FeliCa, NFC credentials simultaneously
• Audit trails retained in cloud, instantly searchable
• Video integration — Paxton10 includes built-in video door integration for combined access + video events
• Encrypted RS-485 reader-to-controller (modern cybersecurity standard)
• Easy operation — building staff can manage day-to-day without specialist training (Paxton’s product philosophy)

Slimline (010-296) vs. Sibling Paxton10 Readers

Feature	Slimline 010-296 (this)	Vandal-Resistant 010-254	Keypad 010-824	Desktop 010-387
Form factor	Slimline mullion (48 mm)	Vandal-resistant slimline	Keypad reader	Desktop / enrollment
Vandal rating	IK10	IK10 (heavier metal surround + 4 security fixings)	IK10	N/A (indoor desk use)
Multi-format	Yes	Yes	Yes	Yes
Bluetooth	3 ranges	3 ranges	3 ranges	N/A
Keypad	No	No	Yes — 2-factor PIN	No
Best fit	Narrow frames, indoor + protected outdoor	Exposed outdoor / vandal-prone	Sensitive doors + 2-factor	Credential enrollment at desk

Where the Paxton10 Slimline Wins in Chicago

• Chicago commercial offices on Paxton10 cloud — narrow-frame lobby entries, glass-mullion main doors
• Multi-tenant residential narrow-frame doors at high-rises — Loop, River North, Mag Mile residential
• HOA building entries at Chicago properties (Wilmette, Glencoe, Highland Park, Schaumburg, Hoffman Estates, Naperville, Wheaton, Oak Brook)
• Condo / co-op narrow-frame entry doors
• Glass storefront mullions at boutique retail and professional services
• Elevator cab panels with floor-restriction credentials
• Server room and IT closet narrow-frame doors
• Healthcare clinic narrow-frame door positions
• Hospitality boutique-property narrow entries
• Education facility narrow administrative doors

Local Chicago Coverage

Vidimost installs the Paxton10 Slimline Reader across the full city of Chicago — downtown Loop to the neighborhood corridors.

Paxton10 vs. Brivo vs. HID — Choosing the Cloud Platform

Need	Paxton10 Slimline (this)	Brivo B-BSMF-B	HID Signo 20
Cloud-managed	Yes — Paxton10 (native)	Yes — Brivo Access (native)	Via 3rd-party VMS
Mobile credentials	Bluetooth (3 ranges) included	Brivo Mobile Pass	HID Mobile + Apple Wallet
Multi-format reading	Yes — Paxton + EM + MIFARE + Prox + FeliCa + NFC	Mobile + 13.56 MHz	Mobile + iCLASS SE + SEOS + MIFARE + Prox
Video integration	Yes — built-in Paxton10 video	Via 3rd-party	Via 3rd-party VMS
Best fit	Easy-to-operate cloud + video integration	Multi-property cloud admin	Multi-tech enterprise sites

The Paxton10 platform stands out for video integration built into the access platform and Paxton’s reputation for building-staff-friendly operation.

Recommended Pairings

• Paxton10 Vandal-Resistant Reader (010-254) — for exposed outdoor positions
• Paxton10 Keypad Reader (010-824) — for sensitive 2-factor doors
• Paxton10 Desktop Reader (010-387) — for credential enrollment at admin desk

Professional Installation by Vidimost

Vidimost LLC is an active Paxton installer across Chicago. The Paxton10 Slimline Reader is one of our most-installed Paxton10 readers for cloud-managed deployments at commercial offices, HOAs, multi-tenant residential buildings, and small clinics. Full-scope service includes site walkthrough, MIFARE-variant selection per credential policy, Paxton10 controller + reader sizing, encrypted RS-485 wiring, mullion mounting (door frame, glass mullion, elevator panel), reader commissioning in Paxton10 cloud dashboard, mobile credential rollout, and operator + admin training. Contact us for a free site walkthrough and quote.

Not sure this is the right Paxton reader for your doors? Our Paxton reader comparison lines the whole family up side by side.
