Paxton10 Keypad Reader (010-824) — 2-Factor Multi-Format Bluetooth Reader for Chicago Sensitive-Area Cloud Access

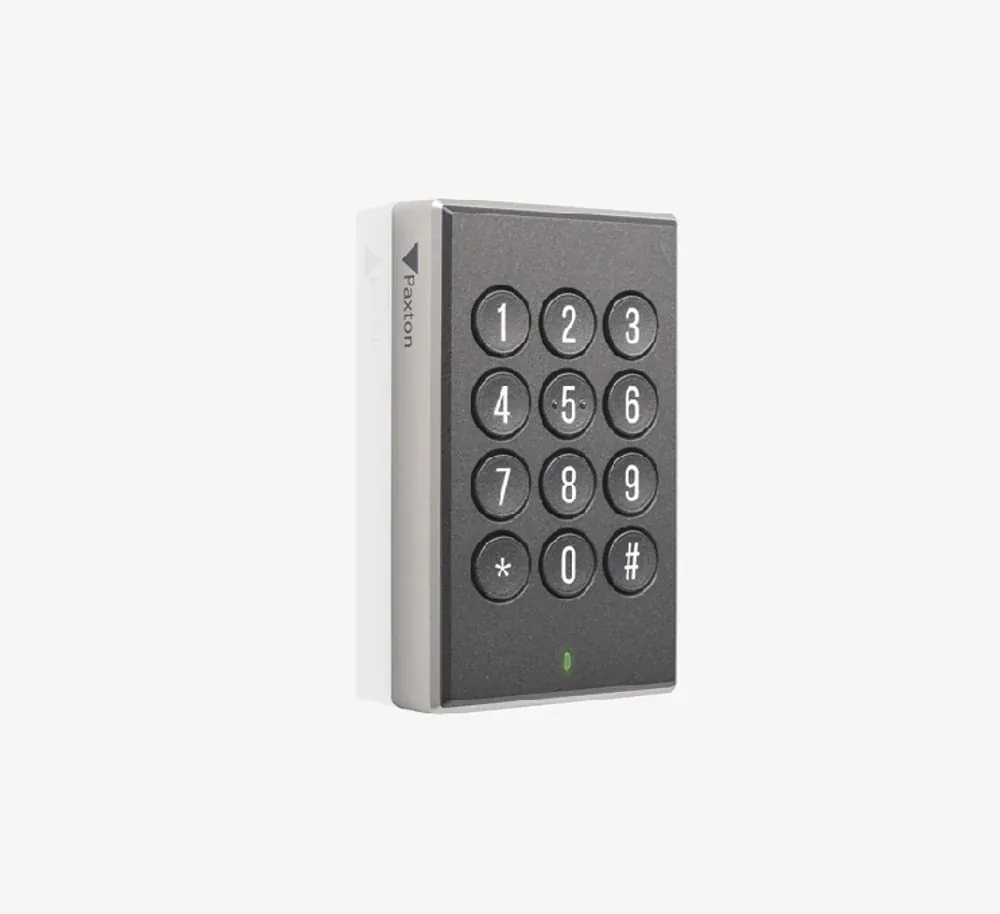

Paxton10 Keypad Reader (010-824) — 2-Factor Multi-Format Cloud Reader

The Paxton10 Keypad Reader (010-824) is the 2-factor multi-format reader for Paxton’s Paxton10 cloud-managed access control system — combines Paxton’s multi-format card / token / Bluetooth reading with an integrated back-lit hardened-silicon keypad for PIN + token 2-factor authentication. Reads Paxton tokens, EM, MIFARE DESFire CSN, HID Prox 125 kHz, FeliCa, NFC plus built-in Bluetooth (3 ranges). IK10 + IP67. Encrypted RS-485 to the Paxton10 controller.

Where it earns its keep: any door where a lost fob alone shouldn’t get somebody in. Server rooms, medication storage at clinics, cash offices, and HOA entries running PIN-protected resident access on the Paxton10 cloud.

Why Hardened-Silicon Buttons Matter

Standard rubber-membrane keypads degrade over years of high-cycle use — buttons stick, legends wear off, water seeps in. The Paxton10 Keypad Reader uses hardened silicon buttons with full back-lighting:

• High-cycle durability — engineered for years of daily 2-factor entry
• Back-lit legends for nighttime / dim-light entry
• IK10 + IP67 — survives Chicago weather + tampering
• Tactile feedback for reliable PIN entry with gloves or wet fingers (better than capacitive in cold/wet conditions)

For high-traffic 2-factor doors (cash offices, clinic staff entries, server rooms used by IT teams daily), the build quality matters as much as the access logic.

Paxton10 Cloud + 2-Factor PIN Management

Paxton10’s PIN management lives in the cloud:

• Per-user PINs set in Paxton10 dashboard
• Time-of-day rules — require 2-factor only after-hours
• Door-list policies — designate which doors require PIN
• Audit trails — every PIN entry logged in cloud
• Multi-property federation — same admin dashboard across multiple buildings
• Building-staff-friendly — Paxton’s design philosophy: building managers can administer day-to-day without specialist training

Multi-Format + MIFARE Variants

Same multi-format support as the Slimline 010-296 — Paxton, EM, MIFARE DESFire CSN, HID Prox 125 kHz, FeliCa, NFC, plus Bluetooth.

For projects requiring MIFARE DESFire encrypted-read (secure key-based authentication beyond CSN), Paxton offers MIFARE-secure variants of the same physical reader on request — same hardware, secure encrypted-read firmware. Specified at site walkthrough per credential policy.

Keypad Reader 010-824 vs. Sibling Paxton10 Readers

Feature	Keypad 010-824 (this)	Slimline 010-296	VR 010-254	Desktop 010-387
2-factor PIN	Yes — back-lit hardened silicon	No	No	N/A
Form factor	Reader + keypad	Slimline mullion	Vandal-resistant slimline	Desktop / enrollment
Vandal rating	IK10	IK10	IK10 + 4 security fixings	N/A
Multi-format	Yes	Yes	Yes	Yes
Bluetooth	3 ranges	3 ranges	3 ranges	N/A
Best fit	Sensitive 2-factor doors	General narrow-frame	Exposed outdoor / vandal-prone	Credential enrollment

Where the Paxton10 Keypad Reader Wins in Chicago

• Chicago commercial sensitive-area doors with 2-factor PIN on Paxton10 cloud
• Clinic restricted doors — medication storage, records rooms (HIPAA + DEA)
• Server room and IT closet doors with Paxton10 cybersecurity
• School front-office and IT doors — admin areas that shouldn’t open to a found fob
• HOA building entries with PIN-protected resident access at Chicago condo and HOA buildings
• Multi-tenant residential sensitive-area positions
• Property management secure-area doors at multi-tenant buildings
• Hospitality cash-office and operations-center doors

Local Chicago Coverage

Vidimost installs the Paxton10 Keypad Reader across the full city of Chicago for sensitive-area 2-factor positions on Paxton10 cloud.

Recommended Pairings

• Paxton10 Slimline Reader (010-296) — for non-2-factor narrow-frame positions
• Paxton10 Vandal-Resistant Reader (010-254) — for outdoor 1-factor positions
• Paxton10 Desktop Reader (010-387) — for credential enrollment

Professional Installation by Vidimost

Vidimost LLC is an active Paxton installer across Chicago. The Paxton10 Keypad Reader is our specialized 2-factor reader for Paxton10 cloud jobs — server rooms, clinic med-storage doors, cash offices, and HOA PIN-protected entries. Full-scope service includes site walkthrough, MIFARE-variant selection per credential policy, 2-factor policy planning, Paxton10 controller + reader sizing, encrypted RS-485 wiring, mounting, reader commissioning in Paxton10 cloud dashboard, PIN policy + 2-factor door list configuration, mobile credential rollout, and operator + admin training. Contact us for a free site walkthrough and quote.

If you’re still choosing between models, start with our side-by-side Paxton reader guide.
