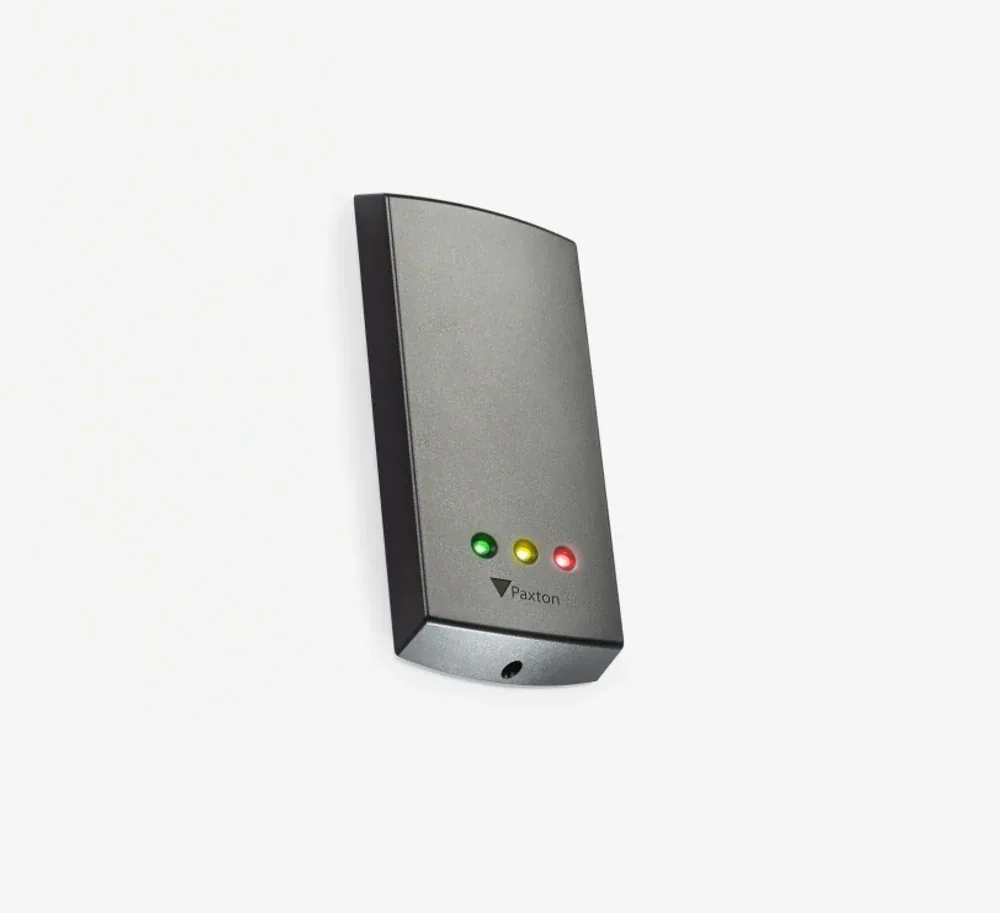

Paxton P75 Proximity Reader (373-110) — Architectural Large 125 kHz Net2 / Switch2 Reader for Chicago
Model / Series: P75 (373-110)
Paxton's largest 125 kHz proximity reader — 4-inch token range, 5-foot hands-free, IP67. Fits Net2 and Switch2 main entries that see heavy foot traffic.
We don't just ship boxes — this goes in as part of our access control installation in Chicago work. From the Loop to Rogers Park — see our security work across Chicago.
Specifications
- Brand
- Paxton
- Model
- P75 (373-110)
- Series
- Paxton Net2 / Switch2 Proximity
- Form Factor
- Architectural large mullion / wall-mount
- Dimensions
- 3" W × 5.5" H × 0.625" D
- Card Technology
- 125 kHz proximity (Paxton tokens, EM 4100/02)
- MIFARE Variants
- Available — Paxton offers 13.56 MHz MIFARE-capable P75 variants on request
- Read Range — Tokens
- Up to 4 in (largest in P-series)
- Read Range — Keyfobs
- Up to 2.5 in
- Read Range — Hands-free
- Up to 5 ft (largest in P-series)
- Communication Protocol
- Wiegand to Paxton Net2 / Switch2 controller
- Power
- 12 VDC, 130 mA
- Operating Temperature
- −35 °C to +66 °C
- Environmental Protection
- IP67 (outdoor weatherproof)
- Mounting
- Surface mount (wall / mullion)
Best Fit & Recommended For
Paxton P75 Proximity Reader (373-110) — Architectural Large Net2 / Switch2 Reader
The Paxton P75 (373-110) is the architectural large 125 kHz proximity reader in Paxton’s Net2 / Switch2 line — 3” wide premium form factor with 4” token read range and 5 ft hands-free range (the largest in the P-series). Reads Paxton tokens and EM 4100/02 credentials, IP67 weatherproof.
Most P75s we hang go on the doors that move the most people — the main entry of a multi-tenant building, the pedestrian door next to a parking gate, a busy office front. The extra hands-free range is the whole point: fobs read while people keep walking.
Why the Larger Read Range Matters
Standard P50 (353-110) delivers 3” token read range, fine for most commercial doors. The P75 extends this to 4” + 5 ft hands-free — meaningful at:
- High-traffic main entries — users approach reader at walking pace, hands-free credential reads as they walk through
- Vehicle gate pedestrian access — driver-side credential read without rolling down window
- ADA / accessible entries — easier credential presentation for users with mobility limitations
- Premium architectural lobbies — larger reader form matches premium-finish aesthetic
MIFARE Variants
Standard P75 reads Paxton tokens + EM 125 kHz. MIFARE-capable variants of the P75 are available on request — same large form factor, MIFARE 13.56 MHz reading. Specified at site walkthrough per credential policy.
P75 vs. Sibling Paxton P-Series
| Feature | P38 (333-110) | P50 (353-110) | P75 (373-110, this) |
|---|---|---|---|
| Width | 1.5” | 2” | 3” |
| Read range — token | 2.5” | 3” | 4” |
| Hands-free range | 3 ft | 4 ft | 5 ft |
| Best fit | Narrow frames | Most commercial | Premium architectural / high-traffic / hands-free |
Where the Paxton P75 Wins in Chicago
- Main building entries that see heavy foot traffic — hands-free reads keep the line moving
- Office lobby readers where the extended read range earns its cost
- Vehicle gate pedestrian access at HOA / property management gates with long-range hands-free
- Multi-tenant residential premium lobbies
- Warehouse pedestrian doors where gloves and full hands make a short-range reader a pain
- ADA / accessible entries where easier credential presentation matters
Local Chicago Coverage
Vidimost installs the Paxton P75 across the full city of Chicago.
Recommended Pairings
- Paxton P50 (353-110) — standard wall reader (use at non-flagship doors)
- Paxton P38 (333-110) — narrow frames
- Paxton KP50 (355-110) — 2-factor positions
- Paxton Net2 EX Desktop Reader (514-326) — USB enrollment
Professional Installation by Vidimost
Vidimost LLC is an active Paxton installer across Chicago. The P75 is our premium-architectural reader pick for Chicago Paxton Net2 / Switch2 deployments at flagship locations. Full-scope service includes site walkthrough, MIFARE-variant selection per credential policy, Net2 / Switch2 controller + reader sizing, Wiegand wiring, mounting, reader commissioning in Net2 software, hands-free credential workflow tuning, and operator + admin training. Contact us for a free site walkthrough and quote.
If you’re still choosing between models, start with our side-by-side Paxton reader guide.
