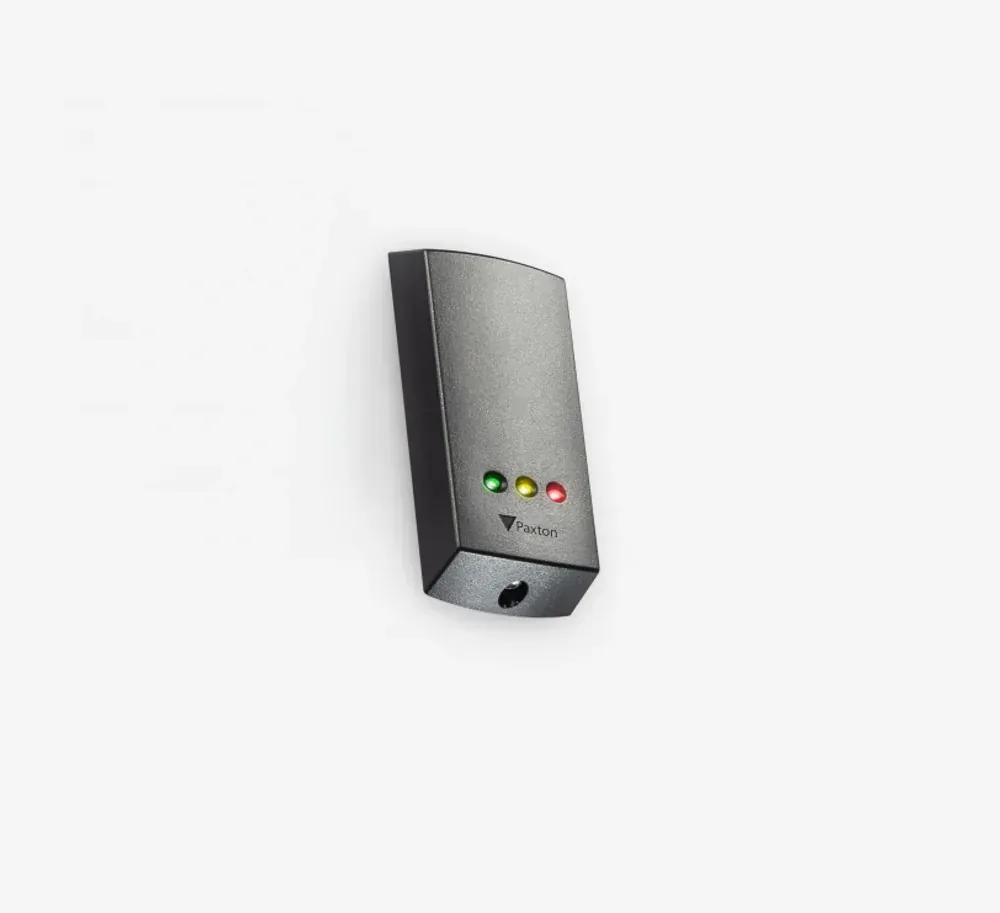

Paxton P38 Proximity Reader (333-110) — Compact 125 kHz Net2 / Switch2 Mullion Reader for Chicago
Model / Series: P38 (333-110)
Paxton's smallest Net2 proximity reader — a 1.5-inch mullion unit for narrow door frames and elevator panels where nothing wider fits.
We don't just ship boxes — this goes in as part of our access control installation in Chicago work. City building? See our Chicago, IL service area.
Specifications
- Brand
- Paxton
- Model
- P38 (333-110)
- Series
- Paxton Net2 / Switch2 Proximity
- Form Factor
- Compact mullion (smallest in Paxton P-series)
- Dimensions
- 1.5" W × 3" H × 0.5" D
- Card Technology
- 125 kHz proximity (Paxton tokens, EM 4100/02)
- MIFARE Variants
- Available — Paxton offers 13.56 MHz MIFARE-capable variants of the P-series on request (different SKU, similar form factor)
- Read Range — Tokens
- Up to 2.5 in
- Read Range — Keyfobs
- Up to 1.5 in
- Read Range — Hands-free
- Up to 3 ft (with hands-free credential)
- Communication Protocol
- Wiegand to Paxton Net2 / Switch2 controller
- Power
- 12 VDC, 130 mA
- Operating Temperature
- −35 °C to +66 °C
- Environmental Protection
- IP67 (outdoor weatherproof)
- Mounting
- Surface mullion mount (narrow door frame, glass mullion, elevator panel)
Best Fit & Recommended For
Paxton P38 Proximity Reader (333-110) — Compact Net2 / Switch2 Mullion Reader
The Paxton P38 (333-110) is the smallest 125 kHz proximity reader in Paxton’s Net2 / Switch2 product line — compact 1.5” wide mullion-mount form factor for narrow door frames, glass mullions, and elevator panels. Reads Paxton tokens and EM 4100/02 125 kHz credentials, IP67 weatherproof, −35 °C to +66 °C operating range. Wiegand output to Paxton Net2 or Switch2 controller.
Where the P38 earns its keep is the door nothing wider fits — glass mullions, elevator cab panels, skinny aluminum frames. If the building already runs Net2 or Switch2 on-premises, this is the reader we reach for at those openings.
Net2 / Switch2 vs. Paxton10 — Choosing the Right Platform
Paxton offers two distinct access control platforms:
| Need | Paxton Net2 / Switch2 | Paxton10 |
|---|---|---|
| Architecture | On-premises server | Cloud-managed |
| Reader generation | P-series + KP-series + Touchlock (this lineup) | Paxton10 readers |
| Mobile credentials | No (token-only) | Yes — built-in Bluetooth |
| Multi-format | 125 kHz (or MIFARE variant) | 6 formats simultaneously |
| Best fit | Established Net2 sites, on-premises preference, simple operation | Greenfield cloud-managed, multi-property |
The P38 is the right pick for established Paxton Net2 / Switch2 deployments that need additional readers for new doors. For greenfield deployments, the Paxton10 Slimline Reader is typically a better choice — built-in Bluetooth + multi-format reading.
MIFARE Variants
The standard P38 reads Paxton tokens + EM 125 kHz credentials. For projects requiring 13.56 MHz MIFARE smart cards instead of legacy 125 kHz, Paxton offers MIFARE-capable variants of the P-series on request — different SKU, similar mullion form factor, MIFARE DESFire / Classic reading. Specified at site walkthrough per credential policy. We don’t list MIFARE variants as separate product pages — same applications, same Chicago coverage.
P38 vs. Sibling Paxton P-Series Readers
| Feature | P38 (333-110) | P50 (353-110) | P75 (373-110) | KP50 (355-110) |
|---|---|---|---|---|
| Form factor | Compact mullion (1.5”) | Standard mullion (2”) | Architectural large (3”) | Mullion + keypad |
| Read range — token | 2.5” | 3” | 4” | 3” |
| Hands-free range | 3 ft | 4 ft | 5 ft | 4 ft |
| Keypad (2-factor) | No | No | No | Yes |
| Best fit | Narrow frames, elevators | Standard wall | Architectural premium | Sensitive 2-factor doors |
Where the Paxton P38 Wins in Chicago
- Chicago Paxton Net2 / Switch2 deployments at narrow-frame entries
- Multi-tenant residential elevator cab panels with Paxton tokens — Loop, River North, Mag Mile high-rises on Net2
- Condo / co-op narrow-frame entry doors on Paxton Net2
- HOA building entries at Chicago properties
- Glass storefront mullions at boutique retail and professional services
- Office buildings on Paxton Net2 / Switch2 with narrow-frame doors
- Property management common-area door readers
- Healthcare clinic narrow-frame door positions
- Hospitality boutique-property narrow entries
Local Chicago Coverage
Vidimost installs the Paxton P38 across the full city of Chicago — downtown Loop to the neighborhood corridors.
Recommended Pairings
- Paxton P50 (353-110) — standard mullion P-series
- Paxton P75 (373-110) — architectural large P-series
- Paxton KP50 (355-110) — keypad version for 2-factor
- Paxton Net2 EX Desktop Reader (514-326) — USB enrollment
Professional Installation by Vidimost
Vidimost LLC is an active Paxton installer across Chicago. The P38 is one of our standard Paxton Net2 / Switch2 reader picks for narrow-frame positions on the established Paxton platform. Full-scope service includes site walkthrough, MIFARE-variant selection per credential policy, Net2 / Switch2 controller + reader sizing, Wiegand wiring, mullion mounting, reader commissioning in Net2 software, token enrollment workflow setup, and operator + admin training. Contact us for a free site walkthrough and quote.
Not sure this is the right Paxton reader for your doors? Our Paxton reader comparison lines the whole family up side by side.
