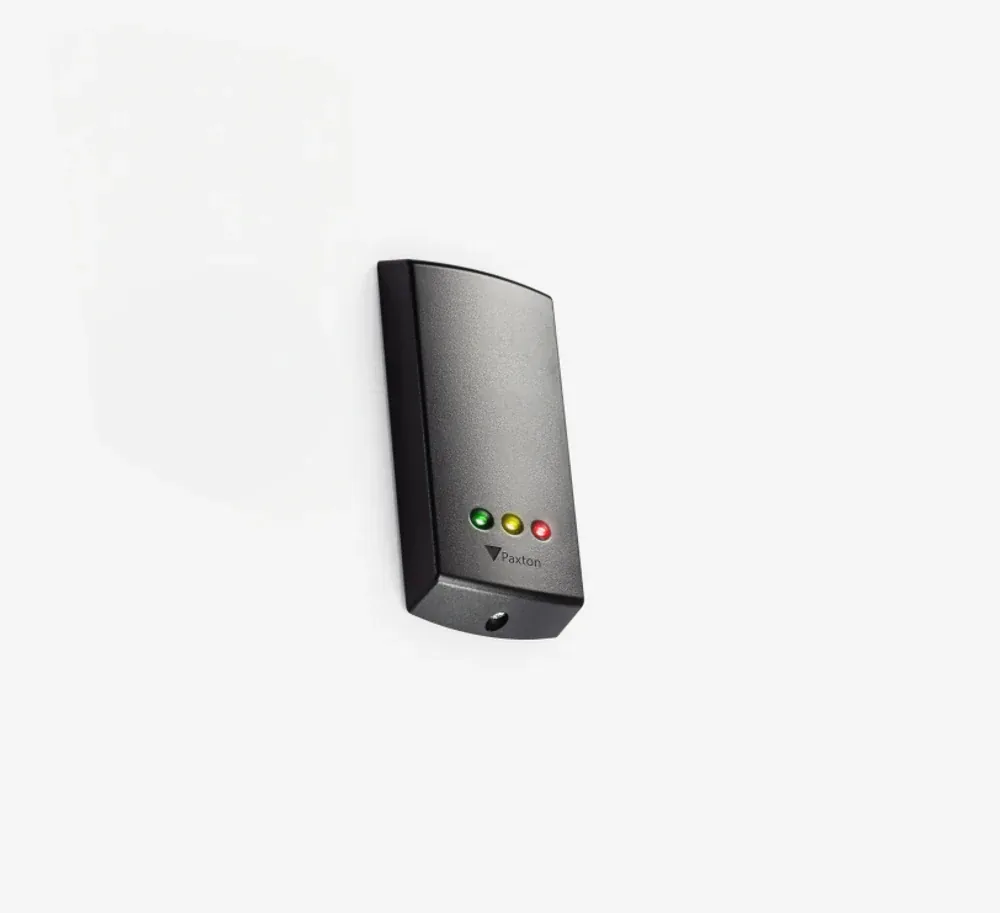

Paxton P50 Proximity Reader (353-110) — Standard 125 kHz Net2 / Switch2 Reader for Chicago Commercial
Model / Series: P50 (353-110)
The Paxton P50 (353-110) is the standard 125 kHz proximity reader in Paxton's Net2 / Switch2 line — 2" wide mullion / wall-mount form factor for typical commercial doors. Reads Paxton tokens + EM 125 kHz credentials, IP67 waterproof, 3" token read range, 4 ft hands-free range. The most-installed Paxton Net2 reader for standard wall-flush installations at Chicago offices, condos, HOA buildings, and commercial properties.
We don't just ship boxes — this goes in as part of our access control installation in Chicago work. Inheriting a half-working setup from a previous vendor? Start with a security system takeover.
Specifications
- Brand
- Paxton
- Model
- P50 (353-110)
- Series
- Paxton Net2 / Switch2 Proximity
- Form Factor
- Standard mullion / wall-mount
- Dimensions
- 2" W × 4" H × 0.625" D
- Card Technology
- 125 kHz proximity (Paxton tokens, EM 4100/02)
- MIFARE Variants
- Available — Paxton offers 13.56 MHz MIFARE-capable variants of the P50 on request
- Read Range — Tokens
- Up to 3 in
- Read Range — Keyfobs
- Up to 2 in
- Read Range — Hands-free
- Up to 4 ft
- Communication Protocol
- Wiegand to Paxton Net2 / Switch2 controller
- Power
- 12 VDC, 130 mA
- Operating Temperature
- −35 °C to +66 °C
- Environmental Protection
- IP67 (outdoor weatherproof)
- Mounting
- Surface mullion / standard wall mount
Best Fit & Recommended For
Paxton P50 Proximity Reader (353-110) — Standard Net2 / Switch2 Reader
The Paxton P50 (353-110) is the standard 125 kHz proximity reader in Paxton’s Net2 / Switch2 product line — 2” wide mullion / wall-mount form factor for typical commercial doors. Reads Paxton tokens and EM 4100/02 125 kHz credentials, IP67 weatherproof, 3” token read range, 4 ft hands-free range. Wiegand output to Paxton Net2 / Switch2 controller.
The P50 is the most-installed Paxton Net2 reader — fits the majority of commercial door positions cleanly, supports the standard Paxton token credentials, and works on both Net2 (networked) and Switch2 (single-door) controllers.
MIFARE Variants
The standard P50 reads Paxton tokens + EM 125 kHz. For projects requiring 13.56 MHz MIFARE smart cards, Paxton offers MIFARE-capable variants of the same form factor on request — specified at site walkthrough per credential policy. We don’t list MIFARE variants as separate product pages.
P50 vs. Sibling Paxton P-Series Readers
| Feature | P38 (333-110) | P50 (353-110, this) | P75 (373-110) | KP50 (355-110) |
|---|---|---|---|---|
| Width | 1.5” | 2” | 3” | 2” |
| Read range — token | 2.5” | 3” | 4” | 3” |
| Hands-free range | 3 ft | 4 ft | 5 ft | 4 ft |
| Keypad | No | No | No | Yes |
| Best fit | Narrow frames | Most commercial doors (most-installed) | Architectural large entries | Sensitive 2-factor |
Net2 / Switch2 vs. Paxton10
For established Paxton Net2 / Switch2 sites, the P50 is the standard reader. For greenfield projects, the Paxton10 Slimline Reader (Paxton’s modern cloud platform) is typically a better choice — built-in Bluetooth + multi-format reading + cloud admin.
Where the Paxton P50 Wins in Chicago
- Chicago Paxton Net2 / Switch2 deployments at standard wall door positions — most-installed configuration
- Office building lobby + entry doors on Net2
- Multi-tenant residential standard wall doors at high-rises — Loop, River North, Mag Mile
- HOA single-building entry doors at Chicago properties (Wilmette, Glencoe, Highland Park, Schaumburg, Naperville, Wheaton, Oak Brook)
- Condo / co-op standard wall entry doors
- Property management common-area door readers
- Healthcare clinic + practice entry doors
- Education facility administrative + corridor doors
- Retail back-of-house + storefront doors
- Hospitality back-of-house door positions
Local Chicago Coverage
Vidimost installs the Paxton P50 across the full city of Chicago.
Recommended Pairings
- Paxton P38 (333-110) — narrow-frame compact P-series
- Paxton P75 (373-110) — architectural large P-series
- Paxton KP50 (355-110) — keypad version for 2-factor
- Paxton Net2 EX Desktop Reader (514-326) — USB enrollment
Professional Installation by Vidimost
Vidimost LLC is an active Paxton installer across Chicago. The P50 is the most-installed Paxton Net2 / Switch2 reader for standard commercial wall positions. Full-scope service includes site walkthrough, MIFARE-variant selection per credential policy, Net2 / Switch2 controller + reader sizing, Wiegand wiring, mounting, reader commissioning in Net2 software, token enrollment workflow setup, and operator + admin training. Contact us for a free site walkthrough and quote.
Weighing it against the rest of the line? The Paxton reader comparison guide covers every model we install.
