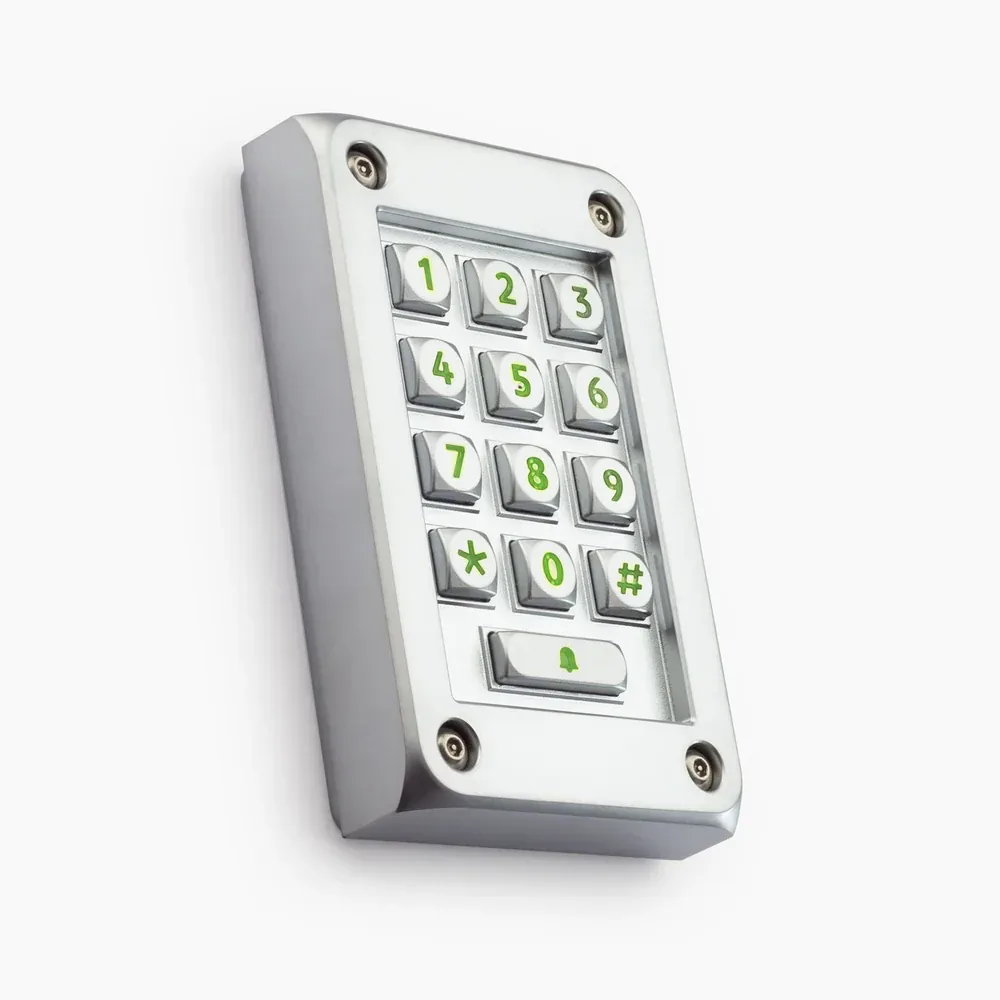

Paxton Touchlock Vandal-Resistant Metal Keypad (521-715) — Standalone PIN-Only Outdoor Access Keypad for Chicago
Model / Series: Touchlock Vandal Metal (521-715)
Standalone PIN keypad in a cast metal housing — runs one door on its own, no controller or software. Good for gates, garages, and utility rooms.
We don't just ship boxes — this goes in as part of our access control installation in Chicago work. First time working with us? Here’s why Chicago buildings pick Vidimost.
Specifications
- Brand
- Paxton
- Model
- Touchlock Vandal Metal (521-715)
- Series
- Paxton Touchlock
- Form Factor
- Standalone PIN-only keypad with cast metal housing
- Card Reader
- None — PIN-only standalone keypad (no card / token reading)
- Keypad
- Backlit metal keys with security fixing screws
- Operation Mode
- Standalone single-door access — built-in controller (no separate Net2 / Switch2 / Paxton10 needed)
- Authentication
- PIN code (programmable users)
- Cable Length
- 5 m
- Dimensions
- 89 W × 28 D × 143 H mm
- Power
- 12 VDC
- Operating Temperature
- Outdoor-rated
- Environmental Protection
- IPX7 (weatherproof, suitable for external use)
- Mounting
- Cast metal housing with choice of metal mounting plate or metal surface mounting box (4 large security fixings)
Best Fit & Recommended For
Paxton Touchlock Vandal-Resistant Metal Keypad (521-715) — Standalone PIN-Only Single-Door Access
The Paxton Touchlock Vandal-Resistant Metal Keypad (521-715) is a standalone single-door PIN-only access keypad from Paxton’s Touchlock series — cast metal housing for outdoor / vandal-prone positions, backlit keypad with security fixing screws, IPX7 weatherproof, 5 m cable length. Includes a built-in controller — no separate Net2, Switch2, or Paxton10 system required.
We put the Touchlock where a full networked platform would be overkill — a pool gate, a detached garage, the mechanical room off the alley. Wire it to the lock, program a handful of PINs, and it just runs; there’s no controller, no network, no software to babysit.
Why Standalone Beats Networked for Some Doors
For most commercial doors, networked access control (Net2, Switch2, Paxton10, Brivo, HID, etc.) is the right answer — centralized credential management, audit trails, multi-property federation. But for single-door auxiliary applications, networked AC is overkill:
- Outdoor sheds, outbuildings — only a few users need PIN access
- Mechanical rooms — only maintenance staff
- Pool / amenity gates — fixed-PIN per amenity season
- Detached garages — single household PIN
- Construction-site temporary access — short-term, no token logistics
- Storage areas — limited number of authorized users
The Touchlock is self-contained: install the keypad, wire it to the lock, program PINs, done. No controller, no network, no software. Perfect for the use cases above.
Vandal-Resistant Metal Construction
The 521-715 is the vandal-resistant metal variant of the Touchlock series:
- Cast metal housing — withstands kicks, bats, brick impacts
- Choice of mounting plate or surface mounting box — both metal
- 4 large security fixings — tamper-resistant mounting (cannot pry off with screwdriver)
- Backlit keypad for nighttime use
- IPX7 outdoor-rated — survives Chicago weather
- 5 m cable for flexibility in install location
For exposed outdoor positions where vandalism is a real concern (and most outdoor single-door applications fit this profile), the metal Touchlock is the right reliability investment.
Touchlock vs. Networked Paxton Keypad Readers
| Feature | Touchlock Vandal Metal (521-715, this) | KP50 (355-110) | KP75 MIFARE Metal (375-130) | Paxton10 Keypad (010-824) |
|---|---|---|---|---|
| Platform | Standalone (no controller) | Net2 / Switch2 | Net2 / Switch2 | Paxton10 cloud |
| Card support | None — PIN only | 125 kHz | MIFARE | Multi-format (6) |
| Vandal rating | IPX7 cast metal | IP67 plastic | IK10 metal | IK10 |
| Best fit | Single-door outdoor PIN-only | Indoor 2-factor on Net2 | Outdoor 2-factor MIFARE on Net2 | Cloud 2-factor |
| Networked admin | No (local PIN management) | Yes (Net2 software) | Yes (Net2 software) | Yes (cloud) |
Where the Paxton Touchlock Vandal Metal Keypad Wins in Chicago
- Chicago outdoor shed and outbuilding access — HOA storage, maintenance buildings at Chicago HOAs
- Garage / detached-garage pedestrian door access (single-door PIN-only)
- Mechanical / electrical room exterior doors at commercial properties
- Construction site temporary access — PIN-only, no token logistics
- Pool / amenity-area gates at HOA / multi-tenant residential properties
- Storage area access at retail back-of-house
- Industrial small-shed / utility-room exterior doors
- Restaurant / hospitality back alley service entries
- Property management single-door auxiliary access where networked AC is overkill
- Schools / educational facility outdoor utility / equipment building access
Local Chicago Coverage
Vidimost installs the Paxton Touchlock Vandal-Resistant Metal Keypad across the full city of Chicago for standalone single-door PIN-only outdoor applications.
Recommended Pairings (for Mixed Deployments)
When a property needs both networked AC at primary doors AND standalone PIN at auxiliary doors:
- Paxton KP50 (355-110) — networked Net2 keypad for primary 2-factor doors
- Paxton KP75 MIFARE Metal (375-130) — networked Net2 vandal-metal keypad for primary outdoor 2-factor
- Paxton Touchlock Vandal Metal (this) — standalone for auxiliary outdoor doors
Professional Installation by Vidimost
Vidimost LLC is an active Paxton installer across Chicago. The Touchlock Vandal Metal Keypad is our standard standalone single-door PIN keypad for Chicago HOA, property management, industrial, education, retail, and hospitality auxiliary outdoor applications. Full-scope service includes site walkthrough, single-door wiring (12 VDC + lock relay), vandal-resistant metal mounting with security fixings, PIN programming for authorized users, and operator training. Contact us for a free site walkthrough and quote.
Not sure this is the right Paxton reader for your doors? Our Paxton reader comparison lines the whole family up side by side.
