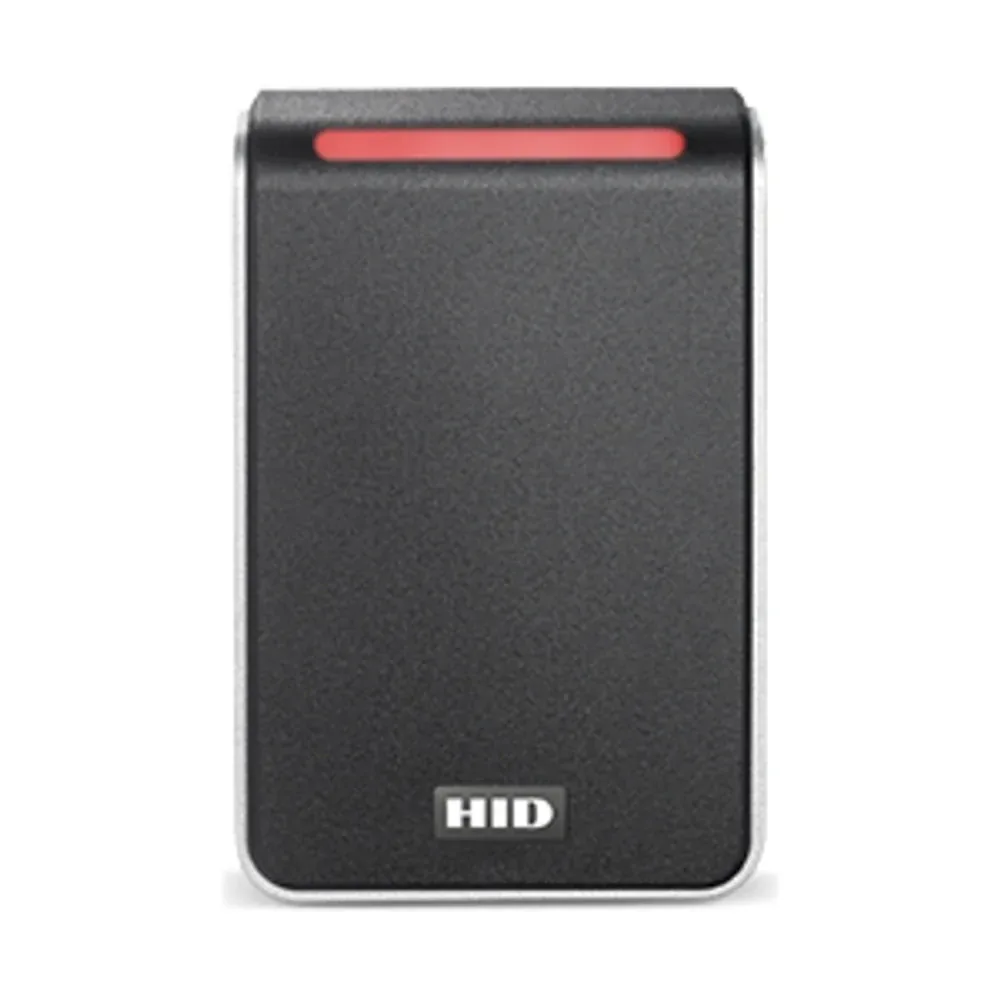

HID Signo 40 PIV Reader — Single-Gang FIPS 201 Multi-Technology Reader for PIV / CAC / TWIC Credentials
Model / Series: Signo 40 PIV
Single-gang door access reader that reads PIV, CAC and TWIC government cards plus smart cards and phones — for contractor offices and TWIC-badged warehouse docks.
We don't just ship boxes — this goes in as part of our access control installation in Chicago work. From the Loop to Rogers Park — see our security work across Chicago.
Specifications
- Brand
- HID Global
- Model
- Signo 40 PIV
- Series
- HID Signo PIV
- Form Factor
- Single-gang (standard wall)
- FIPS 201 Compliance
- Yes — supports PIV / CAC / TWIC / FRAC government credentials
- Mobile Credentials
- HID Mobile Access via Bluetooth Low Energy + NFC
- Card Technologies Supported
- PIV, CAC, TWIC, FRAC, iCLASS SE, SEOS, MIFARE DESFire EV1/EV2/EV3
- Authentication
- FIPS 201 PIV authentication + iCLASS SE mutual auth
- Keypad
- No
- Communication Protocol
- OSDP v2 (AES-128 secure channel) + Wiegand legacy support
- Operating Temperature
- −35 °C to +66 °C
- Environmental Protection
- IP55 (indoor / protected outdoor)
- Mounting
- Standard US single-gang electrical box
Best Fit & Recommended For
HID Signo 40 PIV — Single-Gang FIPS 201 Reader for PIV / CAC / TWIC Credentials
The HID Signo 40 PIV Reader is the FIPS 201-compliant variant of the HID Signo 40 standard wall reader from HID Global — adding PIV / CAC / TWIC / FRAC government credential support to the standard Signo 40’s multi-technology + mobile reading. Standard single-gang form factor with OSDP v2 AES-128 encrypted secure channel + Wiegand legacy support. IP55-rated for indoor and protected outdoor positions.
Most of these go in for subcontractor and engineering offices — the contract says the front door has to read a CAC or PIV card, but the rest of the staff is on phone credentials or SEOS cards, and one reader has to cover both. Same story at warehouse docks where drivers and crews carry TWIC cards.
Signo 40 PIV vs. Sibling PIV Readers
| Feature | Signo 40 PIV (this) | Signo 40 | pivCLASS R40 |
|---|---|---|---|
| Form factor | Single-gang | Single-gang | Single-gang |
| PIV / CAC / TWIC / FRAC | Yes — FIPS 201 | No | Yes — FIPS 201 |
| HID Mobile Access | Yes | Yes | Limited |
| iCLASS SE + SEOS | Yes | Yes | Limited |
| OSDP v2 | Yes — native | Yes — native | Wiegand |
| Best fit | Agency cards + multi-tech + mobile on one door | Commercial single-gang | PIV-only at lower cost |
Pick the Signo 40 PIV when government credentials, multi-technology cards, and mobile all have to work at the same door. Pick the pivCLASS R40 for PIV-only reading at lower cost.
Where the Signo 40 PIV Fits
- Subcontractor and engineering offices that badge CAC / PIV cardholders
- Warehouse docks and logistics offices with TWIC-carded crews
- Tenant suites in buildings with a government-agency tenant
- Parking garage pedestrian doors serving TWIC- or PIV-badged staff
- Offices moving to mobile credentials that still have to read agency cards during the switch
Local Chicago Coverage
Vidimost installs the HID Signo 40 PIV across the city of Chicago.
Recommended Pairings
- HID Signo 20 PIV — mullion PIV
- HID Signo 40K PIV — single-gang PIV + keypad
- HID Signo PIV Contact Reader — contact-card PIV
- HID pivCLASS R40 — PIV-only (lower cost)
Professional Installation by Vidimost
Vidimost LLC is an active HID Global installer in Chicago. For a Signo 40 PIV job the scope runs: site walkthrough, credential planning, OSDP v2 wiring, single-gang mounting, reader commissioning, ACS registration, mobile credential rollout, and admin training. Contact us for a free site walkthrough and quote.
