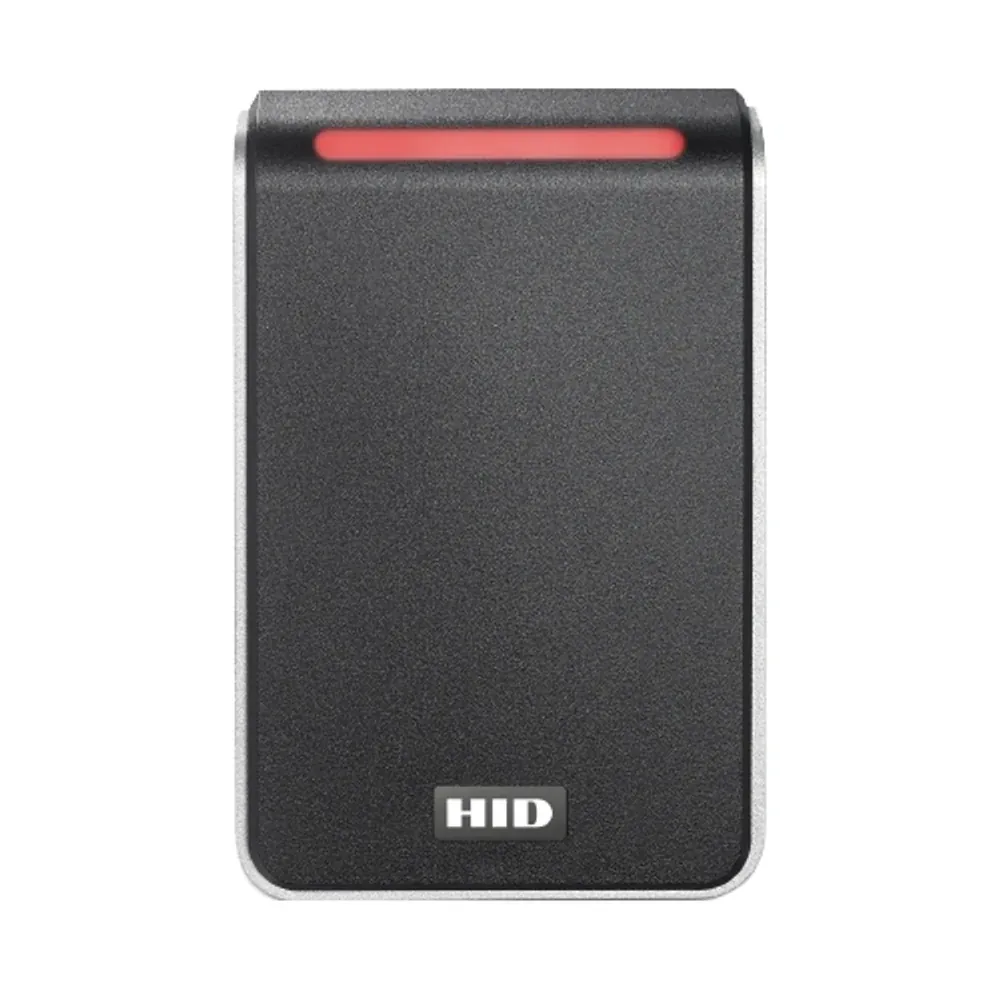

HID Signo 40 Reader — Standard Single-Gang Multi-Technology Access Reader for Chicago Commercial Buildings

HID Signo 40 — Standard Single-Gang Multi-Technology Reader for Chicago Commercial Buildings

The HID Signo 40 is the standard single-gang multi-technology access control reader from HID Global’s Signo platform — supporting HID Mobile Access (Bluetooth + NFC), Apple Wallet employee badge, iCLASS SE, SEOS, MIFARE DESFire EV3, MIFARE Classic, and legacy 125 kHz HID Prox in a single reader. Communicates over OSDP v2 with AES-128 encrypted secure channel + Wiegand legacy support. IP55-rated for indoor and protected outdoor positions. Mounts in a standard US single-gang electrical box.

The Signo 40 is the most-installed HID reader for Chicago commercial offices, HOA single-building entries, multi-tenant residential lobbies, and parking garage pedestrian doors — anywhere a clean wall-flush single-gang reader is preferred over the compact mullion form.

Why Multi-Technology Matters for Chicago Buildings

Most Chicago commercial properties have mixed-vintage credentials in active circulation:

• Legacy 125 kHz Prox cards from older deployments
• iCLASS SE / SEOS smart credentials adopted in the 2010s+
• HID Mobile Access (Bluetooth + NFC) for modern mobile-first deployments
• Apple Wallet employee badge for iOS-first organizations
• MIFARE DESFire EV3 for European-vendor or mixed-vendor sites

The Signo 40 reads all of these credential technologies in one reader — meaning Chicago property owners can:

• Migrate legacy Prox to Mobile Access without ripping out readers (transition over 1–3 years as users update)
• Issue mobile credentials to new tenants while existing tenants keep using their plastic cards
• Avoid double-reader installations during migration periods
• Future-proof the deployment against credential-technology shifts

OSDP v2 Secure Channel — Why It Matters

Unlike legacy Wiegand readers (which transmit credentials in plaintext), OSDP v2 uses AES-128 encrypted secure channel between the reader and controller. This prevents:

• Credential interception at the reader wire (a physical-attack vector for Wiegand)
• Replay attacks where a captured credential is replayed by an attacker
• Reader spoofing where a fake reader claims to be the legitimate one

If an insurance or IT audit is part of the picture, OSDP v2 is increasingly the box that has to be checked.

Signo 40 vs. Signo Lineup — Choosing the Right Form Factor

Feature	Signo 20 (compact mullion)	Signo 40 (this — single-gang)	Signo 20K	Signo 40K
Form factor	Mullion (narrow door frame)	Single-gang (standard wall)	Mullion + keypad	Single-gang + keypad
Keypad	No	No	Yes (capacitive)	Yes (capacitive)
Best fit	Glass mullions, narrow frames, elevators	Standard wall-flush installation	Mullion + 2-factor PIN	Standard wall + 2-factor PIN

The Signo 40 is the right pick for wall-flush installation at standard door entries. Pick the Signo 20 (mullion) for narrow door frames or glass mullions. Pick the Signo 40K when 2-factor (card + PIN) is required by the deployment.

Where the HID Signo 40 Wins in Chicago

• Commercial office lobby + main entry readers — Loop, River North, Mag Mile, office parks on the city edges
• HOA building entries at Chicago condo and HOA buildings
• Multi-tenant residential — Loop high-rise lobbies, River North condos, Mag Mile residential
• Parking garage pedestrian door readers — pedestrian entry from parking deck to lobby
• Server room and IT closet doors with cybersecurity-grade access control
• Medical and dental practice entry doors
• Property management common-area door readers at multi-tenant buildings
• Mixed-vendor migrations from legacy Prox to Mobile Access — the Signo 40’s multi-technology read matters

Local Chicago Coverage

Vidimost installs the HID Signo 40 across the full city of Chicago — downtown Loop to the neighborhood corridors.

Compatible Access Control Systems

The Signo 40 works with virtually every modern access control system via OSDP v2 or legacy Wiegand:

• Brivo (cloud-managed) — most-installed cloud platform
• Genetec Synergis
• Software House C•CURE 9000
• LenelS2 OnGuard / NetBox
• Honeywell Pro-Watch
• Paxton Net2 (with adapter)
• 2N Access Commander
• Kantech EntraPass

Recommended Pairings

• HID Signo 20 — for narrow-frame / mullion positions
• HID Signo 40K — for 2-factor (card + PIN) positions
• HID Signo 20K — for narrow-frame + 2-factor

Professional Installation by Vidimost

Vidimost LLC is an active HID Global installer across Chicago. The Signo 40 is one of our standard reader picks for commercial offices, HOAs, multi-tenant residential, and property-management projects. Full-scope service includes site walkthrough, credential-technology planning, OSDP v2 wiring + secure-channel setup, mounting (standard single-gang box), reader commissioning, controller configuration, mobile credential rollout (HID Mobile Access + Apple Wallet badge), and operator + admin training. Contact us for a free site walkthrough and quote.
