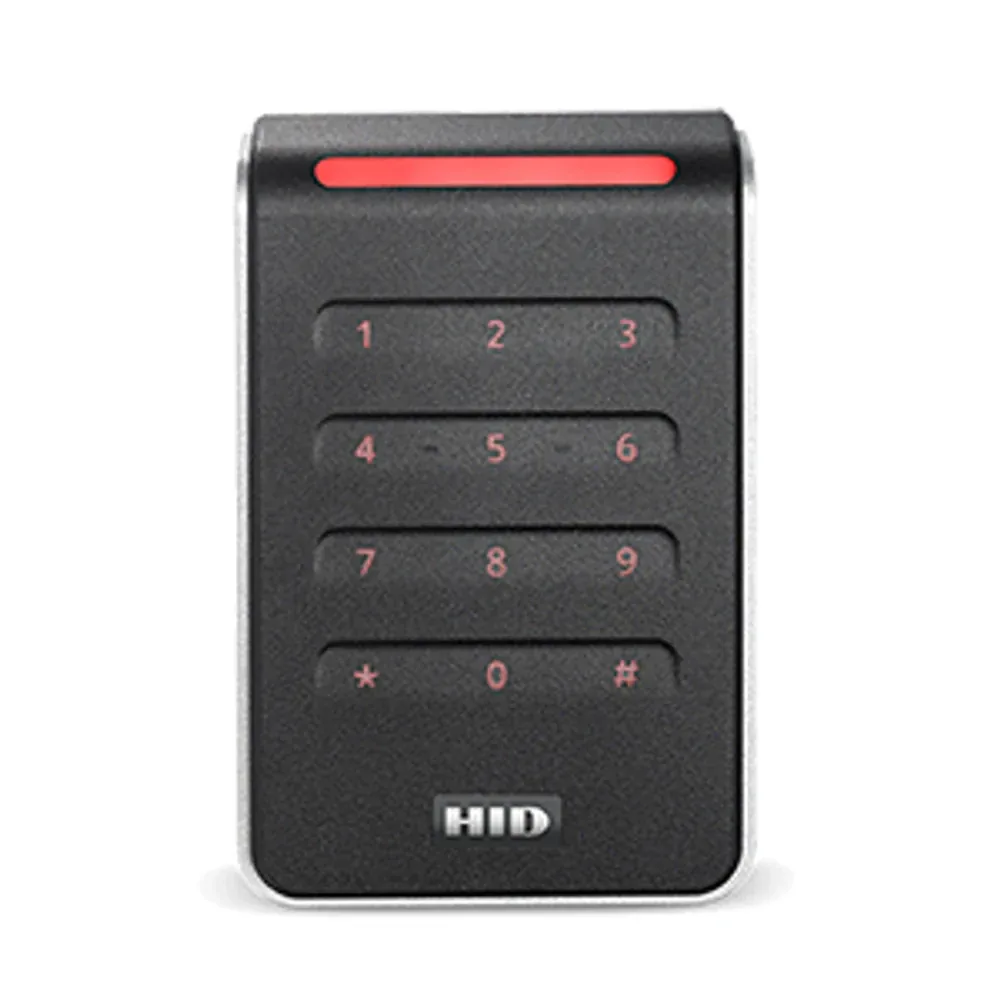

HID Signo 40K Keypad Reader — Standard Single-Gang Multi-Technology Reader with Capacitive Touch Keypad

HID Signo 40K — Standard Single-Gang Multi-Technology Reader with Capacitive Touch Keypad

The HID Signo 40K is the keypad-equipped standard single-gang access reader from HID Global’s Signo platform — supporting HID Mobile Access (Bluetooth + NFC), Apple Wallet employee badge, iCLASS SE, SEOS, MIFARE DESFire EV3, MIFARE Classic, and legacy 125 kHz HID Prox in a single reader, plus an integrated capacitive-touch keypad for PIN-code 2-factor authentication. Communicates over OSDP v2 with AES-128 encrypted secure channel + Wiegand legacy support. IP55-rated for indoor and protected outdoor positions. Mounts in a standard US single-gang electrical box.

Wherever the wall already has a single-gang box, the 40K drops straight in — which is why it’s our default two-factor pick for office server rooms, HOA entries with resident PIN codes, and restaurant cash offices where card-only isn’t enough.

Why Single-Gang + Keypad Together

The Signo 40K combines two requirements:

1. Standard wall-flush single-gang form factor — clean appearance against finished walls, mounts in standard US electrical box
2. 2-factor authentication — card + PIN entry for sensitive door positions

Pick the Signo 40 (no keypad) when 1-factor card-only is sufficient. Pick the Signo 20K (mullion + keypad) for narrow door frames or glass mullions where standard wall mount won’t fit.

When 2-Factor Authentication Matters

Card-only access works for most commercial doors. PIN 2-factor is required at:

• Server rooms, IT closets, network rooms (cybersecurity audit requirement)
• Pharmacy and medication storage at storefront clinics (HIPAA)
• HOA front-door entries (resident-PIN policy for after-hours access)
• Cash-handling areas (loss-prevention)
• Electrical / mechanical rooms at larger commercial buildings

The Signo 40K’s capacitive-touch keypad is water-resistant and tamper-resistant — no mechanical wear, no spring failures, no liquid intrusion through button gaps. Ideal for high-cycle door positions.

Signo 40K vs. Signo Lineup — Choosing the Right Form Factor

Feature	Signo 20	Signo 20K	Signo 40	Signo 40K (this — single-gang + keypad)
Form factor	Mullion (narrow)	Mullion + keypad	Single-gang (wall)	Single-gang + keypad
Keypad	No	Yes	No	Yes — capacitive touch
Best fit	Glass mullions, elevators	Narrow frames + 2-factor	Standard wall-flush — 1-factor	Standard wall + 2-factor — most common 2-factor pick

Where the HID Signo 40K Wins in Chicago

• Commercial office sensitive-area doors — server rooms, IT closets, electrical / mechanical, executive suites
• Pharmacy and medication-storage doors at storefront clinics and small practices
• HOA building entry doors with PIN-protected access for residents at Chicago HOAs
• Multi-tenant residential sensitive areas — Loop, River North, Mag Mile high-rise back-of-house
• Property management secure-area doors requiring 2-factor at multi-tenant buildings
• Hospitality back-of-house, cash-office, operations-center doors at hotels, restaurants, banquet venues
• Retail back-of-house, cash counts, stockroom doors at boutique retail and shopping centers

Local Chicago Coverage

Vidimost installs the HID Signo 40K across the full city of Chicago — downtown Loop to the neighborhood corridors.

Compatible Access Control Systems

OSDP v2 secure-channel compatibility with Brivo, Genetec Synergis, Software House C•CURE 9000, LenelS2, Honeywell Pro-Watch, Paxton Net2, 2N Access Commander, Kantech EntraPass, and other modern access control platforms.

Recommended Pairings

• HID Signo 40 — for standard wall-flush 1-factor positions
• HID Signo 20K — for narrow-frame + 2-factor positions
• HID Signo 20 — for narrow-frame 1-factor positions

Professional Installation by Vidimost

Vidimost LLC is an active HID Global installer across Chicago. The Signo 40K is one of our most-installed 2-factor readers for commercial offices, HOA entries, hospitality back-of-house, and property management secure areas. Full-scope service includes site walkthrough, credential-technology + 2-factor policy planning, OSDP v2 wiring + secure-channel setup, mounting (standard single-gang box), reader commissioning, controller configuration, mobile credential rollout, PIN-code policy setup, and operator + admin training. Contact us for a free site walkthrough and quote.
