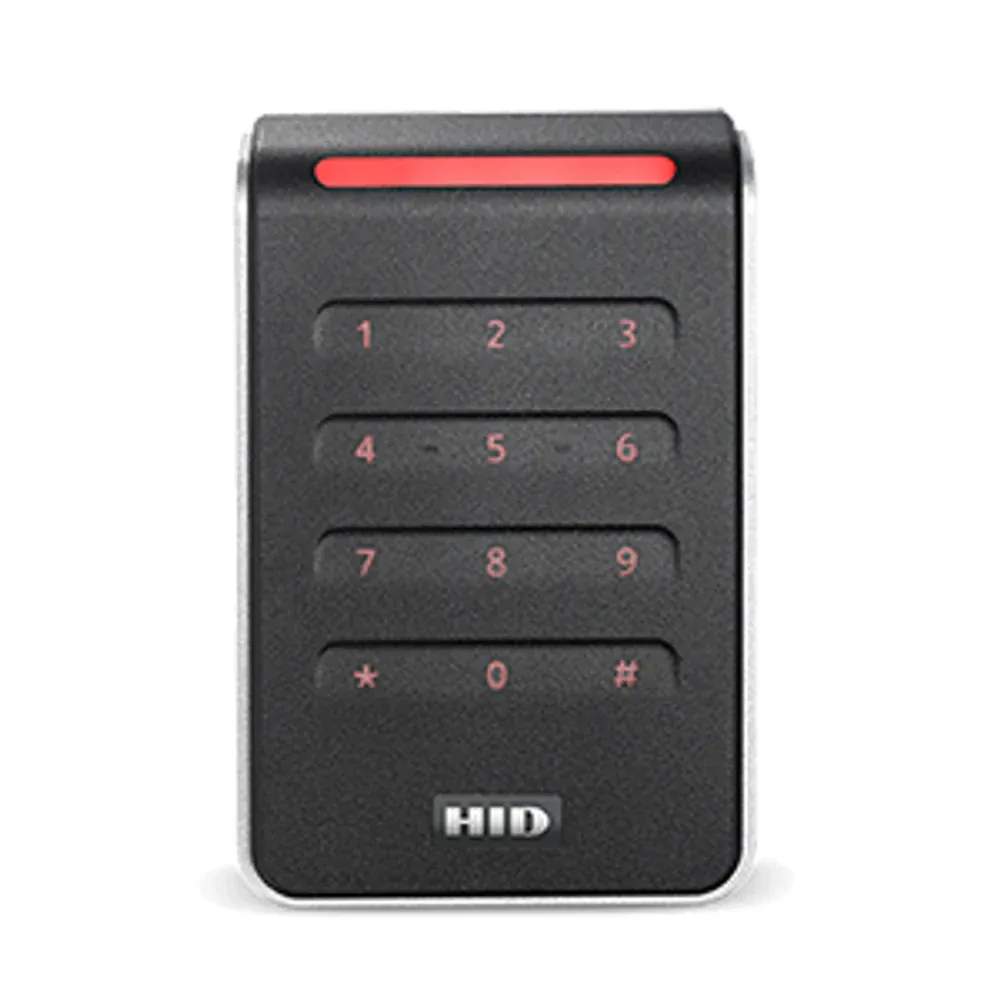

HID Signo 40K PIV Reader — Single-Gang FIPS 201 Reader with Capacitive Keypad for Card + PIN Doors
Model / Series: Signo 40K PIV
FIPS 201 keypad reader — a PIV, CAC or TWIC card plus a PIN code on one single-gang unit, for doors where the card alone isn't enough.
We don't just ship boxes — this goes in as part of our access control installation in Chicago work. City building? See our Chicago, IL service area.
Specifications
- Brand
- HID Global
- Model
- Signo 40K PIV
- Series
- HID Signo PIV
- Form Factor
- Single-gang (standard wall) with integrated keypad
- FIPS 201 Compliance
- Yes — supports PIV / CAC / TWIC / FRAC government credentials
- Mobile Credentials
- HID Mobile Access via Bluetooth Low Energy + NFC
- Card Technologies Supported
- PIV, CAC, TWIC, FRAC, iCLASS SE, SEOS, MIFARE DESFire EV1/EV2/EV3
- Keypad
- Yes — capacitive-touch keypad for PIN-code 2-factor entry
- Communication Protocol
- OSDP v2 (AES-128 secure channel) + Wiegand legacy support
- Operating Temperature
- −35 °C to +66 °C
- Environmental Protection
- IP55 (indoor / protected outdoor)
- Mounting
- Standard US single-gang electrical box
Best Fit & Recommended For
HID Signo 40K PIV — FIPS 201 Reader with Keypad for Card + PIN Doors
The HID Signo 40K PIV Reader combines the FIPS 201 PIV credential support of the Signo 40 PIV with an integrated capacitive-touch keypad for PIN-code 2-factor authentication — in standard single-gang form factor. From HID Global, supporting PIV / CAC / TWIC / FRAC government credentials, HID Mobile Access, iCLASS SE / SEOS plus PIN entry over OSDP v2 AES-128 encrypted secure channel. IP55-rated for indoor and protected outdoor positions.
The typical spot for this reader is the server room or records room at a shop working under a government contract — the contract says card plus PIN, the staff carries CAC or PIV cards, and the door needs both checks before it opens. The keypad is capacitive, so there are no buttons to gum up and no springs to die.
Three Requirements, One Unit
- PIV / CAC / TWIC / FRAC reading (FIPS 201) where the contract requires it
- PIN as the second factor for rooms holding records, servers, or gear
- Standard single-gang mount — most interior doors are standard wall, not mullion
If any one of the three drops off, a cheaper sibling covers it — that’s what the pairings below are for.
Where the Signo 40K PIV Fits
- Server and records rooms at offices holding government contracts
- Contractor doors with a card-plus-PIN policy in writing
- Warehouse and dock offices with TWIC cards and a PIN requirement
- Tenant suites hosting a government-agency tenant with a 2-factor policy
- IT and panel rooms behind a PIV-credentialed entry
Local Chicago Coverage
Vidimost installs the HID Signo 40K PIV across the city of Chicago.
Recommended Pairings
- HID Signo 40 PIV — single-gang 1-factor PIV
- HID Signo 20K PIV — mullion PIV + keypad
- HID Signo PIV Mechanical Keypad — mechanical-keypad PIV variant
- HID pivCLASS RK40 — PIV-only + keypad
Professional Installation by Vidimost
Vidimost LLC is an active HID Global installer in Chicago. A 40K PIV install covers the walkthrough, card-plus-PIN policy planning, OSDP v2 wiring, single-gang mounting, commissioning, ACS registration, PIN-code setup, mobile credential rollout, and admin training. Contact us for a free site walkthrough and quote.
