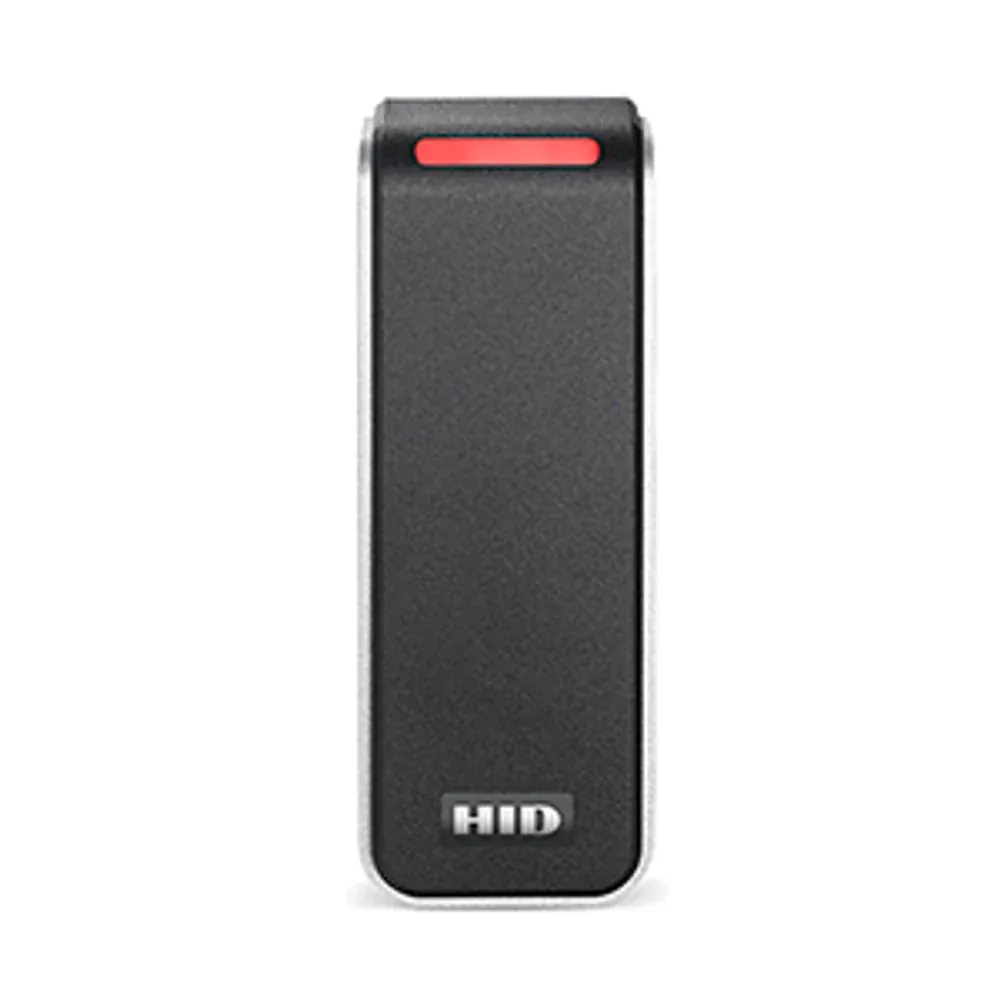

HID Signo 20 PIV Reader — Compact Mullion FIPS 201 Multi-Technology Reader for PIV / CAC Credential Doors

HID Signo 20 PIV — Compact Mullion FIPS 201 Reader for PIV / CAC Credential Doors

The HID Signo 20 PIV Reader is the FIPS 201-compliant variant of the HID Signo 20 compact mullion reader from HID Global — adding government PIV / CAC / TWIC / FRAC credential support to the standard Signo 20’s multi-technology + mobile reading. Mullion form factor with OSDP v2 AES-128 encrypted secure channel + Wiegand legacy support. IP55-rated for indoor and protected outdoor positions.

The Signo 20 PIV earns its slot at contractor and supplier offices where the contract language requires FIPS 201 credential reading — a defense supplier’s suite door, a fabricator running DOD purchase orders, a dock office where drivers carry TWIC cards. Anywhere a compact mullion reader is needed AND government-issued PIV credentials must be accepted.

What FIPS 201 PIV Credentials Mean

FIPS 201 (Federal Information Processing Standard 201) is the U.S. government standard for PIV (Personal Identity Verification) credentials issued to federal employees and contractors:

• CAC (Common Access Card) — DOD military + civilian + contractors
• TWIC (Transportation Worker Identification Credential) — port, vessel, transportation workers
• FRAC (First Responder Authentication Credential) — fire, EMS, law enforcement

These credentials use cryptographic certificates issued by approved federal CAs and provide much stronger identity assurance than commercial credentials. When a contract or regulation says the door has to read them, it has to be through a FIPS 201-compliant reader — a standard commercial reader that can’t validate the certificate doesn’t satisfy the requirement.

Signo 20 PIV vs. Sibling Readers

Feature	Signo 20 PIV (this)	Signo 20	pivCLASS R10
Form factor	Mullion	Mullion	Mullion
PIV / CAC / TWIC / FRAC	Yes — FIPS 201	No	Yes — FIPS 201
HID Mobile Access	Yes	Yes	Limited
iCLASS SE + SEOS	Yes	Yes	Limited
OSDP v2	Yes — native	Yes — native	Wiegand
Best fit	PIV + multi-tech + mobile in one mullion	Commercial mullion	Pure PIV mullion (lower cost, no mobile)

Pick Signo 20 PIV when PIV credentials AND multi-technology AND mobile credentials are all in scope. Pick pivCLASS R10 for pure PIV-only mullion at lower cost. Pick Signo 20 (commercial) when no government credentials are in play.

Where the Signo 20 PIV Wins in Chicago

• Contractor and supplier offices whose defense work requires PIV / CAC reading at the suite door
• Machine shops and fabricators holding DOD supply contracts with badge requirements
• Warehouse and dock offices where TWIC cards are the credential drivers actually carry

Local Chicago Coverage

Vidimost installs the HID Signo 20 PIV across the full city of Chicago — downtown Loop to the neighborhood corridors.

Compatible Access Control Systems

OSDP v2 secure-channel + native FIPS 201 support with PIV-aware access control systems including Brivo, Genetec Synergis with PIV module, Software House C•CURE 9000 with PIV registration, LenelS2 OnGuard with PIV support, Honeywell Pro-Watch with PIV, and other PIV-capable ACS platforms.

Recommended Pairings

• HID Signo 20K PIV — mullion + keypad PIV variant
• HID Signo 40 PIV — single-gang PIV variant
• HID Signo PIV Contact Reader — contact-card PIV reader
• HID pivCLASS R10 — pure PIV mullion (lower cost)

Professional Installation by Vidimost

Vidimost LLC is an active HID Global installer across Chicago. The Signo 20 PIV is our narrow-frame pick when a client’s contract requires FIPS 201 badge reading — defense suppliers, fabricators, and dock offices around the city. Full-scope service includes site walkthrough, FIPS 201 credentialing planning, OSDP v2 wiring + secure-channel setup, mullion mounting, reader commissioning, ACS PIV registration setup, mobile credential rollout, and operator + admin training. Contact us for a free site walkthrough and quote.
