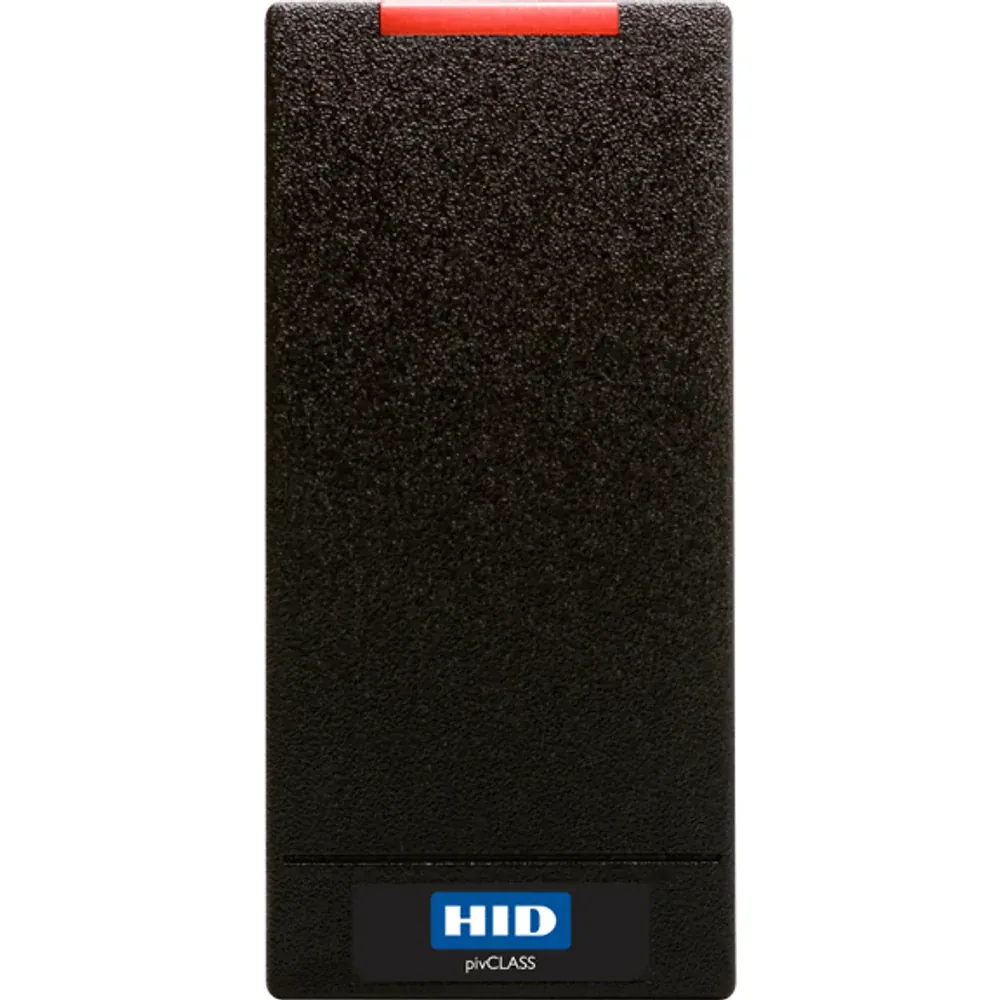

HID pivCLASS R10 Reader — FIPS 201 PIV Mullion Reader Without the Signo Price
Model / Series: pivCLASS R10
Budget FIPS 201 mullion reader for PIV, CAC, and TWIC cards — fits narrow door frames where staff already carry government-issued credentials.
We don't just ship boxes — this goes in as part of our access control installation in Chicago work. From the Loop to Rogers Park — see our security work across Chicago.
Specifications
- Brand
- HID Global
- Model
- pivCLASS R10
- Series
- HID pivCLASS
- Form Factor
- Mullion (narrow profile)
- FIPS 201 Compliance
- Yes — pure PIV / CAC / TWIC / FRAC support
- Card Technologies Supported
- PIV, CAC, TWIC, FRAC, iCLASS SE, SEOS
- Mobile Credentials
- Limited (no native HID Mobile Access)
- Communication Protocol
- Wiegand
- Operating Temperature
- −35 °C to +66 °C
- Environmental Protection
- IP55
- Mounting
- Mullion (narrow door frame)
Best Fit & Recommended For
HID pivCLASS R10 — FIPS 201 PIV Mullion Reader Without the Signo Price
The HID pivCLASS R10 is the pure FIPS 201-compliant mullion-format PIV reader from HID Global’s pivCLASS line — supporting PIV / CAC / TWIC / FRAC credentials at lower cost than the multi-technology Signo 20 PIV variants. Wiegand output, IP55-rated.
Most of the R10s we hang go on tenant-suite doors where the staff already carry government-issued cards — a defense contractor’s office, a warehouse dispatch room full of TWIC-carrying drivers — and the frame is too narrow for a single-gang reader. It reads the card, sends Wiegand to the panel, and skips the mobile-credential features you’d be paying for with a Signo.
pivCLASS vs. Signo PIV — Choosing the Right PIV Reader
| Need | pivCLASS R10 (this) | Signo 20 PIV |
|---|---|---|
| PIV / CAC / TWIC / FRAC | Yes — FIPS 201 | Yes — FIPS 201 |
| HID Mobile Access | No / limited | Yes |
| Apple Wallet | No | Yes |
| MIFARE DESFire | Limited | Yes |
| OSDP v2 native | Wiegand | Yes |
| Per-reader cost | Lower | Higher |
| Best fit | PIV-only doors on a budget | Multi-tech + mobile in scope |
Pick pivCLASS R10 when budget matters and the deployment is pure-PIV without mobile credentials. Pick Signo 20 PIV when mobile credentials AND multi-tech AND OSDP v2 are all in scope.
Where the pivCLASS R10 Wins
- Contractor tenant suites where staff carry PIV or CAC cards
- Narrow aluminum door frames where a single-gang reader won’t fit
- Warehouse offices where drivers badge in with TWIC cards
- Buildings leasing suites to defense-contractor tenants
- Like-for-like pivCLASS R10 replacements
- PIV-only doors where the Signo PIV price isn’t justified
Local Chicago Coverage
Vidimost installs the HID pivCLASS R10 across the full city of Chicago.
Recommended Pairings
- HID pivCLASS R40 — single-gang pure PIV
- HID pivCLASS RK40 — single-gang pure PIV + keypad
- HID Signo 20 PIV — multi-tech PIV mullion with mobile credentials
Professional Installation by Vidimost
Vidimost LLC is an active HID Global installer across Chicago. The pivCLASS R10 is our budget pick when a narrow-frame door has to read PIV or CAC cards and nothing else. Full-scope service includes site walkthrough, FIPS 201 credentialing planning, Wiegand wiring, mullion mounting, reader commissioning, ACS PIV registration, and operator + admin training. Contact us for a free site walkthrough and quote.
