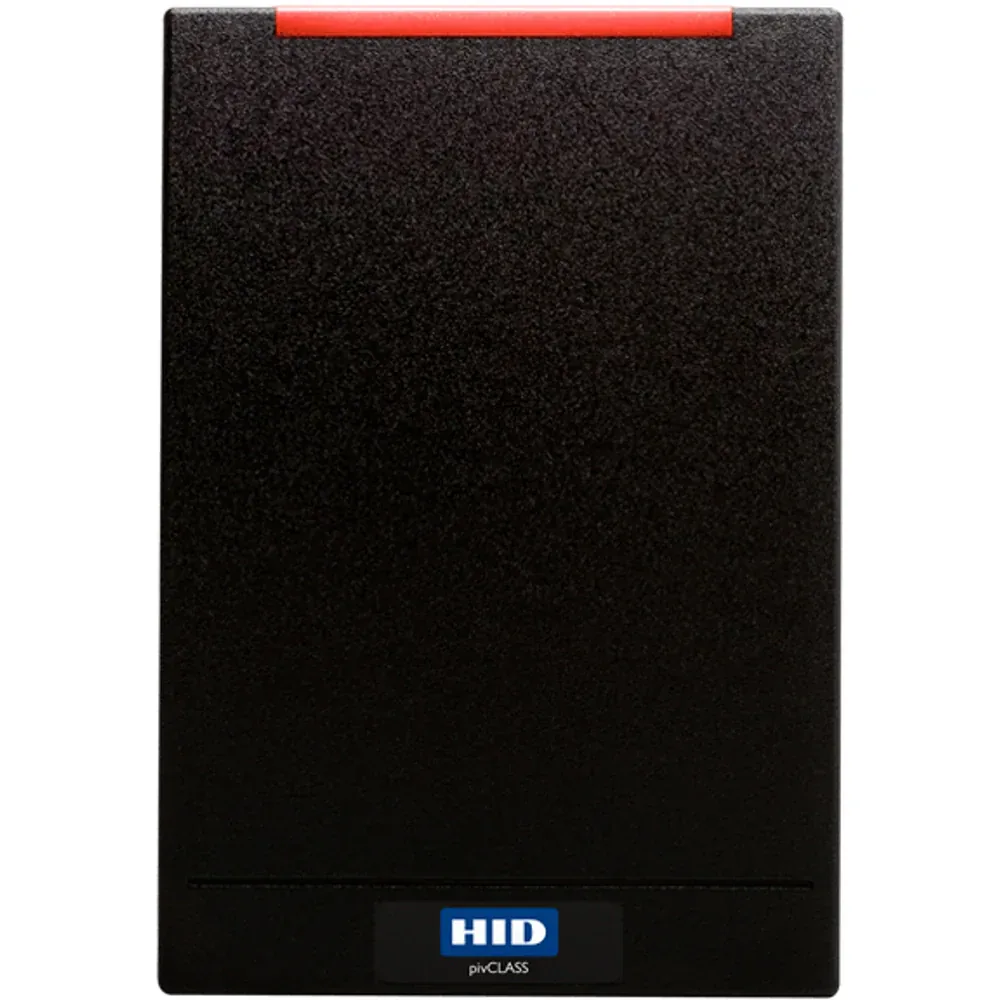

HID pivCLASS R40 Reader — FIPS 201 PIV Single-Gang Reader for Standard Wall Boxes
Model / Series: pivCLASS R40
Single-gang FIPS 201 reader that reads PIV and CAC cards on a standard wall box — plain Wiegand, no mobile-credential surcharge.
We don't just ship boxes — this goes in as part of our access control installation in Chicago work. City building? See our Chicago, IL service area.
Specifications
- Brand
- HID Global
- Model
- pivCLASS R40
- Series
- HID pivCLASS
- Form Factor
- Single-gang (standard wall)
- FIPS 201 Compliance
- Yes — pure PIV / CAC / TWIC / FRAC support
- Card Technologies Supported
- PIV, CAC, TWIC, FRAC, iCLASS SE, SEOS
- Mobile Credentials
- Limited (no native HID Mobile Access)
- Communication Protocol
- Wiegand
- Operating Temperature
- −35 °C to +66 °C
- Environmental Protection
- IP55
- Mounting
- Standard US single-gang electrical box
Best Fit & Recommended For
HID pivCLASS R40 — FIPS 201 PIV Reader for Standard Wall Boxes
The HID pivCLASS R40 is the pure FIPS 201-compliant standard wall single-gang PIV reader from HID Global’s pivCLASS line — supporting PIV / CAC / TWIC / FRAC credentials at lower cost than the multi-technology Signo 40 PIV. Wiegand output, IP55-rated.
Of the pivCLASS line, this is the form factor that goes in most often — it drops onto the standard single-gang box already sitting in the wall at a typical commercial door. When a tenant’s staff carry CAC or PIV cards and the lease says the door has to read them, the R40 does the job without the Signo 40 PIV price tag.
pivCLASS R40 vs. Signo 40 PIV — Which PIV Reader
| Need | pivCLASS R40 (this) | Signo 40 PIV |
|---|---|---|
| PIV / CAC / TWIC / FRAC | Yes | Yes |
| HID Mobile Access | No / limited | Yes |
| Apple Wallet | No | Yes |
| MIFARE DESFire | Limited | Yes |
| OSDP v2 native | Wiegand | Yes |
| Per-reader cost | Lower | Higher |
| Best fit | PIV-only doors on a budget | Multi-tech + mobile-first sites |
Pick pivCLASS R40 for PIV-only doors without mobile credentials. Pick Signo 40 PIV when mobile + multi-tech + OSDP v2 are in scope.
Where the pivCLASS R40 Wins
- Contractor office suites where staff badge in with PIV or CAC cards
- Standard single-gang wall boxes at contractor tenant doors — no drywall surgery needed
- Warehouse offices reading TWIC cards at the man-door
- Like-for-like pivCLASS R40 replacements
- PIV-only jobs where the multi-tech surcharge isn’t justified
Local Chicago Coverage
Vidimost installs the HID pivCLASS R40 across the full city of Chicago.
Recommended Pairings
- HID pivCLASS R10 — mullion pure PIV
- HID pivCLASS RK40 — single-gang pure PIV + keypad
- HID Signo 40 PIV — multi-tech PIV with mobile credentials
Professional Installation by Vidimost
Vidimost LLC is an active HID Global installer across Chicago. A typical R40 job for us is two crews, one morning: pull the old reader off the single-gang box, land the Wiegand wiring, register the PIV cards in the panel, done. Full-scope service includes site walkthrough, FIPS 201 credentialing planning, Wiegand wiring, single-gang mounting, reader commissioning, ACS PIV registration, and operator + admin training. Contact us for a free site walkthrough and quote.
