Controllers
Access control controllers are the brains behind the door — they receive credential data from the reader, make the access decision, and trigger the lock to release. The controller also maintains event logs, schedules, and communication with the management platform.
17 products in this category · installed by our access control installation in Chicago crew
Controllers models we install
Brivo
Brivo ACS-100
Single-door Brivo cloud controller powered over one PoE cable — the easy way to put one door, even a far-off one, on Brivo Access.
$986 MSRP
Brivo
Brivo ACS-SDC-E
Single-door edge controller that mounts at the door on one PoE cable — no panel room, ideal for retrofits, leased suites, and historic buildings.
$755 MSRP
Brivo
Brivo ACS300-E-B
Two-door Brivo cloud panel powered over PoE+ — the one we drop on gates and remote doors, federated with the rest of a building on a single login.
$1,265 MSRP
Brivo
Brivo ACS6000
Multi-door Brivo cloud control board — 8 doors per board, expandable past 16, for big buildings that bring a lot of doors back to one panel room.
$2,365 MSRP
Brivo
Brivo ACS6100
Boxed high-density Brivo controller — enclosure and WiFi antenna included, two-door board expansion from 6 to 30+ doors for enterprise buildings and campuses.
$2,595 MSRP
Brivo
Brivo ACS6100 Expansion Chassis
Add-on chassis for the Brivo ACS6100 — extra enclosure space for door expansion boards when the main panel is full, in Regular and Large sizes.
$690 MSRP
Brivo
Brivo ACS6100 Door Board
Two-door expansion board for the Brivo ACS6100 — drops into a free chassis slot and adds readers, lock relays, and door inputs for two more doors.
$725 MSRP
Brivo

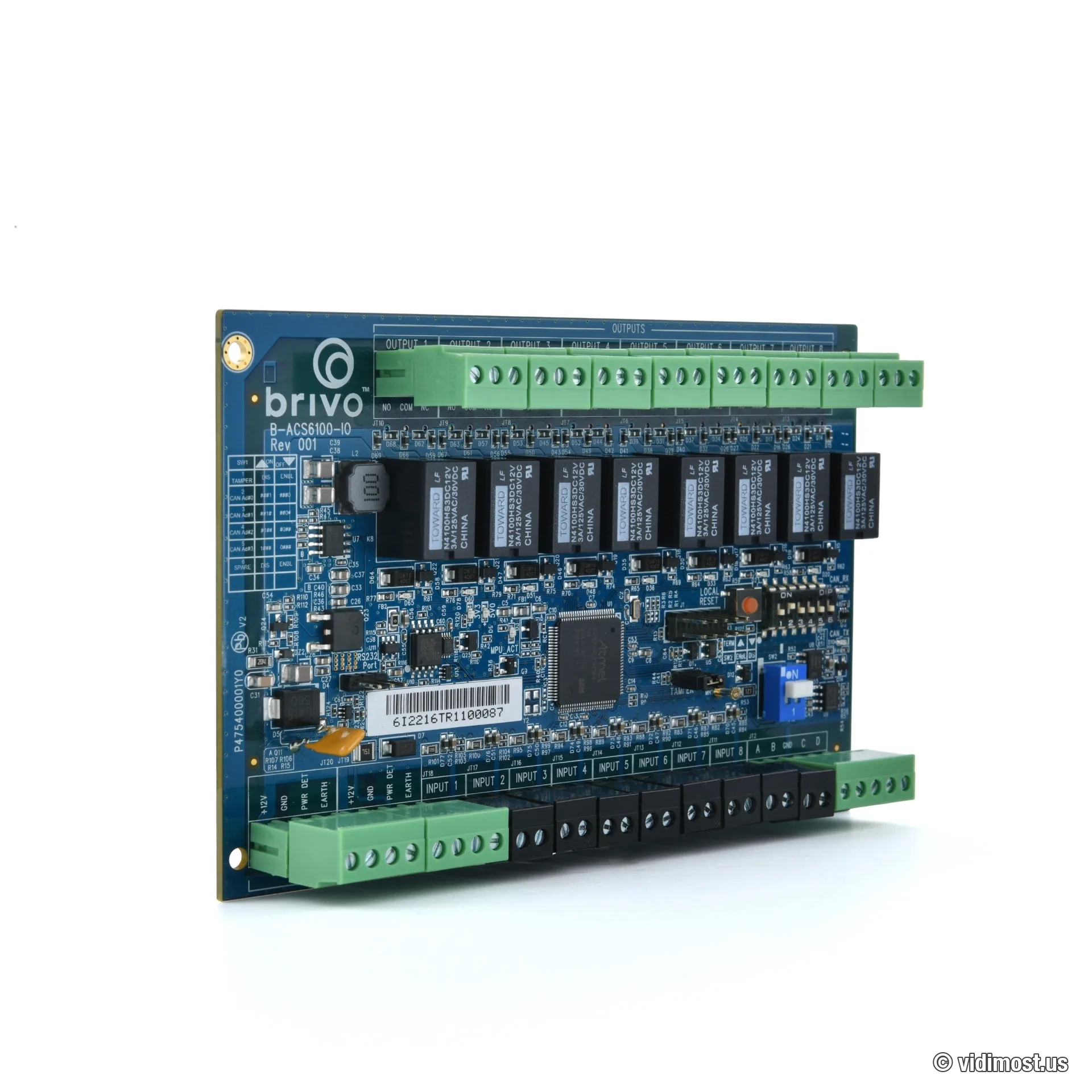

Brivo ACS6100 I/O Board
Input/output expansion board for the Brivo ACS6100 — auxiliary inputs and relay outputs for elevators, gates, alarm points, and building hardware beyond doors.
$807 MSRP
Brivo

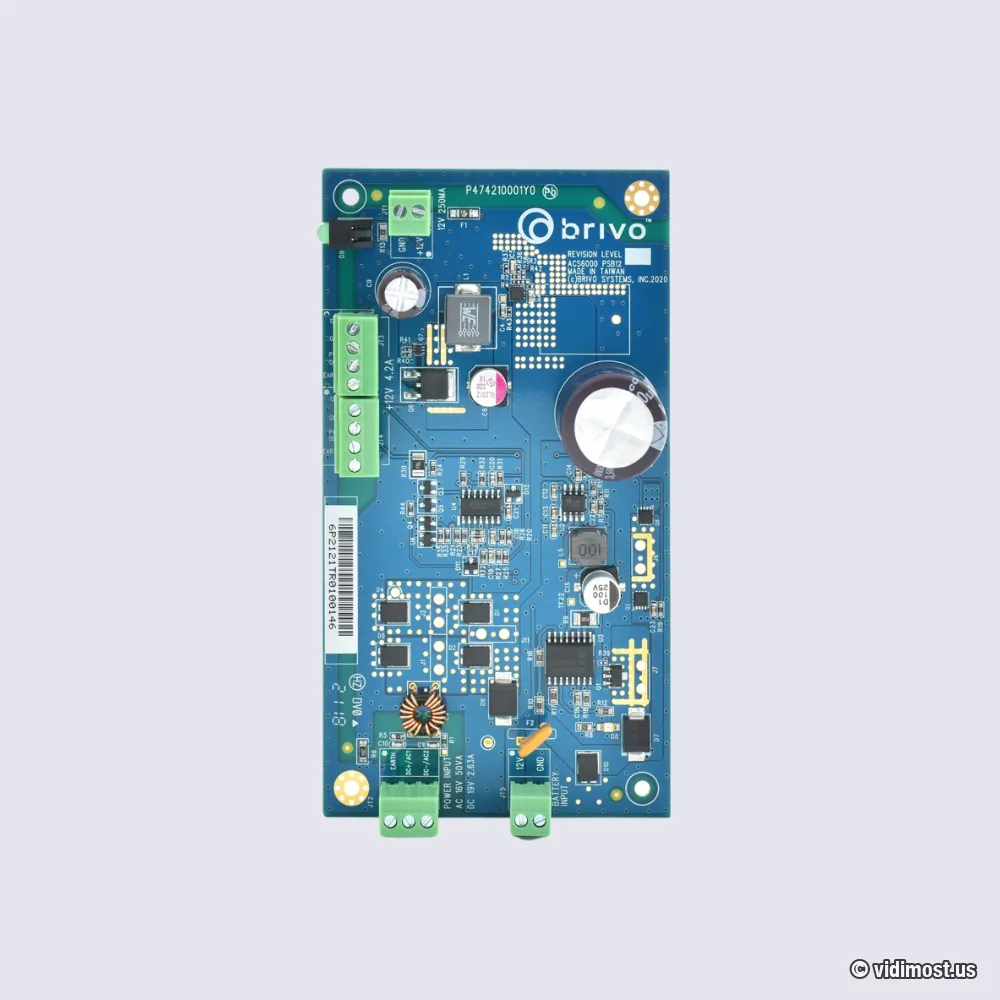

Brivo ACS6100 Power Board
Power supply board for the Brivo ACS6100 — feeds the chassis and its expansion boards, the piece that makes an expansion chassis a working panel.
$274 MSRP
Brivo

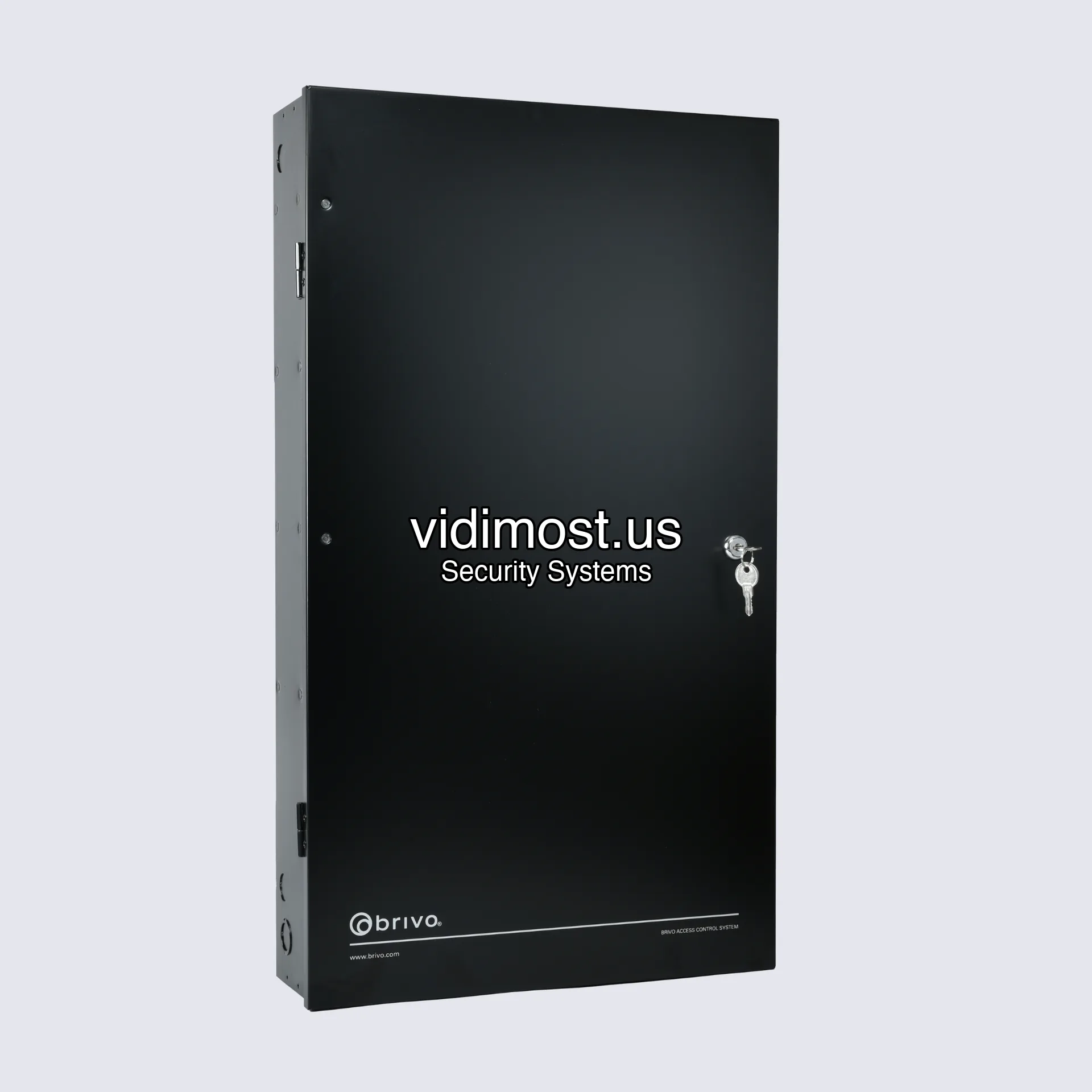

Brivo ACS6000 Expansion Chassis
Bare expansion chassis for the Brivo ACS6000 — board space only, no boards or battery, for integrators building out the panel their own way.
$417 MSRP
Paxton
Paxton10 010-403 Door Controller
The Paxton10 Door Controller (010-403) is the single-door PCB controller for the Paxton10 cloud-managed access control system — supplied as a board that mounts inside a customer-supplied enclosure or pre-wired backbox. Encrypted RS-485 to Paxton10 readers; supports 1 door per controller, multiple controllers federated under one Paxton10 cloud account.
Paxton
Paxton Net2 Plus Controller
On-premises Paxton Net2 door controller — one door per metal cabinet, PoE+ powered, with the access database on your own server, not a cloud.
$820 MSRP
Paxton
Paxton Net2 I/O Board (489-710)
4-input / 4-output expansion board for Paxton Net2 — fire-alarm interlocks, elevator floor enables, and auxiliary relays off a Net2 Plus controller.
Schlage
Schlage Zentra RC15
The Schlage RC15 is a single-gang hybrid reader-controller from Allegion's Schlage RC series — combines a multi-technology reader and an integrated single-door controller in one body. Reads 125 kHz Prox + 13.56 MHz smart cards with optional BLE mobile credentials. Doubles as an enrollment station for Schlage XE360 wireless electronic locks on the Allegion Zentra platform — present a credential at the RC15 to enroll it into the XE360 / Zentra lock population without a separate desktop reader.
Schlage
Schlage Zentra RC11
The Schlage RC11 is a mullion-style hybrid reader-controller from Allegion's Schlage RC series — combines a multi-technology reader and an integrated single-door controller in a narrow ~45 mm body for aluminum storefront frames. Reads 125 kHz Prox + 13.56 MHz smart cards with optional BLE mobile credentials. Doubles as an enrollment station for Schlage XE360 wireless electronic locks on the Allegion Zentra platform.
Schlage
Schlage Zentra RCK15
Single-gang keypad reader-controller — card plus PIN at one door, controller built in, doubles as a Zentra enrollment station for XE360 locks.
ASSA ABLOY
ASSA ABLOY Accentra NTX700
Cloud gateway controller that links a building's ASSA ABLOY wireless locks to the Accentra platform — one box in the utility closet covers the building.
No products match your current filters.
About Controllers
Access control controllers are the brains behind the door — they receive credential data from the reader, make the access decision, and trigger the lock to release. The controller also maintains event logs, schedules, and communication with the management platform. Choosing the right controller depends on the number of doors, the management platform (cloud or on-premise), and the integration requirements of the project.
Frequently Asked Questions
How many doors can one controller handle?
Most commercial controllers manage 1 to 4 doors per unit. Multi-door controllers reduce wiring complexity and cost for buildings with clustered entry points.
