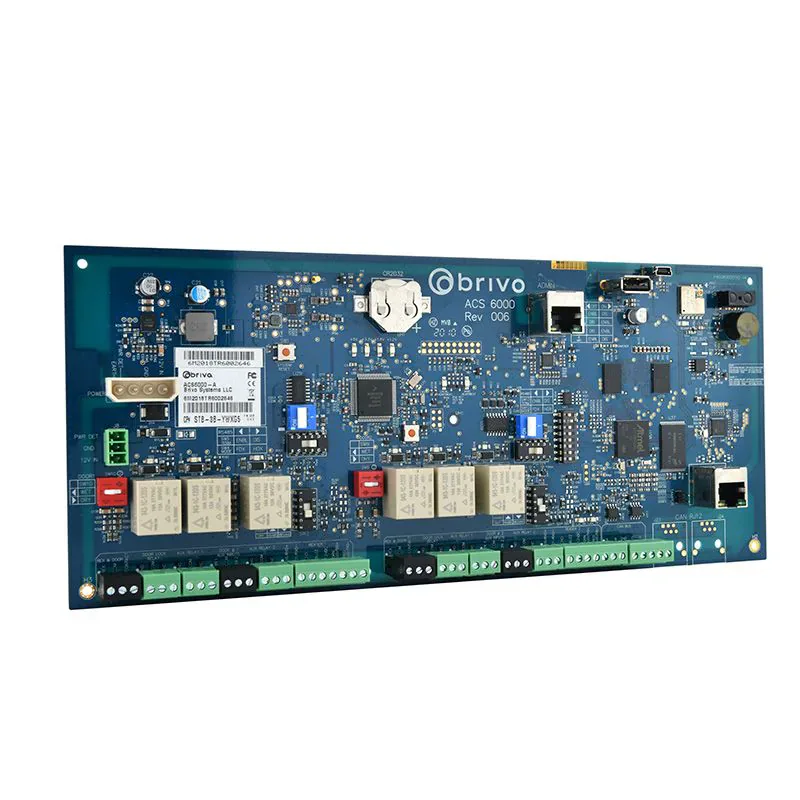

Brivo ACS6000 Multi-Door Control Board

Brivo ACS6000 Multi-Door Control Panel

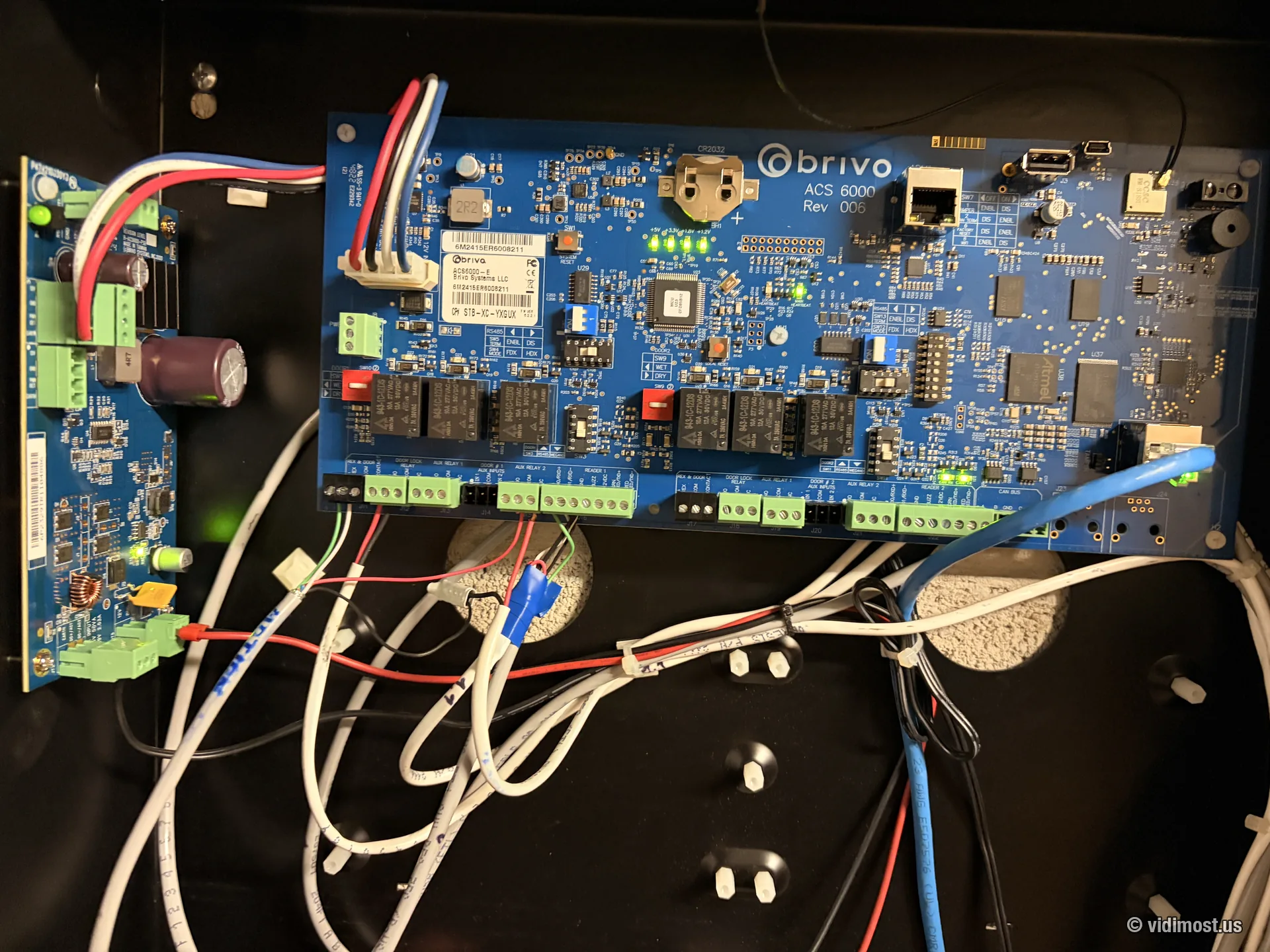

The ACS6000 is the board you reach for when a building has a lot of doors and a real panel room to put them in. Instead of hanging a little panel next to every pair of doors, you run everything back to one spot and let the ACS6000 carry it — eight doors on the main board, and when that’s not enough you add daughter boards in the same enclosure and keep going past sixteen. For a multi-floor office, a school, a hospital wing, that’s a cleaner build and it works out cheaper per door than scattering small panels all over the place.

It’s still Brivo, so the part that actually matters isn’t the board — it’s that the whole thing runs from the cloud. No access server sitting in a back room to patch and pray over. Credentials, schedules, the audit trail, all of it lives in Brivo’s cloud, replicated (the company says) across at least three separate hardened servers, with backups behind that. We’ve had to rebuild more than one Paxton site after a local database gave out; with Brivo that just hasn’t been a call we’ve had to make. A facilities manager logs in from a browser anywhere, watches every door live — open, secure, online or not — adds a contractor for the week, pulls a terminated employee on the spot. Over a few years it tends to land cheaper than running your own server room, too.

The doors do the modern things you’d want. Readers talk to the panel over OSDP v2 secure channel — encrypted, so nobody pops a reader off the wall and clones a credential off the wires — with plain Wiegand still there for older readers you’re not ready to swap. Leave a lobby unlocked on a schedule through the day and drop it to fob-only after hours; run Brivo Mobile Pass on phones and the building’s old 125 kHz prox cards side by side, since the multi-tech readers handle both; and tie the panel into the fire alarm so the right doors release on an egress signal. Drop a Control ID unit on the same system and the parking gate runs off the same dashboard as the front door — in a big residential building that’s usually the whole point. It connects over Ethernet, with WiFi and an optional cellular modem there for backup, and if the internet drops the panel just keeps running on its own and uploads everything that happened the second it’s back online. It doesn’t go dead without the cloud.

It takes 12 V DC, it’s battery-backup-ready so a power blip doesn’t strand anybody, and it reads Brivo’s own Smart Readers along with HID Signo / iCLASS SE and any OSDP v2 reader. It’s our go-to panel for the bigger commercial and institutional jobs around Chicago. Want it as a finished kit with the enclosure and the WiFi antenna already in the box instead of the bare board? That’s the ACS6100 — same platform, less to assemble. Get in touch and we’ll size the board and the daughter boards to the building.
