Schlage RC15 Single-Gang Reader-Controller for Chicago Single-Door and Zentra Enrollment

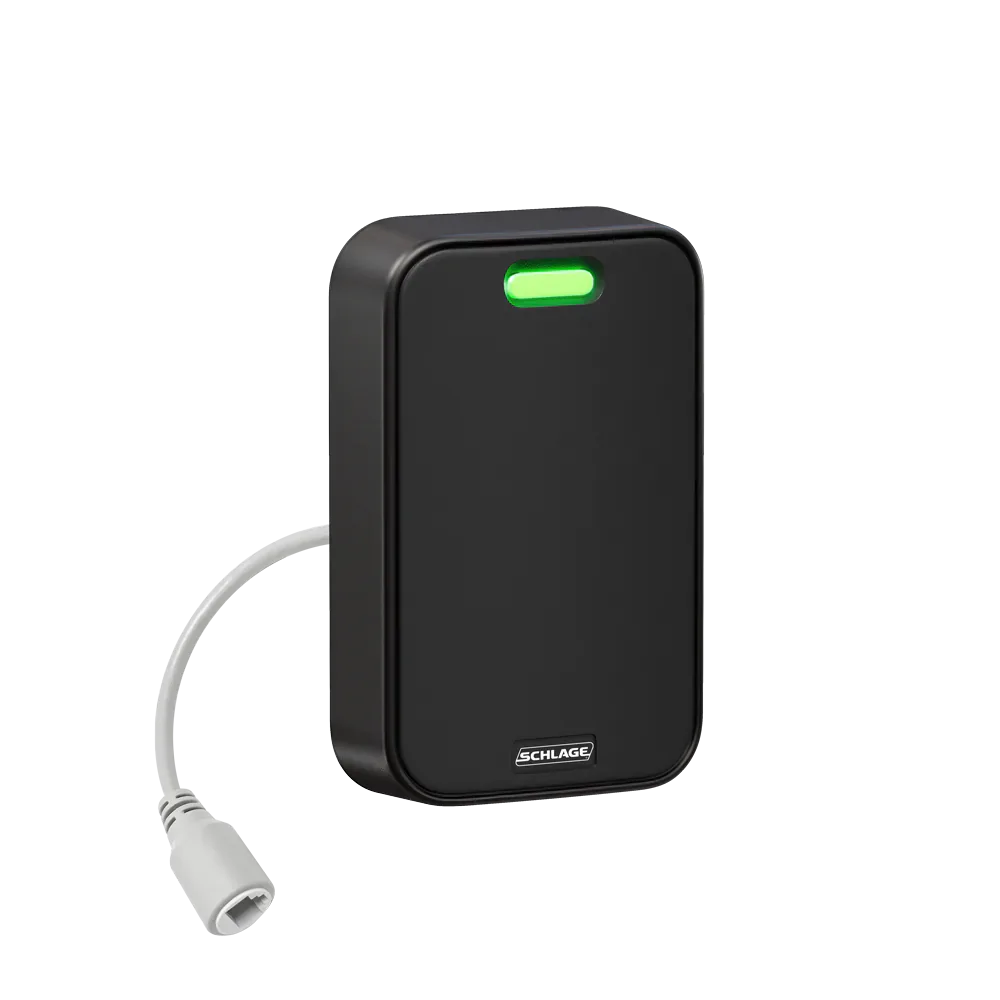

Schlage RC15 Single-Gang Reader-Controller

The Schlage RC15 is a hybrid reader-controller from Allegion’s Schlage RC series — combining a multi-technology reader and an integrated single-door controller into one single-gang body that mounts on a standard US wall plate. The RC15 reads 125 kHz Prox (HID, AWID, EM, Indala) and 13.56 MHz smart cards (iCLASS, MIFARE, DESFire, FeliCa, Picopass), with optional Bluetooth Low Energy mobile credentials. The integrated controller drives the door directly — one lock-output relay, door-contact, REX, and tamper inputs all wired to the same RC15.

Doubles as an Enrollment Station for the Zentra Platform

A unique feature of the Schlage RC series: the RC11 / RC15 / RCK15 can also serve as an enrollment station for XE360 wireless electronic locks on the Allegion Zentra platform. In a building that uses XE360 wireless locks at guest rooms, classrooms, dorm rooms, or other doors where running power and network is impractical, the RC15 mounted at the building manager’s desk becomes the central credential-enrollment point — present a new credential at the RC15 once, and the system writes the credential rights to be honored by the XE360 wireless locks across the Zentra-platform building.

This eliminates the need for a separate desktop USB enrollment reader (like the Schlage MT20W) when the property already needs a wall-mounted RC reader-controller for at least one door — the RC15 covers both jobs.

Cross-Schlage RC Comparison

Feature	RC15 (this)	RC11	RCK15
Form factor	Single-gang	Mullion (~45 mm narrow)	Single-gang + keypad
Keypad	No	No	Yes (PIN entry for 2-factor)
Multi-tech card	Yes	Yes	Yes
Integrated controller	Yes (1 door)	Yes (1 door)	Yes (1 door)
Zentra enrollment station (XE360)	Yes	Yes	Yes
Best fit	General single-door + enrollment	Storefront mullion + enrollment	Sensitive 2-factor + enrollment

RC-Series vs. MT-Series Schlage Readers

The standalone Schlage MT15 reader pairs with a separate access control panel (Brivo, Genetec, Lenel, etc.) to form a complete door. The RC15 packages both the reader and the controller into one unit — no separate panel needed for the door it controls. Choose RC15 when:

• The deployment is exactly one door (or a small number of independent doors) and a separate panel would be over-architected
• The property needs an enrollment station for XE360 wireless locks on Zentra and wants the same hardware to also control a building-management or front-desk door
• The installation environment makes running cable to a back-of-house panel impractical (retrofit, leased space, historic buildings)

Choose MT15 (separate reader + separate panel) when the project includes 2+ doors that benefit from centralized panel management.

Where the Schlage RC15 Wins in Chicago

• Chicago commercial single-door access with combined reader + controller
• Properties using XE360 wireless locks on the Allegion Zentra platform needing an enrollment station at the building manager’s office
• HOA front office credential enrollment for XE360 wireless lock populations
• Education facility administrative offices managing XE360 / Zentra credentials at classroom doors at Chicago schools
• Hospitality housekeeping and service-staff credential enrollment for XE360 wireless guest rooms / back-of-house
• Healthcare clinic single-door staff entries with simplified all-in-one panel
• Property management offices acting as central enrollment hubs for Zentra-platform buildings
• Retail back-of-house single-door access
• Industrial / warehouse personnel doors
• Construction site office single-door access with rapid commissioning

Local Chicago Coverage

Vidimost installs the Schlage RC15 across the full city of Chicago for hybrid reader-controller deployments and Zentra enrollment workflows.

Recommended Pairings

• Schlage RC11 Mullion Reader-Controller — for storefront / lobby positions on the same project
• Schlage RCK15 Keypad Reader-Controller — for sensitive 2-factor doors needing both PIN entry and Zentra enrollment
• Schlage MT15 — separate-reader version for projects with centralized panels
• Schlage MT20W Desktop Enrollment Reader — alternative USB desktop enrollment when an RC-series wall reader-controller isn’t suitable
• Schlage XE360 Wireless Electronic Lock — Zentra-platform wireless lock that this RC reader-controller pairs with for unified admin and credential enrollment across the property

Professional Installation by Vidimost

Vidimost LLC installs Schlage RC-series reader-controllers across Chicago for hybrid single-door deployments and Zentra enrollment workflows. Full-scope service includes site walkthrough, RC15 placement (door-controlling vs. enrollment-only role), wiring, online-mode commissioning to the access platform, Zentra pairing and credential-Zentra enrollment workflow setup, and operator + admin training on the dual reader-controller / enrollment-station role. Contact us for a free site walkthrough and quote.
