Schlage XE360 Series Wireless Electronic Lock for Chicago Multifamily, Education, Hospitality, and Commercial Deployments

Schlage XE360 Series Wireless Electronic Lock

The Schlage XE360 is Allegion’s flagship wireless electronic lock series — a comprehensive family of door locks that combines the lock cylinder, the credential reader, the access decision logic, and the motorized lock mechanism into a single device at the door. No separate panel, no hard-wired reader, no electric strike. The XE360 reads multi-technology credentials directly at the door, decides whether to open, and drives its own motorized mortise / cylindrical / exit-trim mechanism — all powered by internal batteries with a typical 12–24 month service life under normal commercial use.

The XE360 is not a single SKU — it’s a product family spanning mortise, cylindrical, and exit-trim form factors with multiple lever / handleset designs, finishes, cylinder options, and cred-tech configurations. Vidimost specifies the exact variant per opening based on door type, fire-rating requirements, finish standard, and credential policy at site walkthrough.

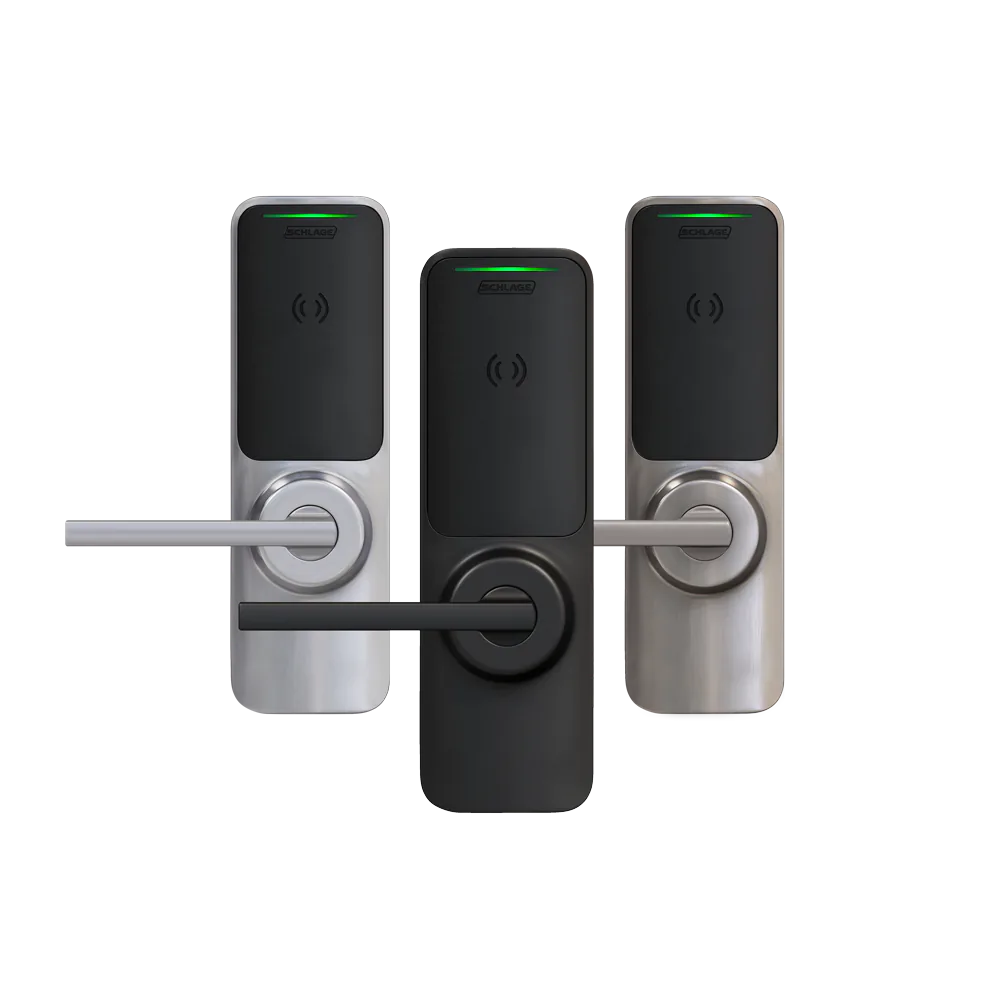

Hero — XE360 in Standard Mortise Configuration

The flagship configuration is the XE360 Mortise lock — Grade 1 commercial mortise lockset with integrated electronic head, multi-tech reader, and battery-powered motorized actuator. This is the configuration shown above and the most common pick for multifamily residential, education, hospitality, and commercial interior-area doors.

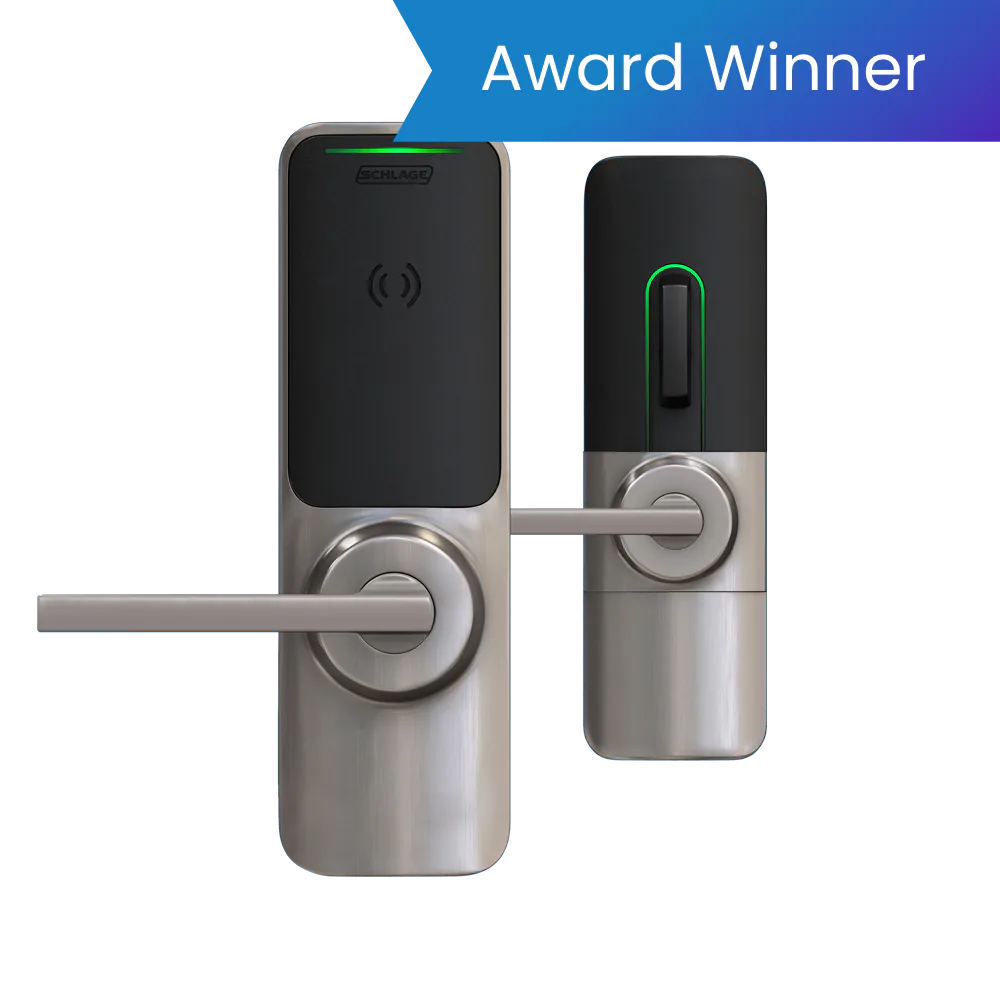

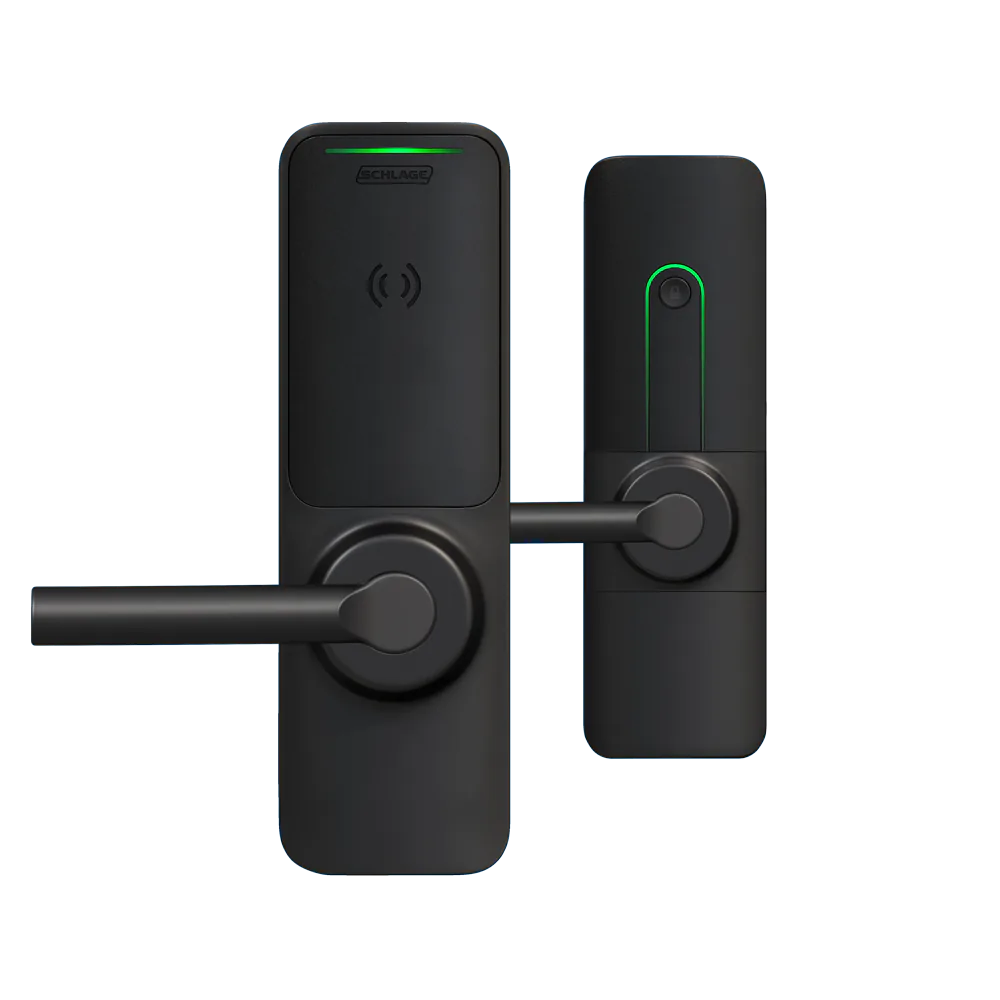

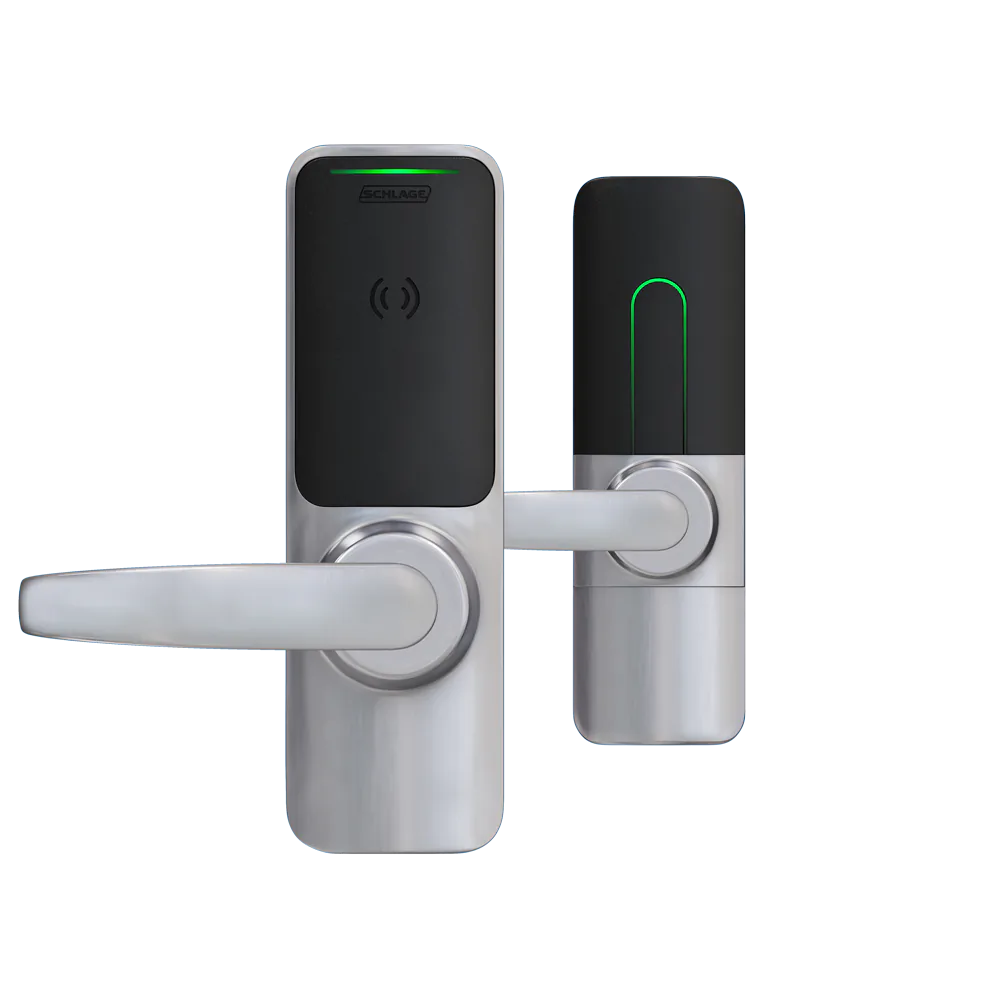

Multiple Mortise Views — Lever, Trim, and Cylinder Detail

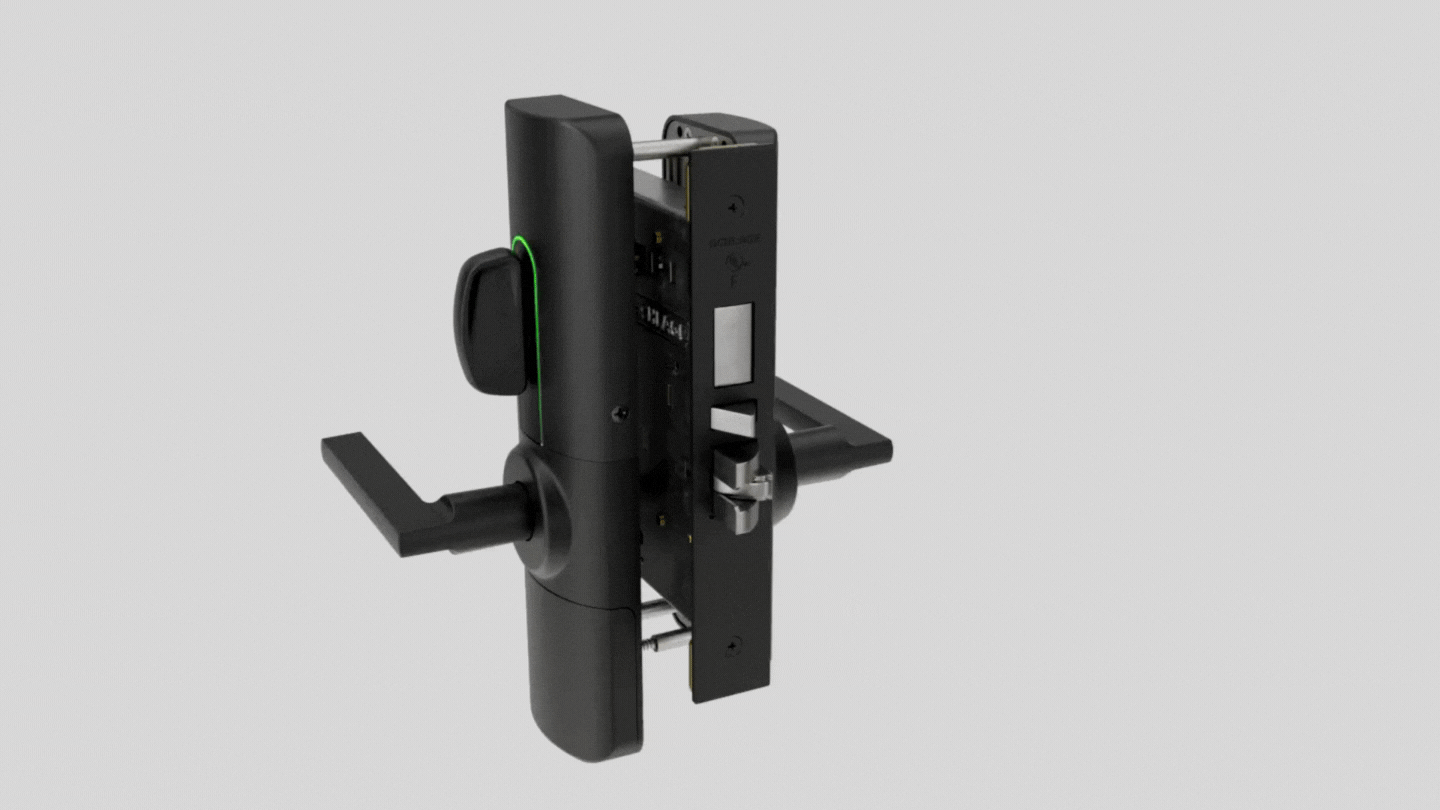

Exploded Mortise Diagram

Why Wireless-Lock Architecture Beats Traditional Panels for Some Doors

For doors where running new low-voltage cable to a panel room is impractical or impossible, the XE360 architecture has decisive advantages:

• No reader / panel / lock wiring per door — each door has a self-contained wireless lock; no conduit runs from each door back to a panel room
• Battery-powered locks — installation is dramatically faster and works in retrofit / historic / leased buildings
• Mobile credentials — Schlage Mobile Access on phones with optional Apple Wallet / Google Wallet integration for hospitality / multifamily use cases
• Centralized cloud admin — same browser dashboard manages all locks; multi-property federation simplifies portfolio administration

The trade-off: lock batteries need periodic replacement (typically 12–24 months depending on usage), and the wireless protocol introduces small latencies (1–2 seconds) in unlock responsiveness vs. instant hard-wired strike actuation.

Allegion Zentra — The Cloud Platform

The XE360 is part of the Allegion Zentra ecosystem — Allegion’s cloud-based access management platform that federates wireless locks (XE360 series), reader-controllers (RC11, RC15, RCK15), credentials, and admin tools into one ecosystem.

A typical Chicago project mixing wired and wireless openings on Zentra:

• Storefront / lobby entry — RC11 mullion reader-controller (hard-wired to lock and network)
• Building management office — RC15 single-gang reader-controller (also serves as enrollment station for new credentials)
• Sensitive 2-factor doors (server room, cash office) — RCK15 keypad reader-controller
• All interior unit / classroom / guest-room doors — XE360 wireless locks (battery-powered, no wiring)

Everything administered from one Zentra cloud dashboard. New residents / employees / guests get credentials issued through Zentra, and the rights propagate to whichever doors they need to access — wired or wireless.

XE360 Variants

The XE360 product family spans these primary configurations (Vidimost specifies the right variant at site walkthrough):

Variant	Best Fit
XE360 Mortise	Multifamily unit doors, classroom doors, hospitality guest rooms, commercial suite doors with mortise prep
XE360 Cylindrical	Standard cylindrical-prep commercial doors — back-of-house, office suite doors with cylindrical prep
XE360 Exit Trim	Retrofit onto Von Duprin and other exit devices — emergency egress doors that need access control without replacing the exit hardware

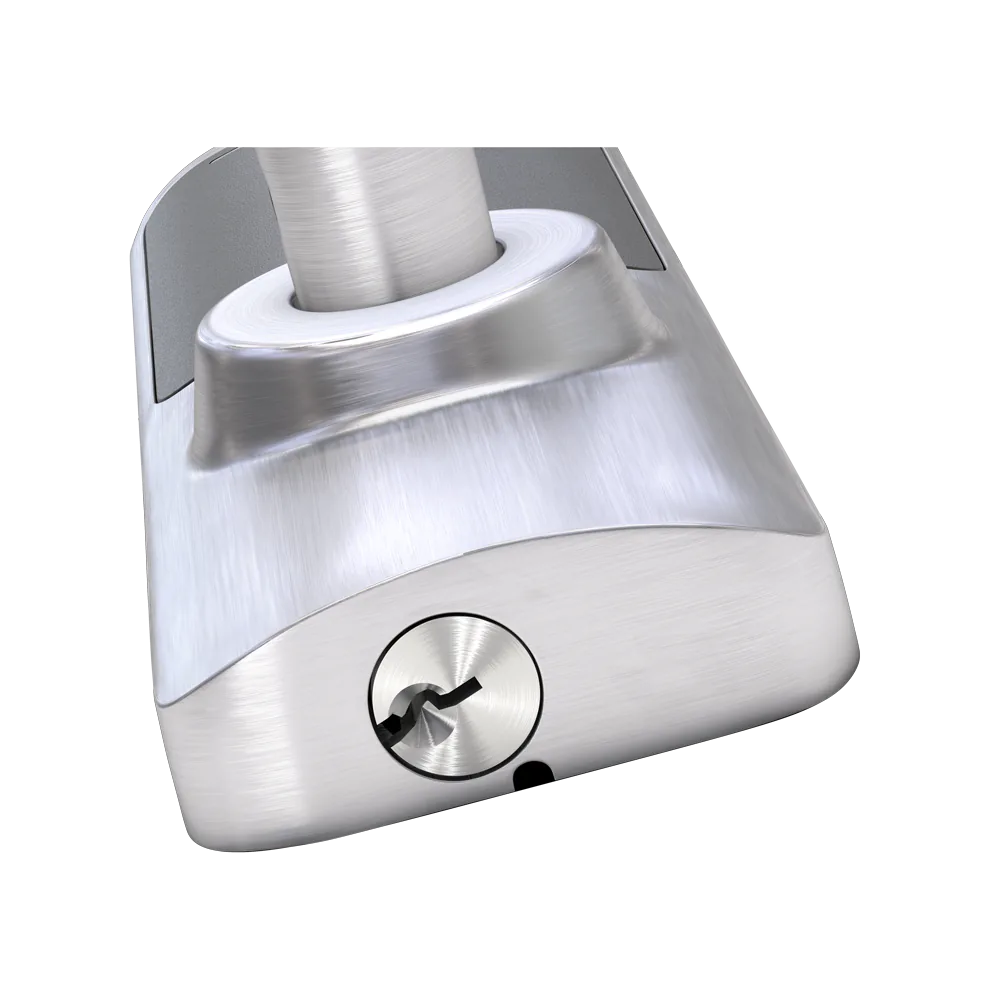

Each variant has multiple lever / handleset designs (Allegion’s standard Schlage lever lineup), finishes (626 satin chrome most common; 605 bright brass, 612 satin bronze, 626AM antimicrobial available), and cylinder options (SFIC, FSIC, Schlage Primus, mechanical override only).

Where the Schlage XE360 Wins in Chicago

• Multifamily residential unit doors — apartments, condos, mixed-use towers across the city
• Hospitality guest-room doors — boutique hotels, mid-size hotels, extended-stay properties
• Education — classroom and office doors at smaller private schools
• Healthcare — supply-room and office doors at clinics and outpatient facilities
• Senior living and assisted-living facility resident-room doors
• Commercial offices — suite doors at multi-tenant buildings
• Property management portfolios standardizing on Zentra across multiple buildings
• Co-living and short-term rental buildings with mobile-key check-in
• Government / municipal interior-area doors with wireless access
• Retail / hospitality back-of-house manager / supply / cash-office doors

XE360 vs. ASSA ABLOY Accentra nexTouch — Different Platforms, Different Brands

The Schlage XE360 (this product) and the ASSA ABLOY Accentra nexTouch family are competing platforms from different parent companies — they are not part of the same ecosystem and should not be mixed within a single building’s access-management system:

• Schlage XE360 (this page) — manufactured by Schlage, part of Allegion. Integrates with Allegion Zentra cloud (multifamily) and Schlage ENGAGE-enabled wireless infrastructure.
• ASSA ABLOY Accentra nexTouch — manufactured by ASSA ABLOY ACCENTRA (formerly Yale Commercial). Standalone PIN-keypad locks with optional ASSA ABLOY ACCENTRA Digital cloud integration on supported variants.

Choose XE360 + Allegion Zentra for properties that want a unified Schlage / Allegion ecosystem with ENGAGE multi-tech credentials (cards, fobs, mobile, PIN). Choose Accentra nexTouch for properties standardizing on ASSA ABLOY hardware (especially multifamily / senior living portfolios already on the Accentra Digital platform). Vidimost installs both — we specify the right platform per project at site walkthrough based on what the property already runs and what credential ecosystem the building wants to commit to.

Local Chicago Coverage

Vidimost installs the Schlage XE360 series across the full city of Chicago for multifamily residential, hospitality, education, healthcare, senior living, commercial, and property-management deployments.

Recommended Pairings

• Schlage RC11 Mullion Reader-Controller — storefront / lobby reader on the same Zentra system, doubles as enrollment station
• Schlage RC15 Single-Gang Reader-Controller — general single-door reader on the same Zentra system, primary enrollment station for the building
• Schlage RCK15 Keypad Reader-Controller — sensitive 2-factor doors on the same Zentra system, doubles as 2-factor enrollment station
• Schlage MT15 and the rest of the MT-series readers — non-Zentra deployments where XE360 is paired with a different access platform
• Schlage MT20W Desktop Enrollment Reader — alternative USB enrollment station

XE360 Models and MSRP

Every design comes in the standard wireless version or a WiFi variant that talks to the cloud directly, no gateway needed. Equipment pricing, current Brivo/Allegion list:

Design	Standard	WiFi version
Tubular (cylindrical)	$657 (ALGN-XE360-T)	$865 (ALGN-XE360-T-WF)
Mortise latch	$821 (ALGN-XE360-ML)	$1,030 (ALGN-XE360-ML-WF)
Mortise deadbolt w/ thumbturn	$892 (ALGN-XE360-MD)	$1,104 (ALGN-XE360-MD-WF)
Exit trim	$1,115 (ALGN-XE360-EW)	$1,277 (ALGN-XE360-EW-WF)
Deadbolt	—	$502 (ALGN-XE360-DB-WF)
Interconnected	—	$746 (ALGN-XE360-IC-WF)

Useful add-ons we quote alongside: door position switch $36, Engage Gateway 2 $515 for the non-WiFi models, and the WiFi Flex Modules ($181–$231) that convert a standard lock to WiFi later.

Professional Installation by Vidimost

Vidimost LLC installs the Schlage XE360 series across Chicago for multifamily residential, hospitality, education, healthcare, senior living, commercial, and property-management projects. Full-scope service includes site walkthrough, door-by-door variant selection (mortise / cylindrical / exit-trim, lever, finish, cylinder, function code), Zentra cloud account setup, gateway placement and RF survey, lock-by-lock pairing and commissioning, mobile credential rollout via Schlage Mobile Access, and operator + admin training including ongoing battery-monitoring workflows. Contact us for a free site walkthrough and quote.
