Ubiquiti UniFi 10G PoE+++ Adapter 90W (UACC-PoE+++-10G) — 54V Multi-Gig PoE+++ Injector for Chicago

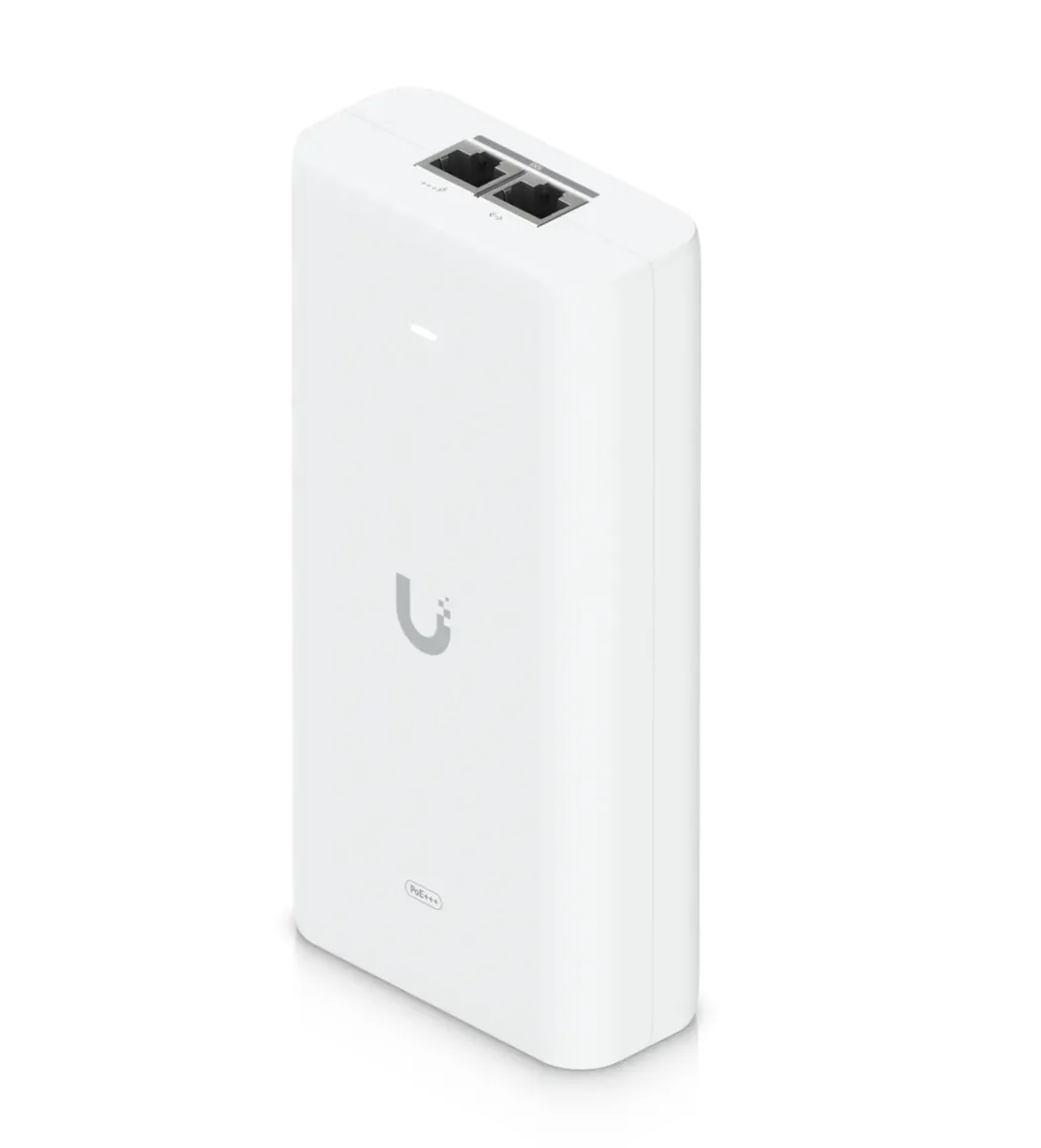

Ubiquiti UniFi 10G PoE+++ Adapter 90W (UACC-PoE+++-10G)

The Ubiquiti UniFi 10G PoE+++ Adapter (model UACC-PoE+++-10G) is the top-tier Ubiquiti single-port PoE injector — 54 V DC @ 1.67 A output (90 W total) with multi-gigabit LAN connectivity for top-tier UniFi devices that need both maximum power AND multi-gig data. It earns its slot when a Wi-Fi 7 high-density access point or 90 W-class PoE+++ surveillance camera outdraws both the U-PoE++ 60W and whatever the switch port can push.

What’s Confirmed by the Official Ubiquiti Spec

These specifications come from techspecs.ui.com and the store.ui.com published UACC-PoE+++-10G product page:

• Model: UACC-PoE+++-10G
• Output: 54 V DC @ 1.67 A — 90 W total (note: voltage is 54 V here, vs. 48 V on the lower-tier U-PoE / U-PoE+ / U-PoE++ models)
• Standards: designed for UniFi PoE+++ devices
• Data port (per Ubiquiti branding): multi-gigabit LAN; product is branded “10G PoE+++ Adapter”
• Surge protection: difference and common-mode; 1500 A (8/20 μs) power; 36 A (10/1000 μs) data peak pulse current
• Dimensions: 164.5 × 71 × 42 mm (6.5 × 2.8 × 1.7 in)
• Weight: 372 g (13.1 oz)
• NDAA-compliant: Yes
• Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

When UACC-PoE+++-10G Fits — Top-Tier with Multi-Gig

Pick the 10G PoE+++ Adapter when:

• The device draws 60-90 W (top-tier UniFi PoE+++ APs, 90 W-class PoE+++ cameras)
• The device’s data port is >1 Gbps (multi-gig or 10G) and you need an injector that doesn’t bottleneck the data link
• The site has no available PoE+++ switch port with sufficient budget AND multi-gig data
• The installation is a flagship deployment that justifies the top-tier injector cost

For lower-power or lower-data-speed UniFi devices, step down to:

• U-PoE++ 60W — 60 W with gigabit data (most common high-power AP / PTZ scenario)
• U-PoE+ 30W — 30 W standard
• U-PoE 15W — 15 W entry

Ubiquiti PoE Adapter Family Comparison

Model	Wattage	Voltage / Current	Data	Best Fit
U-PoE	15 W	48 V @ 0.32 A	Gigabit	Low-power UniFi APs, small IP cameras
U-PoE+	30 W	48 V @ 0.65 A	Gigabit	Standard UniFi APs, mid-range cameras
U-PoE++	60 W	48 V @ 1.25 A	Gigabit	Higher-power APs, PTZ cameras
UACC-PoE+++-10G (this page)	90 W	54 V @ 1.67 A	Multi-Gig (10G branded)	Top-tier UniFi devices needing multi-gig data + max power

Where the Ubiquiti 10G PoE+++ 90W Wins in Chicago

• Top-tier UniFi access point single-port power with multi-gig data
• High-end mesh / Wi-Fi 7 access points needing 90 W and multi-gig uplink
• PoE+++ surveillance cameras drawing up to 90 W
• UniFi installations where the AP / camera supports >1 Gbps data and the PoE switch port is unavailable
• Hospitality property high-density Wi-Fi deployments needing top-tier APs
• Industrial / warehouse outdoor / specialty surveillance cameras
• Multi-tenant residential property amenity-area top-tier APs
• Office building large-coverage / boardroom top-tier AP power

Local Chicago Coverage

Vidimost installs the Ubiquiti UACC-PoE+++-10G 90W across the full city of Chicago for top-tier UniFi single-port PoE injection with multi-gig data.

Recommended Pairings

• Ubiquiti U-PoE++ 60W — high-power sibling without multi-gig data needs
• Ubiquiti U-PoE+ 30W — standard sibling
• Ubiquiti U-PoE 15W — entry-level
• UniFi top-tier access points / PoE+++ cameras (specified per project)

Professional Installation by Vidimost

Vidimost LLC installs the Ubiquiti UACC-PoE+++-10G 90W across Chicago for top-tier UniFi deployments. Full-scope service includes site walkthrough, device-power and data-speed verification (60-90 W + multi-gig), CAT6 / CAT6A cabling sized to the data speed (CAT6A required for 10 GbE runs over 55 m), AC primary placement, and integration with the broader UniFi network. Contact us for a free site walkthrough and quote.
