Ubiquiti UniFi PoE++ Adapter 60W (U-PoE++) — 48V Single-Port PoE++ Injector for Chicago

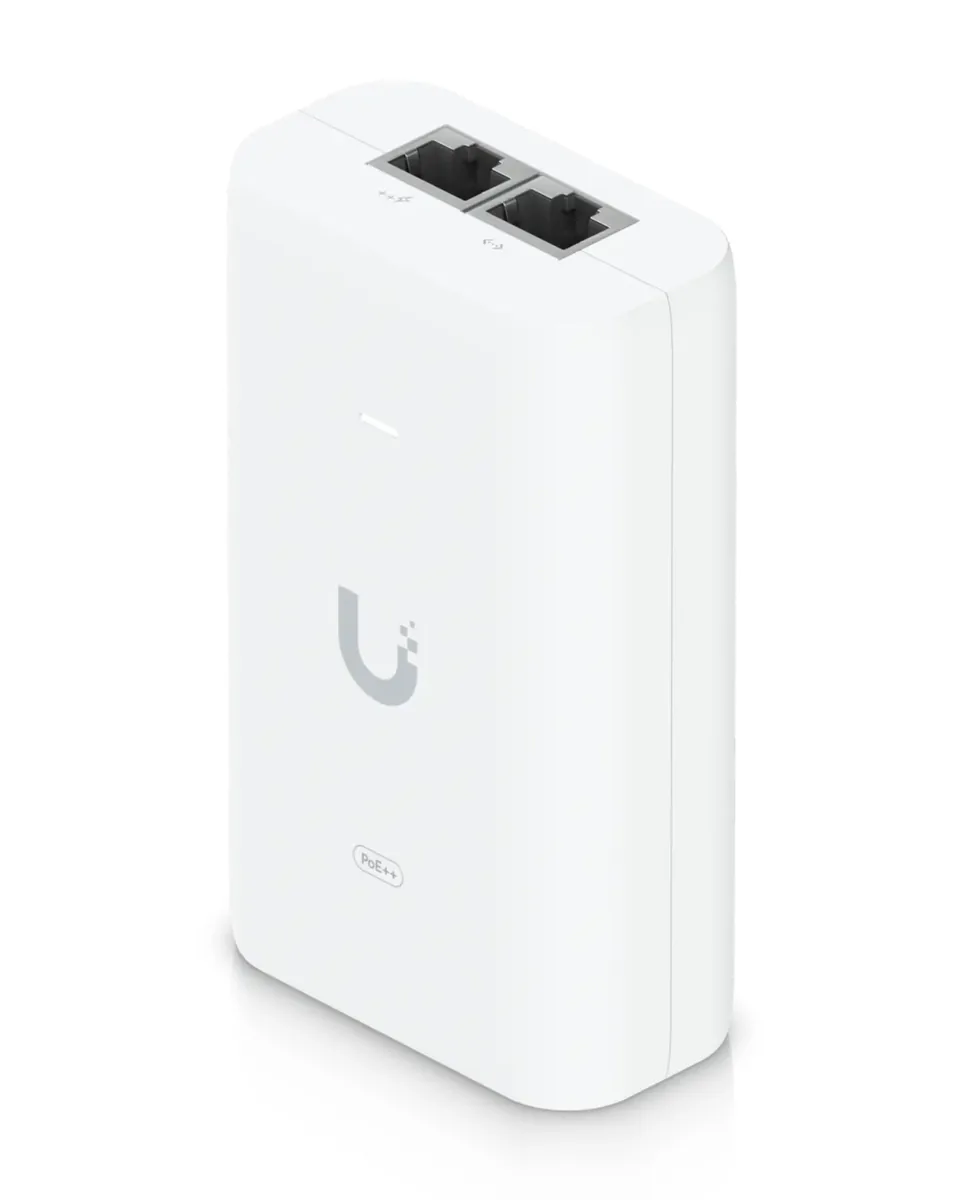

Ubiquiti UniFi PoE++ Adapter 60W (U-PoE++)

The Ubiquiti UniFi PoE++ Adapter (model U-PoE++) is a 60 W single-port high-power PoE injector — the right pick for higher-power UniFi access points, PTZ surveillance cameras, and other devices where the U-PoE+ 30W is insufficient. 48 V DC @ 1.25 A output, 60 W total, supports the full PoE / PoE+ / PoE++ / PoE+++ family, NDAA-compliant.

What’s Confirmed by the Official Ubiquiti Spec

These specifications come directly from store.ui.com’s published U-PoE++ product page:

• Model: U-PoE++
• Output: 48 V DC @ 1.25 A — 60 W total
• Standards supported: PoE, PoE+, PoE++, PoE+++
• Input: 100–240 V AC at 50/60 Hz
• Data port: Gigabit LAN, RJ45 shielded socket
• Efficiency: 85%+
• Output ripple: 1% max.
• Operating temperature: 0 to 40 °C (32 to 104 °F)
• Surge protection: surge, peak pulse, and overcurrent; clamping 11 V data, 60 V power; max surge discharge 1500 A (8/20 μs)
• Dimensions: 106 × 63 × 34 mm (4.2 × 2.5 × 1.3 in)
• Weight: 210 g (7.4 oz)
• AC cable: included with earth ground
• NDAA-compliant: Yes
• Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

When U-PoE++ Fits — Higher-Power UniFi

Pick the U-PoE++ 60W when:

• The device draws 30–60 W (PTZ cameras, large mesh APs, certain UniFi APs in high-output mode)
• The site has no available PoE++ switch port with sufficient budget
• A single-port injector is preferred over a multi-port PoE switch

For lower-power devices, see U-PoE 15W or U-PoE+ 30W. For top-tier UniFi devices needing multi-gig data in addition to 90 W power, step up to the 10G PoE+++ 90W.

Ubiquiti PoE Adapter Family Comparison

Model	Wattage	Voltage / Current	Best Fit
U-PoE	15 W	48 V @ 0.32 A	Low-power UniFi APs, small IP cameras
U-PoE+	30 W	48 V @ 0.65 A	Standard UniFi APs, mid-range cameras
U-PoE++ (this page)	60 W	48 V @ 1.25 A	Higher-power APs, PTZ cameras
UACC-PoE+++-10G	90 W	54 V @ 1.67 A	Top-tier UniFi devices needing multi-gig data + max power

Where the Ubiquiti U-PoE++ 60W Wins in Chicago

• Commercial higher-power UniFi access point single-port power
• PTZ camera installations needing higher PoE wattage
• Mesh / large-coverage UniFi APs
• Hospitality property high-density AP installations
• Parking garage PTZ camera power
• Industrial / warehouse PTZ surveillance camera power
• Multi-tenant residential property high-power amenity-area APs
• Office building large-coverage AP power

Local Chicago Coverage

Vidimost installs the Ubiquiti U-PoE++ 60W across the full city of Chicago for higher-power single-port PoE injection.

Recommended Pairings

• Ubiquiti U-PoE+ 30W — lower-tier sibling for standard APs
• Ubiquiti 10G PoE+++ 90W — top-tier with multi-gig data
• Ubiquiti U-PoE 15W — entry-level for low-power devices
• UniFi access points / cameras (specified per project)

Professional Installation by Vidimost

Vidimost LLC installs the Ubiquiti U-PoE++ 60W across Chicago for higher-power UniFi PoE deployments. Full-scope service includes site walkthrough, device-power verification (30-60 W), CAT5e/CAT6 cabling, AC primary placement, and integration with the broader UniFi network. Contact us for a free site walkthrough and quote.
