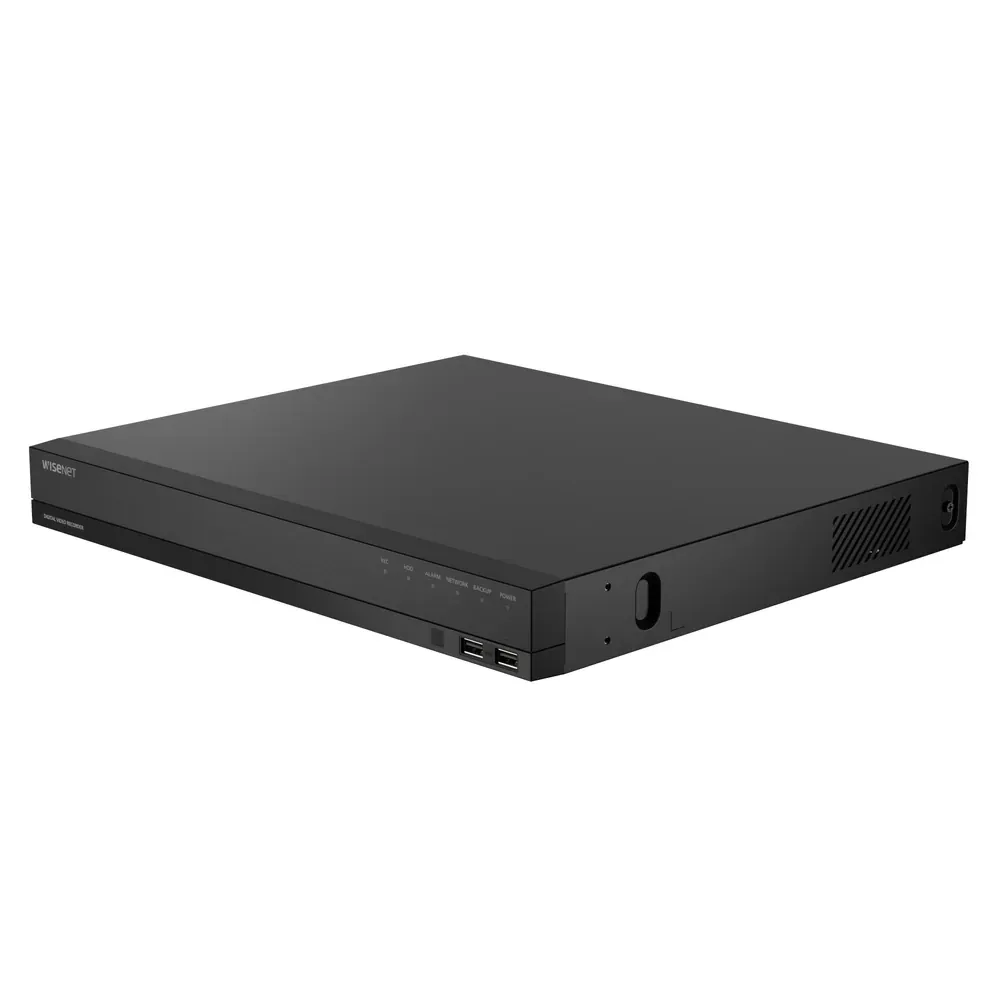

Hanwha ARD-1610 16-Channel Hybrid AHD / TVI / CVI / CVBS / IP DVR — Chicago Mid-Size Analog-to-IP Migration NVR

Hanwha ARD-1610 — 16-Channel Hybrid HDoC + IP DVR for Mid-Size Analog Upgrades

The Hanwha ARD-1610 is a mid-size hybrid recorder from Hanwha Vision’s Wisenet A Hybrid line — supporting 16-channel AHD / TVI / CVI / CVBS analog inputs (auto-detect at the BNC port) plus 2 additional IP channels for a total of 18 channels. Features include up to 5 MP analog recording, up to 8 MP per IP channel, H.265 / H.264 codec support, HDMI + VGA video output, NDAA Section 889 + TAA compliance, and Hanwha cybersecurity posture. The mid-size hybrid for Chicago HOA full-coverage, mid-business, and multi-position commercial property analog upgrades — preserves existing RG-59 / RG-6 coax cabling while adding IP camera support.

Why Mid-Size Hybrid Matters for Chicago HOA + Mid-Business

A typical Chicago HOA full-building or mid-size commercial property at full-camera-coverage runs 12–16 cameras. When the existing analog DVR fails (typically 5–8 years into its lifecycle), the property has three paths:

Path	Cost	Cabling	Future-proofing
Like-for-like 16-ch analog DVR replacement	Lowest	Reuses RG-59	None — locks in analog only
ARD-1610 hybrid (this)	Low–medium	Reuses RG-59 + adds IP positions	Phased IP migration path open
Full IP NVR migration (ARN-1610S)	Higher	New Cat6 + 16-port PoE switch	Modern but full upfront cost

The ARD-1610 sits at the right cost-tier balance for mid-size existing-analog properties that want a modern recorder + selective IP additions without the full IP migration cost.

Multi-Format HDoC + IP Hybrid

The ARD-1610’s analog inputs auto-detect across all four HD analog formats:

• AHD (Analog HD)
• TVI (HD-TVI / Hikvision Turbo HD)
• CVI (HDCVI / Dahua HDCVI)
• CVBS (standard-definition fallback for legacy cameras)

This means the ARD-1610 works with virtually every modern HD analog camera AND legacy SD analog cameras already on site. Existing 16 cameras continue working; new HDoC 5MP cameras (e.g. Capture Advance R2-HD5MPDME, R2-HD5MPMODM, R2-HD5MPMOBT) drop in on the same coax.

Phased IP Migration Path at 16-Channel Scale

The ARD-1610’s 2 IP channels support selective IP camera additions at 1–2 critical positions while keeping 16 analog cameras:

• Today: add 2 IP cameras at the most critical positions (parking entry plate-capture, premium entry door, ATM vestibule, exterior 4K identification) — typically Hanwha QNV-8080R, Hanwha PNO-A9081R, or Axis P1488-LE 4K AI bullet
• Year 2–4: as analog cameras fail, replace with IP units selectively
• Year 5–7: when most cameras are IP and the analog fleet is small, migrate to a pure IP NVR (ARN-1610S for 16 ch, QRN-1630S for storage upgrade)

When to Choose the ARD-1610 vs. Alternatives

Need	ARD-810	ARD-1610 (this)	ARN-1610S (pure IP)
Existing analog cameras	8 max	16 max	None
IP camera capacity	+2	+2	16
Total channels	10	18	16
Coax cabling	Preserved	Preserved	Replaced with Cat6
Max camera count	10	18	16
Best fit	Small-mid hybrid (5–8 analog)	Mid-size hybrid (9–16 analog)	Greenfield / full IP migration

Where the ARD-1610 Wins in Chicago

• HOA full-building 16-camera coverage with installed coax — Wilmette, Glencoe, Highland Park, Schaumburg, Hoffman Estates, Naperville, Wheaton, Oak Brook
• Multi-tenant residential analog upgrades — Loop, River North, Mag Mile high-rises and mid-rises with installed analog
• Mid-business retail at 9–16 cameras with installed analog — neighborhood shopping centers, neighborhood retail strips
• Restaurant + hospitality multi-area properties — full kitchen + dining + bar + entry + parking + back-of-house on existing analog
• Property management mid-size buildings with installed coax + selective IP additions
• Auto repair / body shops with multi-bay coverage + IP additions for plate-capture entries
• Self-storage multi-zone with installed analog + IP at critical entry points
• Education mid-size schools analog + IP hybrid deployments
• Industrial / warehouse small operations with mixed-vintage cameras

Local Chicago Coverage

Vidimost installs the ARD-1610 across the full city of Chicago — downtown Loop to the neighborhood corridors.

Recommended Camera Pairings — Hybrid Build at 16-Channel Scale

Analog (HDoC) cameras — drop in on existing coax:

• Capture Advance R2-HD5MPDME — 5MP HDoC vandal dome (IP66 / IK10)
• Capture Advance R2-HD5MPMODM — 5MP motorized HDoC vandal dome (98 ft IR)
• Capture Advance R2-HD5MPMOBT — 5MP motorized HDoC bullet (131 ft IR)

IP cameras — for new critical positions:

• Hanwha PNO-A9081R — 4K AI bullet for plate-capture / premium ID
• Axis P1488-LE — 4K AI bullet on ARTPEC-9 + AV1 + Live Privacy Shield

Storage Planning

• 2 surveillance-rated HDDs typical pairing — 6+ TB per drive for 30+ day retention at 16 analog + 2 IP cameras
• WD Purple or Seagate SkyHawk drives recommended for 24/7 reliability
• Pair with a UPS for power-loss protection — critical at 16-camera scale

Professional Installation by Vidimost

Vidimost LLC is an active Hanwha Vision installer across Chicago. The ARD-1610 is one of our standard mid-size hybrid recorder picks for Chicago HOA full-coverage analog upgrades, mid-business retail, multi-tenant residential, and multi-position commercial property phased IP migration projects. Full-scope service includes site walkthrough, camera-format compatibility verification across all 16 BNC ports, BNC cable testing on existing coax, Cat6 cable runs to new IP positions, NVR commissioning, Wisenet Mobile / Wisenet Viewer setup, motion zone tuning, recording schedule configuration, and operator training. Contact us for a free site walkthrough and quote.
