Capture Advance · Video Surveillance · Cameras

Capture Advance R2-HD5MPMODM 5MP HDoC Vandal Dome with 2.8–12mm Motorized Varifocal + IK10 + 98 ft IR

Model / Series: R2-HD5MPMODM

The Capture Advance R2-HD5MPMODM is a 5MP HD-over-coax vandal dome camera with 2.8–12mm motorized varifocal lens, multi-format AHD / TVI / CVI / CVBS output, 30 m / 98 ft built-in IR, IP66 weatherproof + IK10 vandal-resistant housing, UTC + joystick OSD, 12 VDC power, NDAA compliance, and 3-year warranty. Replaces the R2-4MPHDMODM. The motorized-varifocal 5MP vandal dome for Chicago analog DVR upgrades at scene-flexible vandal-prone positions — schools, parking decks, public buildings on existing RG-59 / RG-6 coax.

NDAA Compliant Vandal Resistant
Request a Quote Ask About Installation

We don't just ship boxes — this goes in as part of our security camera installation in Chicago work. From the Loop to Rogers Park — see our security work across Chicago.

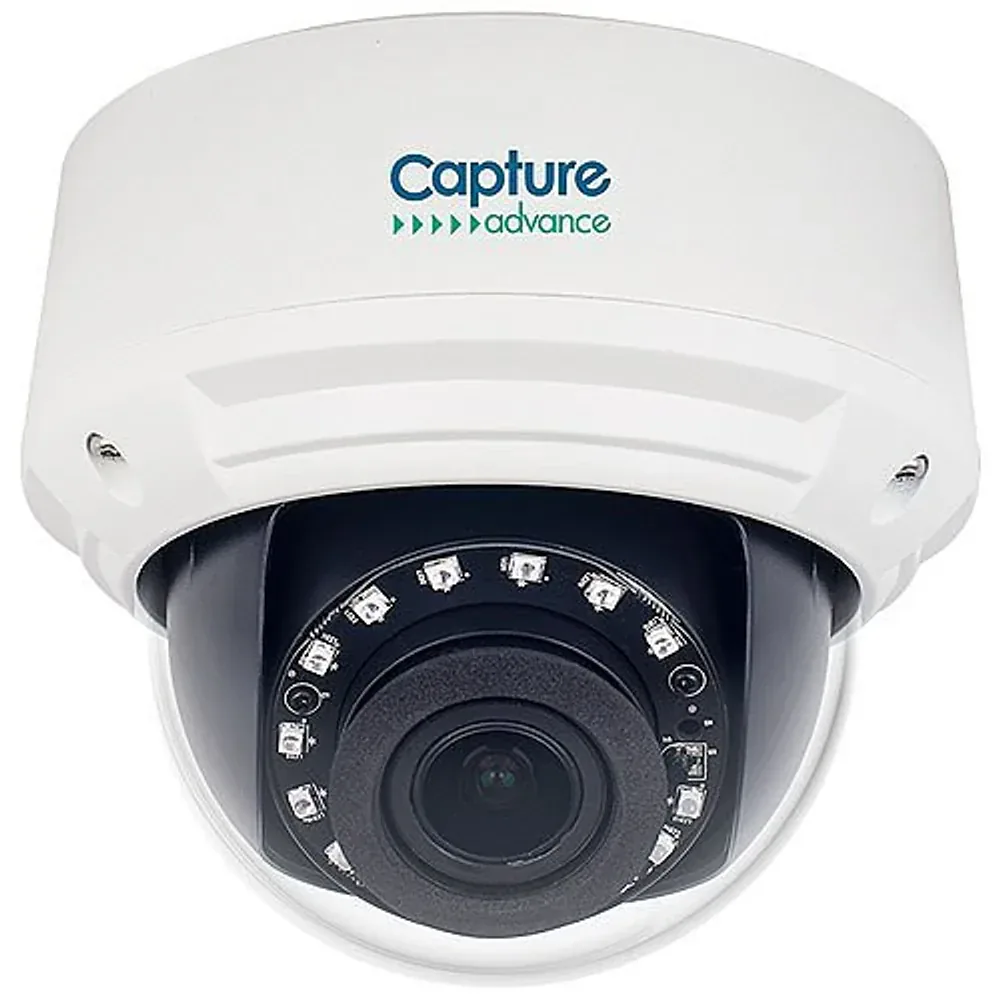

Capture Advance R2-HD5MPMODM

Specifications

Brand
Capture Advance
Model
R2-HD5MPMODM
Series
Capture Advance HD Analog (HDoC) Series
Camera Type
HD-over-coax (HDoC) outdoor vandal dome — analog multi-format with motorized varifocal lens
Resolution
5 MP (2592 × 1944)
Lens
2.8–12 mm motorized varifocal
Day/Night
Yes (auto, IR-cut filter)
IR Distance
30 m / 98 ft (built-in IR LED)
Supported Video Signals
AHD, TVI, CVI, CVBS — multi-format with auto-detect at compatible DVR
Output
BNC coaxial — works on existing RG-59 / RG-6 coax
OSD Control
UTC (up-the-coax) + joystick controllable OSD
Power
12 VDC
Environmental Protection
IP66 — outdoor weatherproof
Impact Resistance
IK10 — vandal-resistant
NDAA / TAA Compliance
NDAA compliant per Capture Advance documentation
Replaces
R2-4MPHDMODM (prior 4MP generation)
Warranty
3 years (36 months)

Best Fit & Recommended For

✓ Schools and educational facilities — exposed exteriors with scene-flexible framing requirements
✓ Parking decks with adjustable level-coverage framing
✓ Public buildings, libraries, recreation centers — vandal-prone scene-flexible positions
✓ Multi-tenant residential / property management — exposed corridors and elevators
✓ Retail entry / storefront positions where impact resistance + adjustable framing matter
✓ HOA common areas — clubhouse exteriors, mail kiosks, pool perimeters
✓ Healthcare exposed positions — emergency-room exteriors, ambulance bays
✓ Phased migration sites with vandal-resistant + scene-flexible 5MP requirements

Capture Advance R2-HD5MPMODM — 5MP Motorized HDoC Vandal Dome for Scene-Flexible Vandal-Prone Positions

The Capture Advance R2-HD5MPMODM is a 5MP HD-over-coax outdoor vandal dome camera from Capture Advance — ADI’s private-label brand. Features include 2.8–12 mm motorized varifocal lens, multi-format AHD / TVI / CVI / CVBS output, 30 m / 98 ft built-in IR, IP66 weatherproof + IK10 vandal-resistant housing, UTC + joystick OSD for remote lens / focus control, 12 VDC power, NDAA compliance, and a 3-year warranty. The current generation replacing the R2-4MPHDMODM — the motorized-varifocal 5MP vandal dome for Chicago analog DVR upgrades at scene-flexible vandal-prone positions on existing RG-59 / RG-6 coax cabling.

Why Motorized Varifocal + IK10 Together

RequirementFixed-lens domeThis (motorized + IK10)
Vandal resistanceAvailableYes — IK10
Scene-flexible focal lengthFixed 2.8 mm2.8–12 mm motorized
Long-throw IR66 ft typical98 ft
Best fitPermanent 2.8 mm vandal positionsVandal positions where scene framing changes

For schools, parking decks, public buildings, and multi-tenant residential — where the scene evolves over time and the position is impact-prone — the motorized varifocal + IK10 combination is the right answer.

R2-HD5MPMODM Comparison vs. Other 5MP HDoC Vandal / Motorized Cameras

FeatureR2-HD5MPMODM (this)R2-HD5MPDMER2-HD5MPMOBT
FormVandal domeVandal domeBullet
Lens2.8–12 mm motorized2.8 mm fixed2.8–12 mm motorized
Vandal ratingIK10IK10None
IR distance98 ft66 ft131 ft
Best fitVandal-prone scene-flexibleVandal-prone fixed-sceneLong-throw eave / pole

Choose the R2-HD5MPMODM when you need both vandal resistance AND scene flexibility on the same camera (most schools and parking-deck positions). Choose the R2-HD5MPDME for fixed 2.8 mm wide-angle vandal positions at lower cost. Choose the R2-HD5MPMOBT for long-throw eave / pole positions with maximum IR distance.

Where the R2-HD5MPMODM Wins in Chicago

  • Schools and educational facilities — Chicago Public Schools — exposed exteriors with seasonal / event-driven framing requirements
  • Parking decks with adjustable level-coverage framing
  • Public buildings, libraries, recreation centers at municipal Chicago properties
  • Multi-tenant residential / property management exposed corridors, elevators, and entrance areas
  • Retail storefronts where impact resistance + adjustable framing matter
  • HOA common areas — clubhouse exteriors, mail kiosks, pool-area perimeters
  • Government and municipal buildings with NDAA + scene-flexible requirements
  • Healthcare exposed positions — emergency-room exteriors, ambulance bays

Local Chicago Coverage

Vidimost installs the R2-HD5MPMODM across the full city of Chicago — downtown Loop to the neighborhood corridors.

Migration Path to IP

When the project needs AI analytics, cloud-direct architecture, signed-firmware cybersecurity, or 4K resolution, the Axis P3287-LVE (premium AI vandal dome with Live Privacy Shield), Axis P3277-LVE (5MP AI vandal dome on ARTPEC-9 + AV1), or Hanwha QND-A8083RV AI vandal dome are the typical step-ups. For phased migration, the Axis P7304 HD analog encoder preserves the camera investment.

Professional Installation by Vidimost

Vidimost LLC installs Capture Advance motorized HDoC vandal domes across Chicago for budget-tier scene-flexible vandal-prone analog upgrades. Full-scope service includes site walkthrough, DVR 5MP compatibility verification, BNC + power cable testing, mounting (wall, ceiling, soffit), tamper-resistant fastener installation, camera commissioning, lens zoom + focus adjustment via UTC OSD per scene, and operator training. Contact us for a free site walkthrough and quote.

Frequently Installed Together

Capture Advance

Capture Advance R2-HD5MPDME

The Capture Advance R2-HD5MPDME is a 5MP HD-over-coax vandal dome camera with 2.8mm fixed lens, multi-format AHD / TVI / CVI / CVBS output, 20 m / 66 ft built-in IR, IP66 weatherproof + IK10 vandal-resistant housing, UTC + joystick OSD, NDAA compliance, and 3-year warranty. The 5MP vandal-resistant HDoC dome for Chicago analog DVR upgrades at exposed positions — schools, public buildings, parking decks, retail entries on existing RG-59 / RG-6 coax.

View →

Capture Advance

Capture Advance R2-HD5MPMOBT

5MP HD-over-coax bullet camera with a motorized 2.8–12mm zoom lens and 131 ft IR — upgrades an old analog DVR without new cabling.

View →

Capture Advance

Capture Advance R2-HD5MPBLT

The Capture Advance R2-HD5MPBLT is a 5MP (2592 × 1944) HD-over-coax bullet camera with 2.8mm fixed lens, 1/3" progressive-scan CMOS sensor, 20 fps, multi-format AHD / TVI / CVI / CVBS output, 65 ft built-in IR, DWDR, IP66 weatherproof metal housing, fixed iris, 12 VDC power, NDAA compliance, and 36-month warranty. The 5MP HDoC bullet for Chicago analog DVR upgrades where forensic identification detail matters — preserving existing RG-59 / RG-6 coax.

View →

Capture Advance

Capture Advance R2-HD5MPEYE

The Capture Advance R2-HD5MPEYE is a 5MP HD-over-coax turret / eyeball camera with 2.8mm fixed lens, multi-format AHD / TVI / CVI / CVBS output, 20 m / 66 ft built-in IR, IP66 weatherproof housing, UTC + joystick OSD, 12 VDC power, NDAA compliance, and 3-year warranty. The 5MP HDoC turret for Chicago analog DVR ceiling-mount upgrades — clean low-profile form factor for retail interiors, hospitality lobbies, and small-business positions on existing RG-59 / RG-6 coax.

View →

Axis Communications

Axis P7304

The Axis P7304 is a premium-tier 4-channel video encoder converting modern HD analog cameras (AHD / TVI / CVI / HDCVBS up to 4K) into IP streams with H.265 / H.264 plus Zipstream bandwidth optimization. PoE-powered, configurable I/O, two-way audio, RS-485/422 for analog PTZ control, microSDHC edge storage, and Axis Camera Application Platform (ACAP) support — purpose-built for HD analog migrations in Chicago commercial buildings, schools, healthcare facilities, and government installations.

View →

Frequently Asked Questions

Why both motorized varifocal AND vandal resistance on the same camera? +
**Motorized varifocal + IK10** is the right combination for a specific use case: **scene-flexible positions in vandal-prone environments** — schools (where lens framing changes seasonally as landscaping grows and event layouts shift), parking decks (where the same camera is rotated through different level-coverage scenes), public-building exteriors (where the scene evolves with construction and signage changes), and multi-tenant residential exposed corridors. The R2-HD5MPMODM is the **'one camera fits every vandal-prone scene'** answer for HDoC projects. The fixed-lens [R2-HD5MPDME](/products/video-surveillance/cameras/capture-advance-hd5mpdme/) is the lower-cost pick for vandal-prone positions where 2.8 mm wide-angle is permanently correct.
What does IK10 mean for impact resistance? +
**IK10** is the highest impact-resistance rating in IEC 62262 — withstands a **5 kg / 11 lb mass dropped from 40 cm** onto the housing without functional damage. The R2-HD5MPMODM tolerates baseball-bat impacts, brick throws, kicks, and accidental vehicle bumps. Critical for school exteriors, parking decks, public buildings, multi-tenant corridors, and any position where the camera could be tampered with.
Will the R2-HD5MPMODM work with my existing analog DVR? +
Yes — if your DVR supports **5MP recording on at least one of AHD / TVI / CVI**. The R2-HD5MPMODM is multi-format (AHD, TVI, CVI, CVBS) — auto-detected by the DVR. Modern HD analog DVRs from Hikvision Turbo HD, Dahua HDCVI, Uniview, and most generic 4-in-1 DVRs support 5MP. Older 1080p-only DVRs will fall back to 1080p mode (loses 5MP benefit). Our site walkthrough verifies DVR 5MP capability before quoting.
What does the 'Replaces R2-4MPHDMODM' note mean? +
The R2-HD5MPMODM is the **current 5MP generation** that replaces the older 4MP R2-4MPHDMODM. Same vandal-resistant motorized-varifocal architecture, but stepped up to 5MP resolution. For new installs, always specify R2-HD5MPMODM. For existing 4MP fleets, the new 5MP unit drops in on the same coax (verify DVR supports 5MP in addition to 4MP — most do).
How does the R2-HD5MPMODM compare to the [R2-HD5MPDME](/products/video-surveillance/cameras/capture-advance-hd5mpdme/) (5MP fixed-lens vandal dome)? +
Same 5MP resolution, same multi-format HDoC architecture, same IP66 + IK10 vandal-resistant housing — but the **R2-HD5MPMODM** has a **2.8–12 mm motorized varifocal lens** and **30 m / 98 ft IR distance** (vs. 2.8 mm fixed lens + 66 ft IR on the R2-HD5MPDME). **Choose the R2-HD5MPDME** for general 2.8 mm wide-angle vandal-prone positions at lower cost. **Choose the R2-HD5MPMODM** when scene-flexible focal length matters, when remote zoom adjustment is needed (high-mount school positions, parking-deck rotations), or when long-throw IR (over 80 ft) is required.
How does the R2-HD5MPMODM compare to the [R2-HD5MPMOBT](/products/video-surveillance/cameras/capture-advance-hd5mpmobt/) (5MP motorized bullet)? +
Same motorized varifocal architecture and same 5MP resolution, but **dome vs. bullet form factor**. **R2-HD5MPMOBT** is a **bullet** — better for **eave / pole / wall outdoor** positions with visible deterrence, longer 131 ft IR. **R2-HD5MPMODM (this)** is a **vandal dome** — IK10 impact resistance, lower-profile dome bubble, better for **wall-mount or ceiling-mount vandal-prone** positions. Choose by mounting position and impact-resistance requirement.
Is the R2-HD5MPMODM NDAA compliant? +
Yes — per Capture Advance documentation, the R2-HD5MPMODM is NDAA Section 889 compliant. This makes it eligible for federal-grant-funded projects, government-adjacent facilities, schools (which often have NDAA contractual requirements), and properties with NDAA mandates. Always verify current NDAA documentation matches your project's specific compliance date and exclusion list.
Where does the R2-HD5MPMODM win in Chicago projects? +
Best-fit Chicago positions: **(1) Schools and educational facilities** — Chicago Public Schools — exposed exteriors with seasonal-framing requirements; **(2) Parking decks** with adjustable level-coverage framing; **(3) Public buildings, libraries, recreation centers** at municipal Chicago properties; **(4) Multi-tenant residential / property management** exposed corridors and elevators; **(5) Retail storefronts** where impact resistance + adjustable framing matter; **(6) HOA common areas** — clubhouse exteriors, mail kiosks, pool perimeters; **(7) Government and municipal buildings** with NDAA + scene-flexible requirements; **(8) Healthcare exposed positions** — emergency-room exteriors, ambulance bays.
Does Vidimost install Capture Advance motorized HDoC vandal domes in Chicago? +
Yes. The R2-HD5MPMODM is one of our standard scene-flexible + vandal-resistant analog upgrade picks for Chicago schools, public buildings, parking decks, multi-tenant residential, and HOA exposed-position projects. Full-scope service includes site walkthrough, DVR 5MP compatibility verification, BNC + power cable testing, mounting (wall, ceiling, soffit), tamper-resistant fastener installation, camera commissioning, **lens zoom + focus adjustment via UTC OSD per scene**, and operator training.
