Capture Advance · Video Surveillance · Cameras

Capture Advance R2-HD5MPBLT 5MP HD Analog (HDoC) Bullet Camera with 2.8mm Lens + 65 ft IR

Model / Series: R2-HD5MPBLT

The Capture Advance R2-HD5MPBLT is a 5MP (2592 × 1944) HD-over-coax bullet camera with 2.8mm fixed lens, 1/3" progressive-scan CMOS sensor, 20 fps, multi-format AHD / TVI / CVI / CVBS output, 65 ft built-in IR, DWDR, IP66 weatherproof metal housing, fixed iris, 12 VDC power, NDAA compliance, and 36-month warranty. The 5MP HDoC bullet for Chicago analog DVR upgrades where forensic identification detail matters — preserving existing RG-59 / RG-6 coax.

NDAA Compliant
Request a Quote Ask About Installation

We don't just ship boxes — this goes in as part of our security camera installation in Chicago work. Inheriting a half-working setup from a previous vendor? Start with a security system takeover.

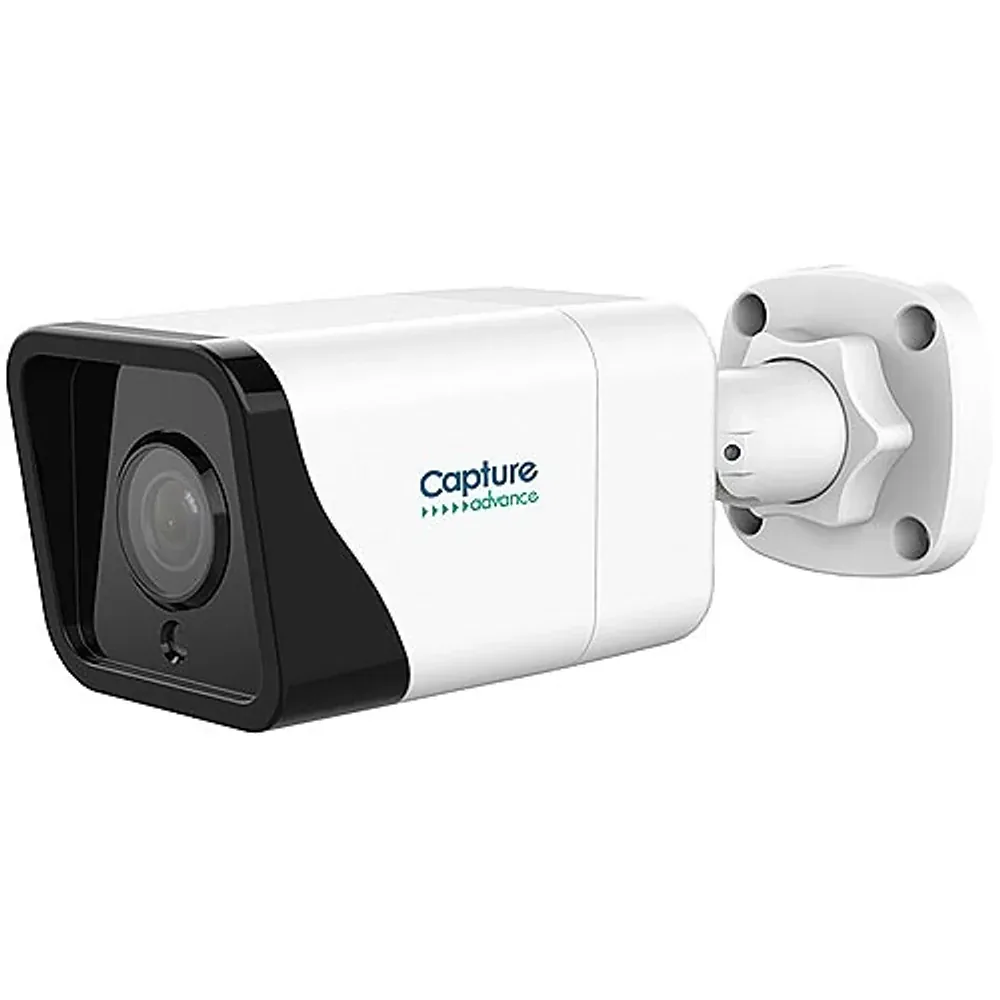

Capture Advance R2-HD5MPBLT

Specifications

Brand
Capture Advance
Model
R2-HD5MPBLT
Series
Capture Advance HD Analog (HDoC) Series
Camera Type
HD-over-coax (HDoC) outdoor bullet — analog multi-format
Image Sensor
1/3" progressive-scan CMOS
Resolution
5 MP (2592 × 1944)
Frame Rate
20 fps at 5 MP
Lens
2.8 mm fixed
Iris
Fixed iris
Day/Night
Yes (auto, IR-cut filter)
IR Distance
Up to 20 m / 65 ft
WDR
DWDR (digital wide dynamic range)
Supported Video Signals
AHD, TVI, CVI, CVBS — multi-format with auto-detect at compatible DVR
Output
BNC coaxial — works on existing RG-59 / RG-6 coax
OSD Control
UTC (up-the-coax) + joystick controllable OSD
Power
12 VDC
Housing
Metal casing
Environmental Protection
IP66 — outdoor weatherproof
NDAA / TAA Compliance
NDAA compliant per Capture Advance documentation
Warranty
3 years (36 months)

Best Fit & Recommended For

✓ Existing Chicago analog DVR systems requiring 5MP forensic identification capture
✓ Parking-lot perimeters where 1080p falls short of plate / suspect identification
✓ Eave / soffit / pole positions on existing RG-59 / RG-6 coax
✓ Property management buildings with 5MP-capable DVRs
✓ HOA common areas — parking entries, perimeter walkways
✓ Auto repair shops, body shops, small industrial yards
✓ Phased migration sites where 5MP forensic detail matters today
✓ Outdoor commercial perimeter on existing analog systems
✓ Bank branch parking on existing analog DVR systems

Capture Advance R2-HD5MPBLT — 5MP HDoC Bullet for Forensic Analog DVR Upgrades

The Capture Advance R2-HD5MPBLT is a 5MP (2592 × 1944) HD-over-coax outdoor bullet camera from Capture Advance — ADI’s private-label brand. Features include 1/3” progressive-scan CMOS sensor, 20 fps at 5 MP, 2.8 mm fixed lens, multi-format AHD / TVI / CVI / CVBS output, 20 m / 65 ft built-in IR, DWDR, fixed iris, IP66 metal weatherproof housing, UTC + joystick OSD, 12 VDC power, NDAA compliance, and a 3-year (36-month) warranty. The 5MP HDoC bullet for Chicago analog DVR upgrades where forensic identification detail matters — preserving existing RG-59 / RG-6 coax cabling.

Why 5MP on HDoC

ResolutionPixel density vs. 1080pBest fit
1080p (2 MP)1× baselineGeneral perimeter, simple ceiling coverage
5 MP (this)~2.5× pixel densityParking-lot identification, eave-mounted ID, wide-scene forensic detail

5MP delivers material forensic upgrade over 1080p on the same coax — provided the DVR supports 5MP recording across at least one HDoC format (AHD / TVI / CVI). Most modern HD analog DVRs do; older 1080p-only DVRs do not.

Multi-Format Output — DVR Compatibility

The R2-HD5MPBLT outputs all four HD analog formats (auto-detected by the DVR):

  • AHD (Analog HD)
  • TVI (HD-TVI / Hikvision Turbo HD)
  • CVI (HDCVI / Dahua HDCVI)
  • CVBS (standard-definition fallback)

Compatible with any modern HD analog DVR that supports 5MP on at least one format. Falls back to 1080p or CVBS on lower-tier DVRs (loses 5MP benefit).

R2-HD5MPBLT vs. R2-HD5MPMOBT — Lens Comparison

FeatureR2-HD5MPBLT (this)R2-HD5MPMOBT
Resolution5 MP5 MP
Lens2.8 mm fixed2.8–12 mm motorized varifocal
IR distance65 ft131 ft
Best fitGeneral perimeter at 2.8 mm wideLong-throw ID / scene-flexible
Cost tierLowerHigher

Choose the R2-HD5MPBLT for general 2.8 mm wide-angle perimeter coverage at the lower cost tier. Choose the R2-HD5MPMOBT for long-range identification, scene-flexible positions, or where remote zoom adjustment matters.

Where the R2-HD5MPBLT Wins in Chicago

  • Parking-lot perimeters on 5MP-capable analog DVRs — corporate small properties, retail centers, HOA lots
  • Eave / soffit / pole identification positions at small commercial properties
  • Property management buildings with 5MP-capable DVR systems
  • HOA common areas — parking entries, perimeter walkways at Chicago condo and HOA buildings
  • Auto repair / body shops with vehicle ID requirements
  • Bank branch parking on existing analog DVR systems

Local Chicago Coverage

Vidimost installs the R2-HD5MPBLT across the full city of Chicago — downtown Loop to the neighborhood corridors. We verify DVR 5MP compatibility before every quote.

Migration Path to 4K IP

When the project needs 4K resolution, AI analytics, cloud-direct architecture, or signed-firmware cybersecurity, the Axis P1488-LE 4K AI bullet or Hanwha PNO-A9081R are the typical step-ups. For phased migration, the Axis P7304 4-channel HD analog encoder brings legacy 5MP HDoC cameras into a modern Axis VMS without replacing every camera at once.

Professional Installation by Vidimost

Vidimost LLC installs Capture Advance HDoC bullets across Chicago for budget-tier 5MP analog upgrades. Full-scope service includes site walkthrough, DVR 5MP compatibility verification, BNC + power cable testing, mounting (eave, soffit, wall, pole), camera commissioning, OSD configuration via UTC, and operator training. Contact us for a free site walkthrough and quote.

Frequently Installed Together

Capture Advance

Capture Advance R2-HD5MPDME

The Capture Advance R2-HD5MPDME is a 5MP HD-over-coax vandal dome camera with 2.8mm fixed lens, multi-format AHD / TVI / CVI / CVBS output, 20 m / 66 ft built-in IR, IP66 weatherproof + IK10 vandal-resistant housing, UTC + joystick OSD, NDAA compliance, and 3-year warranty. The 5MP vandal-resistant HDoC dome for Chicago analog DVR upgrades at exposed positions — schools, public buildings, parking decks, retail entries on existing RG-59 / RG-6 coax.

View →

Capture Advance

Capture Advance R2-HD5MPEYE

The Capture Advance R2-HD5MPEYE is a 5MP HD-over-coax turret / eyeball camera with 2.8mm fixed lens, multi-format AHD / TVI / CVI / CVBS output, 20 m / 66 ft built-in IR, IP66 weatherproof housing, UTC + joystick OSD, 12 VDC power, NDAA compliance, and 3-year warranty. The 5MP HDoC turret for Chicago analog DVR ceiling-mount upgrades — clean low-profile form factor for retail interiors, hospitality lobbies, and small-business positions on existing RG-59 / RG-6 coax.

View →

Capture Advance

Capture Advance R2-HD5MPMOBT

5MP HD-over-coax bullet camera with a motorized 2.8–12mm zoom lens and 131 ft IR — upgrades an old analog DVR without new cabling.

View →

Capture Advance

Capture Advance R2-HD2MPBUL2

The Capture Advance R2-HD2MPBUL2 is a 2MP (1080p Full HD) HD-over-coax bullet camera with 2.8mm fixed lens, multi-format AHD / TVI / CVI / CVBS output (auto-detect at the DVR), 66 ft IR night vision, IP66 weatherproof housing, UTC + joystick OSD, 12 VDC power, NDAA compliance, and 3-year warranty. Replaces the original R2-HD2MPBUL — the budget HDoC bullet for Chicago analog DVR upgrades on existing RG-59 / RG-6 coax.

View →

Axis Communications

Axis P7304

The Axis P7304 is a premium-tier 4-channel video encoder converting modern HD analog cameras (AHD / TVI / CVI / HDCVBS up to 4K) into IP streams with H.265 / H.264 plus Zipstream bandwidth optimization. PoE-powered, configurable I/O, two-way audio, RS-485/422 for analog PTZ control, microSDHC edge storage, and Axis Camera Application Platform (ACAP) support — purpose-built for HD analog migrations in Chicago commercial buildings, schools, healthcare facilities, and government installations.

View →

Frequently Asked Questions

What does 5MP buy me on an HDoC bullet vs. 1080p? +
**5MP (2592 × 1944) delivers ~2.5× the pixel density of 1080p (1920 × 1080)** — meaningful at: **(1) parking-lot perimeters** where license-plate readability drops off above ~25 ft on 1080p; **(2) eave-mounted ID positions** at building entries; **(3) wide-scene capture** where digital zoom into recorded footage retains usable detail; **(4) any forensic-critical position** where after-the-fact zoom matters. The R2-HD5MPBLT is the choice when **your DVR supports 5MP recording AND the scene needs forensic detail**. Older 1080p-only DVRs cannot record 5MP — in that case the [R2-HD2MPBUL2](/products/video-surveillance/cameras/capture-advance-hd2mpbul2/) is the right pick.
Will the R2-HD5MPBLT work with my existing analog DVR? +
Yes — if your DVR supports **5MP recording on at least one of AHD / TVI / CVI**. The R2-HD5MPBLT is multi-format (AHD, TVI, CVI, CVBS) — auto-detected by the DVR. Modern HD analog DVRs from Hikvision Turbo HD, Dahua HDCVI, Uniview, and most generic 4-in-1 DVRs support 5MP. Older 1080p-only DVRs will fall back to **1080p mode** (loses the 5MP benefit) or **CVBS (D1)** mode (loses the HD benefit entirely). Our site walkthrough verifies DVR resolution capability before quoting.
What's the trade-off at 20 fps vs. 30 fps cameras? +
The R2-HD5MPBLT records **20 fps at full 5MP resolution** — the standard frame rate for 5MP HDoC cameras at this price tier. For most surveillance use cases (perimeter, parking-lot, building edge, general property coverage), 20 fps is fully adequate — motion is smooth and forensic capture is uninterrupted. **Where 20 fps is not adequate**: very fast motion scenarios like vehicle gates with high transit speed (where 30+ fps captures clearer plate frames), sports / event venues, ATM lanes. For those positions, an IP camera at 30 fps or higher (e.g. [Axis Q1656-LE at 60 fps](/products/video-surveillance/cameras/axis-q1656-le/)) is the better fit.
What does DWDR do on this camera? +
**DWDR** (digital wide dynamic range) processes the image to balance bright + dark areas in the same scene — useful for backlit positions like building entries with sun behind the door, vehicle headlights against dark backgrounds, or partial-shade scenes. DWDR is processing-only (no specialized sensor), so the result is more limited than true WDR cameras (which use multi-exposure sensor capture) — but materially better than no WDR. For premium forensic WDR scenes, an IP camera like the [Axis Q1656-LE](/products/video-surveillance/cameras/axis-q1656-le/) with Forensic WDR up to 120 dB is the upgrade path.
Is the R2-HD5MPBLT NDAA compliant? +
Yes — per Capture Advance documentation, the R2-HD5MPBLT is NDAA Section 889 compliant. This makes it eligible for federal-grant-funded projects, government-adjacent facilities, and properties with NDAA contractual requirements. Always verify current NDAA documentation matches your project's specific compliance date and exclusion list.
How does the R2-HD5MPBLT compare to the [R2-HD5MPMOBT](/products/video-surveillance/cameras/capture-advance-hd5mpmobt/) (5MP varifocal bullet)? +
Same 5MP resolution and same multi-format HDoC architecture, but the **R2-HD5MPMOBT** has a **2.8–12 mm motorized varifocal lens** and **131 ft IR distance** (vs. 2.8 mm fixed lens + 65 ft IR on this R2-HD5MPBLT). The motorized varifocal lets you adjust focal length remotely after install — important for **long-throw identification** and **scene-specific framing**. Choose the **R2-HD5MPBLT** for general 2.8 mm wide-angle perimeter at lower cost. Choose the **R2-HD5MPMOBT** for long-range identification, scene-flexible positions, or where remote zoom adjustment matters.
Where does the R2-HD5MPBLT win in Chicago projects? +
Best-fit Chicago positions: **(1) Parking-lot perimeters** on 5MP-capable analog DVRs — corporate small properties, retail centers, HOA lots; **(2) Eave / soffit / pole** identification positions at small commercial properties; **(3) Property management buildings** with 5MP DVR systems; **(4) HOA common areas** — parking entries, perimeter walkways at Chicago HOAs; **(5) Auto repair / body shops** with vehicle ID requirements; **(6) Bank branch parking** on existing analog DVR systems; **(7) NDAA-compliant projects** at budget tier.
When should I migrate from 5MP HDoC to 4K IP? +
Common triggers: **(1) DVR end-of-life** — when the DVR fails, IP migration becomes cost-effective; **(2) AI / cloud / cybersecurity requirements** — modern IP cameras (Axis, Hanwha) deliver deep-learning analytics, signed firmware, cloud-direct architecture that HDoC cannot match; **(3) 4K resolution requirements** — for forensic positions where 5MP isn't enough (Loop downtown, premium retail entries, federal facility perimeters), [Axis P1488-LE 4K AI bullet](/products/video-surveillance/cameras/axis-p1488-le/) or [Hanwha PNO-A9081R](/products/video-surveillance/cameras/hanwha-pno-a9081r/) are the typical step-ups. For phased migration, the [Axis P7304 4-channel HD analog encoder](/products/video-surveillance/encoders/axis-p7304/) brings legacy 5MP HDoC cameras into a modern Axis VMS without replacing every camera at once.
Does Vidimost install Capture Advance 5MP HDoC bullets in Chicago? +
Yes. The R2-HD5MPBLT is one of our standard 5MP analog upgrade picks for Chicago small-business, HOA, property-management, and small commercial perimeter positions. Full-scope service includes site walkthrough, DVR compatibility verification (5MP support across at least one HDoC format), BNC + power cable testing, mounting (eave, soffit, wall, pole), camera commissioning, OSD configuration via UTC, and operator training.
