Axis Communications · Video Surveillance · Cameras

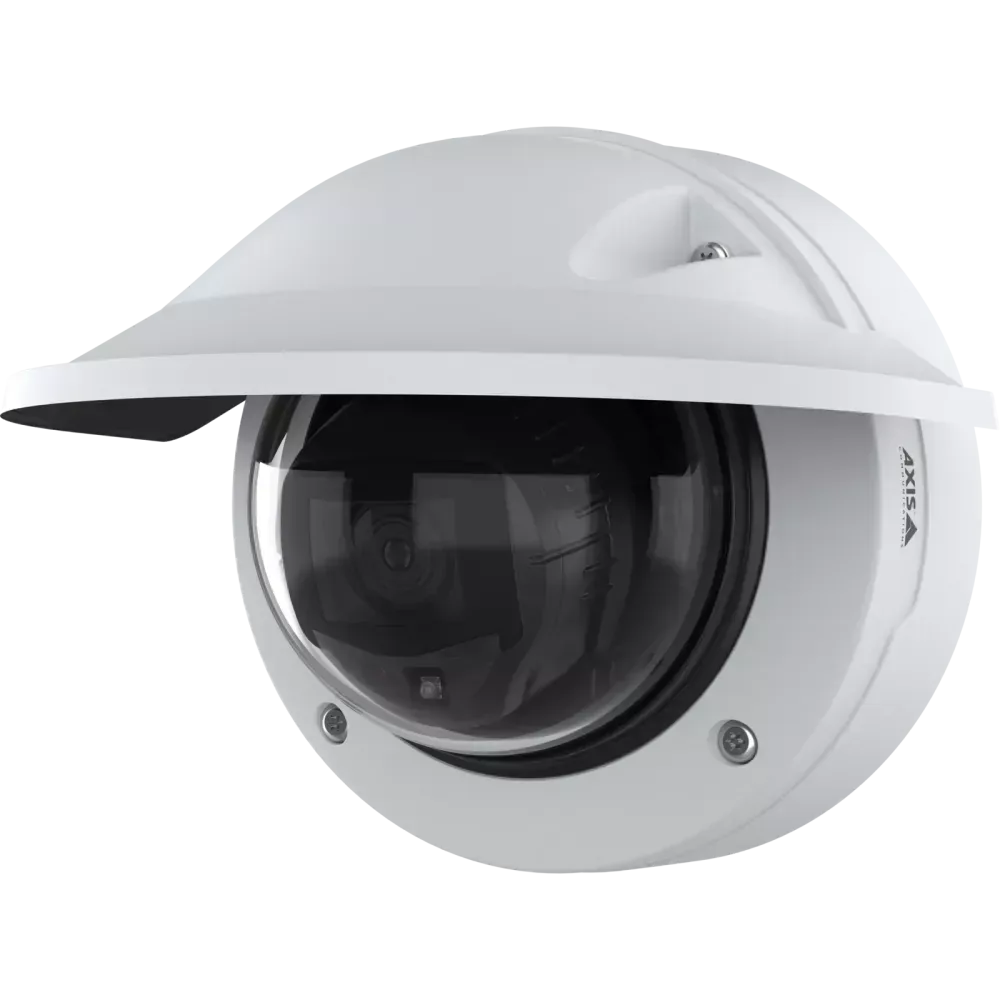

Axis P3277-LVE 5MP AI-Powered Outdoor Vandal Dome with ARTPEC-9 + AV1 Codec

Model / Series: P3277-LVE

5MP AI outdoor vandal dome on the new ARTPEC-9 chip with AV1 codec — the P3267's successor for storefronts, condo entries, and parking garages.

NDAA Compliant AI Analytics Vandal Resistant
Request a Quote Ask About Installation

We don't just ship boxes — this goes in as part of our security camera installation in Chicago work. First time working with us? Here’s why Chicago buildings pick Vidimost.

Axis P3277-LVE

Specifications

Brand
Axis Communications
Model
P3277-LVE
Series
Axis P3 Series (AI / ARTPEC-9)
Camera Type
AI-powered IP outdoor IR vandal dome with motorized varifocal lens
Image Sensor
1/2.8" CMOS
Resolution
5MP (2592 × 1944)
Max Frame Rate
30 fps / 25 fps (50/60 Hz)
Lens
3.0–8.5 mm motorized varifocal
Aperture
F1.38 (wide) – F2.58 (tele)
Field of View (Horizontal)
104° (wide) – 34° (tele)
Field of View (Vertical)
76° (wide) – 26° (tele)
Day/Night
Yes (auto)
Minimum Illumination (Color)
0.10 lux
Low-Light Technology
Lightfinder 2.0
WDR
Forensic WDR
IR Illumination
Built-in OptimizedIR
Chipset
ARTPEC-9 (Axis's newest AI-capable system-on-chip)
Video Compression
AV1, H.265, H.264 with Axis Zipstream
AI Analytics
AXIS Object Analytics, AXIS Audio Analytics (preinstalled)
Audio
Built-in microphone (Mic variant)
Alarm I/O
1 input / 1 output
Network
Power over Ethernet (PoE Class 3)
ONVIF
Profile G
Edge Storage
microSD card slot
Application Platform
AXIS Camera Application Platform (ACAP)
Cybersecurity
Axis Edge Vault — signed firmware, secure boot
Operating Temperature
−40 °C to +50 °C (−40 °F to +122 °F)
Environmental Protection
IP66 / IP67 (immersion-resistant)
Impact Resistance
IK10 (vandal-resistant)
TAA / NDAA Compliance
Per Axis Communications documentation

Best Fit & Recommended For

✓ Premium-tier outdoor vandal dome positions on new Axis VMS deployments in Chicago
✓ Condo and HOA building entries where Object Analytics filters out false motion alerts
✓ Storefront and restaurant exteriors with person / vehicle classification
✓ Parking garage entries and ramps with AI vehicle-type detection
✓ Small office buildings using Audio Analytics at after-hours entrances
✓ Hotel and hospitality entrances with audio detection + object classification
✓ Multi-tenant buildings in Schaumburg, Oak Brook, Naperville
✓ Greenfield Chicago projects future-proofing on AV1 codec + ARTPEC-9 platform

Axis P3277-LVE — 5MP AI Outdoor Vandal Dome with ARTPEC-9 + AV1 Codec

The Axis P3277-LVE is a 5MP AI-powered outdoor vandal dome from Axis Communications’ newer-generation P3 series — built on the ARTPEC-9 chipset (Axis’s newest AI-capable system-on-chip) with AV1 codec support, AXIS Object Analytics, AXIS Audio Analytics, Lightfinder 2.0, Forensic WDR, OptimizedIR, IP66 / IP67 / IK10 housing, and −40 °C operating range.

The P3277-LVE is the newer-generation upgrade over the P3267-LVE — adding deep-learning AI analytics, AV1 codec future-proofing, and IP67 immersion rating to the proven P3 vandal dome platform.

Key Upgrades Over the P3267-LVE

FeatureP3267-LVE (original)P3277-LVE (this — newer)
ChipsetARTPEC platformARTPEC-9
Codec supportH.265, H.264AV1, H.265, H.264
AI AnalyticsStandard ACAPAXIS Object + Audio Analytics preinstalled
IP ratingIP66IP66 + IP67
Lens3–8 mm F1.33.0–8.5 mm F1.38–2.58
Min illumination (color)0.13 lux0.10 lux
Sensor1/2.7”1/2.8”
Best fitExisting P3267 fleetsGreenfield premium AI deployments

For projects already standardized on the P3267-LVE where fleet uniformity matters, the older model remains active. For greenfield Chicago deployments and any project where future-proofing on AV1 codec or AI analytics matters, the P3277-LVE is the better choice.

⭐ ARTPEC-9 + AV1 — Future-Proofing for Long Camera Lifecycles

Axis ARTPEC-9 is Axis Communications’ newest AI-capable system-on-chip, designed for deep-learning analytics processing on the camera itself. The P3277-LVE leverages ARTPEC-9 to run AXIS Object Analytics (Person / Vehicle classification) and AXIS Audio Analytics (loud noise / glass break detection) without external server resources.

AV1 codec delivers ~30% better compression than H.265 at the same image quality. As major VMS platforms add AV1 support over the next 12–24 months, P3277-LVE deployments will benefit from material storage / bandwidth savings without requiring camera replacements. For Chicago commercial deployments with 5–10-year lifecycle expectations, AV1 future-proofing is meaningful.

AXIS Object Analytics + Audio Analytics

AXIS Object Analytics — deep-learning person / vehicle classification with vehicle subtype detection (car / bus / truck / motorcycle / bicycle). Filters false alerts (no more “tree branch crossing perimeter” alarms), enables forensic search by object type, triggers context-aware events.

AXIS Audio Analytics — loud noise, glass break, aggressive voice detection. Useful at storefronts, restaurant patios, and building entries.

Both run on the camera’s ARTPEC-9 DLPU.

Where the P3277-LVE Wins in Chicago

  • Condo and HOA buildings — Object Analytics keeps motion alerts down to actual people and vehicles at entries and courtyards
  • Storefronts and restaurants — person classification at the front door, glass-break detection where audio context helps
  • Small offices in the Loop, Oak Brook, Schaumburg upgrading to AI-capable domes
  • Parking garages — vehicle counting at entries, person classification on ramps
  • Premium retail — vehicle counting at parking entries, person classification at storefronts
  • Greenfield deployments — projects starting fresh in 2026+ should standardize on ARTPEC-9 / AV1

Local Chicago Coverage

Vidimost installs the P3277-LVE across the full city of Chicago:

Alternative AI / Cloud-Direct Cameras

For projects planning cloud-direct architecture (camera writes straight to cloud, no per-site NVR), comparable Hanwha alternatives:

  • Hanwha XNV-A9084R — 4K AI cloud-ready vandal dome with FIPS 140-3 Level 3 cybersecurity + CloudConnector
  • Hanwha PND-A9081RF — 4K indoor AI dome with full deep-learning attribute search + CloudConnector
  • Hanwha PNO-A9081R — 4K outdoor AI bullet with attribute search + CloudConnector

The choice depends on the customer’s VMS / architecture preference. Axis P3277-LVE wins for traditional Axis Camera Station deployments; Hanwha A-line wins for distributed multi-site cloud-direct architecture.

Professional Installation by Vidimost in Chicago

Vidimost LLC is an active Axis Communications installer across Chicago. The P3277-LVE is one of our top recommendations for premium outdoor vandal dome positions on greenfield Axis deployments. Full-scope service includes site walkthrough and camera placement planning, mounting (with Axis back-box accessories), Cat6 + PoE switch sizing, Axis Camera Station commissioning, AI analytics tuning (Object Analytics classification thresholds, Audio Analytics event configuration), ACAP application deployment, and operator training. Contact us for a free site walkthrough and quote.

Frequently Installed Together

Axis Communications

Axis P3267-LVE

5MP outdoor vandal dome with motorized zoom and built-in IR — a workhorse outdoor security camera for condo entrances, storefronts, and parking garages.

View →

Axis Communications

Axis P3287-LVE

The Axis P3287-LVE is the premium 5MP AI-powered outdoor vandal dome in the P3 series — built on ARTPEC-9 with AV1 codec, plus the FULL Axis analytics package (AXIS Audio Analytics, AXIS Object Analytics, AXIS Live Privacy Shield, AXIS Scene Metadata, AXIS Video Motion Detection). Lightfinder 2.0, Forensic WDR, IP66 / IP67 / IK10. Privacy Shield is critical for healthcare PHI compliance, education, and public-area surveillance with privacy regulation requirements.

View →

Axis Communications

Axis P1488-LE

The Axis P1488-LE is a 4K (8MP) outdoor AI bullet camera built on the ARTPEC-9 chipset — with a large 1/1.2" CMOS sensor, motorized varifocal 5.9–13.8 mm lens (F1.5–F2.8), 60 fps, AV1 codec support, Lightfinder 2.0, Forensic WDR, OptimizedIR up to 50 m, IP66 / IP67 / IK10, −40 °C to +60 °C, and preinstalled AXIS Object Analytics, Image Health Analytics, and Live Privacy Shield. The newer-generation upgrade to the P1468-LE for Chicago premium 4K perimeter and forensic identification.

View →

Axis Communications

Axis Q6355-LE

The Axis Q6355-LE is the newer-generation outdoor PTZ camera with 31× optical zoom, 1080p @ 60 fps, ARTPEC-9 chipset, AV1 codec support, AXIS Object Analytics + Image Health Analytics + Scene Metadata, Lightfinder 2.0, Forensic WDR, OptimizedIR (up to 300m IR per marketing), Autotracking 2, IP66 / IP67 / IK10 / NEMA 4x housing, and −50 °C to +55 °C operating range. The newer upgrade over the Q6315-LE for greenfield Chicago deployments where AV1 codec future-proofing + expanded AI analytics matter.

View →

Frequently Asked Questions

How is the P3277-LVE an upgrade over the P3267-LVE? +
Both are 5MP outdoor vandal domes from the [Axis P3 Series](/brands/axis/) sharing the same form factor and core image features (Lightfinder 2.0, Forensic WDR, OptimizedIR, IK10, motorized varifocal). **Key P3277-LVE upgrades over the [P3267-LVE](/products/video-surveillance/cameras/axis-p3267-lve/)**: (1) **ARTPEC-9 chipset** — Axis's newest AI-capable system-on-chip; (2) **AV1 codec support** — newest royalty-free video codec, future-proofs the deployment; (3) **AXIS Object Analytics + AXIS Audio Analytics preinstalled** — deep-learning person / vehicle / object classification + audio event detection; (4) **IP67 rating** added on top of IP66; (5) **Slightly wider lens range** (3.0–8.5 mm vs. 3–8 mm) and slightly better minimum illumination (0.10 lux vs. 0.13 lux). For greenfield deployments the P3277-LVE is the better choice; the [P3267-LVE](/products/video-surveillance/cameras/axis-p3267-lve/) remains relevant for projects extending an existing fleet.
What does AV1 codec support give me? +
**AV1** is the newest royalty-free video codec, jointly developed by the Alliance for Open Media (Google, Apple, Microsoft, Netflix, Amazon, Mozilla, Cisco, Intel, Nvidia, Samsung). AV1 delivers ~30% better compression efficiency than H.265 at the same image quality — meaning lower NVR storage and network bandwidth requirements at full quality. **Why it matters in 2026**: as VMS platforms add AV1 support, properties on AV1-capable cameras take advantage of better compression. For **future-proofing** a Chicago commercial deployment with a 5–10-year camera-lifecycle expectation, AV1 codec is meaningful. The P3277-LVE supports H.265 and H.264 too, so it works on existing VMS today.
What deep-learning AI analytics does the P3277-LVE include? +
**AXIS Object Analytics** — preinstalled deep-learning analytics that classify objects in the scene (Person, Vehicle, with vehicle subtype) and trigger events on classification matches. Useful for filtering false alerts (motion-triggered alerts now distinguish 'person crossing perimeter' from 'tree branch in wind') and enabling forensic search by object type. **AXIS Audio Analytics** — audio event detection (loud noise, glass break, aggressive voice) for positions where audio context matters alongside video. Both run on the camera's ARTPEC-9 deep-learning processing unit (DLPU) — no external server required.
Compare the P3277-LVE to the P3287-LVE — which is right for my project? +
Both share the same chassis, sensor, lens, ARTPEC-9 chipset, AV1 codec, IP67 / IK10 rating, and core analytics (AXIS Object Analytics). **Key [P3287-LVE](/products/video-surveillance/cameras/axis-p3287-lve/) advantages**: adds **AXIS Live Privacy Shield** (real-time face / body privacy masking — useful when faces can't land in the recording), **AXIS Scene Metadata** (richer scene-context data feeding VMS analytics), and the **full Axis analytics package**. **General rule:** specify the P3277-LVE for premium AI deployments where Object + Audio Analytics meet requirements; specify the P3287-LVE when the project explicitly requires Live Privacy Shield or the full analytics package.
Will the P3277-LVE survive Chicago winters? +
Yes. **−40 °C to +50 °C operating range** — handles every Chicago weather scenario including the harshest polar vortex events. **IP66 / IP67** combined weather + immersion rating, **IK10** vandal rating. The combined ratings make the P3277-LVE one of the most robust outdoor cameras for Chicago commercial deployments — handles rain, snow, sleet, lake-effect storms, freeze-thaw cycles, and the most extreme cold snaps with margin.
How does this compare to Hanwha cloud-direct alternatives? +
The P3277-LVE delivers premium AI analytics in a traditional NVR-recorded architecture (Axis Camera Station, Genetec, Milestone). For **cloud-direct camera architecture** (camera writes straight to cloud, no on-premise NVR per site — increasingly important for distributed multi-site portfolios), Hanwha's CloudConnector-compatible cameras like the [XNV-A9084R](/products/video-surveillance/cameras/hanwha-xnv-a9084r/) (4K outdoor AI vandal dome with FIPS 140-3 Level 3 cybersecurity), [PND-A9081RF](/products/video-surveillance/cameras/hanwha-pnd-a9081rf/) (4K indoor AI dome), and [PNO-A9081R](/products/video-surveillance/cameras/hanwha-pno-a9081r/) (4K outdoor AI bullet) are the right pick. The choice depends on architecture preference.
Does Vidimost install Axis ARTPEC-9 cameras in Chicago? +
Yes. Vidimost LLC is an active Axis Communications installer across the city of Chicago — from the Loop to the far corners of the city. The P3277-LVE is one of our top recommendations for premium outdoor vandal dome positions on greenfield Axis deployments, particularly when AI Object Analytics, AV1 codec future-proofing, or IP67 immersion rating matter. Full-scope service includes site walkthrough, mounting, Cat6 + PoE switch sizing, Axis Camera Station commissioning, AI analytics tuning, ACAP application deployment, and operator training.
