Hanwha Vision SBV-120GW Back Box for Wisenet QNV Vandal Domes

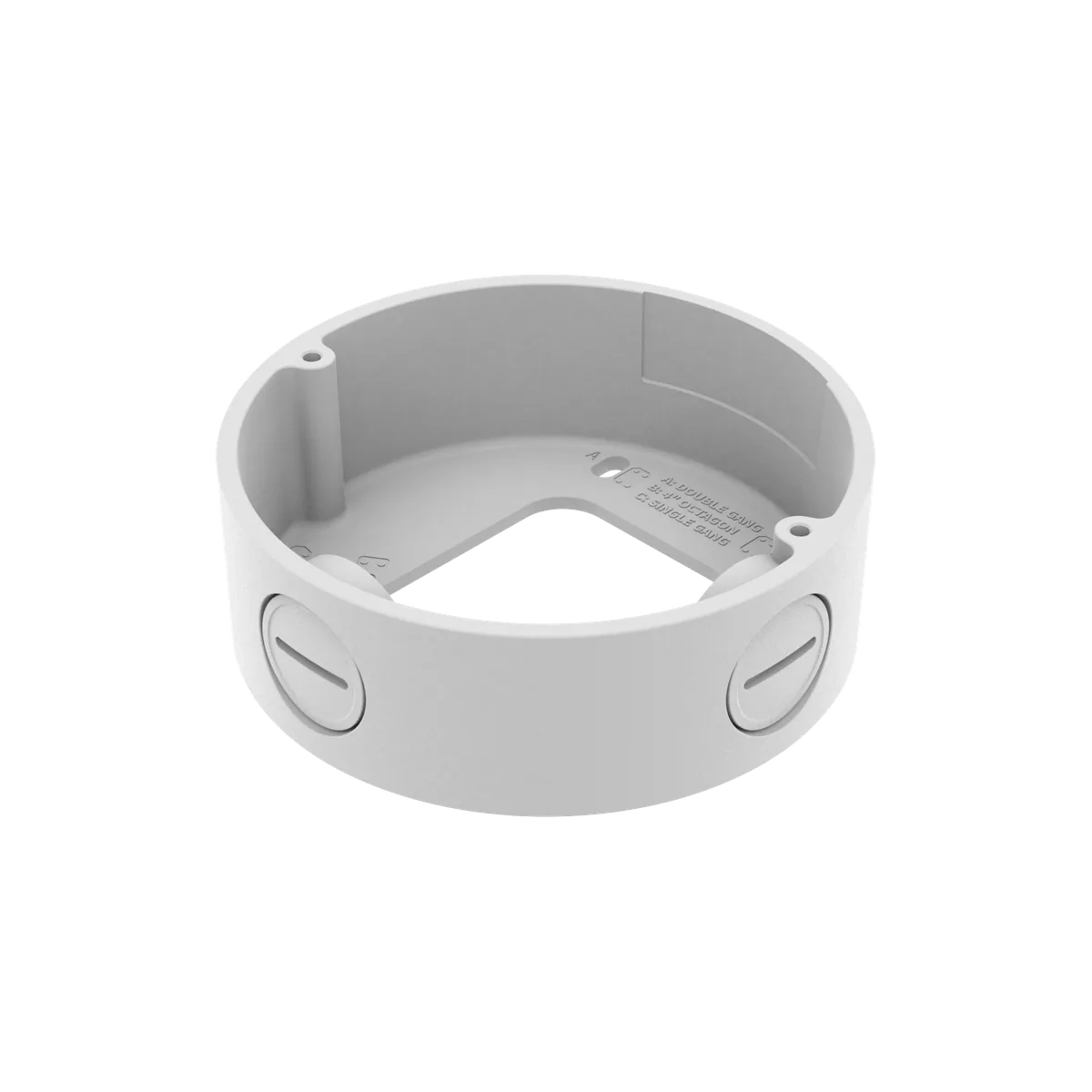

The Hanwha Vision SBV-120GW is a white back box that adapts Wisenet QNV vandal-dome cameras for installation onto standard gangbox-prep walls. It is NDAA compliant and provides room for cables behind the camera plus easy conduit attachment for clean cable management.

What’s Confirmed by the Official Hanwha Spec

These specifications come directly from the manufacturer’s published product page on hanwhavisionamerica.com for the SBV-120GW:

• Color: White
• Function: “Install camera on a gangbox” / “Provide room for cables” / “Easy conduit attachment”
• NDAA compliant — listed on the official product page
• Compatible cameras: QNV-6012R, QNV-6022R, QNV-8010R, QNV-8020R; plus the discontinued QNV-6032R and QNV-8030R for installed-base maintenance

A back box is not glamorous hardware, but skipping it is how you end up with exposed cable loops behind a dome that someone can pick at from a ladder.

Why It Matters for Wisenet QNV Deployments

Wisenet QNV vandal-dome cameras are some of the most-installed Hanwha cameras in Chicago commercial buildings — they show up at condo entries, parking garages, storefront back doors, and warehouse walls. The SBV-120GW gives those QNV cameras a clean gangbox-prep mounting surface with conduit-fed cabling, which matters in three real-world scenarios:

1. Retrofit installations where the wall already has a gangbox (or rough-in conduit) from a previous camera install — the SBV-120GW lets the new QNV camera reuse that prep without surface-mount cabling.
2. Outdoor / exterior facade installations where conduit-fed wiring is required by code or by aesthetic spec — the SBV-120GW receives the conduit and routes the camera cable cleanly into the camera body.
3. Jobs that spec NDAA-compliant hardware end to end — the SBV-120GW keeps the whole QNV package (camera + back box) on the compliant list.

SBV-120GW vs. Other Hanwha Accessories

The SBV-120GW is the Wisenet QNV-series cousin of the SBV-A14B back box (which fits the Wisenet A-series ANV / ANO / ANE cameras). They serve the same role — gangbox-prep adapter with conduit access — for two different camera lineups.

For projects mixing QNV and other camera form factors, the right back-box per camera:

Camera Series	Back Box
Wisenet QNV vandal domes (QNV-6012R / 6022R / 8010R / 8020R, etc.)	SBV-120GW (this page)
Wisenet A-series (ANV / ANO / ANE families)	SBV-A14B

Vidimost specifies the right back box per camera at site walkthrough.

Related Hanwha Mount Accessories for QNV Cameras

The same QNV cameras pair with two other Vidimost-installed mount accessories:

• SBV-120WCW Weather Cap — sun-glare and rain shield for outdoor QNV installations; prevents snow / ice buildup
• SBP-137WMW Wall Mount — outdoor wall-mount bracket for QNV vandal domes when surface-mount-to-wall installation is required (no gangbox)

Where the SBV-120GW Wins in Chicago

• Commercial back-of-house and storefront installations of Wisenet QNV vandal-dome cameras
• Existing-gangbox retrofits for Wisenet QNV-series
• Outdoor / exterior facade installations needing conduit-fed wiring on QNV cameras
• Multi-tenant residential exterior camera installations on QNV vandal domes
• Industrial / warehouse perimeter QNV-series camera installations
• Retail back-of-house and storefront QNV camera installations
• Parking garage QNV positions where conduit-fed wiring is the only clean option
• Restaurant / hospitality back-of-house QNV surveillance with clean cabling presentation

Local Chicago Coverage

Vidimost installs the Hanwha Vision SBV-120GW across the full city of Chicago as the standard back-box accessory for every Wisenet QNV-series camera deployment.

Recommended Pairings

• Any compatible Wisenet QNV vandal-dome camera (QNV-6012R / 6022R / 8010R / 8020R, plus installed-base 6032R / 8030R)
• Hanwha SBV-120WCW Weather Cap — sun / rain / snow shield for outdoor positions
• Hanwha SBP-137WMW Wall Mount — alternative wall-mount path when no gangbox is available

Professional Installation by Vidimost

Vidimost LLC installs the Hanwha Vision SBV-120GW across Chicago for Wisenet QNV-series IP camera deployments. Full-scope service includes site walkthrough, gangbox-prep verification (or new gangbox installation on retrofit), back-box mounting, conduit termination, camera installation onto the back box, and cable dressing. Contact us for a free site walkthrough and quote.
