Hanwha Vision SBP-137WMW1 Wall Mount for Wisenet QNV Vandal Domes — Chicago Outdoor Surveillance

Hanwha Vision SBP-137WMW1 Wall Mount for Wisenet QNV Vandal Domes

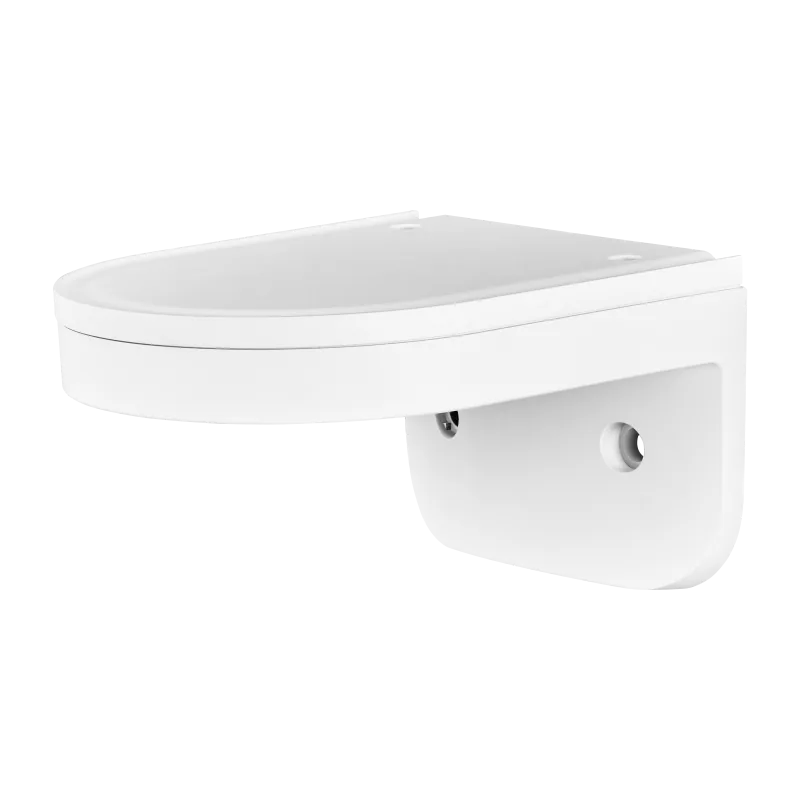

The Hanwha Vision SBP-137WMW1 is a white wall-mount bracket designed for Wisenet QNV vandal-dome cameras — the current shipping configuration that supersedes the original SBP-137WMW (now discontinued on the US market). The SBP-137WMW1 includes a wall-mount plate for easy installation onto a wall surface or onto a single-gang or double-gang gangbox, making it the standard wall-mount path for outdoor QNV installations across Chicago commercial buildings.

What’s Confirmed by the Official Hanwha Spec

These specifications come directly from the manufacturer’s published product page on hanwhavisionamerica.com for the SBP-137WMW1:

• Product type: Dome Mount (White)
• Key feature (verbatim from Hanwha’s page): “Includes wall mount plate for easy installation to wall or gangbox (single/double).”
• Color: White
• Compatible cameras (per the official Hanwha compatibility list): QNV-6012R, QNV-6022R, QNV-6082R, QNV-8010R, QNV-8020R, QNV-8080R; plus the discontinued QNV-6032R and QNV-8030R for installed-base maintenance
• Compatibility note (from Hanwha’s page): “This item is not compatible with SBV-136BW.”

SBP-137WMW1 vs. SBP-137WMW

The original SBP-137WMW is listed as discontinued on Hanwha Vision America. The SBP-137WMW1 is the current shipping wall mount that takes its place. They serve the same role — outdoor wall mount for the QNV vandal-dome family — and Vidimost specifies the SBP-137WMW1 by default on every new installation. For installed-base maintenance on a property already running the original SBP-137WMW, we can source replacement parts where available; for new wall-mount installations, the SBP-137WMW1 is the right pick.

Why a Wall Mount + Wall-Mount Plate Matters

Many Chicago commercial outdoor camera positions don’t have a gangbox roughed in at the wall — the building is solid masonry or finished facade with no penetrations except the surface conduit. The SBP-137WMW1’s included wall-mount plate handles both scenarios:

1. Direct surface wall mount — anchor the plate to the wall, the wall mount attaches to the plate, the camera attaches to the wall mount. Cables run through external surface conduit.
2. Gangbox-prep wall mount (single-gang or double-gang) — the plate fits over an existing single- or double-gang electrical box, the wall mount attaches to the plate, and cables route through the gangbox into interior wiring.

This flexibility is why the SBP-137WMW1 is Vidimost’s default wall-mount choice for QNV outdoor deployments — one bracket SKU, two installation paths.

Three QNV Mount Accessories Together

The SBP-137WMW1 is one of three Vidimost-installed accessories for the Wisenet QNV vandal-dome family. They commonly install together on outdoor positions:

Accessory	Role
SBP-137WMW1 (this page)	Wall mount — bracket holding the camera away from the wall surface
SBV-120GW Back Box	Gangbox adapter — clean cable management with conduit attachment
SBV-120WCW Weather Cap	Weather protection — sun / rain / snow / ice shield

For most outdoor Chicago QNV installations, all three are specified together: SBP-137WMW1 holds the camera off the wall, SBV-120GW handles cabling cleanup, SBV-120WCW protects the optics from weather.

Where the SBP-137WMW1 Wins in Chicago

• Outdoor wall-mounted QNV camera installations on building facades
• Exterior surface-mount installations on multi-tenant residential building walls
• Industrial / warehouse exterior wall-mounted QNV installations
• Education facility exterior wall-mounted QNV cameras at building entries
• Healthcare facility exterior wall-mounted QNV surveillance
• Retail storefront and back-of-house wall-mounted QNV cameras
• Hospitality outdoor wall-mounted QNV surveillance at facades and porte-cochères
• Single-gang or double-gang gangbox-prep wall installations of QNV cameras

Local Chicago Coverage

Vidimost installs the Hanwha Vision SBP-137WMW1 across the full city of Chicago as the default wall-mount accessory for outdoor Wisenet QNV-series camera deployments.

Recommended Pairings

• Any compatible Wisenet QNV vandal-dome camera in the SBP-137WMW1 compatibility list (QNV-6012R / 6022R / 6082R / 8010R / 8020R / 8080R, plus installed-base 6032R / 8030R)
• Hanwha SBV-120GW Back Box — gangbox-prep cabling adapter
• Hanwha SBV-120WCW Weather Cap — sun / rain / snow / ice shield for outdoor positions

Professional Installation by Vidimost

Vidimost LLC installs the Hanwha Vision SBP-137WMW1 across Chicago for outdoor Wisenet QNV-series camera deployments. Full-scope service includes site walkthrough, wall-surface anchor verification (or gangbox identification on existing-prep walls), wall-mount plate installation, bracket mounting, camera installation onto the bracket, cable routing, and weather-cap / back-box pairing as needed. Contact us for a free site walkthrough and quote.
