Hanwha Vision SBV-A14B Universal Back Box for Wisenet A-Series Cameras

The Hanwha Vision SBV-A14B is a universal aluminum back box designed to mount Wisenet A-series IP cameras onto standard gangbox-prep walls — handles three different A-series form factors with one back-box SKU and provides clean conduit-fed cable management behind the camera. Constructed from aluminum with a white RAL9003 finish to match the cameras, the back box uses TR20 security mount screws and includes a 19.1 mm (3/4 in) M25 conduit hole for direct conduit termination.

Why One Universal Back Box Covers Multiple Camera Form Factors

Wisenet A-series shares a common camera-mount footprint across the lineup, so a single back-box SKU adapts vandal domes, outdoor bullets, and flateye / turret cameras to the same gangbox-prep wall. The SBV-A14B is the universal back-box for that lineup — Hanwha’s own published compatibility list covers 12 A-series camera models:

Wisenet A-series vandal domes:

• ANV-L6012R, ANV-L6082R, ANV-L7012R, ANV-L7082R

Wisenet A-series outdoor bullets:

• ANO-L6012R, ANO-L6022R, ANO-L6082R, ANO-L7012R, ANO-L7022R, ANO-L7082R

Wisenet A-series flateye / turret cameras:

• ANE-L6012R, ANE-L7012R

This means Vidimost can stock one back-box SKU (the SBV-A14B) and pair it with any A-series camera selected at site walkthrough — no per-camera back-box matrix to manage.

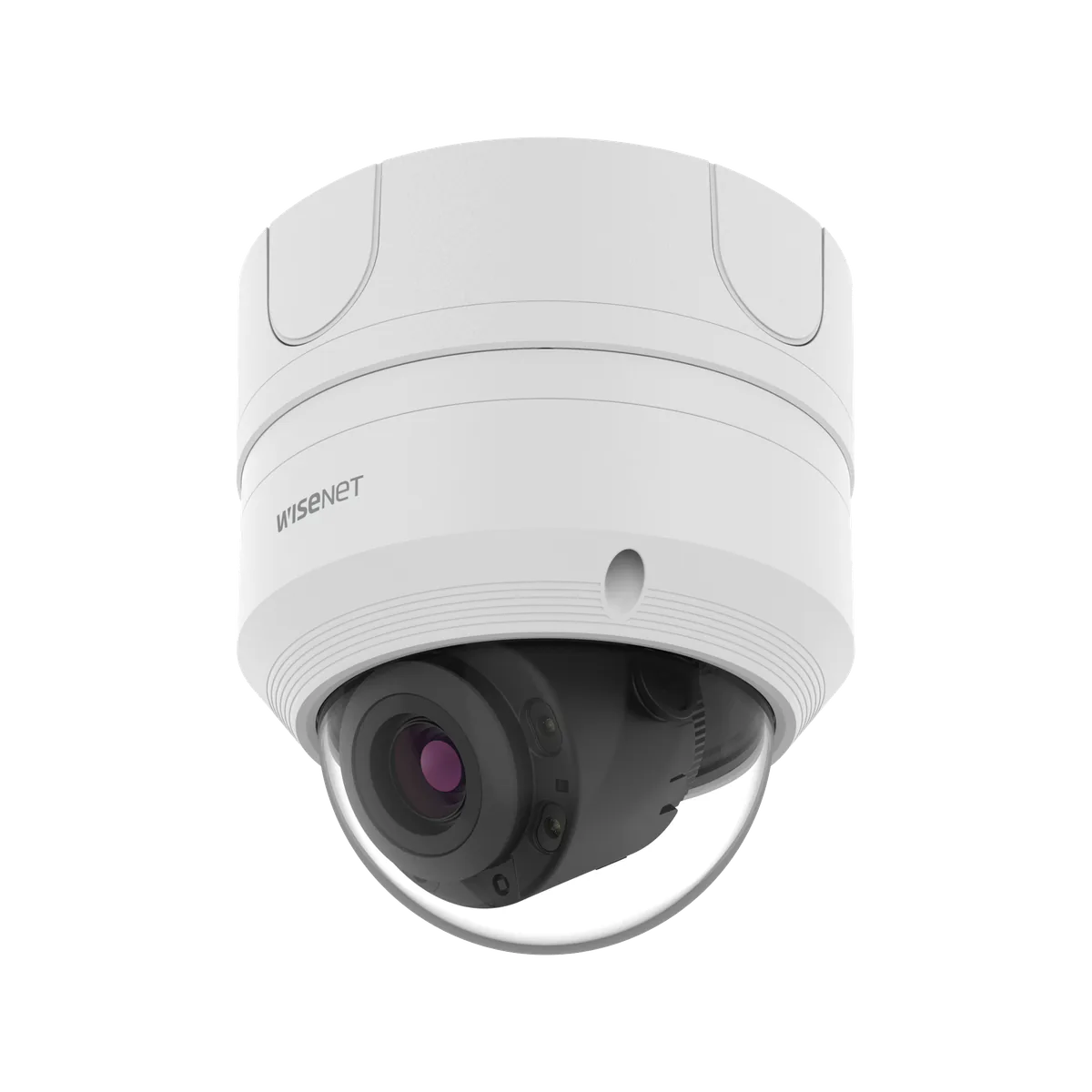

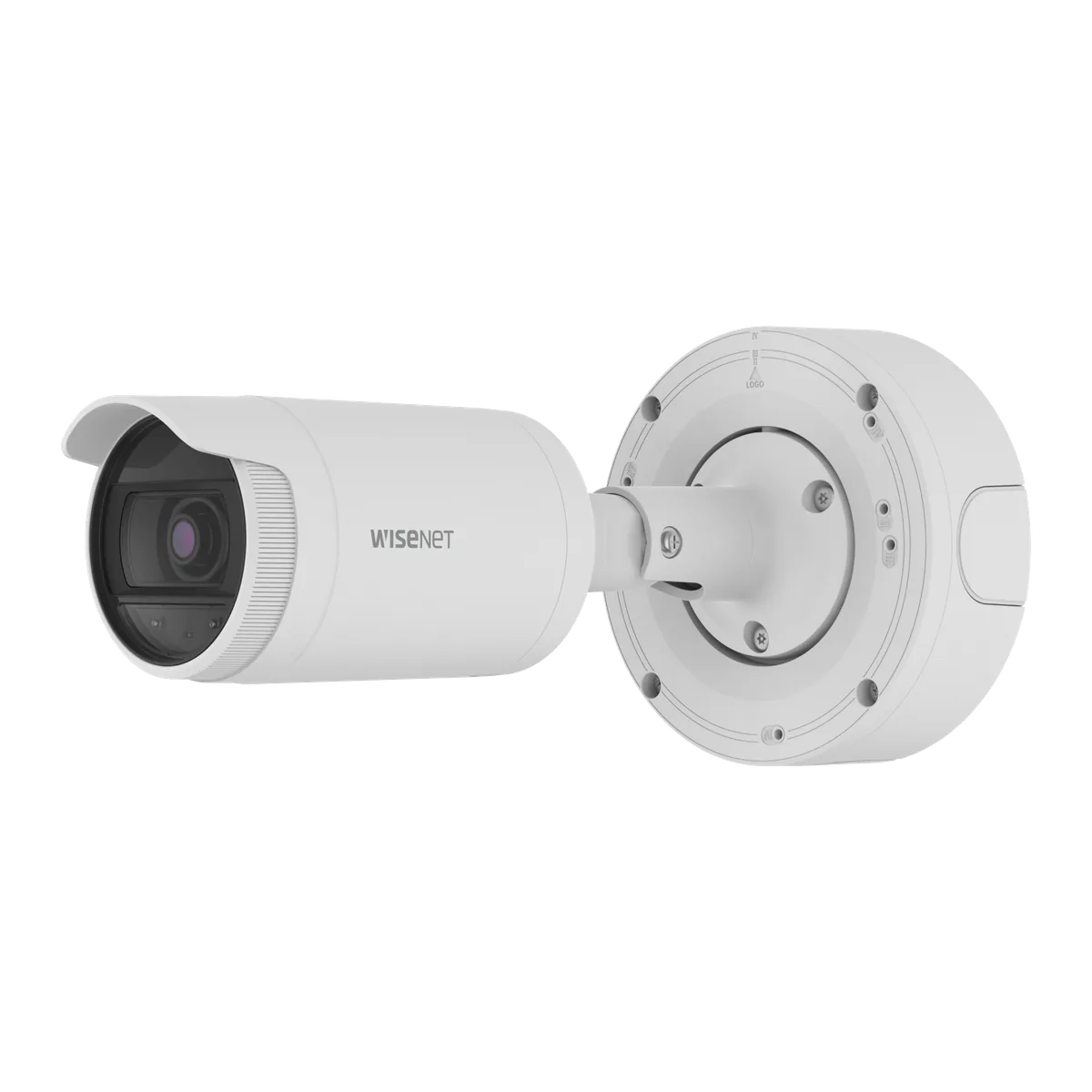

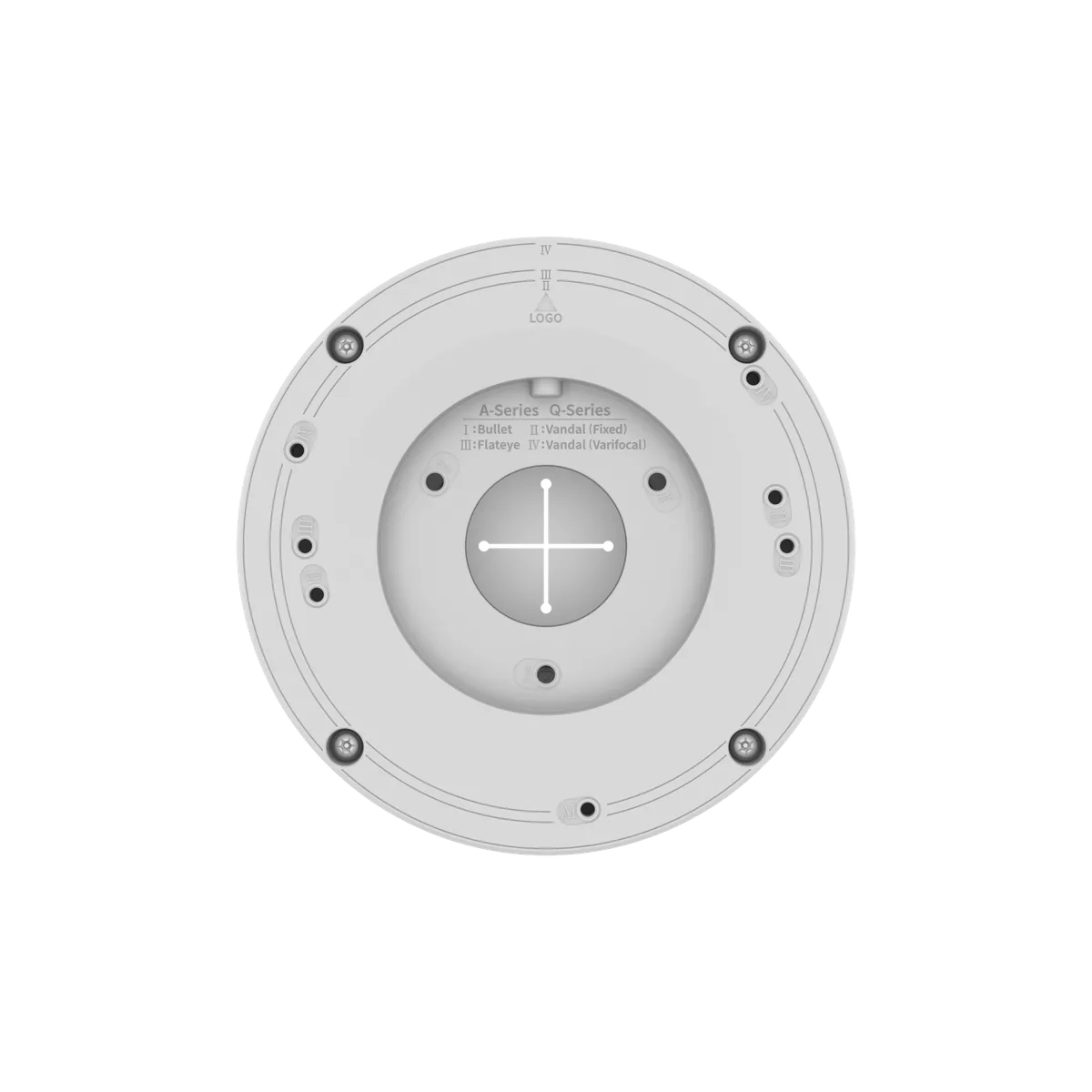

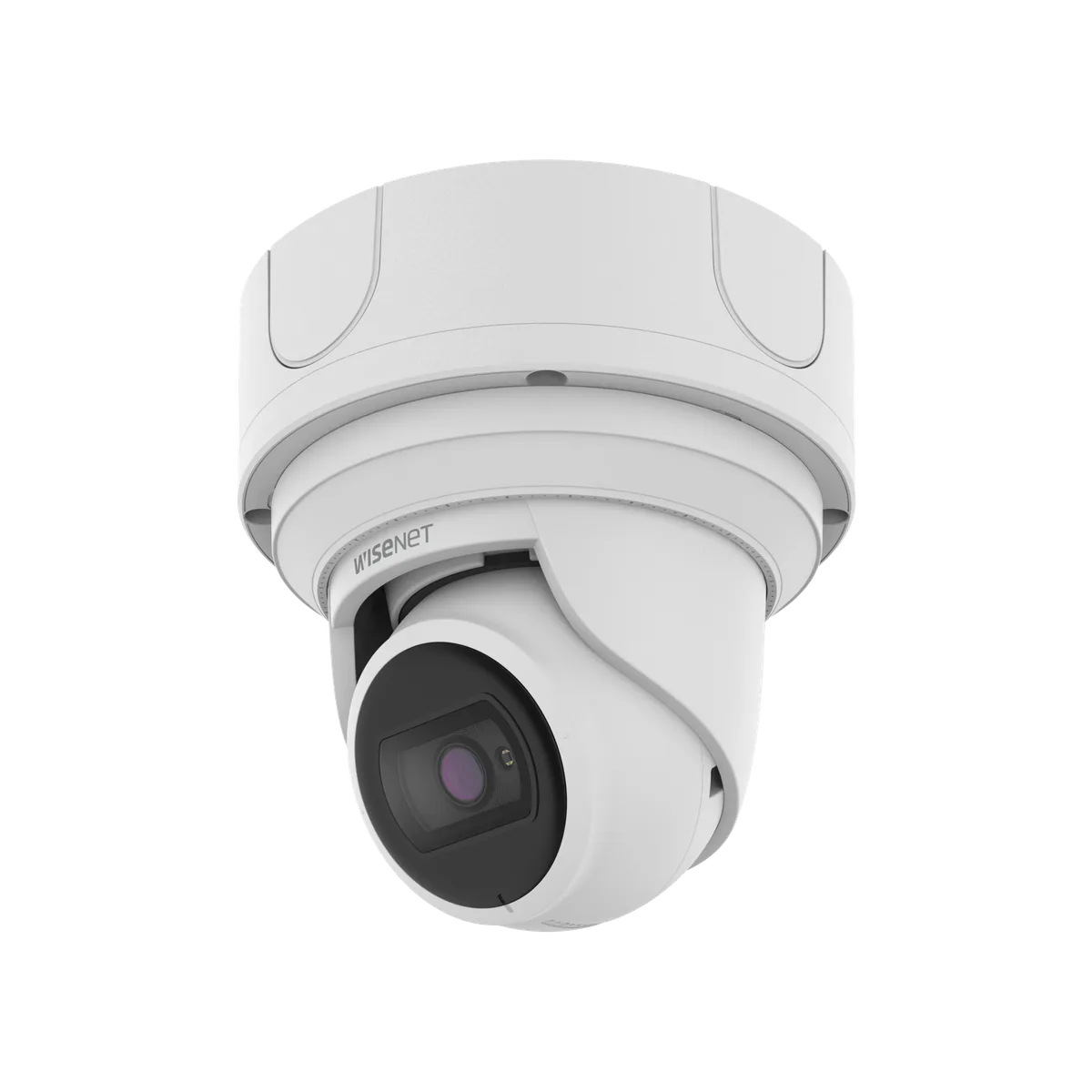

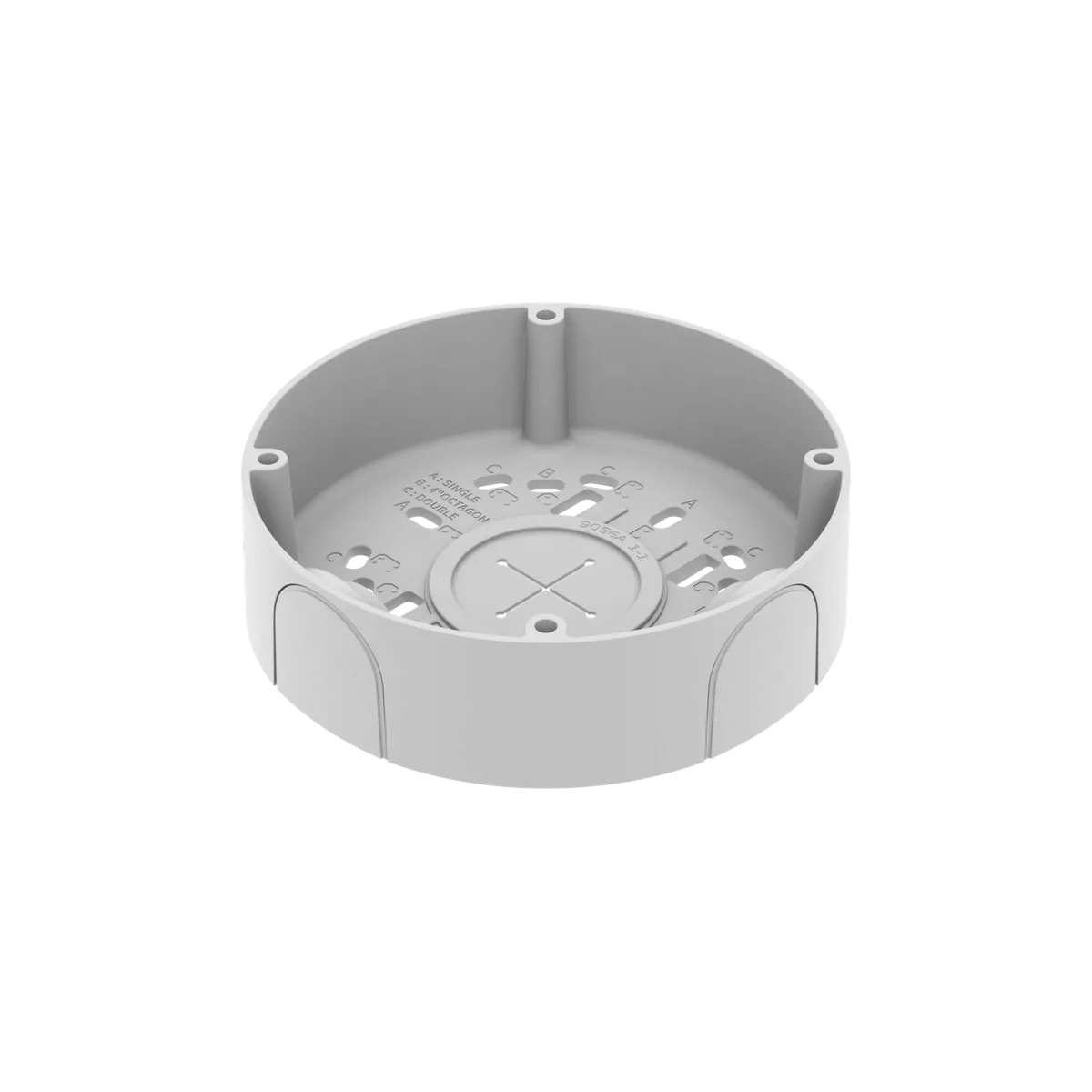

Photo Gallery — Multiple Angles

Corner-Mount Compatibility

For corner installations (where the camera needs to mount on the inside or outside angle of a building), the SBV-A14B pairs with the Hanwha SBP-300KMW1 corner-mount base — sold separately, specified at site walkthrough when corner mounting is required.

What’s Confirmed by the Official Hanwha Spec

These specifications come directly from Hanwha Vision America’s published product page for the SBV-A14B:

• Dimensions: Ø144.0 × 51.0 mm (Ø5.67 × 2.01 in)
• Weight: 440 g
• Material: Aluminum
• Finish / Color: White (RAL9003)
• Mount screw: TR20
• Conduit hole: 19.1 mm (3/4 in) M25
• Compatible cameras: ANV-L6012R / L6082R / L7012R / L7082R, ANO-L6012R / L6022R / L6082R / L7012R / L7022R / L7082R, ANE-L6012R / L7012R
• Corner-mount accessory: SBP-300KMW1

Where the SBV-A14B Wins in Chicago

• Commercial back-of-house installations of Wisenet A-series IP cameras
• Outdoor and exterior facade installations needing weatherproof conduit-fed wiring
• Existing-gangbox retrofit installations where the camera mounts directly to a wall-prep gangbox
• Multi-tenant residential exterior camera installations on Wisenet A-series hardware
• Industrial / warehouse perimeter camera installations on Wisenet A-series
• Retail back-of-house and storefront Wisenet A-series camera installations
• Parking garage A-series positions where the wiring has to run in conduit
• Restaurant / hospitality back-of-house Wisenet A-series surveillance with clean cabling presentation

Local Chicago Coverage

Vidimost installs the Hanwha Vision SBV-A14B across the full city of Chicago as the standard back-box accessory for every Wisenet A-series camera deployment.

Recommended Pairings

• Any compatible Wisenet A-series IP camera (ANV / ANO / ANE families — see compatibility list above)
• Hanwha SBP-300KMW1 corner-mount base (sold separately) for corner installations
• Standard low-voltage / network rough-in conduit and gangbox prep matched to local code

Professional Installation by Vidimost

Vidimost LLC installs the Hanwha Vision SBV-A14B across Chicago for Wisenet A-series IP camera deployments. Full-scope service includes site walkthrough, gangbox-prep verification (or new gangbox installation on retrofit), back-box mounting with TR20 fixings, conduit termination through the M25 hole, camera mounting onto the back box, and cable dressing. Contact us for a free site walkthrough and quote.
