Altronix AL600ULMX — 5-Output Multi-Output Power Supply / Charger (12/24 VDC @ 6A)

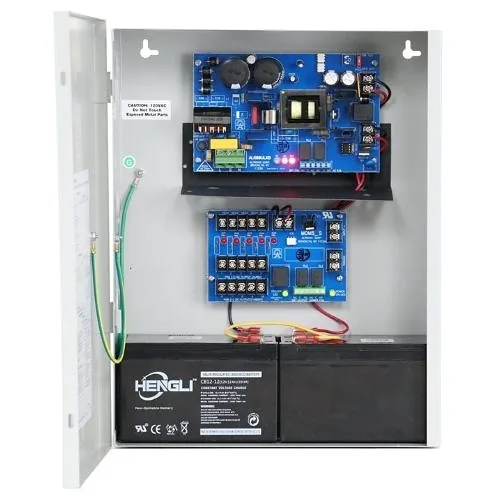

Altronix AL600ULMX 5-Output Multi-Output Power Supply

The Altronix AL600ULMX is a Class 2 multi-output power supply / charger from Altronix’s M Series — five individually-protected 12 / 24 VDC outputs sharing a 6 A total continuous current budget. Unlike the AL600ULACM and AL400ULACMCB access power controllers (which add fail-safe / fail-secure switching, fire-alarm disconnect, and trigger inputs), the AL600ULMX is a pure distributed-power supply — clean regulated power across 5 outputs with no per-output access-control logic.

What’s Confirmed by the Official Altronix Spec

These specifications come from Altronix’s published AL600ULMX / M Series product documentation:

• Input: 115 VAC, 60 Hz, 3.5 A
• Outputs: 5 individually-protected 12 / 24 VDC outputs
• Total output current: 6 A continuous
• Output class: Class 2 power-limited
• Weight: 9.7 lb (4.4 kg) without enclosure; 11.2 lb (5.1 kg) with enclosure
• Operating temperature: 0 °C to 49 °C (32 °F to 120 °F)
• Storage temperature: −20 °C to 70 °C (−4 °F to 158 °F)
• Relative humidity: 85 % +/− 5 %
• BTU output: 37 BTU/hr at 12 VDC; 74 BTU/hr at 24 VDC
• Battery charger: built-in for sealed lead-acid / gel batteries

When AL600ULMX Fits — Distributed Power, No Access Logic

Pick the AL600ULMX when:

• The project needs distributed power across 5 devices (cameras, sensors, panels)
• Fail-mode switching is handled by the access control panel (not the power supply) — so the per-output fail-safe / fail-secure switching of the AL600ULACM is unnecessary
• The application is CCTV (cameras) or general low-voltage distribution rather than maglock / strike fail-mode-dependent access control
• Cost matters and the simpler M Series unit is sufficient

For installations requiring per-output fire-alarm disconnect or fail-safe / fail-secure switching at the power supply, step up to the AL600ULACM or AL400ULACMCB.

Where the AL600ULMX Wins in Chicago

• CCTV multi-camera power (5 cameras per AL600ULMX, typical mid-size IP-camera deployment)
• Access control sites where the panel handles fail-mode and the AL600ULMX delivers distributed power
• Condo buildings — common-area camera power
• Parking garages — camera and intercom power
• Multi-tenant residential common-area distributed power
• Office building distributed access control or CCTV power
• Industrial / warehouse multi-camera power
• Hospitality back-of-house multi-output power
• Retail back-of-house and storefront multi-camera power
• Storefronts — camera power run from one back-room box

Local Chicago Coverage

Vidimost installs the Altronix AL600ULMX across the full city of Chicago for distributed multi-output power applications.

Recommended Pairings

• Altronix AL600ULACM — access power controller alternative when fail-mode switching is required
• Altronix AL400ULACMCB — 4 A PTC alternative
• Altronix ALTV1224DC2 — CCTV-specific 16-output power supply for larger camera deployments
• Sealed lead-acid backup batteries

Professional Installation by Vidimost

Vidimost LLC installs the Altronix AL600ULMX across Chicago for distributed multi-output power applications including CCTV camera power and access-control panel power. Full-scope service includes site walkthrough, output current planning per device, voltage selection (12 vs 24 VDC), enclosure mounting, AC primary wiring, and battery sizing for runtime requirement. Contact us for a free site walkthrough and quote.
