Altronix AL400ULX Power Supply / Charger — 12 / 24 VDC, 4A / 3A

Altronix AL400ULX Power Supply / Charger

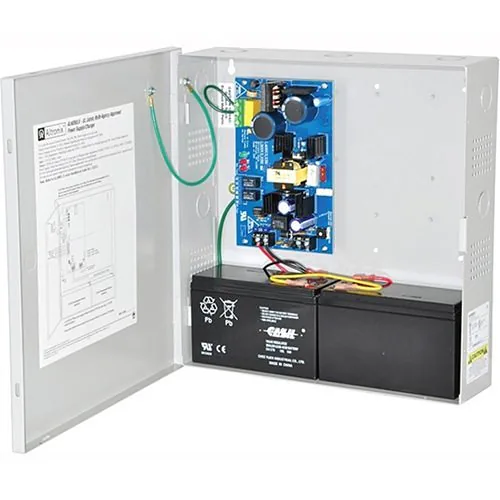

The Altronix AL400ULX is a single-output Class 2 power supply / charger — the workhorse Altronix unit Vidimost installs at Chicago commercial properties for single-output access control, burglar alarm, fire protective signaling, and nurse call equipment power. Converts 115 VAC / 60 Hz into either 12 VDC @ 4 A or 24 VDC @ 3 A (selectable), with a built-in charger for sealed lead-acid / gel batteries that automatically switches to backup power on AC loss.

What’s Confirmed by the Official Altronix Spec

These specifications come directly from Altronix’s published AL400ULX product page and datasheet:

• Input: 115 VAC, 60 Hz, 3.5 A; input fuse 3.5 A / 250 V
• Output (selectable): 12 VDC @ 4 A or 24 VDC @ 3 A; Class 2 rated, power-limited, electronically regulated
• Output voltage ranges (UL 603): 12 VDC at 11.5–13 VDC; 24 VDC at 23–26 VDC
• Battery charger: built-in for sealed lead-acid or gel batteries; max 0.7 A charge current; automatic switchover on AC loss
• Enclosure: 13 in W × 13.5 in H × 3.25 in D (330 × 343 × 83 mm); indoor wall-mount; 1/2 in and 3/4 in combination knockouts
• UL listings: UL 294 (Access Control), UL 603 (Burglar Alarm), UL 1481 (Fire Protective Signaling), UL 1069 (Nurse Call Equipment)

When AL400ULX Fits — Single-Output Access / Burg / Fire

The AL400ULX is the right pick when:

• The opening needs a single regulated 12 or 24 VDC output (one electric strike, one maglock, one access control panel)
• The project benefits from field-selectable voltage so the same Vidimost stock SKU covers both 12 and 24 VDC requirements
• Battery backup is required (the built-in charger handles sealed lead-acid / gel batteries directly)
• The installation must satisfy UL 294 (access control), UL 603 (burg), UL 1481 (fire), or UL 1069 (nurse call)

For multi-output applications where the project needs separate fused / PTC outputs for multiple devices, step up to:

• Altronix AL400ULACMCB — 8 PTC outputs at 4 A total
• Altronix AL600ULACM — 8 fused-relay outputs at 6 A total
• Altronix AL600ULMX — 5 individually-protected outputs at 6 A total

Where the Altronix AL400ULX Wins in Chicago

• Commercial single-output access control for one electric strike or maglock
• Burglar alarm system power with battery backup
• Fire protective signaling auxiliary power
• Nurse call equipment power at healthcare clinics
• Standalone single-door access control panel power
• Power for individual electric strikes, magnetic locks, magnetic door holders

Local Chicago Coverage

Vidimost installs the Altronix AL400ULX across the full city of Chicago for single-output access / burg / fire / nurse-call power applications.

Recommended Pairings

• Altronix AL400ULACMCB — 8 PTC outputs sibling for multi-output access control
• Altronix AL600ULACM — 8 fused-relay outputs at higher current
• Altronix AL600ULMX — 5 outputs at 6 A
• Sealed lead-acid backup batteries (12 V, 7–18 Ah) sized to runtime requirement

Professional Installation by Vidimost

Vidimost LLC installs the Altronix AL400ULX across Chicago for commercial access control, burglar alarm, and fire signaling power applications. Full-scope service includes site walkthrough, voltage selection (12 vs 24 VDC), enclosure mounting, AC primary wiring, output wiring to door hardware / panel, battery sizing and installation, and integration with the broader access control / alarm system. Contact us for a free site walkthrough and quote.
