Altronix ALTV1224DC2 — 16-Output CCTV Camera Power Supply (12/24 VDC @ 6A)

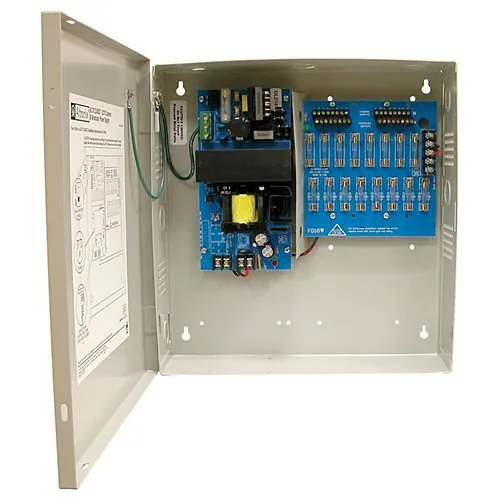

Altronix ALTV1224DC2 16-Output CCTV Power Supply

The Altronix ALTV1224DC2 is a multi-output power supply purpose-built for CCTV camera and accessory power — converts 115 VAC into 12 VDC or 24 VDC distributed across 16 fuse-protected outputs (3.5 A per output, 6 A total continuous current). On a mid-size job — 8 to 16 cameras — it’s cleaner to home-run everything to one fused power box than to scatter plug-in adapters and PoE injectors around the building.

What’s Confirmed by the Official Altronix Spec

These specifications come directly from Altronix’s published ALTV1224DC2 product page:

• Input: 115 VAC, 50/60 Hz, 2.55 A
• Outputs: 16 fuse-protected outputs
• Output voltage: 12 VDC or 24 VDC selectable
• Total output current: 6 A continuous
• Per-output rating: 3.5 A fused
• Output conditioning: filtered and electronically regulated
• Enclosure: BC300 (indoor wall-mount)

When ALTV1224DC2 Fits — CCTV Multi-Camera

Pick the ALTV1224DC2 when:

• The project has 8–16 cameras that benefit from centralized power (rather than one PoE switch port per camera)
• Cameras are not PoE (or PoE budget on the network switch is insufficient and dedicated power is preferred)
• Distributed fused outputs are required so a fault on one camera doesn’t take down all cameras
• Voltage flexibility is needed (some legacy cameras 12 VDC, some newer cameras 24 VDC)

For larger deployments (32+ cameras), use multiple ALTV1224DC2 units. For smaller (5-camera) CCTV power, the Altronix AL600ULMX is more economical.

Where the ALTV1224DC2 Wins in Chicago

• Commercial CCTV deployments with 8–16 camera count per power box
• Multi-tenant residential CCTV camera power
• Office building CCTV multi-camera deployments
• Parking garages — camera runs powered from one box
• Condo / HOA buildings — common-area camera power
• Hospitality property CCTV camera power
• Retail back-of-house and storefront CCTV camera power
• Industrial / warehouse perimeter CCTV camera power
• Apartment walk-ups — entry and rear-door camera power
• Property management portfolio standardized CCTV power

Local Chicago Coverage

Vidimost installs the Altronix ALTV1224DC2 across the full city of Chicago for mid-size CCTV multi-camera deployments.

Recommended Pairings

• Altronix AL600ULMX — 5-output sibling for smaller CCTV deployments
• Altronix SMP3ET — small 6/12 VDC power supply for single-device applications
• CCTV Power Supplies overview — full Vidimost CCTV power family

Professional Installation by Vidimost

Vidimost LLC installs the Altronix ALTV1224DC2 across Chicago for CCTV multi-camera power deployments. Full-scope service includes site walkthrough, camera-count and current-budget planning, voltage selection per camera, enclosure mounting, AC primary wiring, distributed cable runs to each camera with appropriate gauge for distance, and troubleshooting / commissioning. Contact us for a free site walkthrough and quote.
