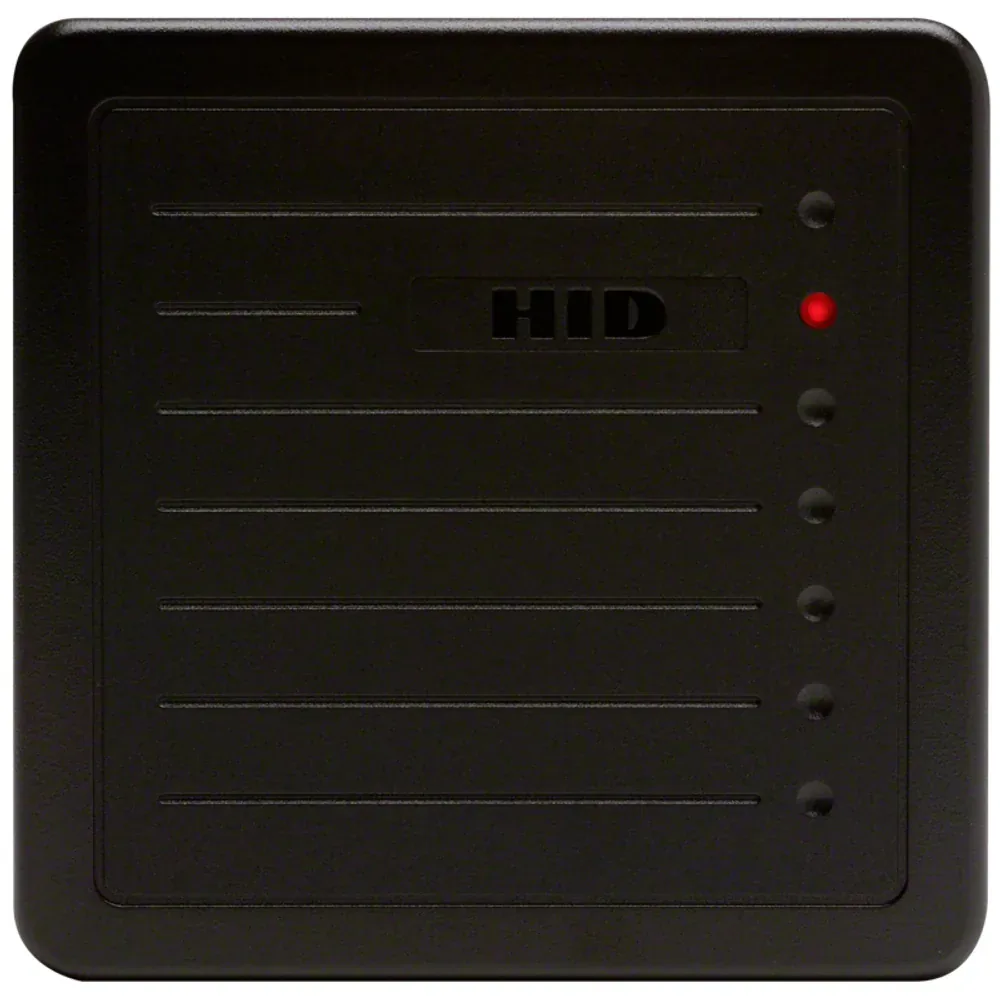

HID ProxPro II 5455 Reader — Newer-Generation Standard Wall 125 kHz Proximity Reader for Chicago Replacements
Model / Series: ProxPro II 5455
Current-production 125 kHz proximity reader that swaps straight in for a dead ProxPro 5355 — same cards, same wiring.
We don't just ship boxes — this goes in as part of our access control installation in Chicago work. From the Loop to Rogers Park — see our security work across Chicago.
Specifications
- Brand
- HID Global
- Model
- ProxPro II 5455
- Series
- HID Proximity
- Form Factor
- Standard wall (single-gang full-size) — newer Mk II generation
- Card Technologies Supported
- HID Prox (125 kHz)
- Frequency
- 125 kHz proximity
- Communication Protocol
- Wiegand
- Operating Temperature
- −35 °C to +66 °C
- Environmental Protection
- IP55 (indoor / protected outdoor)
- Mounting
- Standard US single-gang electrical box
- Replaces
- ProxPro 5355 (prior generation)
Best Fit & Recommended For
HID ProxPro II 5455 — Newer-Generation Standard Wall 125 kHz Proximity Reader
The HID ProxPro II 5455 is the newer-generation standard wall single-gang 125 kHz proximity reader from HID Global — replacing the original ProxPro 5355 in new installations with refreshed design, improved read range, and modernized housing. Wiegand output, IP55-rated for indoor and protected outdoor positions.
Most 5455s we put up are straight swaps. A 5355 finally quits after fifteen winters, every card in the building still works, and nobody wants to re-badge two hundred tenants — so the new reader goes on the same box and the same Wiegand pair. Twenty minutes a door, done.
ProxPro II 5455 vs. ProxPro 5355 — When to Choose Which
| Need | ProxPro 5355 (original) | ProxPro II 5455 (this — newer) |
|---|---|---|
| Form factor | Standard wall single-gang | Standard wall single-gang (refreshed) |
| Card technology | 125 kHz HID Prox | 125 kHz HID Prox |
| Generation | Original ProxPro | Newer Mk II |
| Best fit | Existing ProxPro fleets, like-for-like cost-tier | New deployments, Mk II specification, current production |
For most projects, the choice is specification-driven — match what the ACS controller and existing fleet documentation specifies. Both readers serve the same Prox use case.
When 125 kHz Prox Still Makes Sense
Despite known security limitations (no mutual authentication, cloneable with $50 RFID equipment), 125 kHz Prox is still the right answer for:
- Like-for-like replacement when failed readers need replacement and the entire card fleet stays
- Budget-constrained projects where reader cost is the binding constraint
- Fleet uniformity where existing Prox cards must continue working
- Phased migrations where Prox readers stay at lower-priority positions while Signo / multiCLASS go in at high-traffic positions
For projects where credential migration IS in scope, see multiCLASS SE RP40 (multi-tech: Prox + iCLASS SE / SEOS) or Signo 40 (full multi-tech + mobile).
Where the ProxPro II 5455 Wins in Chicago
- Chicago commercial properties needing newer-generation ProxPro Prox readers
- New deployments where Mk II generation is specified
- Like-for-like ProxPro 5355 replacements with the newer model
- HOA buildings standardizing on the latest Prox reader generation at Chicago HOAs
- Property management standardization on current production readers
- Office buildings with active 125 kHz Prox cards in circulation
- Warehouse man-doors with Prox fobs already in circulation
- Storefront back doors keeping an existing Prox card fleet
Local Chicago Coverage
Vidimost installs the HID ProxPro II 5455 across the full city of Chicago for newer-generation ProxPro deployments and Prox replacements.
Recommended Pairings
- HID ProxPro 5355 — original generation
- HID ProxPoint Plus 6005 — compact mullion Prox
- HID multiCLASS SE RP40 — for migration to multi-tech
- HID Signo 40 — for full multi-tech + mobile
Professional Installation by Vidimost
Vidimost LLC is an active HID Global installer across Chicago. The ProxPro II 5455 is our newer-generation Prox reader pick for new and replacement standard-wall positions. Full-scope service includes site walkthrough, credential ecosystem assessment, Wiegand wiring + reader replacement, single-gang mounting, reader commissioning, and operator training. Contact us for a free site walkthrough and quote.
