HID multiCLASS SE RP40 Reader — Standard Wall Multi-Technology Reader for Chicago Credential Migration

HID multiCLASS SE RP40 — Standard Wall Multi-Technology Reader for Chicago Commercial Doors

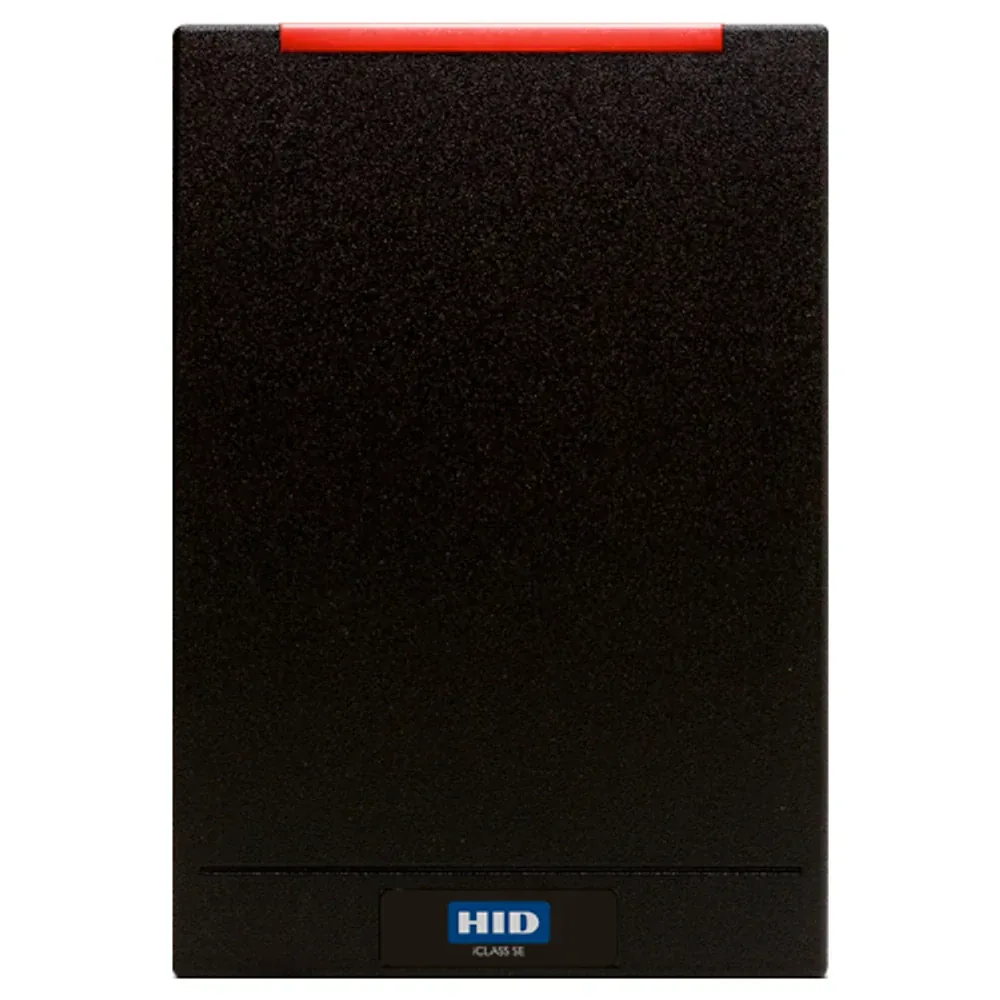

The HID multiCLASS SE RP40 is the standard wall multi-technology reader from HID Global’s multiCLASS SE platform — supports iCLASS SE, SEOS (13.56 MHz), and legacy HID Prox (125 kHz) credentials in a single reader. Standard single-gang full-size form factor with IP55-rated indoor / protected-outdoor environmental protection.

The RP40 is the most-installed multiCLASS SE form factor for standard commercial doors during phased credential migration — keeps every existing Prox card working while new iCLASS SE / SEOS smart cards roll out. The right answer for most wall-flush positions that need multi-technology reading.

Why RP40 Is the Most-Installed Migration Reader

For buildings transitioning credentials, the typical scenario is:

• Hundreds of legacy Prox cards in active circulation
• Standard wall-flush installation at every commercial door
• Need to migrate over 1–3 years without disruption
• Need to read both old and new credentials simultaneously during the transition

The RP40’s standard wall form factor + multi-technology is the right combination for the majority of doors in such migrations. Pick the RP10 for narrow-frame positions, the RP15 for mid-size single-gang, and the RPK40 for 2-factor positions.

multiCLASS SE RP40 vs. Sibling Migration Readers

Form factor	Model	Keypad	Best fit
Mullion (narrow)	RP10	No	Narrow door frames
Single-gang (mid)	RP15	No	Single-gang mid-size
Standard wall	RP40 (this)	No	Most commercial doors — most-installed
Standard wall + keypad	RPK40	Yes	2-factor positions

multiCLASS SE vs. Signo — Choosing the Right Migration Reader

Need	multiCLASS SE RP40 (this)	HID Signo 40
iCLASS SE + SEOS + 125 kHz Prox	Yes	Yes
HID Mobile Access (mobile credentials)	No	Yes
Apple Wallet employee badge	No	Yes
MIFARE DESFire EV3	Limited	Yes
OSDP v2 secure channel	Via adapter	Native
Mobile credentials down the road	No	Yes

Pick multiCLASS SE RP40 when migration is iCLASS SE / SEOS / Prox only and budget matters. Pick Signo 40 if mobile credentials are anywhere in the plan.

Where the multiCLASS SE RP40 Wins

• Office buildings partway through a Prox-to-smart-card changeover — Loop, River North, Mag Mile
• Condo and HOA entry doors with mixed-vintage fobs
• Multi-tenant residential standard wall doors and high-rise lobbies
• Storefront and restaurant doors on standard single-gang boxes
• Warehouse man-doors where legacy Prox cards are still in play
• Property management common-area door readers
• Phased credential migrations spanning multiple budget cycles

Local Chicago Coverage

Vidimost installs the HID multiCLASS SE RP40 across the full city of Chicago — downtown Loop to the neighborhood corridors.

Recommended Pairings

• HID multiCLASS SE RP10 — for narrow-frame positions
• HID multiCLASS SE RP15 — for mid-size single-gang
• HID multiCLASS SE RPK40 — for 2-factor positions
• HID iCLASS SE R40 — iCLASS SE only (no Prox)
• HID Signo 40 — full multi-tech + mobile credentials

Professional Installation by Vidimost

Vidimost LLC is an active HID Global installer across Chicago. When a property manager asks us to move a building off old Prox fobs without a single locked-out tenant, the RP40 is the reader that goes on most of the doors. Full-scope service includes site walkthrough, credential migration planning, Wiegand wiring (or OSDP via adapter), standard-wall mounting, reader commissioning, controller configuration, credential issuance plan + rollout, and operator training. Contact us for a free site walkthrough and quote.
