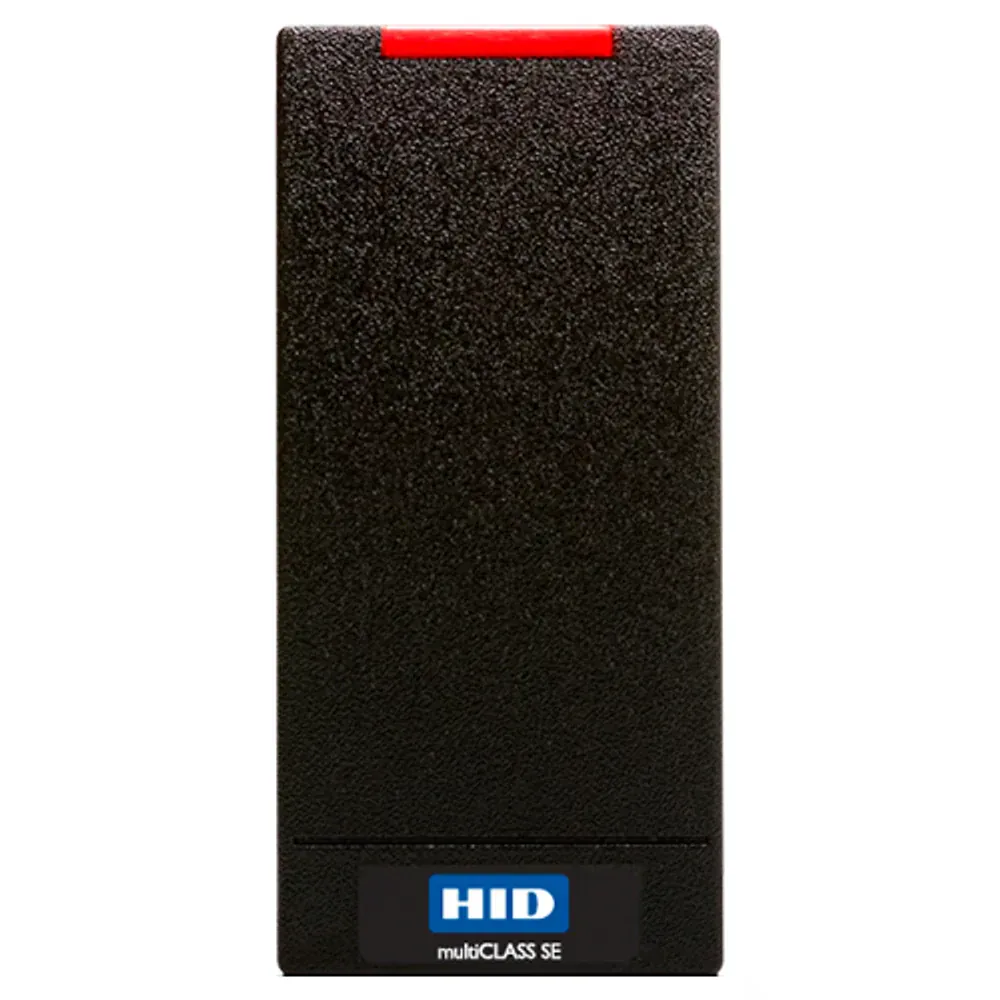

HID multiCLASS SE RP10 Reader — Compact Mullion Multi-Technology Reader for Mixed Credential Migration
Model / Series: multiCLASS SE RP10
Mullion-width HID reader that reads legacy 125 kHz prox and new iCLASS SE / SEOS cards — swap the reader, keep everyone's old fobs working.
We don't just ship boxes — this goes in as part of our access control installation in Chicago work. Inheriting a half-working setup from a previous vendor? Start with a security system takeover.
Specifications
- Brand
- HID Global
- Model
- multiCLASS SE RP10
- Series
- HID multiCLASS SE
- Form Factor
- Mullion (narrow profile for door frames, glass mullions, elevators)
- Card Technologies Supported
- iCLASS SE, SEOS (13.56 MHz) + HID Prox (125 kHz) — multi-technology
- Authentication
- Mutual authentication for iCLASS SE / SEOS
- Keypad
- No
- Communication Protocol
- Wiegand (legacy) — OSDP available with adapters
- LED Indicators
- Yes — multi-color status indicator
- Audible Indicator
- Yes — beeper
- Operating Temperature
- −35 °C to +66 °C
- Environmental Protection
- IP55 (indoor / protected outdoor)
- Mounting
- Mullion (narrow door frame mount)
Best Fit & Recommended For
HID multiCLASS SE RP10 — Compact Mullion Multi-Technology Reader for Mixed Credential Sites
The HID multiCLASS SE RP10 is the compact mullion multi-technology reader from HID Global’s multiCLASS SE platform — supports iCLASS SE, SEOS (13.56 MHz), and legacy HID Prox (125 kHz) credentials in a single reader. Mullion form factor — fits narrow door frames, glass mullions, and elevator cab panels. IP55-rated for indoor and protected outdoor positions.
The multiCLASS SE RP10 exists for phased credential migration at narrow-frame positions — properties moving from legacy 125 kHz HID Prox to modern iCLASS SE / SEOS smart cards while every existing Prox credential keeps working through the transition.
Why multiCLASS SE for Chicago Credential Migrations
Most Chicago commercial buildings have legacy 125 kHz HID Prox cards in active circulation — issued years ago, carried by hundreds or thousands of tenants, residents, employees, and contractors. Replacing all those credentials at once is operationally expensive and disruptive.
The multiCLASS SE RP10 solves this:
- Read both legacy Prox AND modern iCLASS SE / SEOS in the same reader
- Phased migration — issue new iCLASS SE / SEOS credentials to new users while existing users keep their Prox cards
- No double-reader installs — one reader handles both technology generations
- Migration over 1–3 years as users naturally update or are re-issued
- Eventual full migration — once Prox circulation is small, replace readers with iCLASS SE-only or Signo
The multiCLASS SE platform is the practical migration bridge between legacy and modern credentials.
multiCLASS SE RP10 vs. Sibling multiCLASS SE Readers
| Form factor | Model | Best fit |
|---|---|---|
| Mullion (narrow) | RP10 (this) | Narrow door frames, elevator panels |
| Single-gang (mid) | RP15 | Single-gang wall installation |
| Standard wall | RP40 | Standard commercial doors — most-installed |
| Standard wall + keypad | RPK40 | 2-factor (card + PIN) positions |
Pick the RP10 for narrow-frame migration positions. Step up to RP15 / RP40 / RPK40 for larger form factors.
multiCLASS SE vs. Signo — Choosing the Right Migration Reader
Both platforms support multi-technology credential reading. Choose based on credential mix:
| Need | multiCLASS SE RP10 (this) | HID Signo 20 |
|---|---|---|
| iCLASS SE + SEOS + 125 kHz Prox | Yes | Yes |
| HID Mobile Access (mobile credentials) | No | Yes |
| Apple Wallet employee badge | No | Yes |
| MIFARE DESFire EV3 | Limited | Yes |
| OSDP v2 secure channel | Via adapter | Native |
Pick multiCLASS SE RP10 when migration is iCLASS SE / SEOS / Prox only. Pick Signo 20 when mobile credentials (HID Mobile, Apple Wallet) or MIFARE DESFire are part of the migration.
Where the multiCLASS SE RP10 Wins in Chicago
- Chicago commercial properties migrating from Prox to iCLASS SE / SEOS at narrow-frame positions — Loop high-rises, satellite office buildings
- HOA buildings with mixed-vintage credentials at entry doors
- Multi-tenant residential with legacy Prox + new iCLASS SE / SEOS credentials in active circulation
- Elevator cab panels with Prox + smart card credentials at high-rise condos
- Glass storefront mullions at boutique retail and professional services
- Office building lobbies with Prox legacy users + new SEOS users
- Phased credential migrations spanning multiple budget cycles
- Healthcare clinic narrow-frame door positions
- Education facility narrow-frame door positions
Local Chicago Coverage
Vidimost installs the HID multiCLASS SE RP10 across the full city of Chicago — downtown Loop to the neighborhood corridors. We design phased credential migration plans that maximize installed-credential preservation.
Compatible Access Control Systems
Wiegand-compatible with all major access control systems — Brivo, Genetec Synergis, Software House C•CURE 9000, LenelS2, Honeywell Pro-Watch, Paxton Net2, Kantech EntraPass, and others. OSDP available via Wiegand-to-OSDP adapters.
Recommended Pairings
- HID multiCLASS SE RP15 — single-gang multi-technology
- HID multiCLASS SE RP40 — standard wall multi-technology (most-installed)
- HID multiCLASS SE RPK40 — standard wall + keypad
- HID Signo 20 — full multi-technology + mobile credentials
Professional Installation by Vidimost
Vidimost LLC is an active HID Global installer across Chicago. The multiCLASS SE RP10 is one of our standard credential-migration reader picks for narrow-frame positions across Chicago commercial offices, HOAs, multi-tenant residential, healthcare, and property management projects. Full-scope service includes site walkthrough, credential migration planning, Wiegand wiring (or OSDP via adapter), mullion mounting, reader commissioning, controller configuration, credential issuance plan, and operator training. Contact us for a free site walkthrough and quote.
