HID ProxPoint Plus 6005 — Compact 125 kHz Proximity Reader for Legacy Prox Replacements

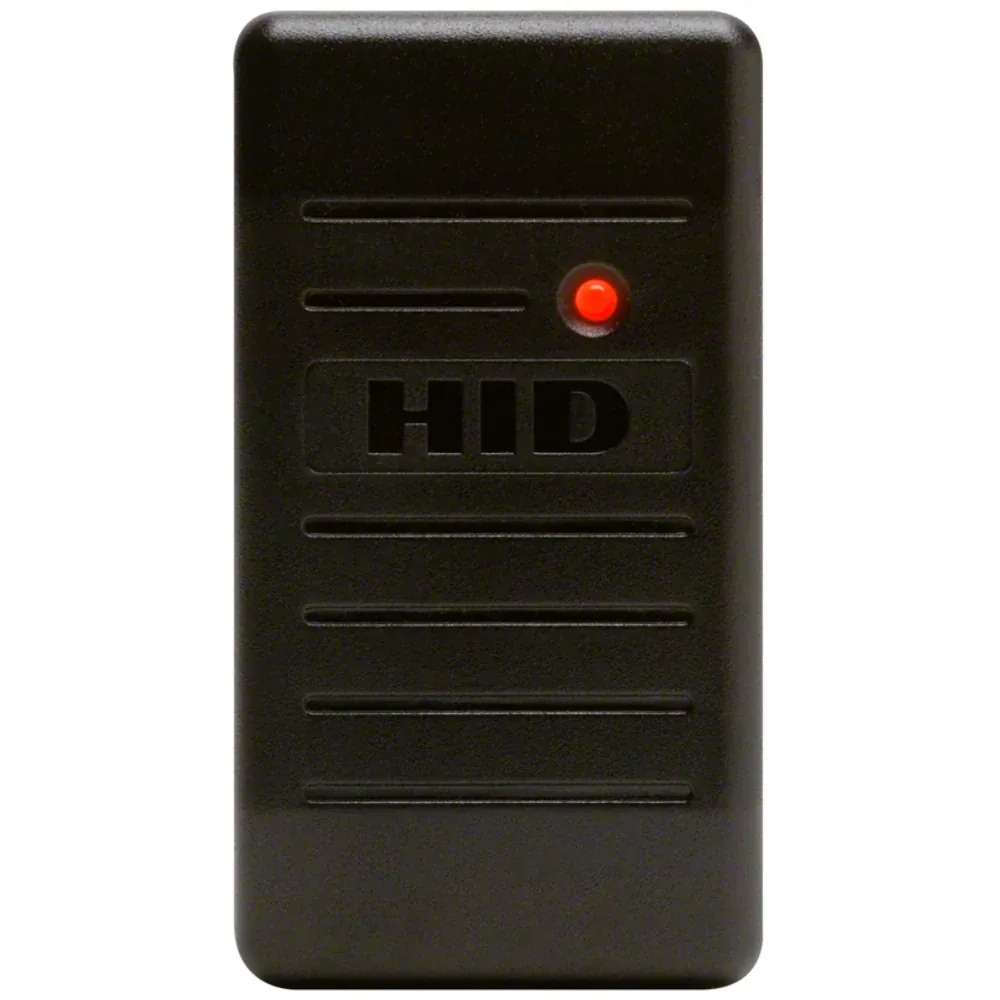

The HID ProxPoint Plus 6005 is the compact mullion-format 125 kHz proximity reader from HID Global’s Proximity line — the most-installed budget Prox reader for commercial doors with existing 125 kHz HID Prox credential fleets. Standard Wiegand output, IP55-rated for indoor and protected outdoor positions.

The ProxPoint Plus 6005 is the like-for-like replacement reader for properties where:

• Existing readers have failed and need replacement
• Hundreds of Prox cards remain in active circulation
• Credential migration to smart cards or mobile is not in the project scope (yet)

When 125 kHz Prox Is the Right Choice

Despite being a legacy technology, 125 kHz HID Prox is still the right answer in specific scenarios:

• Like-for-like replacement when failed readers need replacement and the entire card fleet stays
• Budget-constrained projects where reader cost is the binding constraint
• Phased migrations where Prox readers stay at lower-priority positions while iCLASS SE / Signo go in at high-traffic positions
• Credential ecosystem lock-in — third-party systems or legacy contracts that mandate Prox

For projects where credential migration IS in scope, the multiCLASS SE and Signo lineups are the right answers — both read Prox PLUS modern smart card credentials in one reader.

Why Prox Has Security Limitations You Should Know

125 kHz HID Prox cards have known security limitations that matter for some applications:

• No mutual authentication — the card identifies itself, no encryption
• No diversified keys — all Prox cards from the same site share format
• Cloneable — $50 RFID equipment can clone Prox cards in seconds
• No mobile / Apple Wallet support — locked to plastic card form factor

These limitations are acceptable when the deployment is like-for-like replacement at lower-priority positions. For doors that actually matter — server rooms, cash offices, panel rooms — step up to iCLASS SE or Signo with cryptographic authentication.

When to Choose ProxPoint vs. ProxPro vs. ThinLine

Form factor	Model	Best fit
Compact mullion (smallest)	ProxPoint Plus 6005 (this)	Narrow frames, mullions, budget replacements
Standard wall (single-gang)	ProxPro 5355	Standard commercial doors
Slim wall (low-profile)	ThinLine II 5395	Wall-mount with slim profile
Mini compact	MiniProx 5365	Smallest standalone reader

Migration Path — When the Time Comes

When the project is ready to migrate from Prox to smart cards / mobile credentials, the path is:

1. Replace ProxPoint readers with multiCLASS SE — same form factor, reads BOTH Prox AND iCLASS SE / SEOS during the transition
2. Issue iCLASS SE / SEOS smart cards to new users while existing users keep their Prox cards
3. Eventually fully migrate — replace multiCLASS readers with iCLASS SE / Signo once Prox circulation is small

OR step directly to Signo for full multi-technology + mobile credentials at the time of replacement.

Where the ProxPoint Plus 6005 Wins

• Replacement of failed legacy Prox readers — Loop offices, neighborhood storefronts
• HOA and multi-tenant residential buildings with installed 125 kHz Prox fobs
• Office buildings with active Prox cards in circulation
• Property management buildings with legacy Prox infrastructure
• Storefronts and restaurants with installed Prox fobs
• Parking garage doors with Prox card fleets
• Self-storage office + gate Prox readers
• Like-for-like replacement deployments where credentials cannot change

Local Chicago Coverage

Vidimost installs the HID ProxPoint Plus 6005 across the full city of Chicago — downtown Loop to the neighborhood corridors. We assess credential migration opportunities at every quote and recommend multi-technology readers when budget allows.

Recommended Pairings

• HID ProxPro 5355 — standard wall Prox reader
• HID ThinLine II 5395 — slim wall Prox reader
• HID MiniProx 5365 — smallest Prox reader
• HID multiCLASS SE RP10 — for migration to multi-technology
• HID Signo 20 — for full multi-tech + mobile

Professional Installation by Vidimost

Vidimost LLC is an active HID Global installer across Chicago. A dead ProxPoint on a condo gate is a same-week fix for us — the new unit lands on the same screw holes and the same two wires, and nobody has to trade in a fob. Full-scope service includes site walkthrough, credential ecosystem assessment, Wiegand wiring + reader replacement, mullion mounting, reader commissioning, controller configuration, and operator training. Contact us for a free site walkthrough and quote.
