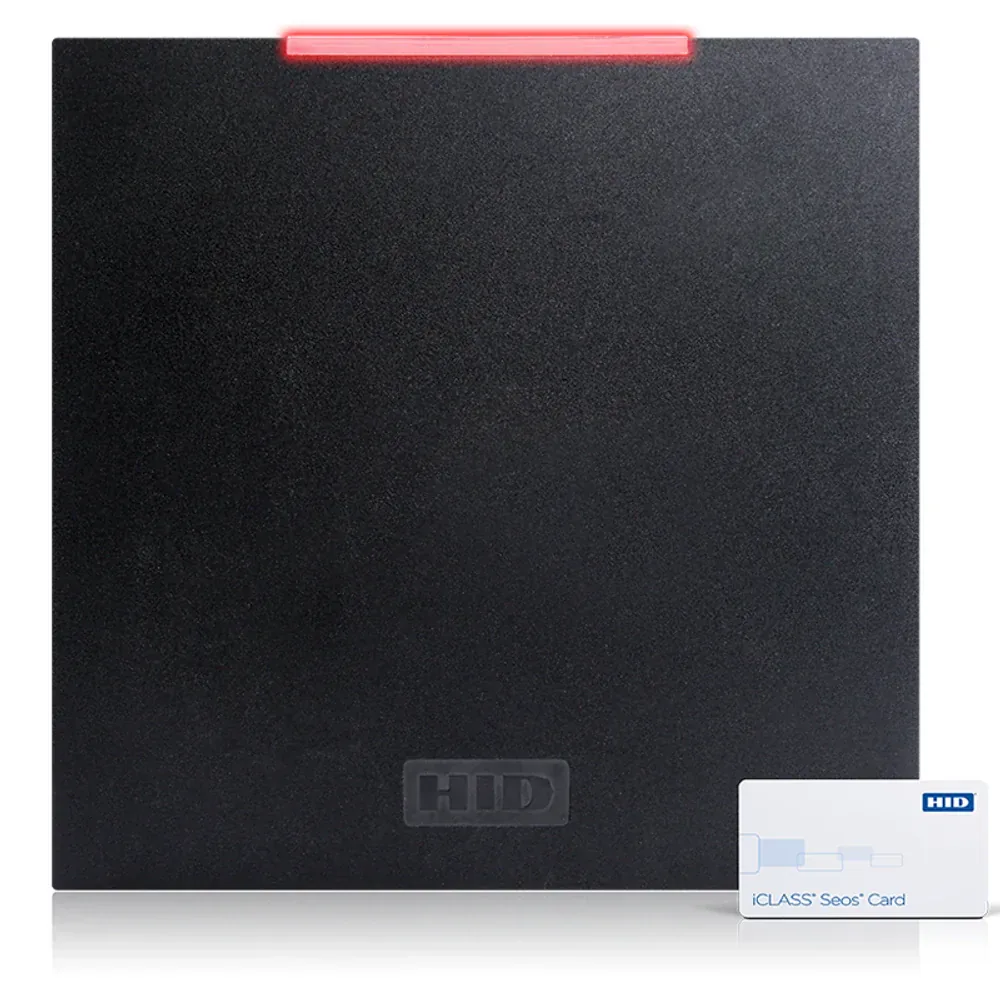

HID iCLASS SE R90 Long-Range Reader — Vehicle Gate + Parking-Garage Smart Card Reader for Chicago
Model / Series: iCLASS SE R90
Long-range HID reader for parking garage gates — reads iCLASS SE and SEOS credentials from the dashboard so the driver never rolls down a window.
$1,378 MSRP · equipment only
Sold by order — most of these go in as part of an install, but we'll sell the hardware outright too. Availability, lead times, and project pricing: ask our manager when you request a quote.
We don't just ship boxes — this goes in as part of our access control installation in Chicago work. City building? See our Chicago, IL service area.
Specifications
- SKU / Part Number
- HID-RDRSEU909
- Ordering Note
- Supplied via Brivo as HID-RDRSEU909 (long-range iCLASS SE reader)
- Brand
- HID Global
- Model
- iCLASS SE R90
- Series
- HID iCLASS SE
- Form Factor
- Long-range (extended read distance)
- Card Technologies Supported
- iCLASS SE, SEOS, MIFARE Classic, MIFARE DESFire EV1/EV2 (13.56 MHz)
- Frequency
- 13.56 MHz contactless smart card
- Authentication
- Mutual authentication + encrypted data exchange
- Read Range
- Extended (typical: up to 60 in / 150 cm depending on credential and antenna configuration)
- Communication Protocol
- Wiegand (legacy) — OSDP available with adapters
- Operating Temperature
- −35 °C to +66 °C
- Environmental Protection
- IP55 (indoor / protected outdoor)
- Mounting
- Long-range mounting — typically pole or pedestal at vehicle gates
Best Fit & Recommended For
HID iCLASS SE R90 — Long-Range Smart Card Reader for Vehicle Gates + Parking Garages
The HID iCLASS SE R90 is the long-range reader from HID Global’s iCLASS SE platform — supporting iCLASS SE and SEOS 13.56 MHz credentials at extended read range for vehicle-mounted credential reading. Wiegand output, IP55-rated for outdoor pole / pedestal positions.
The iCLASS SE R90 is purpose-built for vehicle gates, parking-garage entries, drive-through applications, and HOA gated communities where the credential is held in the vehicle and the driver shouldn’t have to roll down the window or extend an arm to present the credential.
When Long-Range Reading Matters
Standard iCLASS SE readers (R10 / R15 / R40) work at 2.5–4 in / 6–10 cm read range — fine for pedestrian entries where the user presents the card to the reader. Vehicle applications require:
- 60+ in / 150+ cm read range so the driver doesn’t have to extend out of the vehicle
- Outdoor / pole-mount durability for weather exposure
- High-throughput for busy gate operations
The iCLASS SE R90 delivers all three. Pole-mount or pedestal-mount at the vehicle gate, drivers approach with credential on dashboard / windshield mount, gate opens automatically.
Where the iCLASS SE R90 Wins in Chicago
- Chicago HOA gated community vehicle entry gates at Chicago condo and HOA buildings
- Multi-tenant residential parking-garage vehicle gate entries — Loop, River North, Mag Mile residential
- Property management vehicle gate access at multi-tenant buildings
- Office parking-deck vehicle gate entries
- Industrial / warehouse vehicle gate access
- Retail center parking-deck vehicle gates
Local Chicago Coverage
Vidimost installs the HID iCLASS SE R90 across the full city of Chicago for vehicle gate and parking-deck access.
Recommended Pairings
- HID iCLASS SE R40 — for pedestrian standard wall positions
- HID iCLASS SE R10 — for pedestrian narrow-frame positions
- HID multiCLASS SE RP40 — multi-tech (iCLASS SE + Prox)
- Garage tag readers — for gate-controller integration
Professional Installation by Vidimost
Vidimost LLC is an active HID Global installer across Chicago. The iCLASS SE R90 is our specialized long-range vehicle gate / parking-deck smart card reader. Full-scope service includes site walkthrough, gate / pole positioning, Wiegand wiring, pole / pedestal mounting, reader commissioning, gate controller integration, and operator training. Contact us for a free site walkthrough and quote.
