Control iD iDUHF UHF Vehicle Tag Reader — 15-Meter Long-Range Garage / Gate Reader for Chicago Commercial Properties

Control iD iDUHF UHF Vehicle Tag Reader — 15-Meter Long-Range

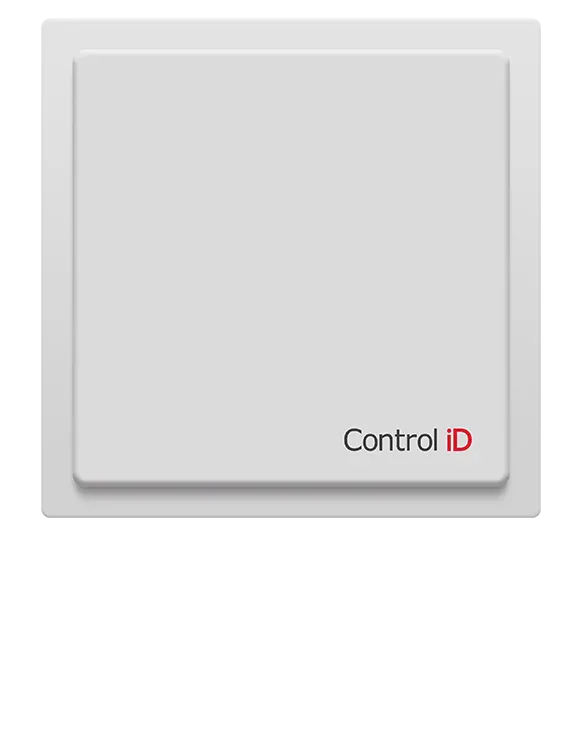

The Control iD iDUHF is a long-range UHF vehicle tag reader and access controller in one unit — combines an integrated UHF antenna and reader (up to 15-meter read range) with an on-board controller that holds 200,000+ registered users locally and integrates with garage and gate hardware over Wiegand, OSDP, TCP/IP, RS-485, and RS-232. The right pick for Chicago commercial parking garages, multi-tenant residential gates, and large gated perimeters where the reader must reliably identify vehicle tags at distance for hands-free entry.

What’s Confirmed by the Official Control iD Spec

These specifications come directly from the manufacturer’s published product page and datasheet for the iDUHF:

• Read range: up to 15 m (“depending on tag type and antenna installation conditions”)
• User capacity: more than 200,000 registered users
• Network: 1× 10/100 Mbps Ethernet (native) + 1× RS-485 with 120 Ω termination + 1× RS-232
• Output protocols: TCP/IP, Wiegand (26 default, 32, 34, or 66 bits), and OSDP — integrates with most garage door and gate controllers
• Relay: 1× relay rated up to 30 VAC / 5 A — drives a gate motor or strike directly when used as standalone
• Power: external 12 V DC supply (sold separately); 3.5 W (300 mA) rated consumption
• Operating temperature: −20 °C to 45 °C
• Ingress protection: IP65
• Dimensions: main unit 420 × 420 × 60 mm; antenna 52 × 52 × 22 mm
• Weight: main unit 2,270 g; external access control module 35 g

iDUHF vs. iDUHF Lite — Which One Fits the Project

Control iD ships two configurations of the same UHF reader-controller architecture. They share the same firmware, the same protocol set, and the same user-capacity ceiling — they differ in read range and physical size:

Feature	iDUHF (this page)	iDUHF Lite
Read range	Up to 15 m	Up to 12 m
Main unit dimensions	420 × 420 × 60 mm (large)	260 × 260 × 70 mm (compact)
Main unit weight	2,270 g	1,280 g
User capacity	200,000+	200,000+
Network / protocols	Ethernet, RS-485, RS-232, Wiegand, OSDP, TCP/IP	Same
IP rating	IP65	IP65
Power	12 V DC, 3.5 W	12 V DC, 3.5 W
Best fit	Wide gate spans, parking-deck entries, larger commercial perimeters where 15 m read range is required	Compact form factor for residential garages, smaller commercial gates, and Brivo-paired installs

When to choose iDUHF (this product) over the Lite:

• Wide vehicle entries (parking-garage entries with multiple lanes, large commercial driveways) where the reader has to capture the tag well before the vehicle reaches the gate
• Gated commercial perimeters where the reader is mounted at distance from the lane and needs the extra read range
• Large multi-tenant residential properties with 500+ vehicles where the bigger antenna helps maintain consistent read rates during peak in/out times

For tighter physical positions (residential garages, smaller commercial gates) the more compact iDUHF Lite is usually the better fit and is the model Vidimost most often pairs with Brivo cloud-managed access at Chicago HOA and small-commercial sites.

How It Pairs with Brivo, Paxton, and Other Access Platforms

The iDUHF outputs Wiegand 26 (default) and OSDP — two protocols every modern commercial access control panel accepts. Vidimost typically wires it as a Wiegand reader feeding the parent controller:

• Brivo ACS300-E-B / ACS6100 — Brivo panels accept Wiegand devices that transmit up to 255-bit data and OSDP readers over RS-485, so the iDUHF (Wiegand 26 / 32 / 34 / 66 or OSDP) drops in cleanly. The iDUHF reads the vehicle tag, sends the credential ID to the Brivo panel, the Brivo cloud admin makes the access decision, and the panel triggers the gate motor.
• Paxton10 Door Controller (010-403) / Paxton Net2 Plus — same Wiegand path; Paxton’s controllers accept Wiegand readers, so the iDUHF integrates without proprietary firmware.
• Standalone gate-motor mode — for properties without a centralized access platform, the iDUHF’s on-board 30 VAC / 5 A relay can drive a gate motor directly, with up to 200,000 users programmed locally.

Where the Control iD iDUHF Wins in Chicago

• Commercial parking-garage entry and exit gates with 200+ users
• Multi-tenant residential parking-garage gates at Chicago condo and HOA buildings
• Office-building parking decks with employee + visitor tag mix
• Education facility parking lots and faculty / staff gated areas
• Industrial / warehouse gated perimeters and yard-truck access
• Hospitality property valet and self-park gate access
• Government / municipal facility parking and gated entries
• Long-range vehicle access where the reader must work at 10–15 m for hands-free entry

Local Chicago Coverage

Vidimost installs the Control iD iDUHF across the full city of Chicago for commercial parking-garage and gated-perimeter access deployments.

Recommended Pairings

• Control iD iDUHF Lite — compact sibling for residential and smaller commercial gates
• Brivo ACS300-E-B — Wiegand-paired cloud panel for combined door + gate access
• Brivo ACS6100 — high-density Brivo panel for large multi-door + gated-perimeter projects
• Paxton10 Door Controller (010-403) — Wiegand-paired Paxton10 cloud option
• Paxton Net2 Plus — on-prem Net2 alternative for regulated industries
• Compatible passive UHF vehicle tags (sold separately, specified at site walkthrough per gate condition)

Professional Installation by Vidimost

Vidimost LLC installs the Control iD iDUHF across Chicago for parking-garage, condo and HOA gate, and gated-yard access projects. Full-scope service includes site walkthrough, gate-geometry survey (read range vs. lane width), reader and antenna mounting, IP65-rated weatherproofing of cable terminations, Wiegand or OSDP wiring back to the parent access panel (Brivo / Paxton / standalone), tag enrollment, gate-motor relay integration where used standalone, and operator training. Contact us for a free site walkthrough and quote.
