HES 9500 Genesis III Surface-Mounted Fire-Rated Electric Strike — 3-hr UL 10C for Chicago Commercial

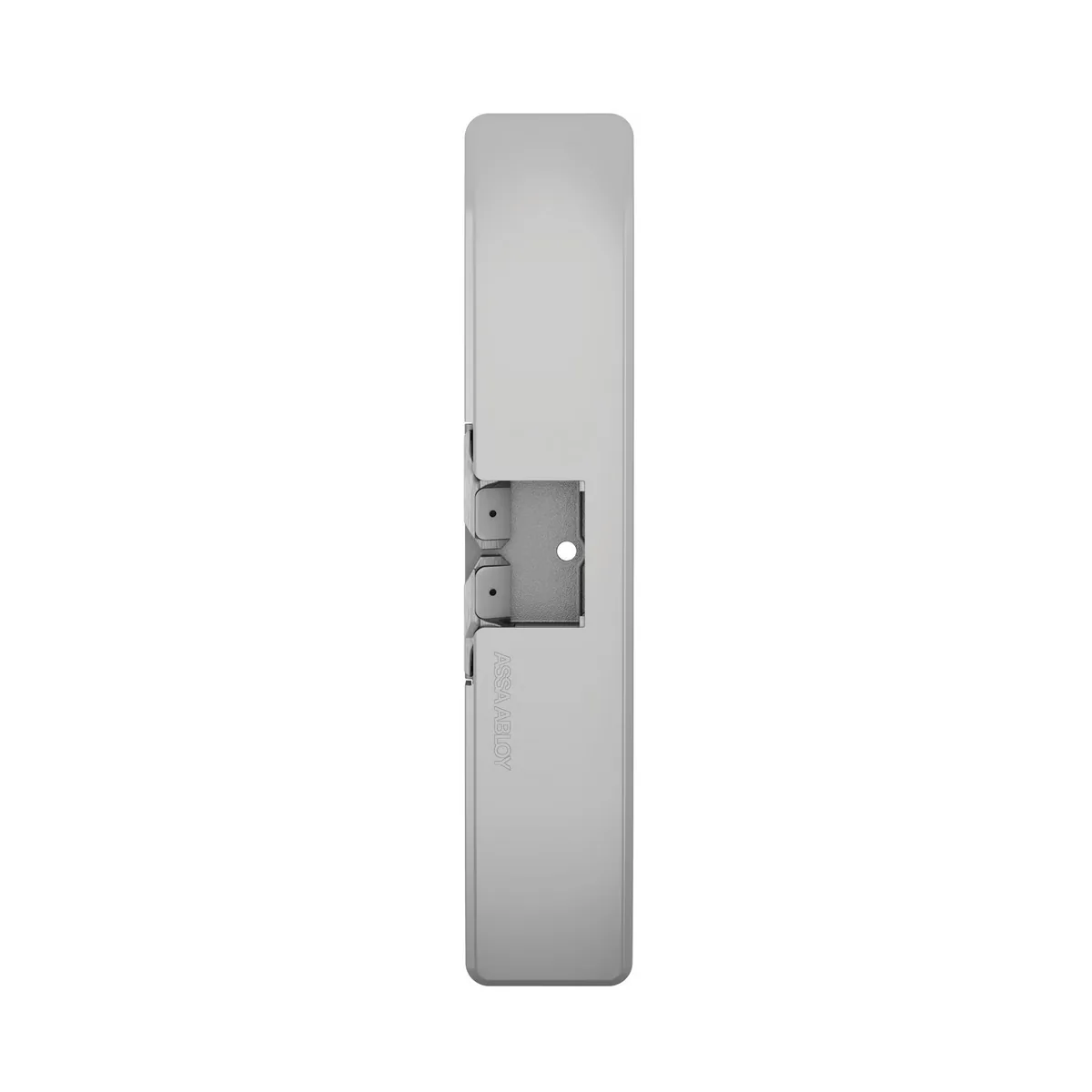

HES 9500 Genesis III Fire-Rated Surface-Mounted Electric Strike

The HES 9500 Series Genesis III is the fire-rated sibling of the HES 9400 — a 3-hour UL 10C fire-rated surface-mounted electric strike for commercial rim exit devices with a 3/4” Pullman latch. All components are completely encased within the 3/4”-thick stainless steel housing, so installation requires no cutting on the frame, making it ideal for retrofitting fire-rated openings (NFPA 80-07 compliant for retrofit into fire-rated frames). Field-selectable 12 / 24 VDC and field-selectable fail-secure / fail-safe operation.

What’s Confirmed by the Official HES Spec

These specifications come from HES product documentation:

• Fire rating: 3-hour UL 10C (fail-secure only)
• Profile: 3/4 in thick — components fully encased; no frame cutting required
• Latchbolt accommodation: rim exit devices with 3/4 in Pullman latch
• Static strength: 1,500 lbs
• Dynamic strength: 70 ft-lbs
• Voltage: field-selectable 12 / 24 VDC
• Operation mode: field-selectable fail-secure / fail-safe (note: fire-rated 3-hr applies to fail-secure only)
• Compliance: ANSI Grade 1 exceeded; UL 10C fire-rated; UL 1034 burglary-resistant; NFPA 80-07 compliant retrofit

9500 vs. 9400 — When Each Fits

Feature	9500 (this page)	HES 9400
Profile	3/4 in thick	5/8 in thick (slimmer)
Latchbolt accommodation	3/4 in Pullman latch	Up to 1/2 in throw
Fire rating	3-hr UL 10C (fail-secure)	NOT fire-rated
NFPA 80-07	Yes, retrofit-compliant	No
Best fit	Fire-rated rim exit doors	Non-fire-rated rim exit doors

For any fire-rated opening, use the 9500. For non-fire-rated openings where the slimmer 5/8” profile is preferred, use the 9400.

Where the HES 9500 Wins in Chicago

• Commercial fire-rated rim-exit retrofits
• Education facility fire-rated exit doors (corridors, stairwells)
• Healthcare facility fire-rated rim-exit egress doors
• Multi-tenant residential fire-rated stairwell and corridor exit doors
• Office building fire-rated stairwell exit doors
• Government / municipal fire-rated exit doors
• Hospitality fire-rated back-of-house exits
• Retail fire-rated rear-exit doors
• Industrial / warehouse fire-rated personnel exits
• NFPA 80-07 compliant retrofits into existing fire-rated frames

Local Chicago Coverage

Vidimost installs the HES 9500 Series across the full city of Chicago for fire-rated rim-exit retrofits.

Recommended Pairings

• HES 9400 — non-fire-rated sibling for non-fire-rated openings on the same project
• HES 4500C — internally-mounted fire-rated alternative for cylindrical / mortise openings
• HES 1006 — heavy-duty internally-mounted Grade 1 strike (fire-rated SKUs available)

Professional Installation by Vidimost

Vidimost LLC installs the HES 9500 Series across Chicago for fire-rated rim-exit retrofits. Full-scope service includes site walkthrough, fire-rating verification of the opening and frame, surface-mount installation per NFPA 80-07 compliance procedure, field selection of voltage and fail-mode (fire-rated requires fail-secure), and integration with the access control panel and existing exit device. Contact us for a free site walkthrough and quote.
