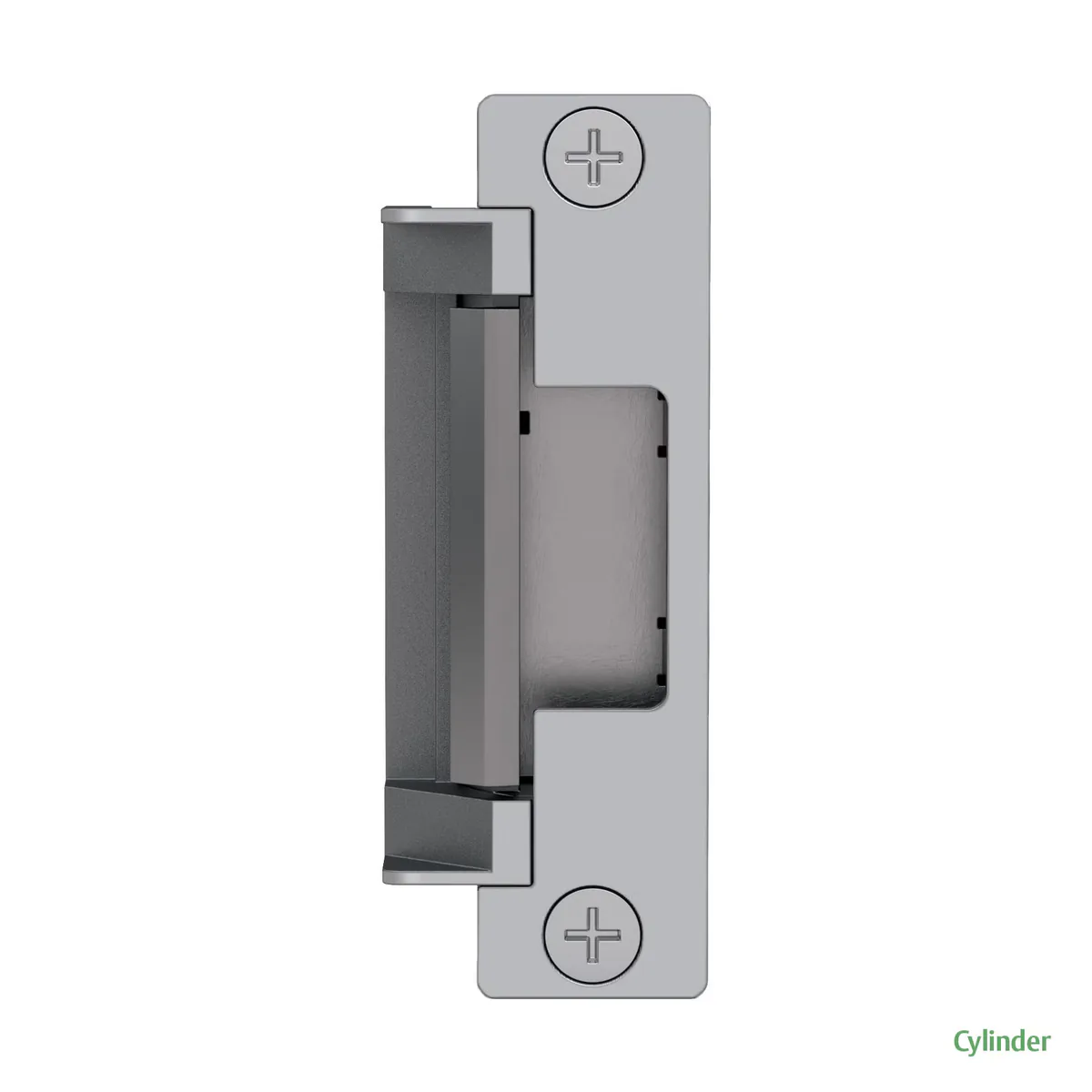

HES 4500C Heavy-Duty Fire-Rated Electric Strike — 2" UL 10C Steel / Wood Frames
Model / Series: 4500C
Fire-rated electric strike for 2-inch UL 10C steel and wood frames — the pick when a stairwell or corridor door has to keep its rating.
We don't just ship boxes — this goes in as part of our access control installation in Chicago work. Inheriting a half-working setup from a previous vendor? Start with a security system takeover.
Specifications
- Brand
- HES (an ASSA ABLOY brand)
- Series
- HES 4500C
- Model
- 4500C 'Complete Pac' (multiple faceplates included)
- Form Factor
- Heavy-duty fire-rated electric strike for 2 in steel / wood frames
- Compliance
- UL 10C fire-rated; designed for 2 in UL 10C fire-rated steel and wood frames
- Latchbolt Accommodation
- Maximum 3/4 in latchbolt throw (cylindrical and mortise locksets)
- Construction
- Heavy-duty stainless steel; low-profile 1-3/8 in depth
- Voltage
- Dual 12 / 24 VDC
- Lockset Compatibility
- Cylindrical and mortise locksets with latchbolt throw up to 3/4 in
Best Fit & Recommended For
HES 4500C Heavy-Duty Fire-Rated Electric Strike
The HES 4500C is the fire-rated member of HES’s heavy-duty electric strike lineup — designed for installation in 2” UL 10C fire-rated steel and wood frames with cylindrical and mortise locksets with up to 3/4” latchbolt throw. Low-profile 1-3/8” depth with heavy-duty stainless steel construction. Sold as the “Complete Pac” SKU which includes multiple faceplates for universal frame fit.
What’s Confirmed by the Official HES Spec
These specifications come from HES product documentation:
- Fire rating: UL 10C; designed for 2” UL 10C fire-rated steel and wood frames
- Latchbolt accommodation: maximum 3/4 in latchbolt throw
- Lockset compatibility: cylindrical and mortise locksets
- Depth: low-profile 1-3/8 in
- Construction: heavy-duty stainless steel
- Voltage: dual 12 / 24 VDC
- Configuration: Complete Pac SKU includes multiple faceplates for various frame preps
When 4500C Fits Better Than 1006 / 1500
The 4500C is purpose-built for the case where the opening is:
- A cylindrical or mortise lockset (NOT a deadbolt — those need the 1600)
- In a 2” UL 10C fire-rated steel or wood frame
- Latchbolt throw up to 3/4 in
| Strike | Fire-Rated | Best Frame |
|---|---|---|
| HES 1006 | Yes (UL 10C, ASTM E152) | Heavy-abuse high-strength positions |
| HES 1500 | Some SKUs fire-rated | Standard latchbolt openings |
| HES 4500C (this page) | Yes — UL 10C, 2” frame | 2” UL 10C fire-rated frames |
| HES 9500 | 3-hr UL 10C | Surface-mounted rim exit (different form factor) |
Where the HES 4500C Wins in Chicago
- Commercial fire-rated cylindrical / mortise openings in 2” UL 10C steel or wood frames
- Healthcare facility fire-rated corridor and entry doors
- Education facility fire-rated classroom and corridor doors
- Multi-tenant residential fire-rated stairwell and corridor doors
- Hospitality fire-rated back-of-house and corridor doors
- Industrial / warehouse fire-rated personnel doors
- Government / municipal fire-rated openings
- Office building fire-rated stairwell and elevator-lobby doors
Local Chicago Coverage
Vidimost installs the HES 4500C across the full city of Chicago for fire-rated cylindrical and mortise openings.
Recommended Pairings
- HES 1006 — heavy-duty alternative for high-abuse positions on the same project
- HES 1500 / 1600 — standard-duty siblings for non-fire-rated openings
- HES 9500 — fire-rated surface-mount alternative for rim exit devices
Professional Installation by Vidimost
Vidimost LLC installs the HES 4500C across Chicago for fire-rated cylindrical and mortise openings. Full-scope service includes site walkthrough, frame fire-rating verification (2” UL 10C steel or wood), faceplate selection from the Complete Pac, strike installation per the fire-door retrofit procedure, and integration with the access control panel. Contact us for a free site walkthrough and quote.
