Axis Communications · Video Surveillance · Cameras

Axis V5938 4K UHD Indoor Broadcast PTZ Camera with 30× Optical Zoom for Worship, Events, Training Rooms

Model / Series: V5938

4K indoor broadcast PTZ with 30× zoom and IP, SDI, and HDMI outputs — the camera behind a lot of church live-streams and event-hall productions.

NDAA Compliant
Request a Quote Ask About Installation

We don't just ship boxes — this goes in as part of our security camera installation in Chicago work. First time working with us? Here’s why Chicago buildings pick Vidimost.

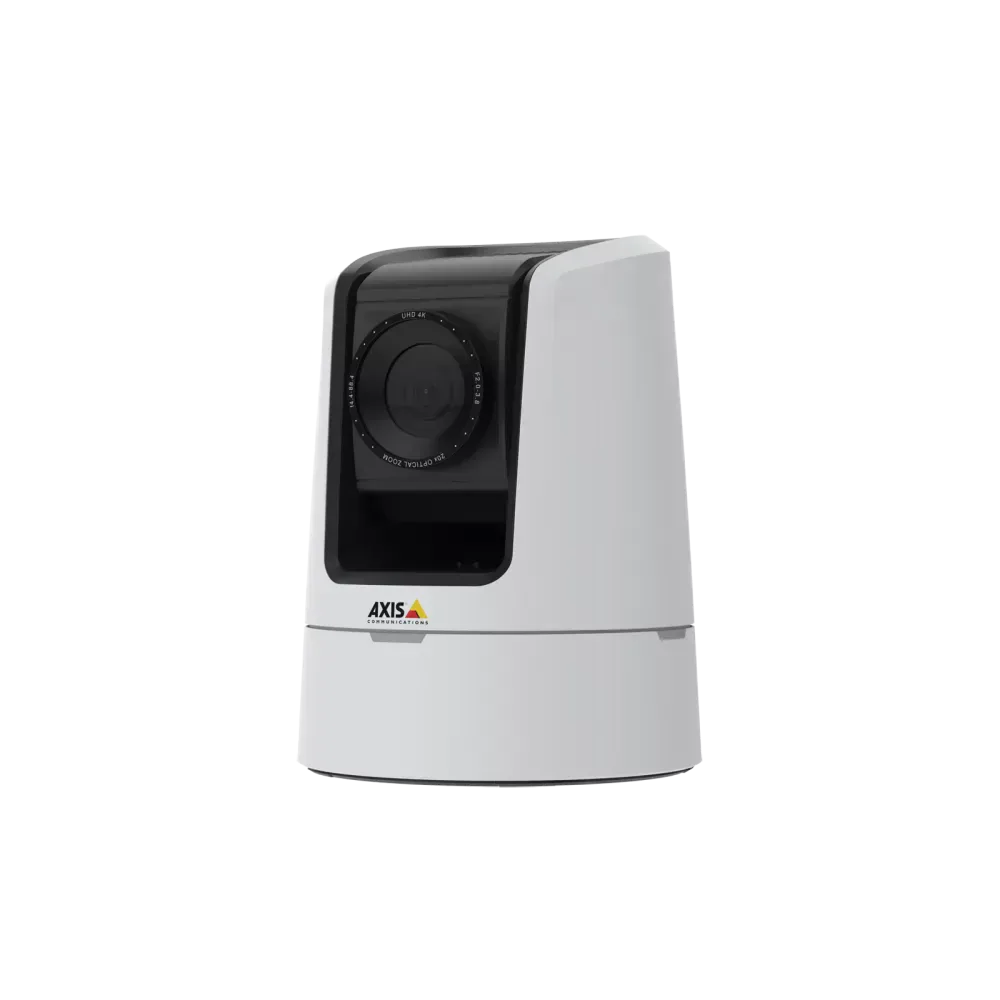

Axis V5938

Specifications

Brand
Axis Communications
Model
V5938
Series
Axis V59 Broadcast PTZ Series
Camera Type
Indoor 4K UHD broadcast-grade PTZ camera
Image Sensor
1/2.5" CMOS
Resolution
4K UHD (3840 × 2160) — 8MP
Max Frame Rate
60 fps / 50 fps at 4K
Lens
Built-in motorized zoom
Optical Zoom
30×
Outputs
IP (Ethernet RTSP/RTP), 3G-SDI, HDMI
Pan / Tilt / Zoom
Full PTZ — quiet pan/tilt mechanism for broadcast environments
Day/Night
Yes (auto)
WDR
Forensic WDR
Video Compression
H.265, H.264
Audio Support
Yes — line-level audio I/O
Network
Power over Ethernet (PoE+ Class 4)
ONVIF
Profile S, T
Application Platform
AXIS Camera Application Platform (ACAP)
Cybersecurity
Axis Edge Vault — secure boot, signed firmware, signed video, HTTPS, IEEE 802.1X
Operating Temperature
0 °C to +40 °C (indoor / climate-controlled environments)
Form Factor
Indoor pendant / wall-mount PTZ — designed for visible installation in lecture halls, courtrooms, worship spaces
TAA / NDAA Compliance
Per Axis Communications documentation

Best Fit & Recommended For

✓ House of worship live-streaming and recording — Chicago-area churches, synagogues, mosques
✓ Banquet hall and event-venue video production
✓ Conference center main rooms with broadcast video output
✓ Office town-hall / all-hands recording and streaming
✓ Performing arts venues — theaters, music halls, dance studios
✓ Training-room capture with preset-driven camera positions

Axis V5938 — 4K Broadcast PTZ for Worship, Events + Conference Production

The Axis V5938 is a 4K UHD indoor broadcast-grade PTZ camera from Axis Communications’ V59 series — purpose-built for video production environments. Features include 4K UHD (8MP) at 60 fps, 30× optical zoom, concurrent IP + 3G-SDI + HDMI outputs, quiet pan/tilt mechanism (no motor audio leakage to microphones), Forensic WDR, Axis Edge Vault cybersecurity (signed firmware + signed video), and PoE+ Class 4 single-cable installation. Built for house-of-worship streaming, banquet-hall and event production, office town-halls, and conference-room AV.

Why a Dedicated Broadcast PTZ

NeedSecurity PTZ (Q6315/Q6355)Broadcast PTZ (V5938)
OutputsIP onlyIP + 3G-SDI + HDMI
Pan/tilt acousticsStandardQuiet — no motor audio leakage
Production frame rate30 fps standard60 fps at 4K
Color reproductionSurveillance tuningProduction tuning
Outdoor ratingIP66 / −40 °CIndoor (0 °C to +40 °C)
Optical zoom31×30×
Best fitOutdoor securityIndoor production

Choose the V5938 for production environments (worship, events, conference). Choose the Q6315-LE / Q6355-LE for outdoor security PTZ.

Three-Output Design — Why It Matters

  • IP (Ethernet, RTSP/RTP H.265 / H.264) — direct connection to capture platforms (Panopto, Echo360, Mediasite), Axis Camera Station / Genetec / Milestone VMS recording, and live-streaming platforms
  • 3G-SDI — direct connection to broadcast switchers (NewTek Tricaster, Blackmagic ATEM, Ross Carbonite, Roland)
  • HDMI — direct connection to streaming encoders, projectors, AV switchers, signal-conversion equipment
  • All three outputs concurrent — same camera feeds VMS recording AND broadcast switcher AND HDMI streaming encoder simultaneously

Where the V5938 Wins in Chicago

  • Chicago-area houses of worship — churches, synagogues, mosques streaming Sunday/Sabbath/Friday services
  • Banquet halls and event venues — multi-camera production without an operator on the floor
  • Conference centers — Schaumburg / Rosemont main rooms
  • Office town-halls — Loop all-hands meetings and streams
  • Performing arts — theaters, music halls, dance studios capture and streaming
  • Training rooms — preset-driven capture, no operator needed

Local Chicago Coverage

Vidimost installs the V5938 across the full city of Chicago — downtown Loop to the neighborhood corridors.

Cross-Platform Alternative

For pure broadcast-production environments without an Axis security commitment, Sony BRC / SRG series, Panasonic AW-UE series, and Marshall Electronics broadcast PTZ lines are valid alternatives. The V5938 wins on Axis VMS + Edge Vault cybersecurity integration — for customers who want one vendor across security and production AV.

Professional Installation by Vidimost

Vidimost LLC is an active Axis Communications installer across Chicago. The V5938 is one of our preferred broadcast-grade PTZ picks for Chicago worship spaces, event venues, and training rooms. Full-scope service includes site walkthrough, mounting (wall / ceiling pendant per AV designer specification), Cat6 + PoE+ switch sizing, SDI / HDMI cable runs to AV equipment rooms, Axis Camera Station + capture-system integration, broadcast-mode tuning, preset programming for automated camera positions, and operator training. Contact us for a free site walkthrough and quote.

Frequently Installed Together

Axis Communications

Axis Q6315-LE

Outdoor PTZ camera with 31× optical zoom, Autotracking 2, and a −50 °C rating — one camera works an entire parking lot or warehouse yard.

View →

Axis Communications

Axis Q6355-LE

The Axis Q6355-LE is the newer-generation outdoor PTZ camera with 31× optical zoom, 1080p @ 60 fps, ARTPEC-9 chipset, AV1 codec support, AXIS Object Analytics + Image Health Analytics + Scene Metadata, Lightfinder 2.0, Forensic WDR, OptimizedIR (up to 300m IR per marketing), Autotracking 2, IP66 / IP67 / IK10 / NEMA 4x housing, and −50 °C to +55 °C operating range. The newer upgrade over the Q6315-LE for greenfield Chicago deployments where AV1 codec future-proofing + expanded AI analytics matter.

View →

Axis Communications

Axis M4308-PLE

12MP fisheye camera — one ceiling mount sees a whole room or parking-deck level that would otherwise take three or four fixed cameras.

View →

Axis Communications

Axis M1075-L

The Axis M1075-L is a 2MP (1080p) compact indoor mini-dome / shelf camera built on the ARTPEC-8 chipset — featuring built-in IR, two-way audio (built-in mic + speaker), Forensic WDR, Lightfinder, AXIS Object Analytics preinstalled, microSD slot, and PoE Class 3. Compact form factor with 0–35 °C indoor operating range — purpose-built for small-business indoor coverage, retail counter areas, hospitality lobbies, and home / SOHO Chicago commercial deployments.

View →

Frequently Asked Questions

What's a broadcast PTZ vs. a security PTZ? +
A **broadcast PTZ** is engineered for **video production quality and workflow** — quiet pan/tilt mechanism (no motor noise picked up by microphones), broadcast video outputs (3G-SDI + HDMI), color reproduction tuned for production, smooth motion at 60 fps for live streaming. The Axis V5938 includes all three output types: **IP (Ethernet RTSP/RTP)** for streaming + recording, **3G-SDI** for broadcast switchers, and **HDMI** for direct connection to streaming encoders / projectors. Compare to a **security PTZ** like the [Q6315-LE](/products/video-surveillance/cameras/axis-q6315-le/) or [Q6355-LE](/products/video-surveillance/cameras/axis-q6355-le/) which prioritize outdoor-rated housing, IR illumination, and surveillance-class image processing. Choose the V5938 for **worship, event, and training-room production**; the Q63-LE series for **outdoor security PTZ**.
Why does 4K + 30× optical zoom matter in a big room? +
**4K resolution** captures the entire room with detail — a single PTZ in a sanctuary or banquet hall can capture a wide-room shot AND zoom into a speaker's face / a slide / a musician, all without losing usable detail. **30× optical zoom** is sufficient to fill the frame with a speaker from a back-of-room mounting position. Combined with **60 fps** smoothness for live streaming and **3G-SDI / HDMI** outputs for direct connection to broadcast switchers, the V5938 supports both **automated preset-driven capture** and **manual operator-driven production**.
What outputs does the V5938 provide and which workflows does it support? +
Three concurrent output types: **(1) IP** — RTSP/RTP H.265/H.264 streaming for VMS recording, capture platforms (Panopto, Echo360, Mediasite), live streaming platforms; **(2) 3G-SDI** — direct connection to broadcast video switchers (NewTek Tricaster, Blackmagic ATEM, Ross Carbonite); **(3) HDMI** — direct connection to streaming encoders, projectors, AV switchers. This makes the V5938 fit equally in: multi-camera worship-space production, banquet-hall and event AV, and conference / town-hall AV systems.
Is the V5938 outdoor-rated? +
**No** — the V5938 is **indoor-only**, designed for climate-controlled worship spaces, banquet rooms, and conference rooms. **Operating range is 0 °C to +40 °C** with no IP rating for outdoor exposure. For outdoor PTZ in Chicago weather, see the [Q6315-LE](/products/video-surveillance/cameras/axis-q6315-le/) (1080p outdoor PTZ, IP66, −40 °C) or the newer [Q6355-LE](/products/video-surveillance/cameras/axis-q6355-le/) (1080p outdoor PTZ, ARTPEC-9, AV1, IP66, −40 °C).
How does the V5938 compare to other broadcast PTZ cameras? +
Vs. dedicated PTZ cameras from Sony BRC / SRG series, Panasonic AW-UE series, and Marshall Electronics broadcast lines: **the V5938 is unique in combining broadcast outputs (SDI + HDMI) with the Axis VMS / cybersecurity ecosystem** — Edge Vault signed firmware, ONVIF compatibility, IP-side recording on Axis Camera Station / Genetec / Milestone, and ACAP for custom integrations. For projects where the customer **already has Axis VMS on the security side** and wants one vendor across security and production AV, the V5938 is the answer. For **pure broadcast production environments without an Axis security commitment**, Sony / Panasonic / Marshall remain valid alternatives.
Where does the V5938 win in Chicago projects? +
Best-fit Chicago positions: **(1) Houses of worship** — churches, synagogues, and mosques streaming weekly services; **(2) Banquet halls and event venues** — multi-camera production without a camera operator working the floor; **(3) Conference centers** — Rosemont and Schaumburg main rooms; **(4) Office town-halls** — Loop all-hands streams; **(5) Performing arts** — theaters, music halls, dance studios recording performances.
Will the V5938 work with our existing AV system? +
Yes — three-output design enables flexible AV integration. The **3G-SDI** and **HDMI** outputs connect directly to professional video switchers, streaming encoders, and AV systems without IP-side dependency. The **IP output** simultaneously supports recording, streaming, and integration with VMS / capture platforms. For most Chicago worship-space and event-venue projects, this means: existing AV switching workflow continues unchanged, while IP-side adds recording / streaming / archival without rework.
Is the V5938 compatible with Axis Camera Station, Genetec, Milestone? +
Yes — IP output is ONVIF Profile S, T compatible. Axis Camera Station, Genetec Security Center, Milestone XProtect, and most ONVIF recorders work with the V5938 IP stream. SDI / HDMI workflow is independent of VMS — broadcast switchers connect directly.
Does Vidimost install Axis broadcast PTZ cameras in Chicago? +
Yes. The V5938 is our go-to broadcast PTZ for Chicago worship spaces, banquet halls, and training rooms. Full-scope service includes site walkthrough, mounting (wall / ceiling pendant per AV designer specification), Cat6 + PoE+ switch sizing, SDI / HDMI cable runs to AV equipment rooms, Axis Camera Station + capture-system integration, broadcast-mode tuning, preset programming, and operator training.
