Axis Communications · Video Surveillance · Cameras

Axis M4308-PLE 12MP Outdoor Fisheye Camera with 183° FOV + IK10 + Forensic WDR

Model / Series: M4308-PLE

12MP fisheye camera — one ceiling mount sees a whole room or parking-deck level that would otherwise take three or four fixed cameras.

NDAA Compliant AI Analytics Vandal Resistant
Request a Quote Ask About Installation

We don't just ship boxes — this goes in as part of our security camera installation in Chicago work. Inheriting a half-working setup from a previous vendor? Start with a security system takeover.

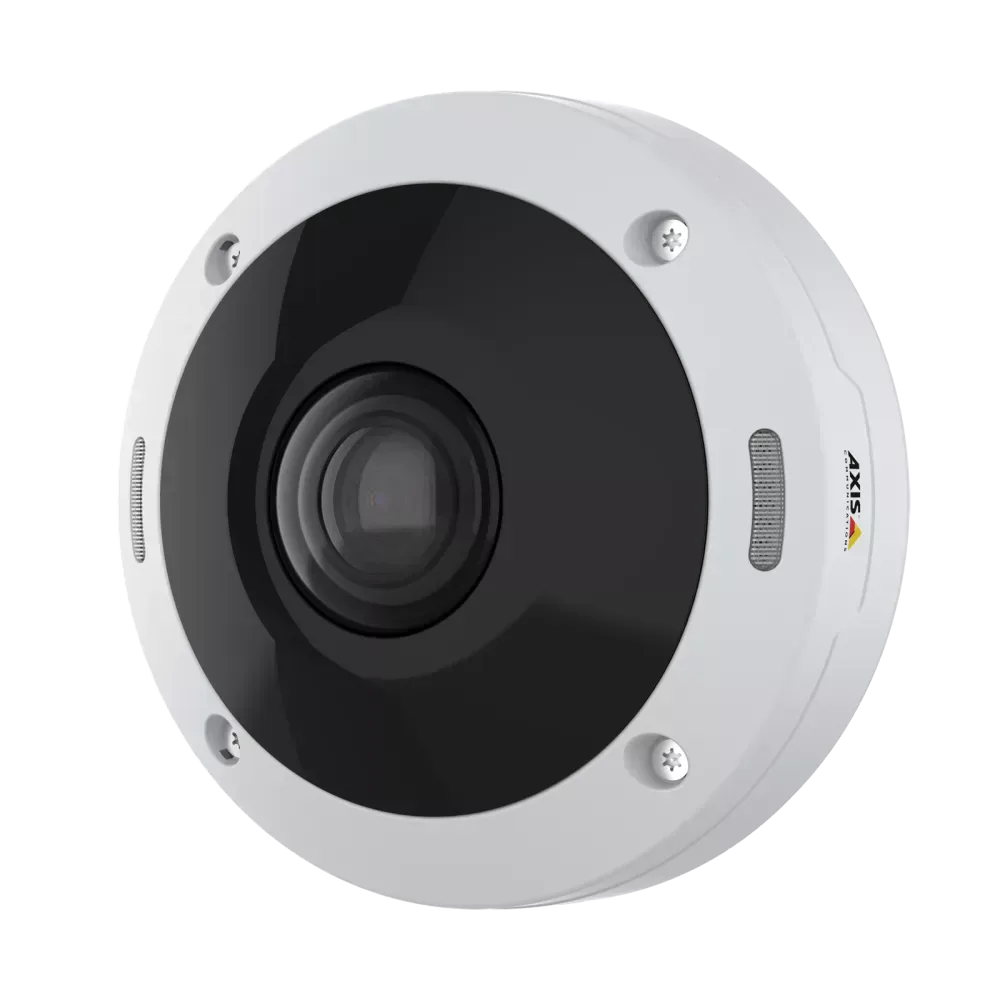

Axis M4308-PLE

Specifications

Brand
Axis Communications
Model
M4308-PLE
Series
Axis M43 Fisheye / Panoramic Series
Camera Type
IP outdoor fisheye / hemispheric panoramic camera with on-edge dewarping
Image Sensor
1/1.7" CMOS
Resolution
12 MP (4000 × 3000)
Max Frame Rate
30 fps / 25 fps
Lens
Fisheye, fixed
Field of View
183° horizontal × 183° vertical (hemispheric)
Day/Night
Yes (auto)
Low-Light Technology
Lightfinder
WDR
Forensic WDR
IR Illumination
Built-in OptimizedIR
Video Compression
H.265, H.264 with Axis Zipstream
Dewarping
On-edge — multiple view modes (panorama, double panorama, quad view, virtual PTZ)
Audio Support
Yes — audio detection supported (built-in mic)
Alarm I/O
1 input / 1 output
Network
Power over Ethernet (PoE Class 3)
ONVIF
Profile G, S, T
Edge Storage
microSD card slot
Application Platform
AXIS Camera Application Platform (ACAP)
Cybersecurity
Axis Edge Vault — secure boot, signed firmware, signed video, HTTPS, IEEE 802.1X
Operating Temperature
−40 °C to +60 °C (−40 °F to +140 °F)
Environmental Protection
IP66
Impact Resistance
IK10 (vandal-resistant)
Mounting
Ceiling / wall (recessed kit available)
TAA / NDAA Compliance
Per Axis Communications documentation

Best Fit & Recommended For

✓ Retail full-store ceiling coverage at Chicago neighborhood retail and shopping centers
✓ Restaurant and hospitality dining-room coverage with 183° hemispheric FOV
✓ Hotel lobbies and reception areas — single-camera full-coverage
✓ Parking-deck level coverage at Chicago commercial properties
✓ Condo and apartment common areas — lobbies, gyms, party rooms
✓ Loading-dock area surveillance with full hemispheric FOV
✓ Outdoor courtyards and covered walkways
✓ Property management common areas — corridors, mailrooms, package rooms

Axis M4308-PLE — 12MP Outdoor Fisheye with 183° Hemispheric FOV + On-Edge Dewarping

The Axis M4308-PLE is a 12MP outdoor fisheye / hemispheric panoramic camera from Axis Communications’ M43 series — featuring 183° horizontal × 183° vertical FOV, on-edge dewarping (panorama, double panorama, quad view, virtual PTZ), Forensic WDR, Lightfinder, OptimizedIR, IP66 / IK10 outdoor housing, −40 °C to +60 °C operating range, and PoE Class 3 — purpose-built for ceiling-mount full-room or full-courtyard coverage at Chicago retail, hospitality, healthcare, education, banking lobby, and parking-deck applications.

Why a Fisheye

A single ceiling-mounted fisheye replaces 3–4 fixed cameras for full-room coverage:

  • No blind spots — the 183° hemispheric lens captures everything below the ceiling
  • One cable run instead of three to four — lower install + material cost
  • One channel on the recorder instead of three to four
  • On-edge dewarping — every VMS can directly use panorama / quad-view / virtual PTZ outputs without server-side processing
  • Simpler in finished ceilings — fewer mounting penetrations, faster commissioning

M4308-PLE vs. Other Axis Panoramic Options

FeatureM4308-PLE (this)P3727-PLEP3735-PLE
Optical approachSingle fisheye lensSingle-sensor 360°Multi-sensor (4) 360°
Resolution12 MP2 MP4 × 2 MP
Best mountCeiling — full-roomPole / wall — horizontal scenePole / wall — large area
Best fitIndoor / outdoor full-roomOutdoor parking-lot / perimeterOutdoor large-area + AI
ChipsetStandard Axis platformStandard Axis platformARTPEC-8 DLPU + AI
AI AnalyticsStandardStandardObject Analytics preinstalled

Choose the M4308-PLE for ceiling-mount full-room coverage (indoor lobbies, retail floors, parking-deck levels). For outdoor horizontal large-area panoramas, see the P3727-PLE (single-sensor) or P3735-PLE (multi-sensor with AI).

Where the M4308-PLE Wins in Chicago

  • Retail full-store ceiling coverage — neighborhood retail, shopping centers (the Magnificent Mile and the big retail corridors)
  • Restaurant and hospitality dining rooms — Loop, River North, West Loop venues
  • Hotel lobbies and reception — Loop, River North, Mag Mile hotel properties
  • Parking-deck level coverage at Chicago commercial properties — Loop garages, university parking, hospital decks
  • School / university common areas — cafeterias, lobbies, gymnasiums (Chicago Public Schools, Northwestern, U of C, UIC)
  • Healthcare lobbies and waiting rooms — Chicago-area hospitals and clinics
  • Property management common areas — package rooms, mailrooms, corridors at high-rise residential buildings

Local Chicago Coverage

Vidimost installs the M4308-PLE across the full city of Chicago — downtown Loop to the neighborhood corridors.

Cross-Platform Alternative

For projects without an Axis VMS commitment, Hanwha Wisenet offers fisheye / multi-sensor panoramic alternatives. The M4308-PLE wins on single-fisheye 12 MP simplicity for ceiling-mount full-room coverage; Hanwha multi-sensor models win for horizontal large-area outdoor coverage with AI per sensor. Choice typically follows VMS commitment and the specific scene geometry.

Professional Installation by Vidimost

Vidimost LLC is an active Axis Communications installer across Chicago. The M4308-PLE is one of our standard fisheye / panoramic picks for retail, hospitality, healthcare lobbies, banking lobbies, and parking-deck full-coverage positions. Full-scope service includes site walkthrough, mounting (with recessed-kit options for finished ceilings), Cat6 + PoE switch sizing, Axis Camera Station commissioning, dewarping view configuration (panorama / double panorama / quad / virtual PTZ), motion zone setup, ACAP application deployment, and operator training. Contact us for a free site walkthrough and quote.

Frequently Installed Together

Axis Communications

Axis P3727-PLE

The Axis P3727-PLE is a 2MP outdoor panoramic 360° camera providing complete situational awareness from one ceiling-mounted position — replacing 3–4 traditional fixed cameras with one device. 1/2.8" CMOS sensor, 3–6 mm motorized varifocal lens, Lightfinder, Forensic WDR, built-in IR, IP66 / IP67 / IK09 housing, and Zipstream H.265 compression. The right pick for Chicago retail floors, schools, hospitals, parking-lot 360° coverage where one camera saves on VMS licenses, cabling, and rack-space costs.

View →

Axis Communications

Axis P3735-PLE

The Axis P3735-PLE is a premium multi-sensor outdoor 360° panoramic camera built on ARTPEC-8 with deep learning processing unit (DLPU), AXIS Object Analytics, AXIS Scene Metadata, individually controlled 360° IR illumination, motorized varifocal 3.18–8.12 mm lens per head, Forensic WDR, and IP66 / IP67 / IK09 housing. Premium-tier multi-sensor 360° camera for Chicago retail, healthcare, schools, transit, and corporate campuses needing AI analytics + edge cybersecurity (Signed OS, Secure boot, Edge Vault).

View →

Axis Communications

Axis P3267-LVE

5MP outdoor vandal dome with motorized zoom and built-in IR — a workhorse outdoor security camera for condo entrances, storefronts, and parking garages.

View →

Axis Communications

Axis P3277-LVE

5MP AI outdoor vandal dome on the new ARTPEC-9 chip with AV1 codec — the P3267's successor for storefronts, condo entries, and parking garages.

View →

Frequently Asked Questions

What is a fisheye / hemispheric camera and when do I use one? +
A **fisheye / hemispheric camera** uses a single ultra-wide-angle (~180°) lens to capture a full hemispheric scene from a single ceiling-mount position. With on-edge dewarping, the captured spherical image is rendered as multiple useful views simultaneously: full panorama, double panorama, quad view, or virtual PTZ. Best applications: **(a) full-room coverage** with one camera (no blind spots, no multi-camera coordination), **(b) ceiling positions** at retail, hospitality, healthcare, banking lobbies, **(c) areas with limited mounting points** like parking decks and covered walkways, **(d) cost-efficient coverage** where one fisheye replaces 3–4 fixed cameras for the same scene.
How is the M4308-PLE different from the P3727-PLE and P3735-PLE panoramics? +
All three are panoramic but use different optical approaches: **M4308-PLE (this)** — single fisheye lens delivering 183° hemispheric FOV, ceiling-mount, 12 MP, optimized for **full-room** ceiling coverage. **[P3727-PLE](/products/video-surveillance/cameras/axis-p3727-ple/)** — single-sensor 360° panoramic optimized for **horizontal** scenes (parking lots, perimeters) with 2 MP. **[P3735-PLE](/products/video-surveillance/cameras/axis-p3735-ple/)** — multi-sensor (4-sensor) 360° with ARTPEC-8 DLPU and AI Object Analytics for **larger area coverage** with multi-sensor stitching. Choose the M4308-PLE for **ceiling-mount full-room** views; the P3727 / P3735 for **outdoor large-area horizontal** panoramas.
What's on-edge dewarping and why does it matter? +
**On-edge dewarping** means the camera processes the spherical fisheye image directly on the camera (not on the recorder / VMS) and outputs already-corrected views — full panorama, double panorama, quad view, or virtual PTZ — that look like normal rectilinear video. Without on-edge dewarping, the recorder / VMS has to do the dewarping itself, which adds CPU load and limits feature availability. With on-edge dewarping in the M4308-PLE, every connected VMS (Axis Camera Station, Genetec, Milestone, ONVIF) can immediately use any of the dewarped views without server-side processing.
Will the M4308-PLE survive Chicago winters? +
Yes — **−40 °C to +60 °C operating range** handles every Chicago weather scenario including the harshest polar vortex events. Combined with **IP66** weatherproof rating and **IK10** vandal resistance, the M4308-PLE handles direct rain, snow, sleet, freeze-thaw cycles, and outdoor exposure with extensive margin. Suitable for outdoor courtyards, covered parking decks, transit shelters, loading docks, and other exposed Chicago positions.
How many cameras can a single fisheye replace? +
Typically **3–4 fixed cameras** for full-room coverage. A single ceiling-mounted M4308-PLE captures the full 183° hemispheric scene (effectively the entire room below + walls), with on-edge dewarping outputting multiple views simultaneously. For Chicago retail, hospitality, banking lobby, and healthcare reception positions, this means: lower hardware cost, fewer cable runs, one cable per coverage zone, simpler installation, and less rigging in finished ceilings.
Where does the M4308-PLE win in Chicago? +
Best-fit Chicago positions: **(1) Retail full-store ceiling coverage** — neighborhood retail, shopping corridors (Magnificent Mile, State Street); **(2) Restaurant and hospitality dining rooms**; **(3) Hotel lobbies and reception** — Loop, River North, Mag Mile hotels; **(4) Parking-deck level coverage** at Chicago commercial properties (Loop garages, university parking); **(5) School / university common areas** — cafeterias, lobbies, gymnasiums; **(6) Healthcare lobbies and waiting rooms** at Chicago-area hospitals and clinics; **(7) Banking and credit union lobby ceilings**; **(8) Property management common areas** — package rooms, mailrooms, corridors.
How does the M4308-PLE compare to Hanwha fisheye alternatives? +
For projects without an Axis VMS commitment: **Hanwha PNM-9322VQP** is a 12MP multi-sensor panoramic with AI; **Hanwha XNF-8010R** / **XNF-9010RV** are Wisenet fisheye / hemispheric models with 6MP / 9MP and varying environmental ratings. The Axis M4308-PLE wins on **single-cable simplicity + 12 MP at a single fisheye lens** for full-room ceiling coverage; Hanwha multi-sensor wins for **horizontal large-area coverage with AI per-sensor**. Choice typically follows the customer's VMS commitment and the specific scene geometry (round room vs. wide horizontal).
Is the M4308-PLE compatible with Axis Camera Station, Genetec, Milestone? +
Yes. ONVIF Profile S, G, T — fully compatible with Axis Camera Station (preferred for full feature access including dewarping view configuration, ACAP applications), Genetec Security Center, Milestone XProtect, and most ONVIF-based recorders. On-edge dewarping means each VMS can directly consume already-corrected views.
Does Vidimost install Axis fisheye cameras in Chicago? +
Yes. The M4308-PLE is one of our preferred fisheye / panoramic picks for Chicago retail, hospitality, healthcare, banking lobby, and parking-deck full-coverage positions. Full-scope service includes site walkthrough, mounting (with recessed-kit options for finished ceilings), Cat6 + PoE switch sizing, Axis Camera Station commissioning, **dewarping view configuration** (panorama / double panorama / quad / virtual PTZ), motion zone setup, ACAP application deployment, and operator training.
